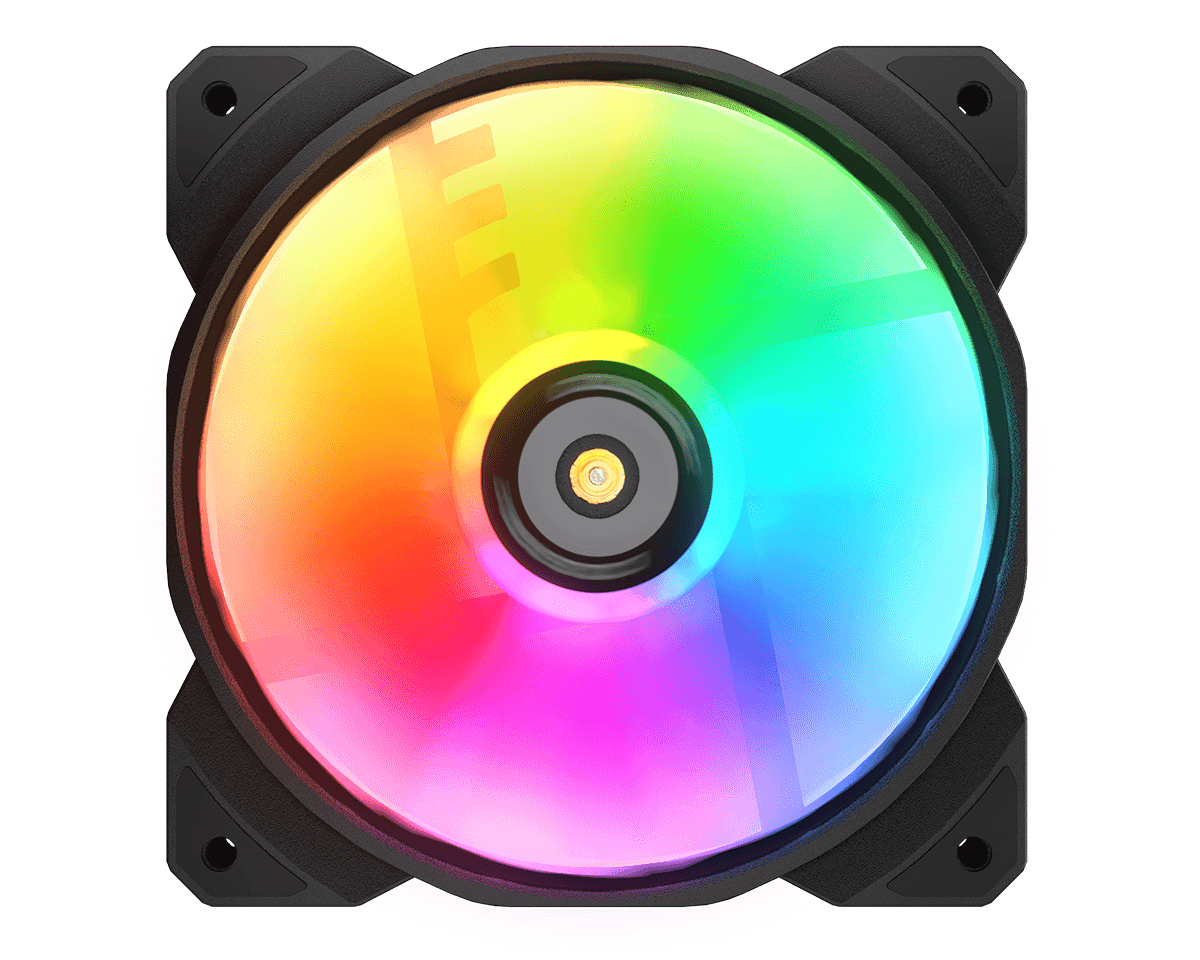

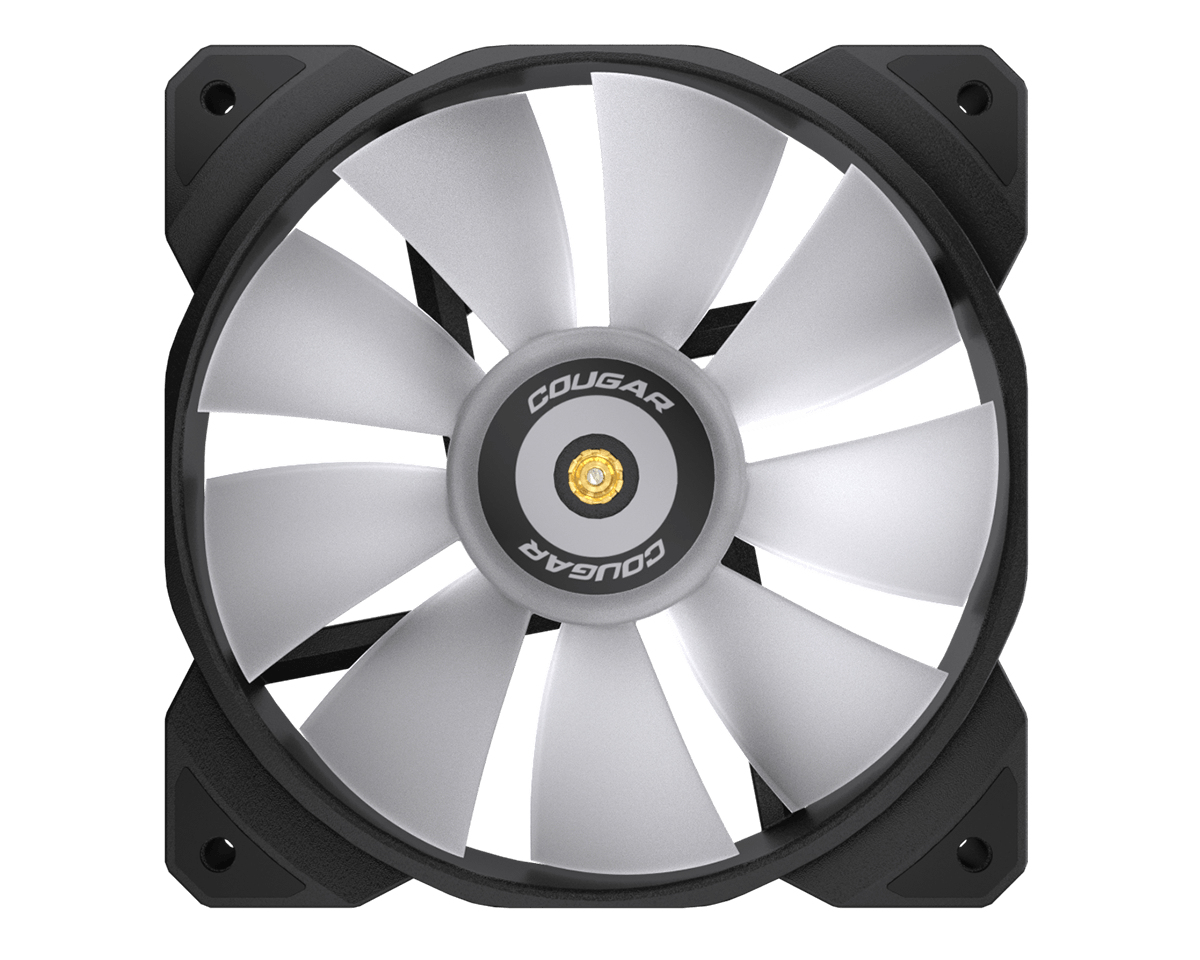

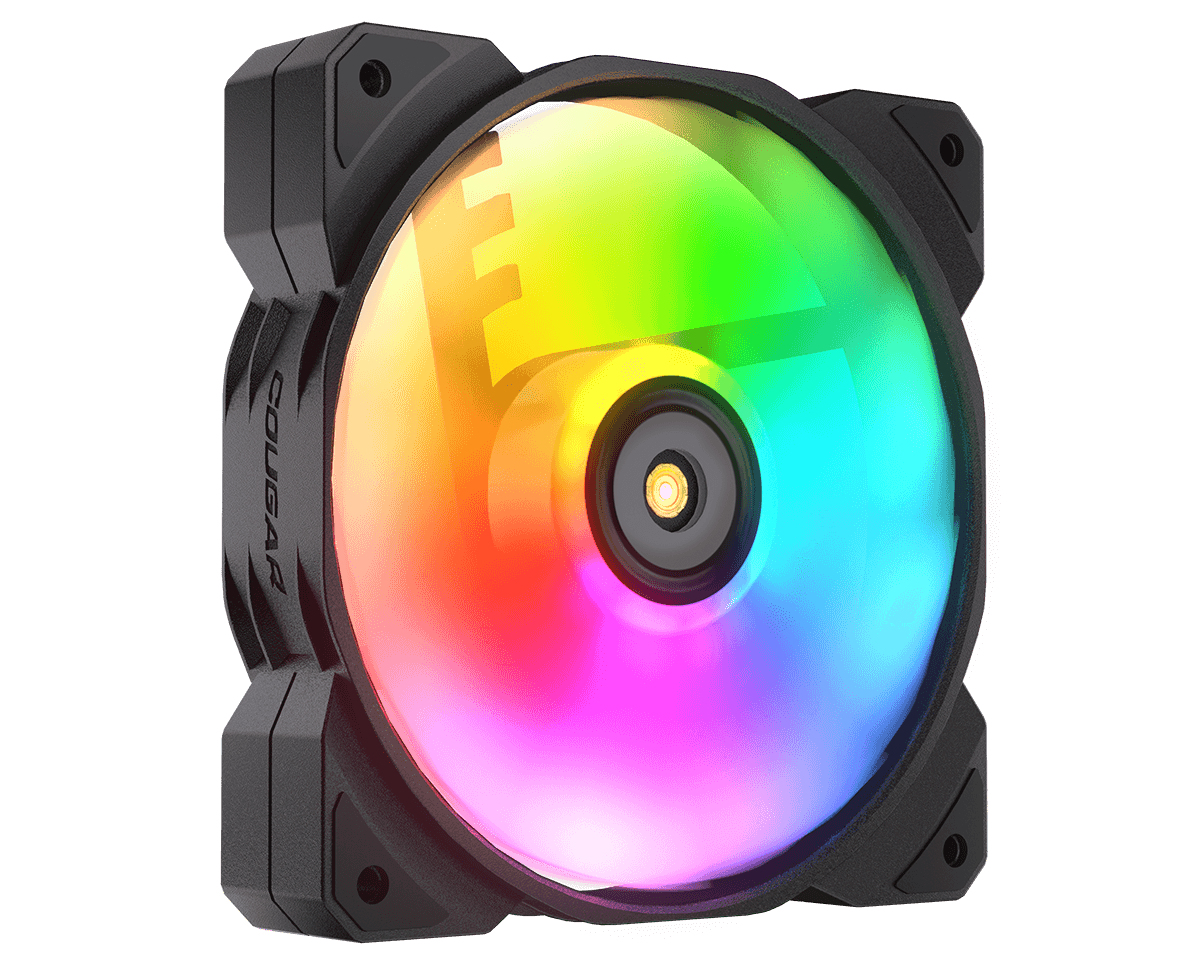

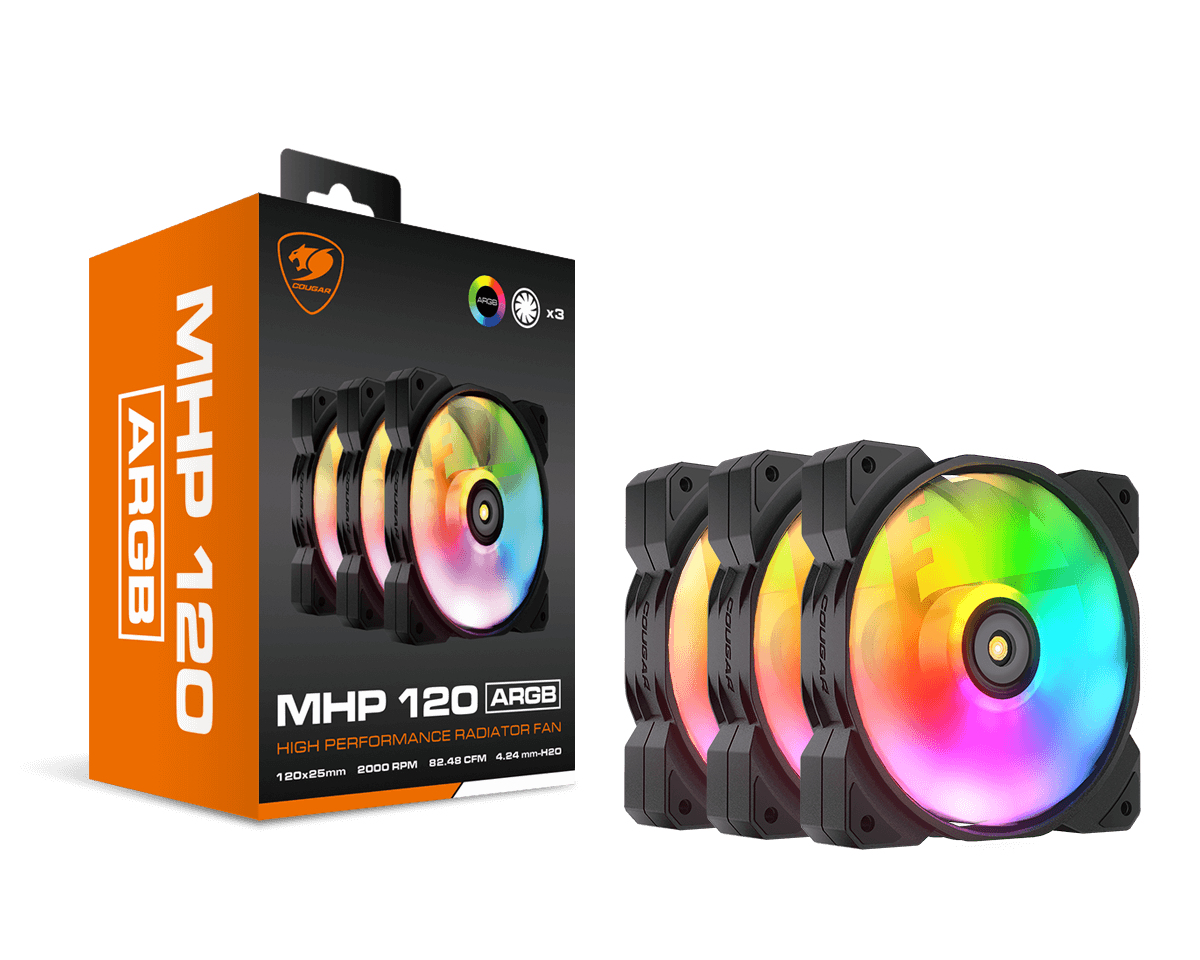

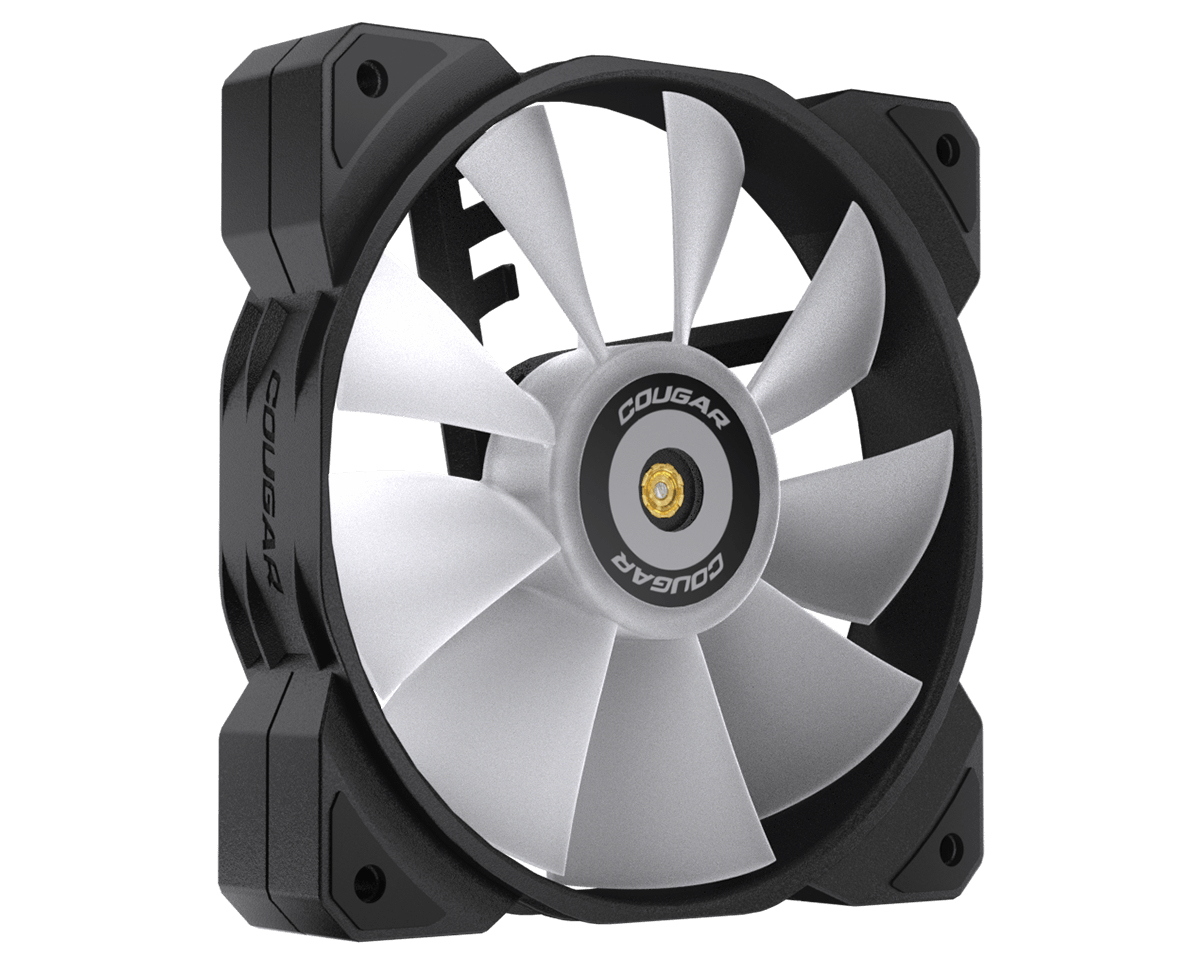

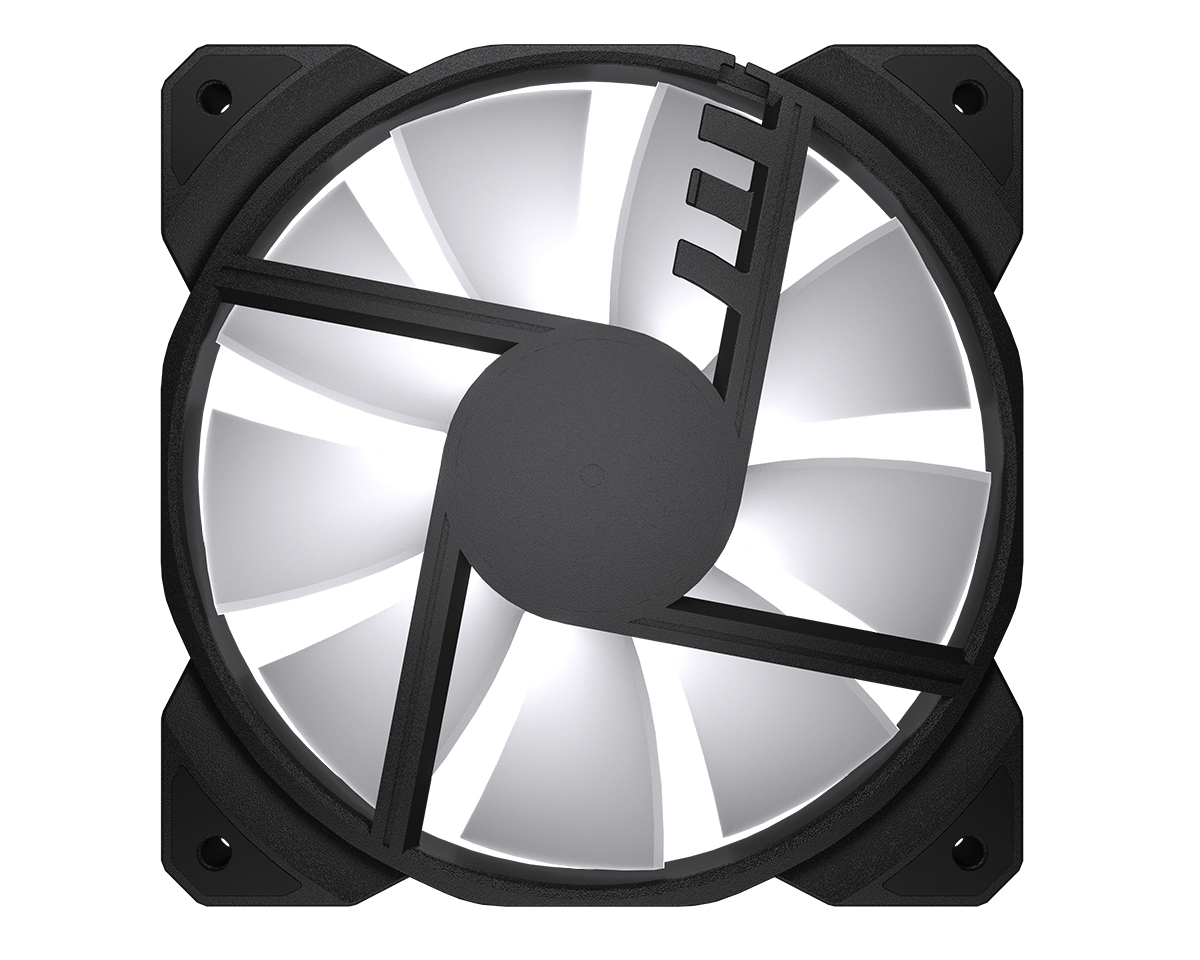

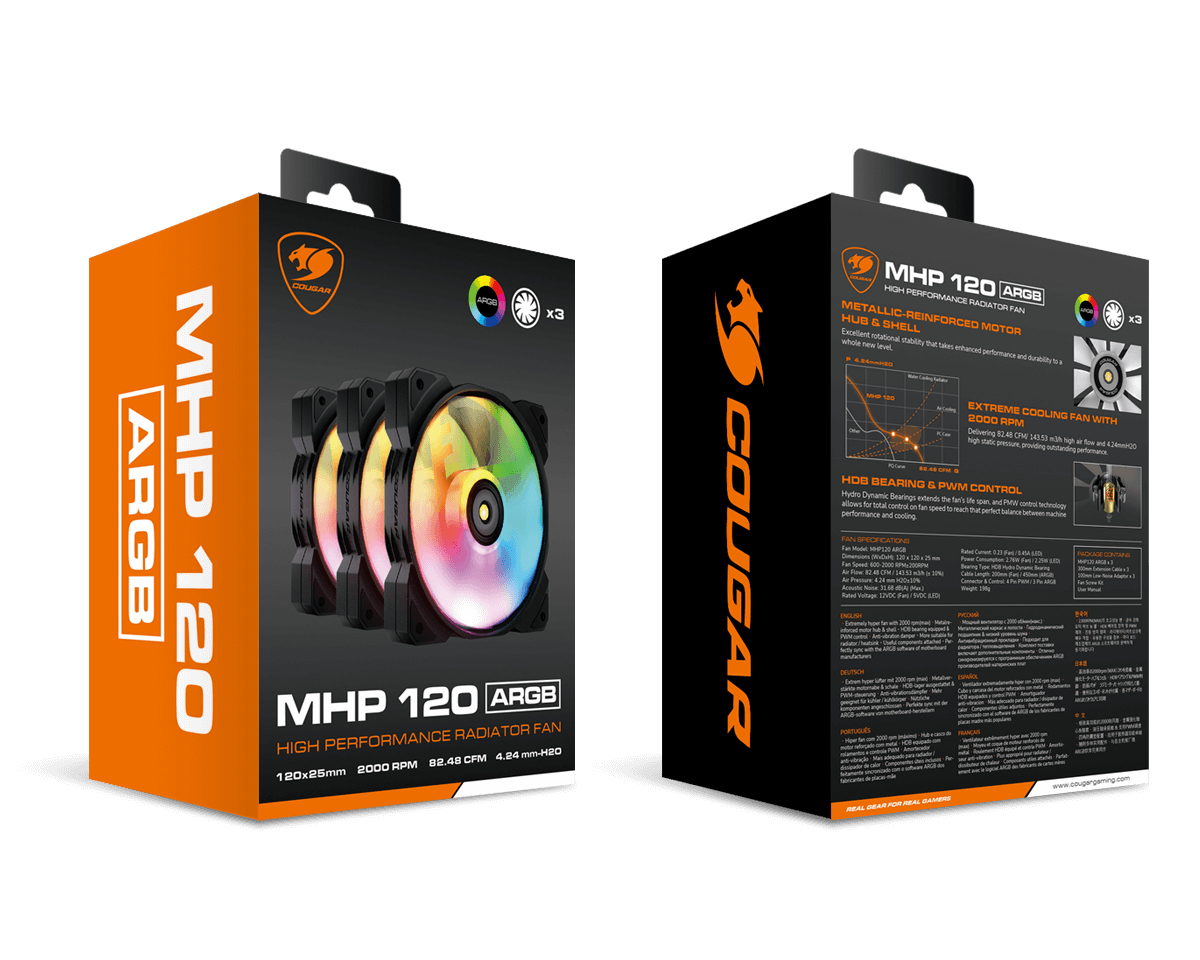

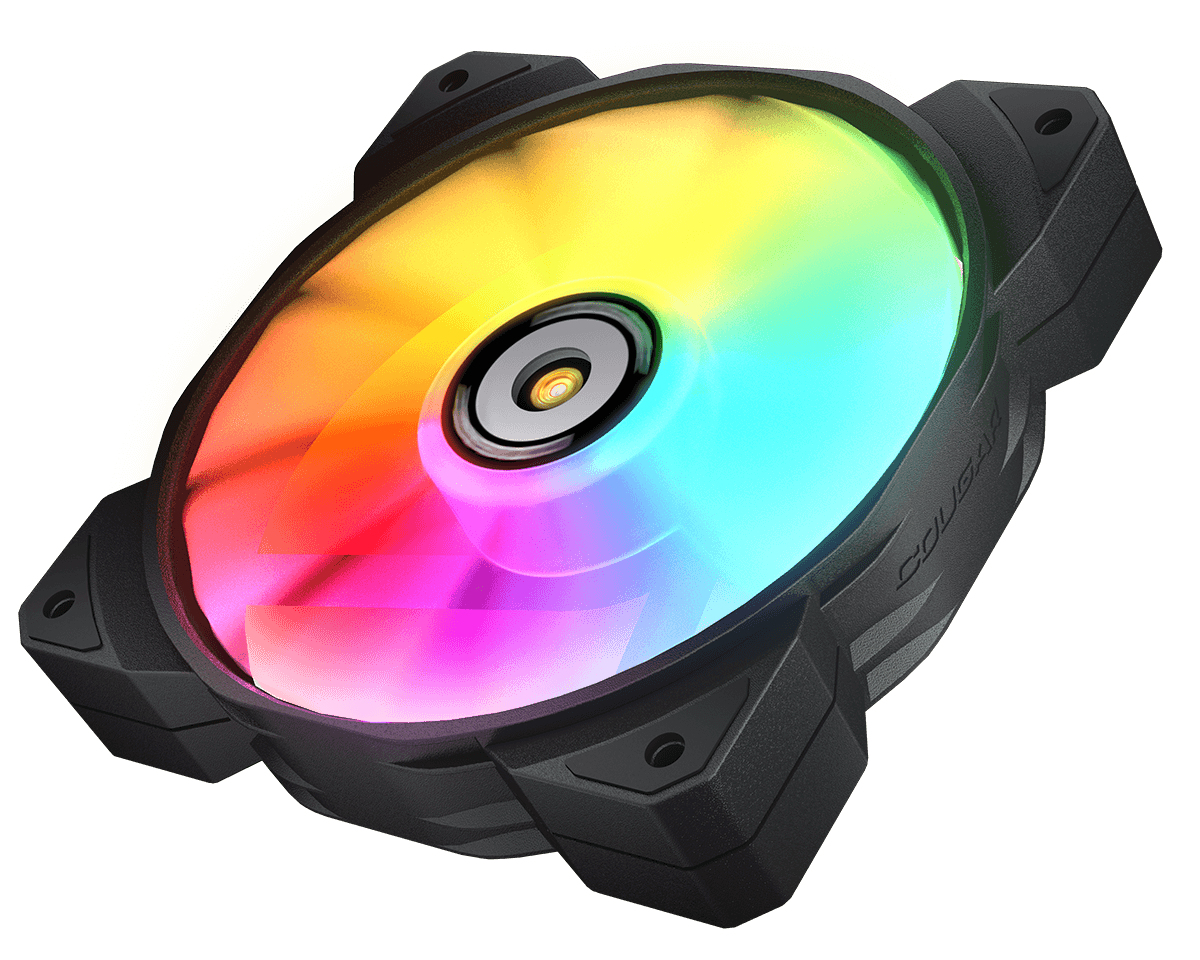

Case Fan MHP 120 ARGB, Black (3 in one package)
Model CGR-CF-MHP12HB3-RGBPart no. 3MMHP12A3.0001EAN 4710483774164
41 specifications
- TypeAir cooler
- Weight588 g
- ColourBlack, White
- Suitable locationComputer case
- Rated voltage12 V
- Width120 mm
Overview
- Type
- Air cooler
- Weight
- 588 g
- Colour
- Black, White
- Suitable location
- Computer case
- Rated voltage
- 12 V
- Width
- 120 mm
- Brand
- COUGAR
- Category
- Computer Cooling System
- Model
- CGR-CF-MHP12HB3-RGB
- Part number
- 3MMHP12A3.0001
- EAN / UPC
- 4710483774164
- Also known as
- COUGAR Case Fan MHP 120 ARGB, Black (3 in one package)
Specifications
41 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Maximum airflow | 82.48 cfm |
| Airflow | 143.53 m³/h |
| Maximum air pressure | 4.24 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (max) | 31.68 dB |
| Fan bearing technology | Hydro Dynamic Bearing (HDB) |
| Quantity per pack | 3 pc(s) |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 600 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Material | Metal |
| Number of fans | 3 fan(s) |
| Number of fan blades | 9 |
| Illumination LED | Yes |
| Number of LEDs | 9 |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Rated voltage | 12 V |
| Fan power consumption | 2.76 W |
| LED power consumption (fan) | 2.25 W |
| LED voltage | 5 V |
| Rated current | 0.23 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 28 mm |
| Weight | 588 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Cable length | 0.2 m |
| Package width | 130 mm |
| Package depth | 95 mm |
| Package height | 164 mm |
| Package weight | 846.5 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
