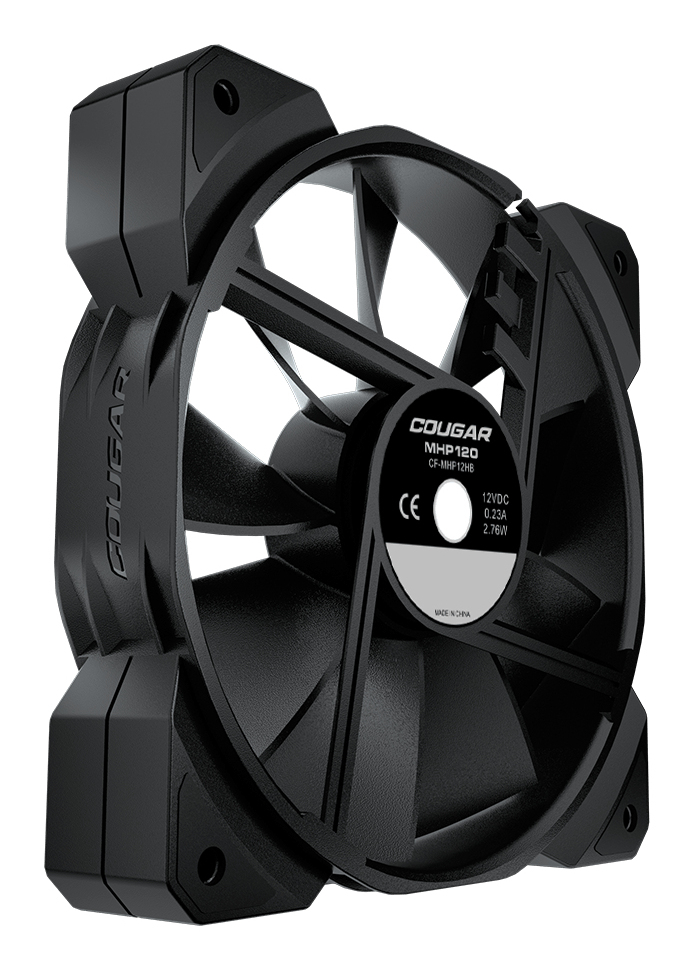

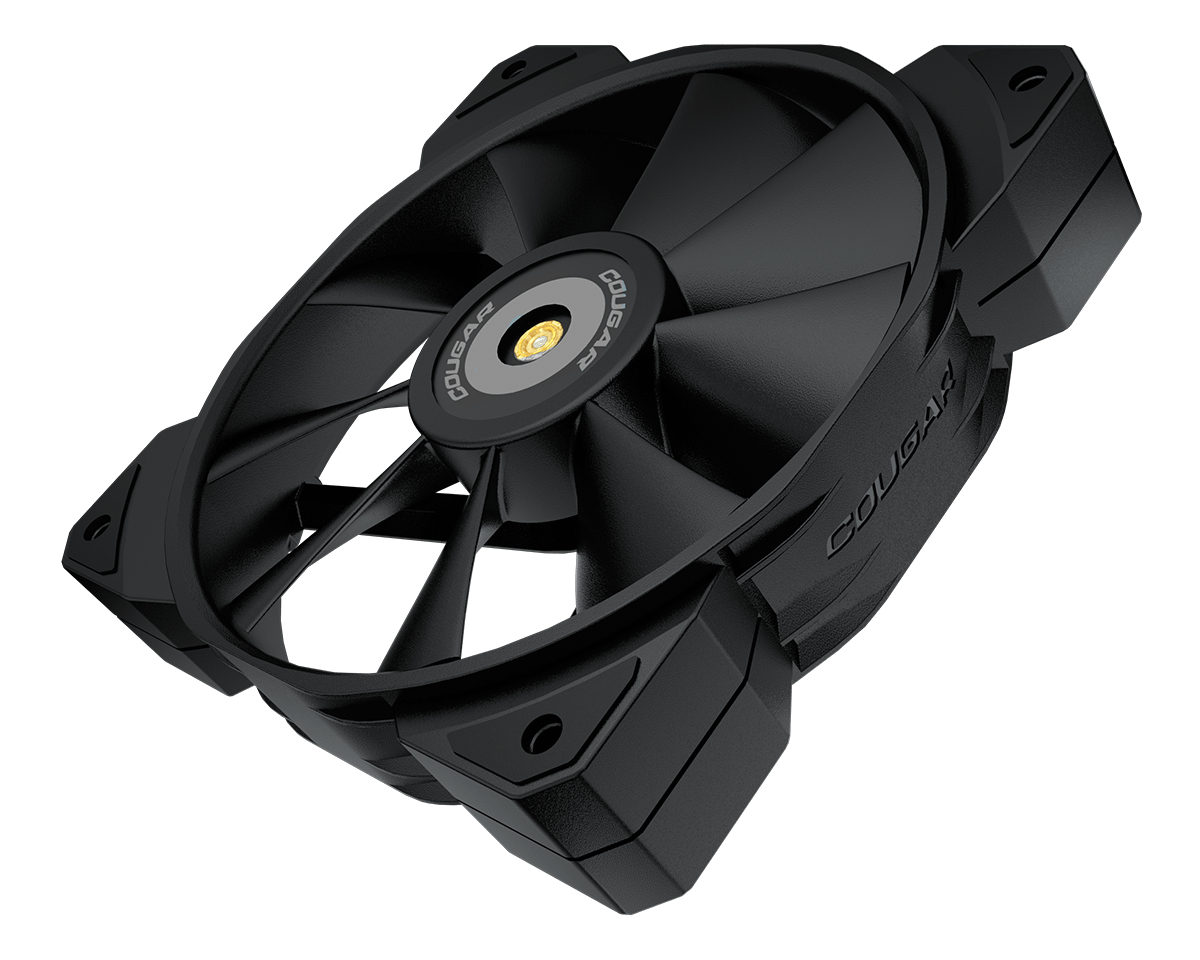

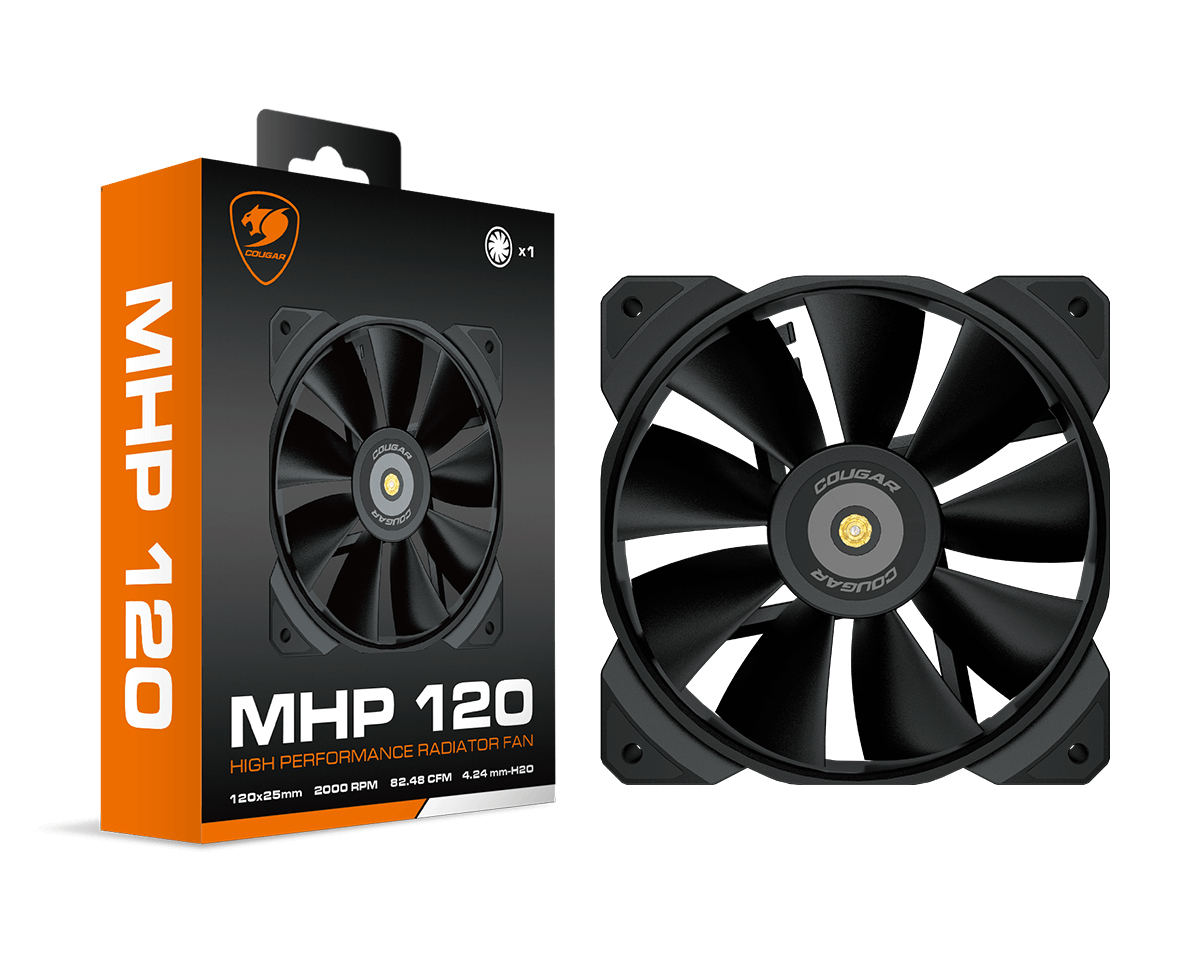

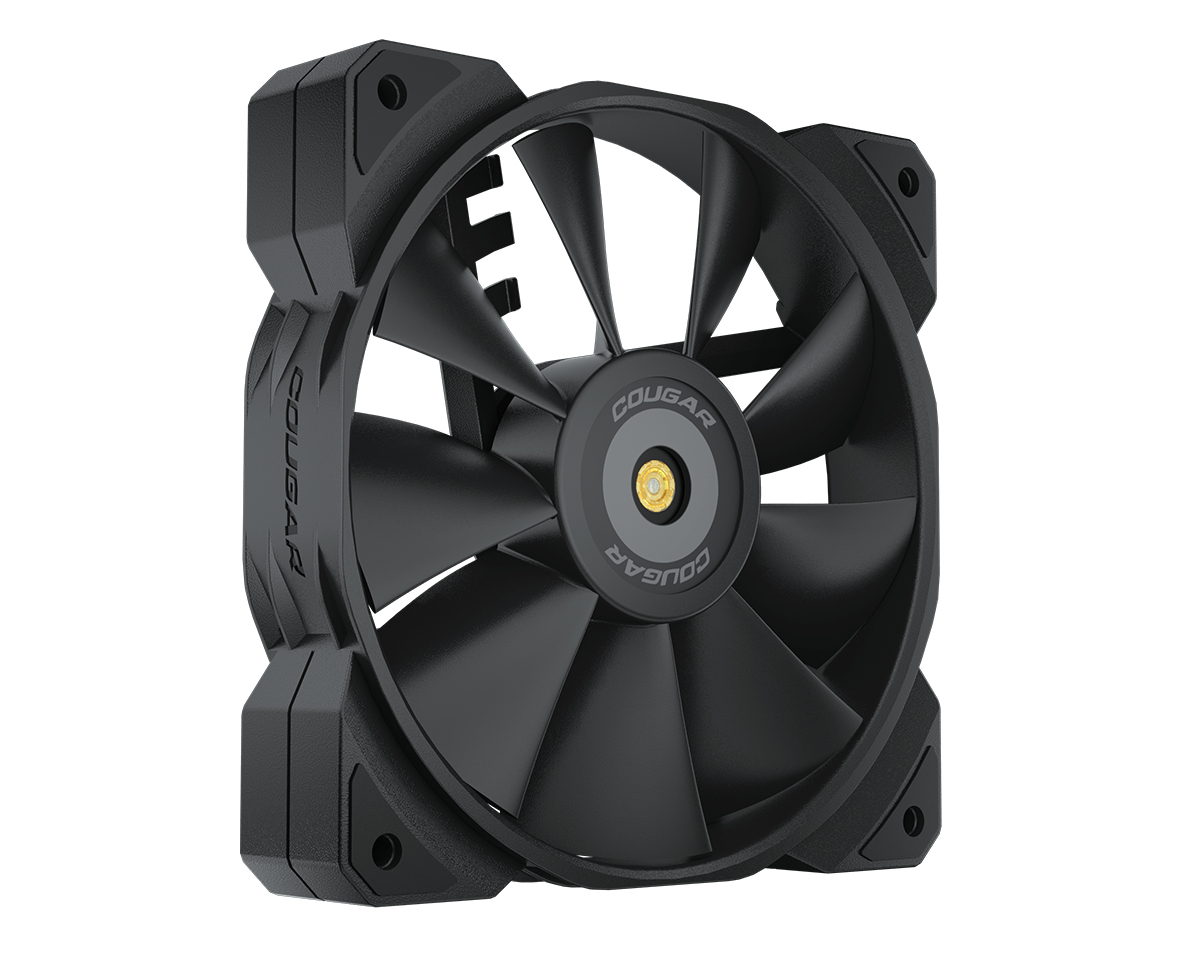

Case Fan MHP 120, Black
Model CGR-CF-MHP12HBPart no. 3MMHP1201.0001EAN 4710483773341
39 specifications
- Noise34.5 dB
- TypeFan
- Weight186 g
- ColourBlack
- Suitable locationComputer case
- Power supply2.76 W
Overview
- Noise
- 34.5 dB
- Type
- Fan
- Weight
- 186 g
- Colour
- Black
- Suitable location
- Computer case
- Power supply
- 2.76 W
- Brand
- COUGAR
- Category
- Computer Cooling System
- Model
- CGR-CF-MHP12HB
- Part number
- 3MMHP1201.0001
- EAN / UPC
- 4710483773341
- Also known as
- COUGAR Case Fan MHP 120, Black
Specifications
39 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (high speed) | 34.5 dB |
| Maximum airflow | 82.48 cfm |
| Maximum air pressure | 4.24 mmH2O |
| Bearing type | Hydraulic |
| Fan noise level (max) | 34.5 dB |
| Fan bearing technology | Hydraulic bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 600 RPM |
| Fan static pressure | 4.24 mmH2O |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Illumination LED | Yes |
| Illumination colour | Blue, Green, Red |
| LED connector type | 4-pin |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power supply | 2.76 W |
| Rated voltage | 12 V |
| Fan current | 0.23 A |
| Fan voltage | 12 V |
| Rated current | 0.23 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 186 g |
| Fan thickness | 2.5 cm |
| Package width | 169 mm |
| Package depth | 135 mm |
| Package height | 27 mm |
| Package weight | 276 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Package type | Hanging box |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
