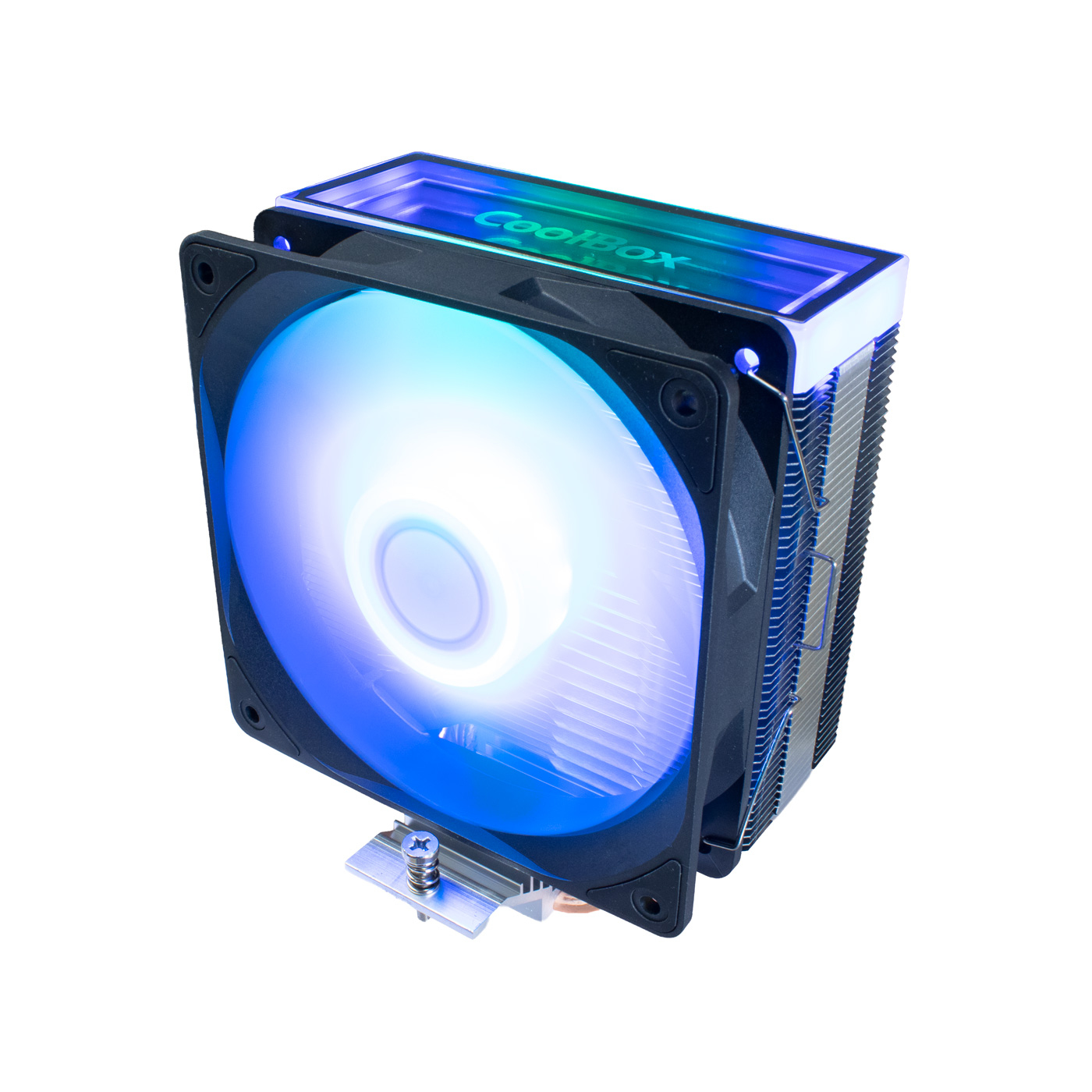

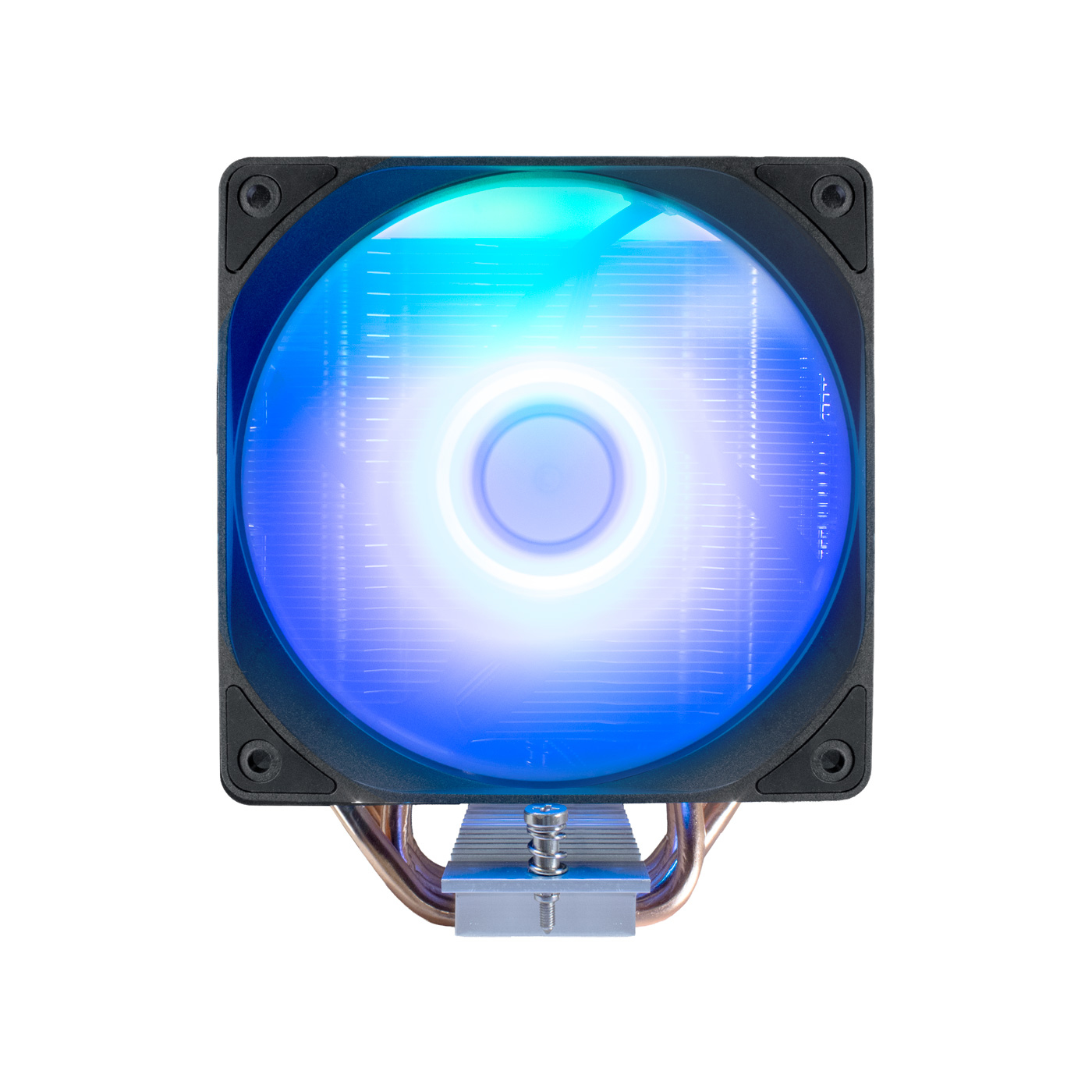

Infinite Air 120
Model Infinite Air 120Part no. COO-VCPU-4-ARBEAN 8436624420153
32 specifications
- TypeAir cooler
- ColourAluminium, Black
- Suitable locationProcessor
- Fan current0.16 A
- Width120 mm
Overview
- Type
- Air cooler
- Colour
- Aluminium, Black
- Suitable location
- Processor
- Fan current
- 0.16 A
- Width
- 120 mm
- Brand
- CoolBox
- Category
- Computer Cooling System
- Model
- Infinite Air 120
- Part number
- COO-VCPU-4-ARB
- EAN / UPC
- 8436624420153
- Also known as
- CoolBox Infinite Air 120 Processor Air cooler 12 cm Aluminium, Black 1 pc(s)
Specifications
32 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5 |
| Maximum airflow | 70.1 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Fan noise level (max) | 37.3 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 800 RPM |
| Fan static pressure | 1.9 mmH2O |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 1 fan(s) |

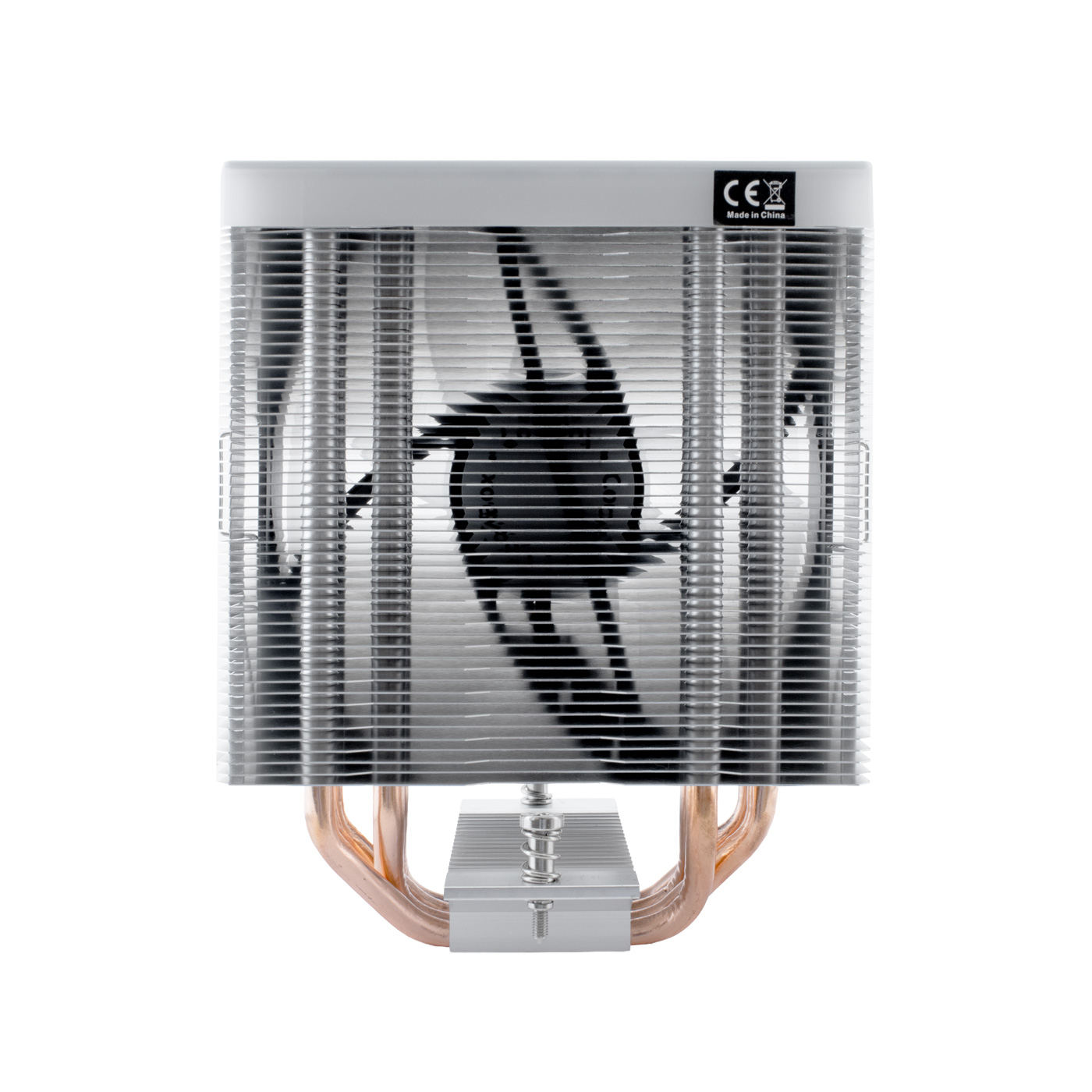

| Fins material | Aluminium |

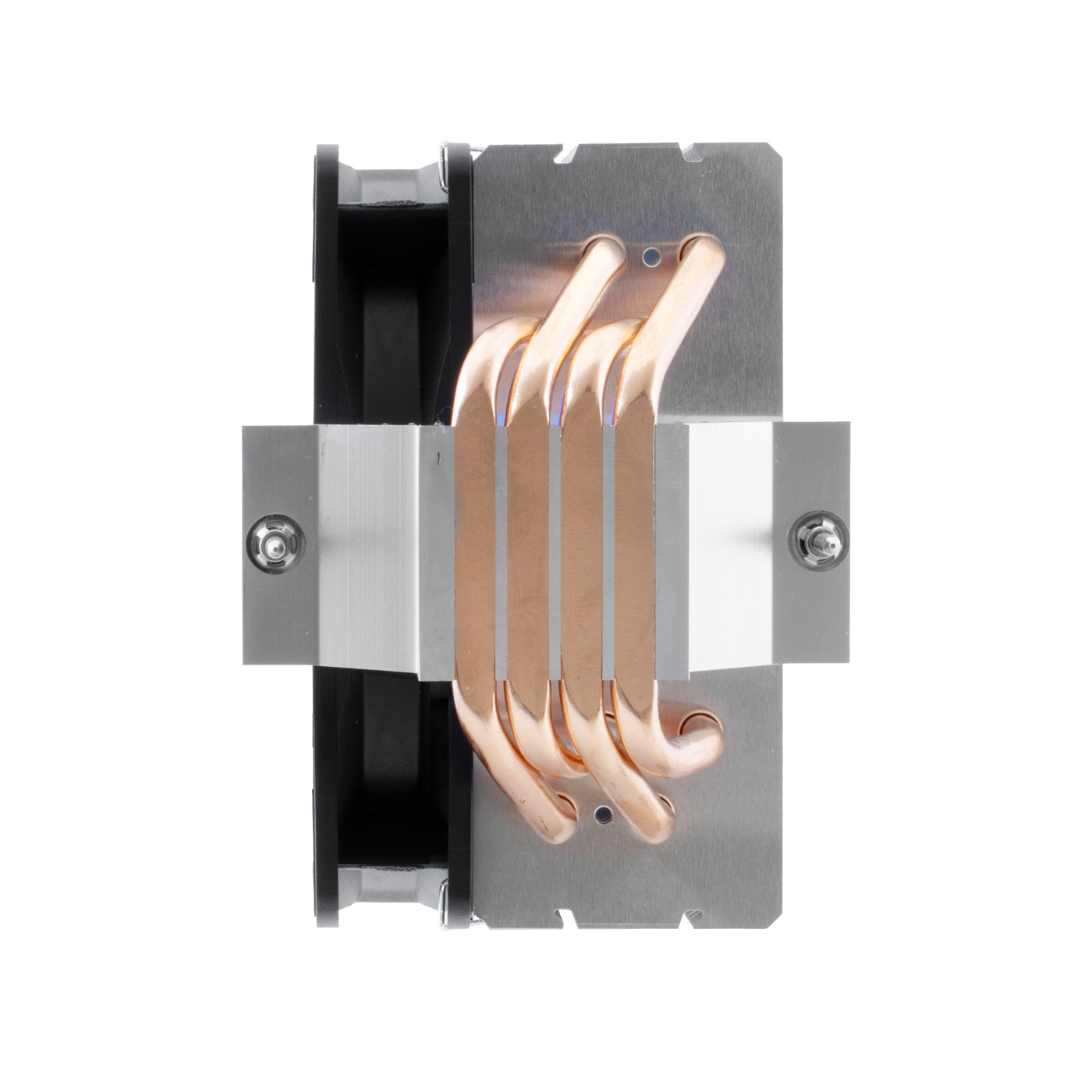

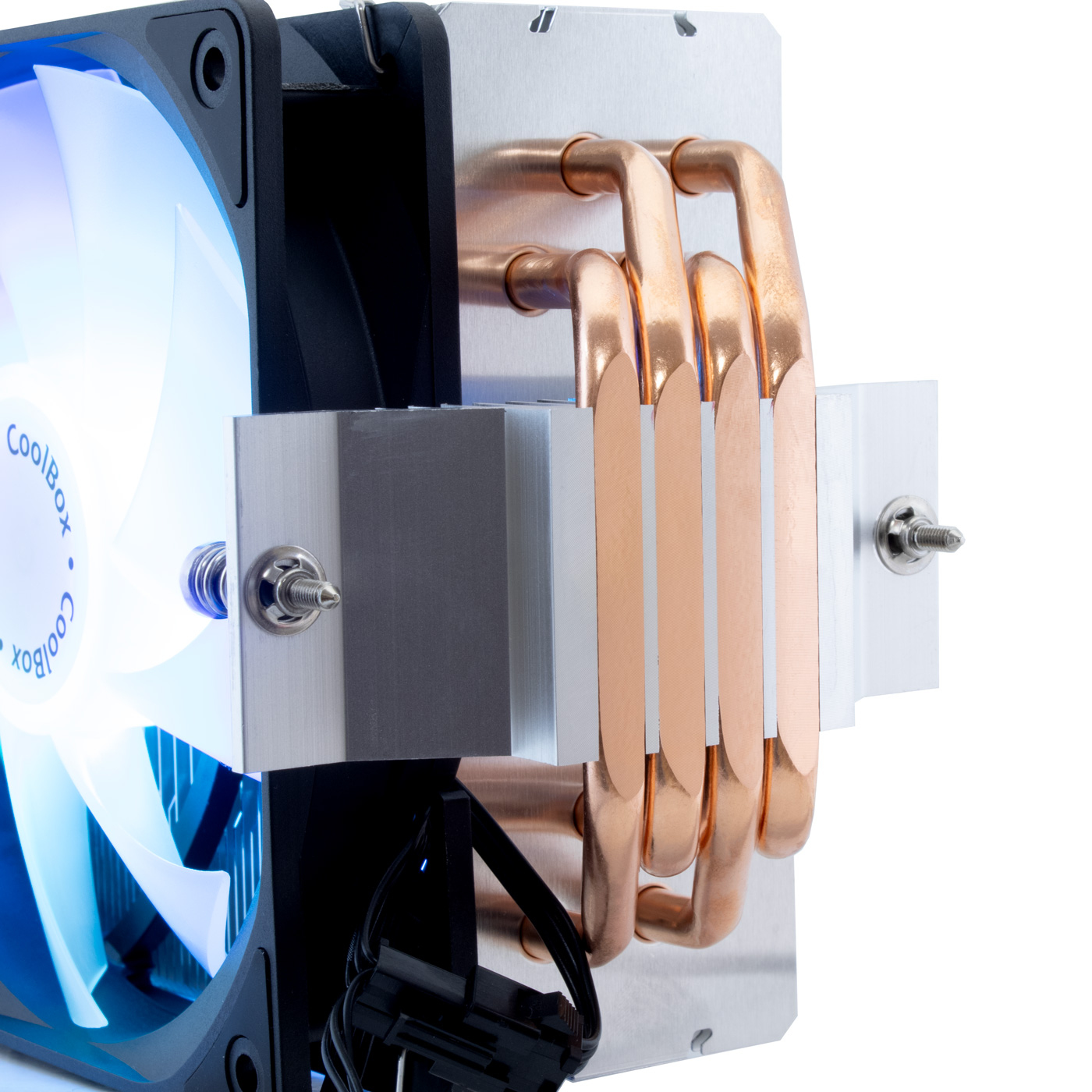

| Number of heat pipes | 4 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Fan current | 0.16 A |
| Fan voltage | 12 V |
| Thermal Design Power (TDP) | 180 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 72 mm |
| Height | 151 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
