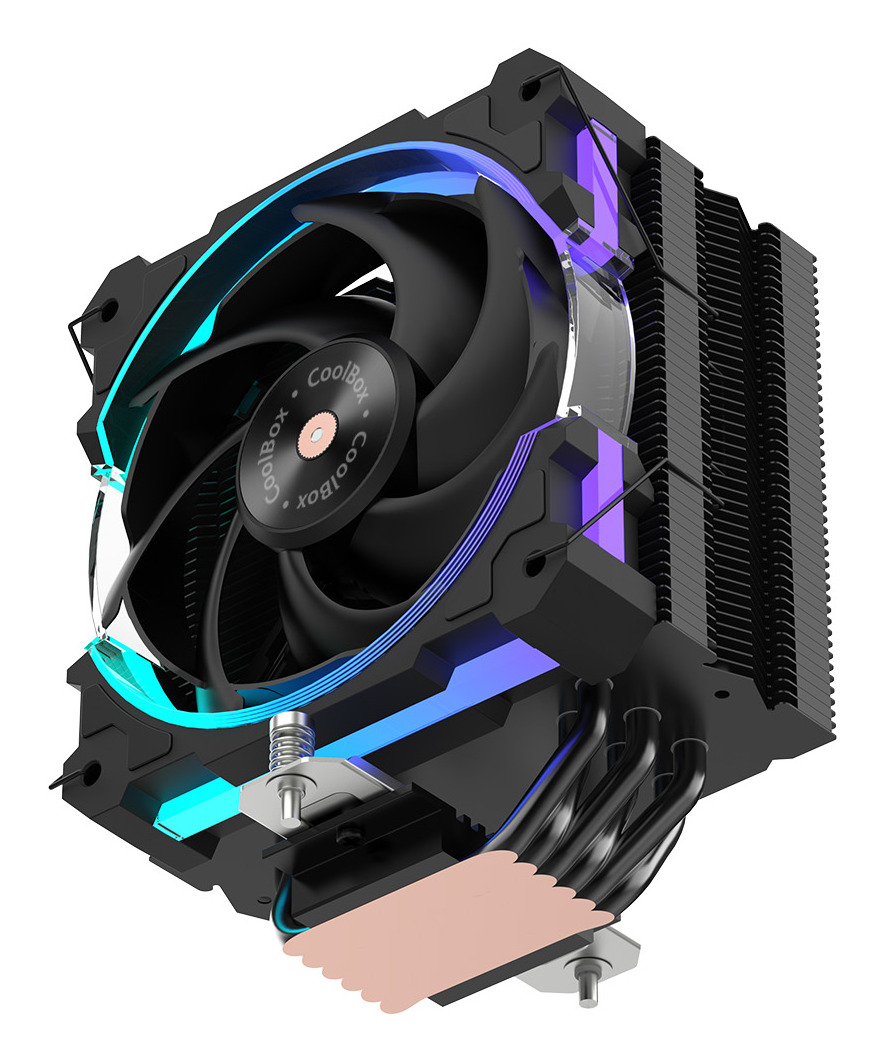

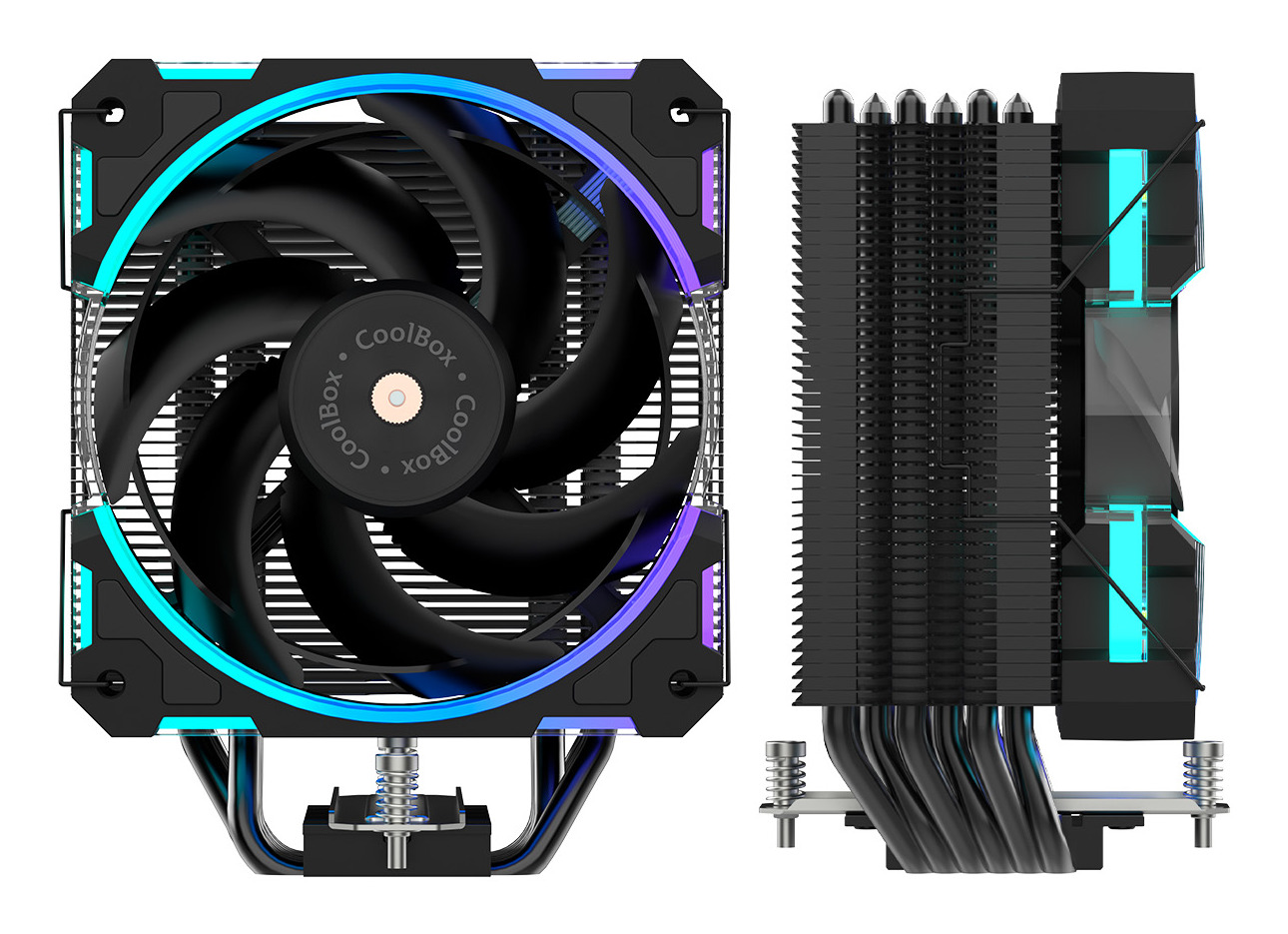

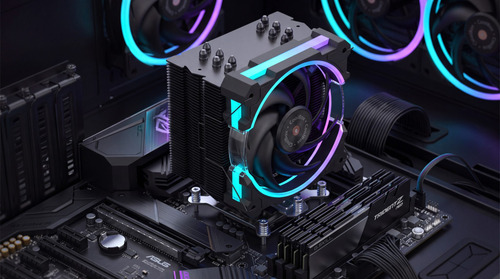

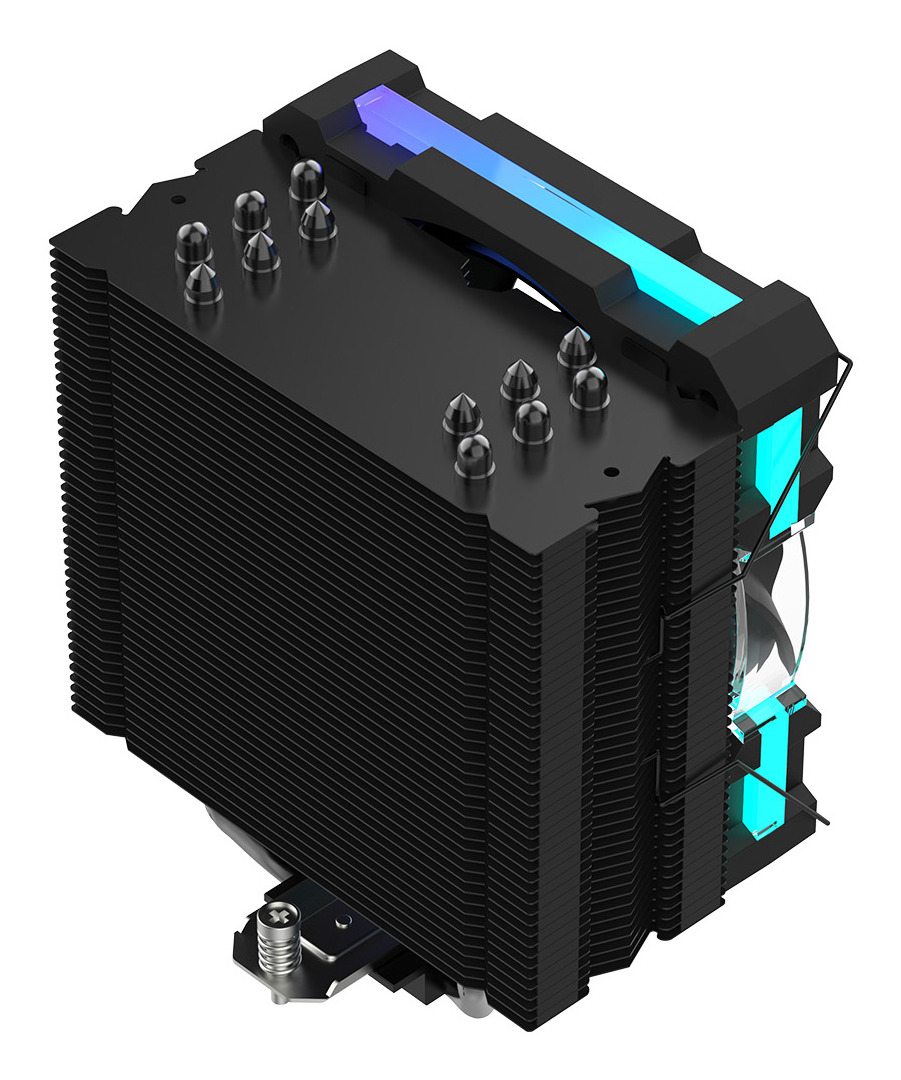

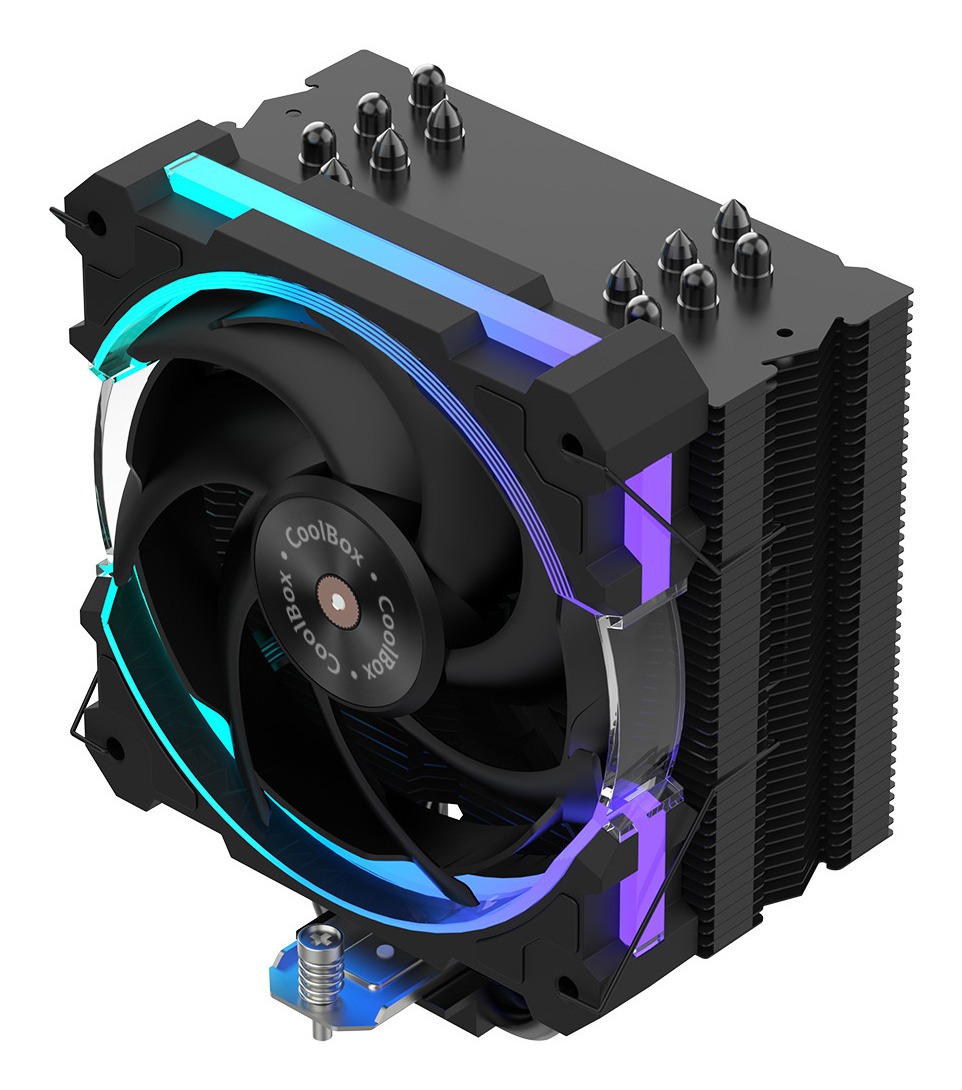

H6 Ring ARGB
Model H6 Ring ARGBPart no. COO-VCPU-6H-ARBEAN 8436624423550
32 specifications
- Noise18.9 dB
- TypeAir cooler
- Weight662 g
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)2.76 W
Overview
- Noise
- 18.9 dB
- Type
- Air cooler
- Weight
- 662 g
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 2.76 W
- Brand
- CoolBox
- Category
- Computer Cooling System
- Model
- H6 Ring ARGB
- Part number
- COO-VCPU-6H-ARB
- EAN / UPC
- 8436624423550
- Also known as
- CoolBox H6 Ring ARGB Processor Air cooler 12 cm Black 1 pc(s)
Specifications
32 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5 |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 2400 RPM |
| Noise level (low speed) | 18.9 dB |
| Noise level (high speed) | 40.2 dB |
| Maximum airflow | 82 cfm |
| Minimum air pressure | 0.44 mmH2O |
| Maximum air pressure | 3.39 mmH2O |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan's mean time to failure (MTTF) | 70000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fan blades | 7 |
| Number of heat pipes | 6 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.76 W |
| Voltage | 12 V |
| Maximum current | 0.23 A |
| Thermal Design Power (TDP) | 240 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 126 mm |
| Depth | 76 mm |
| Height | 153 mm |
| Weight | 662 g |
| Fan dimensions (W x D x H) | 120 x 27 x 125 mm |
| Fan weight | 205 g |
| Heat pipes diameter | 6 mm |
