SILENT LOOP 2 240mm
Model SILENT LOOP 2 240mmPart no. BW010EAN 4260052188323
54 specifications
- TypeAll-in-one liquid cooler
- Weight1.05 kg
- ColourBlack
- Suitable locationProcessor
- Fan power consumption1.92 W
- Width120 mm
Overview
- Type
- All-in-one liquid cooler
- Weight
- 1.05 kg
- Colour
- Black
- Suitable location
- Processor
- Fan power consumption
- 1.92 W
- Width
- 120 mm
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- SILENT LOOP 2 240mm
- Part number
- BW010
- EAN / UPC
- 4260052188323
- Also known as
- be quiet! Silent Loop 2 240mm All In One CPU Water Cooling, 2 X 240mm PWM Fan, For Intel Socket: 1200 / 2066 / 115X / 2011(-3) square ILM; For AMD Socket: AMD:
Specifications
54 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4 |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan noise level (min) | 16.8 dB |
| Fan noise level (max) | 38.3 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Pump connector | 3-pin |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2200 RPM |
| Pump motor speed | 2800 RPM |
| Fan's mean time to failure (MTTF) | 300000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminium |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 1.92 W |
| Fan current | 0.37 A |
| Fan voltage | 12 V |
| Pump voltage | 9 - 12 V |

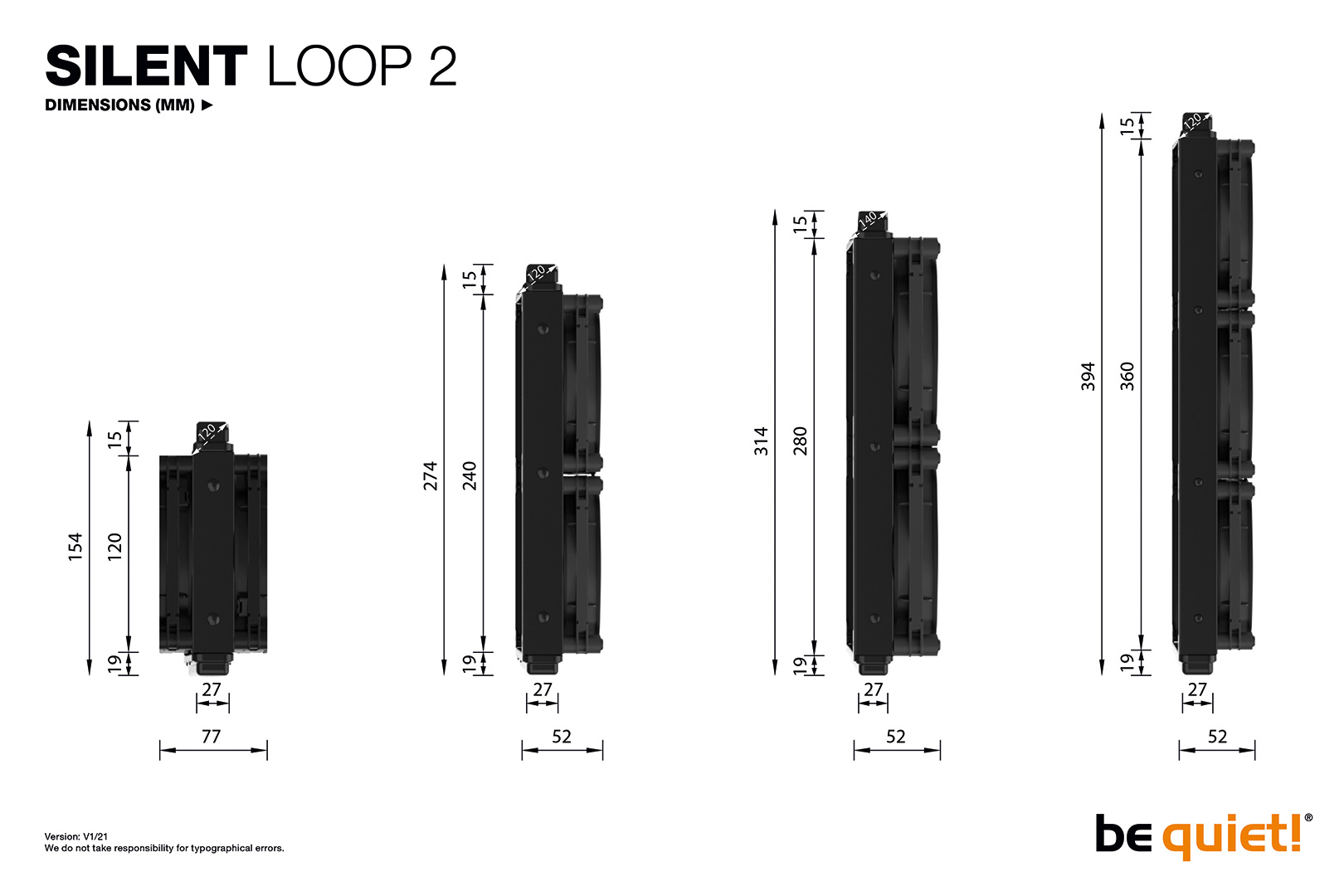

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 52 mm |
| Height | 274 mm |
| Radiator width | 12 cm |
| Radiator depth | 2.7 cm |
| Radiator height | 27.4 cm |
| Tube length | 40 cm |
| Weight | 1.05 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package width | 205 mm |
| Package depth | 322 mm |
| Package height | 137 mm |
| Package weight | 1.94 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Cables included | Pulse Width Modulation (PWM) Y-cable |
| Mounting kit | Yes |
| LED controller interface | 3-pin |
| RGB controller included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
| Country of origin | Germany |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case width | 43.5 cm |
| Shipping (inner) case length | 33.8 cm |
| Shipping (inner) case height | 44 cm |
| Shipping (inner) case gross weight | 17 kg |
