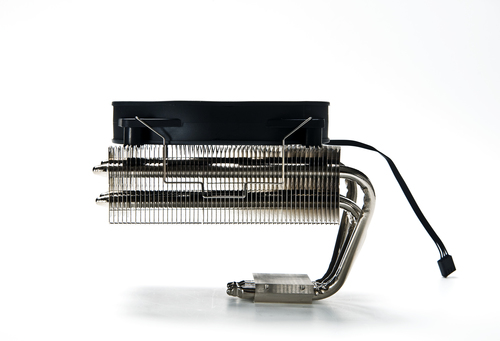

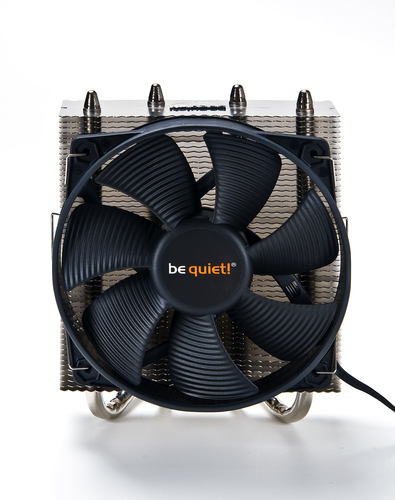

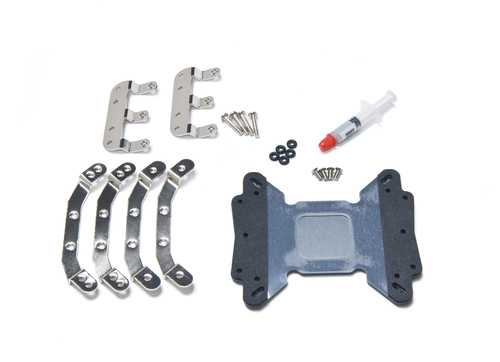

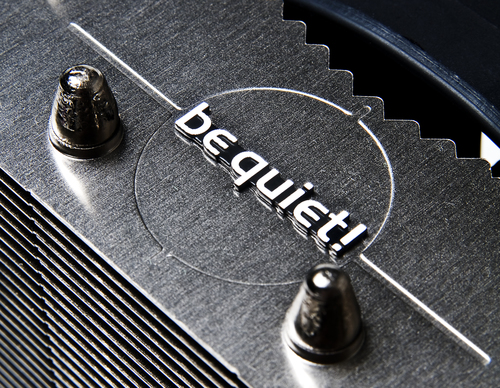

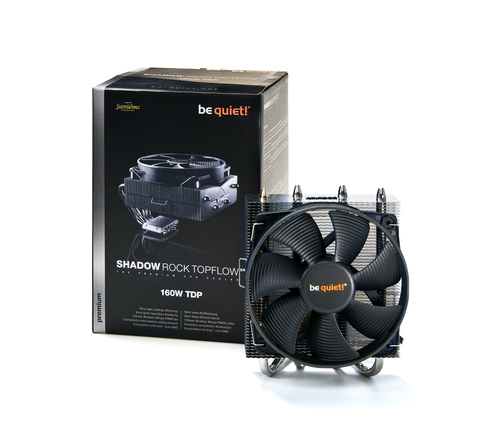

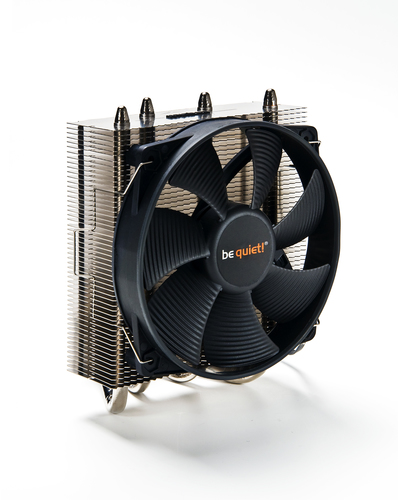

be quiet! Shadow Rock TopFlow SR1

be quiet! Shadow Rock TopFlow SR1

Model Shadow Rock TopFlow SR1Part no. BK012EAN 3548389107912

26 specifications
  • Noise9.60 dB
  • TypeCooler
  • Weight650 g
  • ColourBlack, Metallic
  • Suitable locationProcessor
  • Power consumption (typical)3 W
See all specifications

Overview

Noise
9.60 dB
Type
Cooler
Weight
650 g
Colour
Black, Metallic
Suitable location
Processor
Power consumption (typical)
3 W
Brand
be quiet!
Model
Shadow Rock TopFlow SR1
Part number
BK012
EAN / UPC
3548389107912, 4260052182765
Also known as
be quiet! Shadow Rock TopFlow SR1 Processor Cooler 13.5 cm Black, Metallic

Specifications

26 specifications in 6 groups

Performance

Suitable locationProcessor
TypeCooler
Fan diameter13.5 cm
Supported processor socketsSocket 754, Socket 939, Socket 940
Rotational speed (max)1500 RPM
Noise level (low speed)9.60 dB
Noise level (high speed)24.4 dB
Maximum airflow66.8 cfm
Airflow113.6 m³/h
Maximum air pressure2.1 mmH2O
Mean time between failures (MTBF)200000 h

Design

Product colourBlack, Metallic

Power

Power consumption (typical)3 W
Voltage12 V
Rated current0.22 A
Thermal Design Power (TDP)160 W

Weight & dimensions

Width171 mm
Depth137 mm
Height126 mm
Weight650 g
Fan dimensions (W x D x H)135 x 135 x 25 mm
Cable length0.2 m

Technical details

Bearing technologyRifle
Compliance certificatesRoHS

Other features

Heatsink dimensions (W x D x H)137 x 100 x 171 mm
Connector(s)4p PWM
