Shadow Rock 3
Model Shadow Rock 3Part no. BK004EAN 4260052187852
43 specifications
- Noise11.5 dB
- TypeCooler
- Weight710 g
- ColourBlack, Grey
- Suitable locationProcessor
- Power supply2.4 W
Overview
- Noise
- 11.5 dB
- Type
- Cooler
- Weight
- 710 g
- Colour
- Black, Grey
- Suitable location
- Processor
- Power supply
- 2.4 W
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Shadow Rock 3
- Part number
- BK004
- EAN / UPC
- 4260052187852
- Also known as
- be quiet! Shadow Rock 3 CPU Cooler, Single 120mm PWM Fan, For Intel Socket:1700/1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM, For AMD Socket: AM4 / AM
Specifications
43 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Rotational speed (max) | 1600 RPM |
| Noise level (low speed) | 11.5 dB |
| Noise level (high speed) | 24.4 dB |
| Bearing type | Rifle bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Base plate material | Copper |
| Number of fans | 1 fan(s) |
| Number of fins | 30 |
| Fins material | Aluminium |
| Number of heat pipes | 5 |
| Illumination LED | No |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Power supply | 2.4 W |
| Rated voltage | 12 V |
| Rated current | 0.2 A |
| Thermal Design Power (TDP) | 190 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 121 mm |
| Height | 163 mm |
| Weight | 710 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Cable length | 0.22 m |
| Package width | 145 mm |
| Package depth | 161 mm |
| Package height | 200 mm |
| Package weight | 1.18 kg |
Packaging content
| Specification | Value |
|---|---|

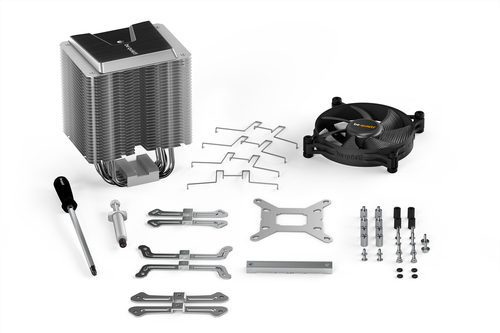

| Mounting kit | Yes |
Other features
| Specification | Value |
|---|---|
| Number of fans supported | 1 |
| Thermal grease | Yes |
| Heatsink dimensions (W x D x H) | 130 x 96 x 163 mm |
| Mean time to failure (MTTF) | 80000 h |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Products per pallet | 12 pc(s) |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 451 mm |
| Master (outer) case height | 420 mm |
| Master (outer) case gross weight | 15 kg |
