Pure Wings 3 120mm | PWM Reverse White Triple-Pack
Model Pure Wings 3 120mm | PWM Reverse White Triple-PackPart no. BL136EAN 4260052193822
40 specifications
- Noise28.5 dB
- TypeFan
- ColourWhite
- Suitable locationComputer case
- Voltage5 - 13.2 V
- Height120 mm
Overview
- Noise
- 28.5 dB
- Type
- Fan
- Colour
- White
- Suitable location
- Computer case
- Voltage
- 5 - 13.2 V
- Height
- 120 mm
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Pure Wings 3 120mm | PWM Reverse White Triple-Pack
- Part number
- BL136
- EAN / UPC
- 4260052193822
- Also known as
- be quiet! Pure Wings 3 120mm | PWM Reverse White Triple-Pack Computer case Fan 12 cm 3 pc(s)
Specifications
40 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Rotational speed (max) | 1500 RPM |
| Noise level (high speed) | 28.5 dB |
| Maximum airflow | 47.1 cfm |
| Airflow | 80 m³/h |
| Maximum air pressure | 1.17 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Quantity per pack | 3 pc(s) |
| Fan's mean time to failure (MTTF) | 80000 h |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Number of fans | 1 fan(s) |
| Illumination LED | No |
| Fan connector | 4-pin |
| Display type | Not applicable |
| Certification | RU |
Power
| Specification | Value |
|---|---|
| Voltage | 5 - 13.2 V |
| Rated voltage | 12 V |
| Fan power consumption | 3.84 W |
| Fan current | 0.07 A |
| Rated current | 0.32 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 120 mm |

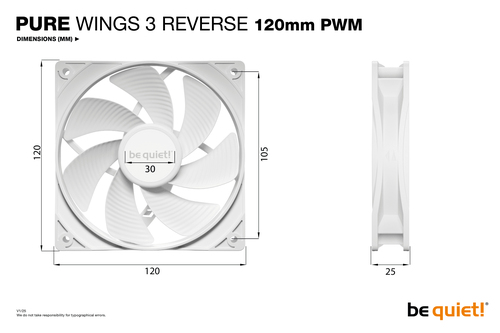

| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan weight | 142 g |
| Cable length | 0.5 m |
| Package width | 80 mm |
| Package depth | 132 mm |
| Package height | 122 mm |
| Package weight | 506 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, UKCA, WEEE |
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 20 pc(s) |
| Shipping (inner) case width | 26.4 cm |
| Shipping (inner) case length | 42.3 cm |
| Shipping (inner) case height | 30.4 cm |
| Shipping (inner) case gross weight | 10.6 kg |
