Pure Loop 2 | 280mm
Model Pure Loop 2 | 280mmPart no. BW018EAN 4260052190708
51 specifications
- Noise15.4 dB
- TypeAll-in-one liquid cooler
- Weight1.24 kg
- ColourBlack
- Suitable locationProcessor
- Fan power consumption5.4 W
Overview
- Noise
- 15.4 dB
- Type
- All-in-one liquid cooler
- Weight
- 1.24 kg
- Colour
- Black
- Suitable location
- Processor
- Fan power consumption
- 5.4 W
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Pure Loop 2 | 280mm
- Part number
- BW018
- EAN / UPC
- 4260052190708
- Also known as
- be quiet! Pure Loop 2 | 280mm Processor All-in-one liquid cooler 14 cm Black 1 pc(s)
Specifications
51 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Noise level (low speed) | 15.4 dB |
| Noise level (high speed) | 33.8 dB |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Fan bearing technology | Rifle bearing |
| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |

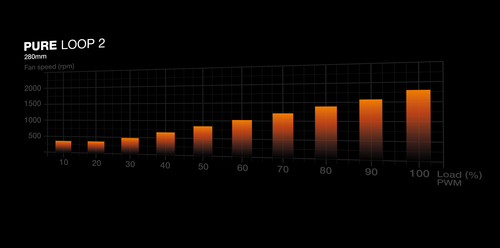

| Fan speed (max) | 1800 RPM |
| Pump motor speed | 5500 RPM |
| Pump motor speed (max) | 5500 RPM |
| Pump motor speed (min) | 4000 RPM |
| Fan's mean time to failure (MTTF) | 80000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 5.4 W |
| Fan current | 0.45 A |
| Fan voltage | 12 V |
| LED voltage | 5 V |

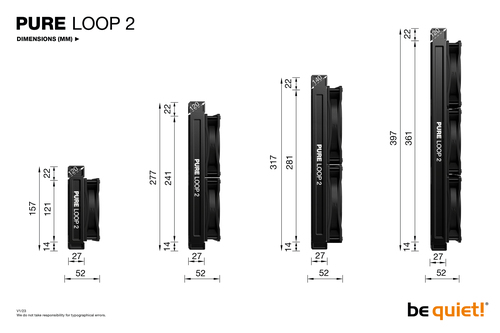

Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 31.7 cm |
| Radiator depth | 14 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Waterblock width | 8.3 cm |
| Waterblock depth | 4.2 cm |
| Waterblock height | 9.45 cm |
| Weight | 1.24 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Cable length | 0.5 m |
| Package width | 365 mm |
| Package depth | 205 mm |
| Package height | 152 mm |
| Package weight | 2.14 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
| Sustainability certificates | Triman, UL ECOLOGO |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case width | 38 cm |
| Shipping (inner) case length | 47.6 cm |
| Shipping (inner) case height | 43.8 cm |
| Shipping (inner) case gross weight | 14.2 kg |
