LIGHT WINGS LX 140mm PWM
Model LIGHT WINGS LX 140mm PWMPart no. BL126EAN 4260052191644
40 specifications
- Noise22.9 dB
- TypeFan
- ColourBlack
- Suitable locationComputer case
- Voltage5 - 13.2 V
- Height140 mm
Overview
- Noise
- 22.9 dB
- Type
- Fan
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 5 - 13.2 V
- Height
- 140 mm
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- LIGHT WINGS LX 140mm PWM
- Part number
- BL126
- EAN / UPC
- 4260052191644
- Also known as
- be quiet! LIGHT WINGS LX 140mm PWM Computer case Fan 14 cm Black 1 pc(s)
Specifications
40 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |

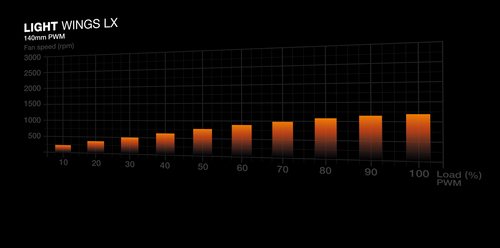

| Rotational speed (max) | 1200 RPM |
| Noise level (high speed) | 22.9 dB |
| Maximum airflow | 56 cfm |
| Airflow | 95 m³/h |
| Maximum air pressure | 0.9 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 7 |
| Illumination LED | Yes |
| Number of LEDs | 16 |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Voltage | 5 - 13.2 V |
| Rated voltage | 12 V |
| Fan current | 0.09 A |
| Maximum current | 0.3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 140 mm |

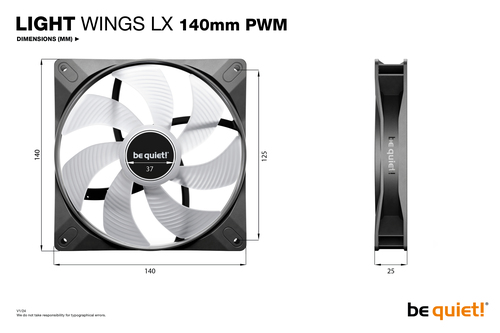

| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Fan weight | 165 g |
| Package width | 142 mm |
| Package depth | 184 mm |
| Package height | 27 mm |
| Package weight | 200 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, UKCA, WEEE |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Number of screws | 4 |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 72 pc(s) |
| Shipping (inner) case width | 37.8 cm |
| Shipping (inner) case length | 49.4 cm |
| Shipping (inner) case height | 33 cm |
| Shipping (inner) case gross weight | 15.8 kg |
