Light Wings | 140mm PWM high-speed
Model Light Wings | 140mm PWM high-speedPart no. BL075EAN 4260052188798
46 specifications
- Noise31 dB
- TypeFan
- Weight210 g
- ColourBlack
- Suitable locationComputer case
- Power consumption (typical)4.68 W
Overview
- Noise
- 31 dB
- Type
- Fan
- Weight
- 210 g
- Colour
- Black
- Suitable location
- Computer case
- Power consumption (typical)
- 4.68 W
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Light Wings | 140mm PWM high-speed
- Part number
- BL075
- EAN / UPC
- 4260052188798
- Also known as
- be quiet! Light Wings 140mm ARGB PWM High Speed Fan Black
Specifications
46 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |

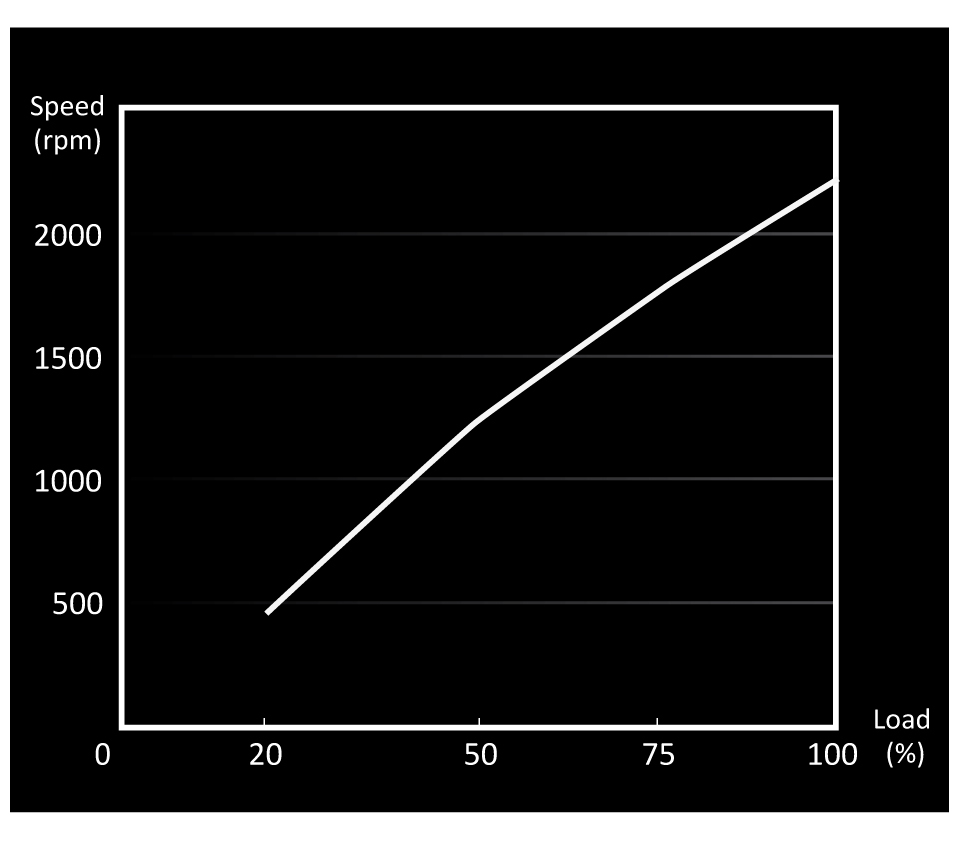

| Rotational speed (max) | 2200 RPM |
| Noise level (high speed) | 31 dB |
| Maximum airflow | 71.7 cfm |
| Airflow | 121.82 m³/h |
| Maximum air pressure | 2.3 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4.68 W |
| Voltage | 5 - 13.2 V |
| Rated voltage | 12 V |
| Rated current | 0.67 A |
| Safety current | 0.39 Ah |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 140 mm |
| Height | 25 mm |
| Weight | 210 g |

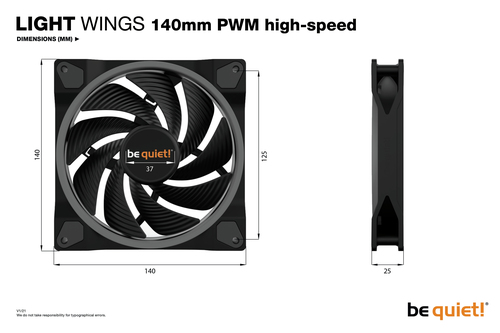

| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Cable length | 0.5 m |
| Package width | 153 mm |
| Package depth | 173 mm |
| Package height | 29.5 mm |
| Package weight | 334 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, WEEE |
| Sustainability compliance | Yes |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Products per shipping (inner) case | 30 pc(s) |
| Shipping (inner) case width | 32 cm |
| Shipping (inner) case length | 47.8 cm |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case gross weight | 10.8 kg |
