Light Wings | 140mm PWM
Model Light Wings | 140mm PWMPart no. BL074EAN 4260052188781
44 specifications
- Noise23.3 dB
- TypeFan
- Weight241 g
- ColourBlack
- Suitable locationComputer case
- Power consumption (typical)3.84 W
Overview
- Noise
- 23.3 dB
- Type
- Fan
- Weight
- 241 g
- Colour
- Black
- Suitable location
- Computer case
- Power consumption (typical)
- 3.84 W
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Light Wings | 140mm PWM
- Part number
- BL074
- EAN / UPC
- 4260052188781
- Also known as
- be quiet! Light Wings 140mm ARGB PWM Fan Black
Specifications
44 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (max) | 1500 RPM |
| Noise level (high speed) | 23.3 dB |
| Maximum airflow | 56 cfm |
| Airflow | 95.14 m³/h |
| Maximum air pressure | 1.49 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.84 W |
| Voltage | 5 - 13.2 V |
| Rated voltage | 12 V |
| Rated current | 0.67 A |
| Safety current | 0.32 Ah |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 140 mm |
| Height | 25 mm |
| Weight | 241 g |

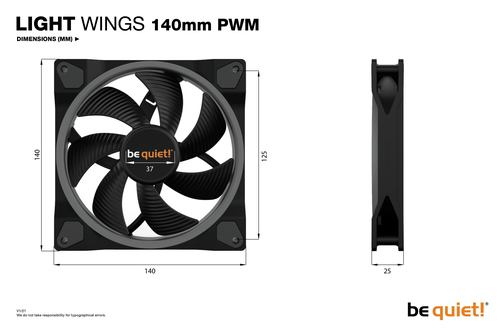

| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Cable length | 0.5 m |
| Package width | 153 mm |
| Package depth | 173 mm |
| Package height | 29.5 mm |
| Package weight | 325 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, WEEE |
| Sustainability compliance | Yes |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Products per shipping (inner) case | 30 pc(s) |
| Shipping (inner) case width | 32 cm |
| Shipping (inner) case length | 47.8 cm |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case gross weight | 10.5 kg |
