LIGHT LOOP IO LCD | 240mm
Model LIGHT LOOP IO LCD | 240mmPart no. BW034EAN 4260052193242
53 specifications
- Noise15.4 dB
- TypeAll-in-one liquid cooler
- Weight1.05 kg
- ColourBlack
- Suitable locationProcessor
- Fan power consumption5.4 W
Overview
- Noise
- 15.4 dB
- Type
- All-in-one liquid cooler
- Weight
- 1.05 kg
- Colour
- Black
- Suitable location
- Processor
- Fan power consumption
- 5.4 W
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- LIGHT LOOP IO LCD | 240mm
- Part numbers
- BW034, BW035
- EAN / UPC
- 4260052193242, 4260052193259
- Also known as
- be quiet! Light Loop IO LCD 240 mm Black
Specifications
53 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Compatible processor series | AMD Ryzen 9000 Series, Intel® Core™ i9 |
| Noise level (low speed) | 15.4 dB |
| Noise level (high speed) | 34.9 dB |
| Maximum airflow | 61.8 cfm |
| Airflow | 105.1 m³/h |
| Maximum air pressure | 2.51 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |

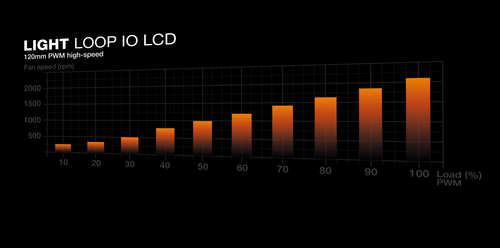

| Fan speed (max) | 2100 RPM |
| Pump motor speed | 2900 RPM |
| Pump motor speed (max) | 2900 RPM |
| Pump motor speed (min) | 1500 RPM |
| Fan's mean time to failure (MTTF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Number of fan blades | 9 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Display type | Not applicable |
| Daisy chain | Yes |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 5.4 W |
| Fan current | 0.17 A |
| Fan voltage | 12 V |

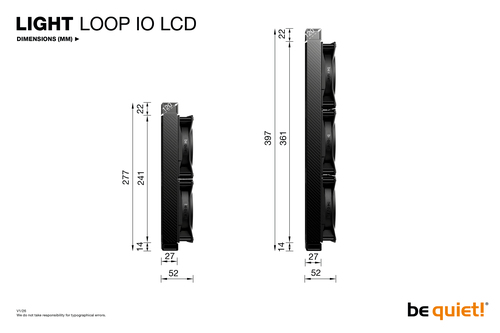

Weight & dimensions
| Specification | Value |
|---|---|
| Height | 52 mm |

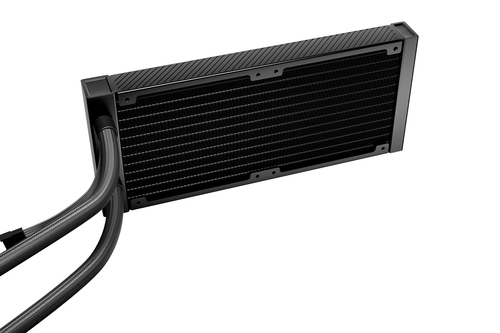

| Radiator width | 12 cm |
| Radiator depth | 27.7 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Waterblock width | 6.19 cm |
| Waterblock depth | 6.38 cm |
| Waterblock height | 5.4 cm |
| Weight | 1.05 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package width | 205 mm |
| Package depth | 322 mm |
| Package height | 137 mm |
| Package weight | 2.54 kg |
Certificates
| Specification | Value |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Doesn't contain | Cadmium, Lead, Mercury |
| Warranty period | 3 year(s) |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
