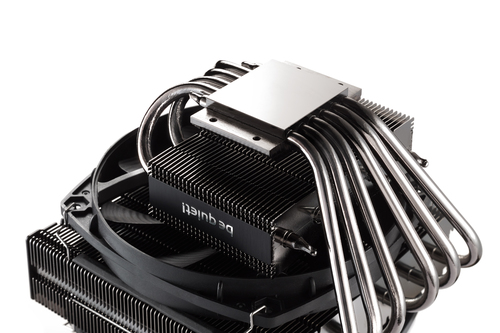

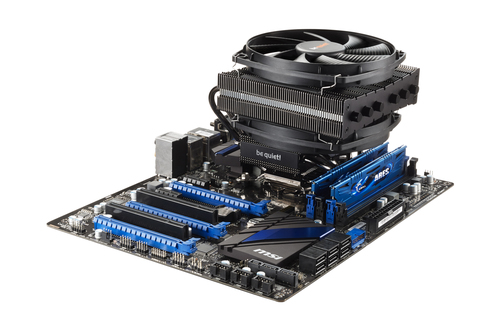

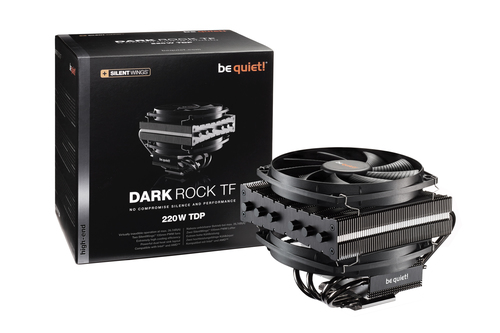

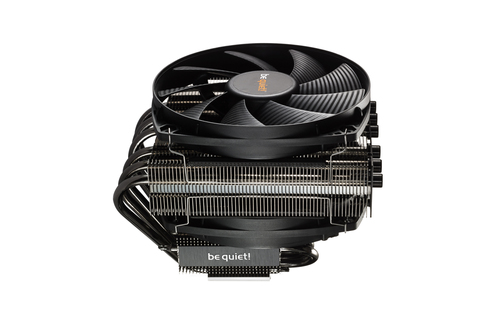

be quiet! Dark Rock TF
Model Dark Rock TFPart no. BK020EAN 4260052184233
44 specifications
- Noise11.9 dB
- TypeCooler
- Weight810 g
- ColourBlack, Silver
- Suitable locationProcessor
- Power consumption (typical)1.32 W
Overview
- Noise
- 11.9 dB
- Type
- Cooler
- Weight
- 810 g
- Colour
- Black, Silver
- Suitable location
- Processor
- Power consumption (typical)
- 1.32 W
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Dark Rock TF
- Part number
- BK020
- EAN / UPC
- 4260052184233, 5054629739686
- Also known as
- be quiet! Dark Rock TF Processor Cooler 13.5 cm Black, Silver
Specifications
44 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 13.5 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Rotational speed (max) | 1400 RPM |
| Noise level (low speed) | 11.9 dB |
| Noise level (high speed) | 26.7 dB |
| Maximum airflow | 67.8 cfm |
| Airflow | 113.8 m³/h |
| Maximum air pressure | 2.1 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Mean time between failures (MTBF) | 300000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Material | Aluminium, Copper, Nickel |
| Number of fans | 2 fan(s) |
| Number of fins | 126 |
| Fins material | Aluminium |
| Number of heat pipes | 6 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.32 W |
| Voltage | 12 V |
| Rated current | 0.11 A |
| Thermal Design Power (TDP) | 220 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 162.6 mm |
| Height | 130.8 mm |
| Weight | 810 g |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Heat pipes diameter | 6 mm |
| Cable length | 0.22 m |
| Package width | 190 mm |
| Package depth | 210 mm |
| Package height | 230 mm |
| Package weight | 1.5 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Heatsink dimensions (W x D x H) | 140 x 162.6 x 108.8 mm |
| Country of origin | Germany |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 435 mm |
| Master (outer) case length | 595 mm |
| Master (outer) case height | 450 mm |
| Master (outer) case gross weight | 20 kg |
| Products per master (outer) case | 12 pc(s) |
Compare be quiet! Dark Rock TF
Compare any products- be quiet! Dark Rock TF vsbe quiet! Pure Wings 2Compare specs

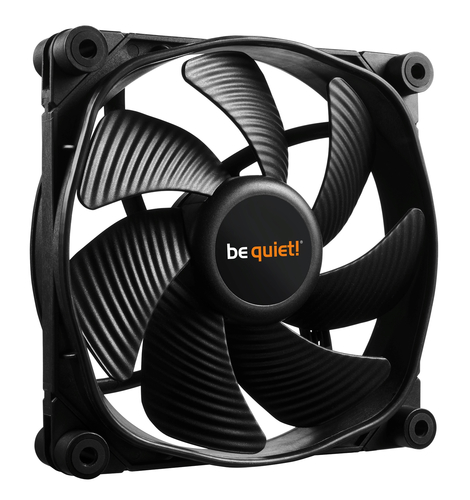

- be quiet! Dark Rock TF vsbe quiet! SilentWings 3Compare specs
- be quiet! Dark Rock TF vsbe quiet! Shadow Rock LPCompare specs

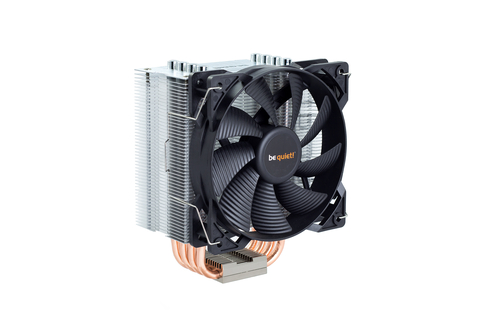

- be quiet! Dark Rock TF vsbe quiet! Pure RockCompare specs

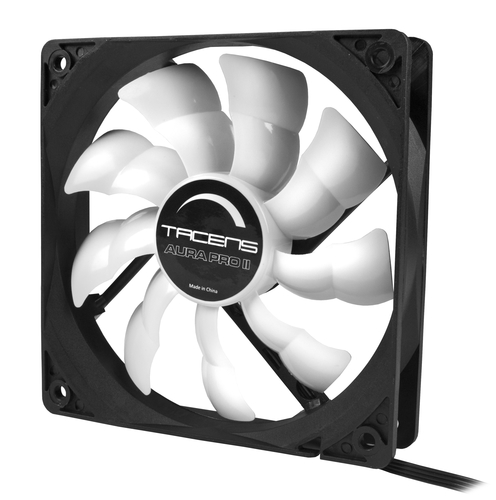

- be quiet! Dark Rock TF vsTacens AURA PRO II 8cmCompare specs
- be quiet! Dark Rock TF vsHP 754086-001 computer cooling system Computer case FanCompare specs
- be quiet! Dark Rock TF vsLenovo 41R6429 computer cooling system Processor Cooler BlackCompare specs

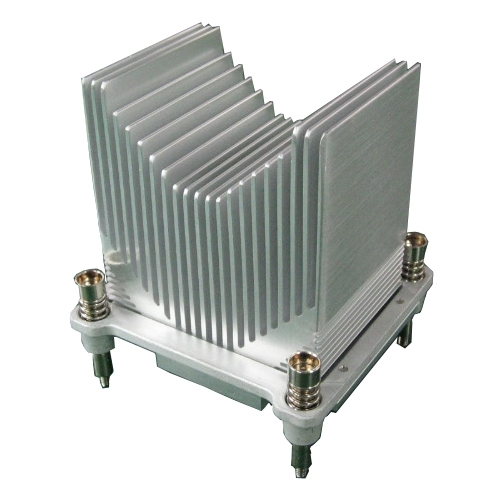

- be quiet! Dark Rock TF vsDell 412-AADV computer cooling system Processor Heatsink/Radiator SilverCompare specs
