Dark Rock Pro TR4
Model Dark Rock Pro TR4Part no. BK023EAN 4260052186985
35 specifications
- Noise12.8 dB
- TypeCooler
- Weight1.18 kg
- Suitable locationProcessor
- MaterialAluminium
- Rated current0.08 A
Overview
- Noise
- 12.8 dB
- Type
- Cooler
- Weight
- 1.18 kg
- Suitable location
- Processor
- Material
- Aluminium
- Rated current
- 0.08 A
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Dark Rock Pro TR4
- Part number
- BK023
- EAN / UPC
- 4260052186985
- Also known as
- be quiet! Dark Rock Pro TR4 Processor Cooler 120/135 mm
Specifications
35 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 120/135 mm |
| Supported processor sockets | Socket TR4, Socket sTRX4 |
| Compatible processor series | AMD Ryzen |
| Rotational speed (max) | 1500 RPM |
| Noise level (low speed) | 12.8 dB |
| Noise level (high speed) | 24.3 dB |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Material | Aluminium |
| Number of fans | 2 fan(s) |
| Number of heat pipes | 7 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Rated current | 0.08 A |
| Thermal Design Power (TDP) | 250 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.18 kg |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
| Heat pipes diameter | 6 mm |
| Package width | 205 mm |
| Package depth | 181 mm |
| Package height | 212 mm |
| Package weight | 1.58 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Cables included | Fan |

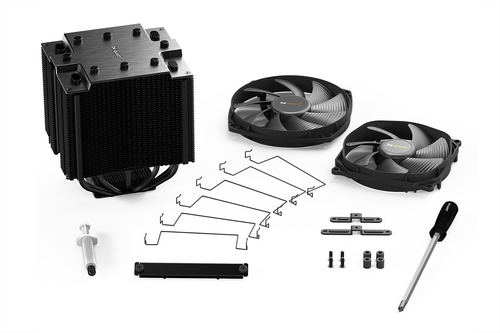

| Mounting kit | Yes |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
| Mean time to failure (MTTF) | 300000 h |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 561 mm |
| Master (outer) case length | 427 mm |
| Master (outer) case height | 459 mm |
| Master (outer) case gross weight | 20.8 kg |
| Products per master (outer) case | 12 pc(s) |
