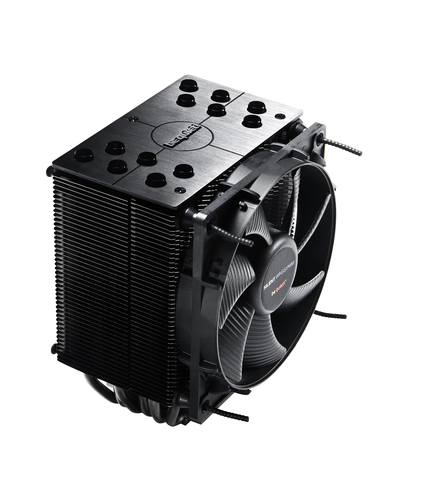

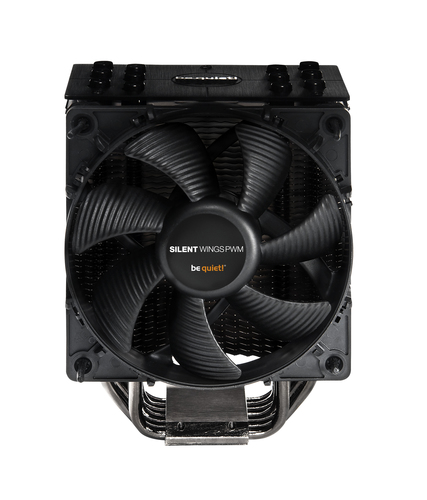

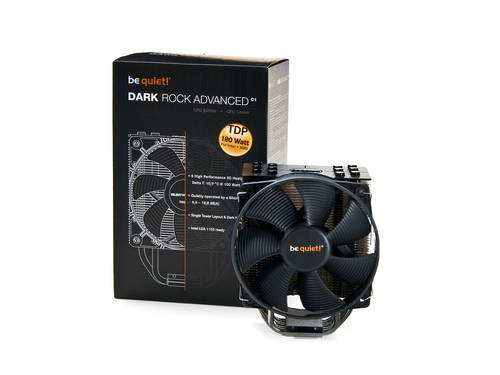

be quiet! Dark Rock Advanced
Model Dark Rock AdvancedPart no. BK014EAN 3548389107820
38 specifications
- Noise6.6 dB
- TypeCooler
- Weight1.1 kg
- ColourBlack, Silver
- Suitable locationProcessor
- Power consumption (typical)1.08 W
Overview
- Noise
- 6.6 dB
- Type
- Cooler
- Weight
- 1.1 kg
- Colour
- Black, Silver
- Suitable location
- Processor
- Power consumption (typical)
- 1.08 W
- Brand
- be quiet!
- Category
- Computer Cooling System
- Model
- Dark Rock Advanced
- Part number
- BK014
- EAN / UPC
- 3548389107820, 702811556584, 718929112307, 4260052182147 +1 more
- Also known as
- be quiet! Dark Rock Advanced Processor Cooler 12 cm Black, Silver
Specifications
38 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 775 (Socket T), Socket 754, Socket 939, Socket 940, Socket AM2, Socket AM2+, Socket AM3 |
| Rotational speed (max) | 1500 RPM |
| Noise level (low speed) | 6.6 dB |
| Noise level (high speed) | 18.8 dB |
| Minimum airflow (imperial) | 50.5 cfm |
| Maximum airflow | 50.5 cfm |
| Airflow | 85.8 m³/h |
| Maximum air pressure | 1.63 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Mean time between failures (MTBF) | 300000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Material | Aluminium, Copper, Nickel |
| Number of fans | 1 fan(s) |
| Number of fins | 44 |
| Fins material | Aluminium |
| Number of heat pipes | 6 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.08 W |
| Voltage | 12 V |
| Rated current | 0.09 A |
| Thermal Design Power (TDP) | 180 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122 mm |
| Depth | 95 mm |
| Height | 166 mm |
| Weight | 1.1 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
| Cable length | 0.2 m |
| Package width | 165 mm |
| Package depth | 255 mm |
| Package height | 155 mm |
| Package weight | 1.4 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Heatsink dimensions (W x D x H) | 96 x 95 x 166 mm |
