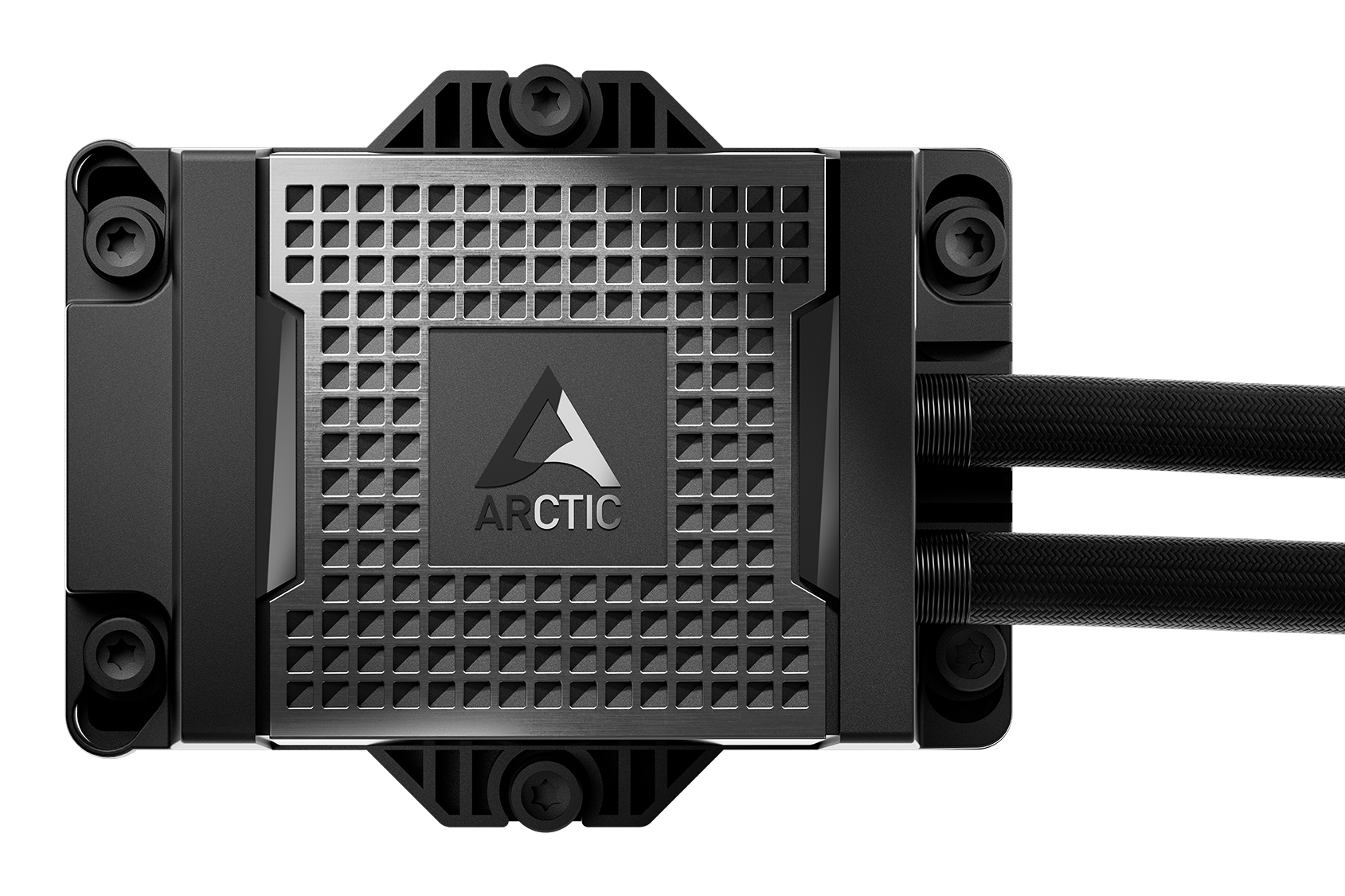

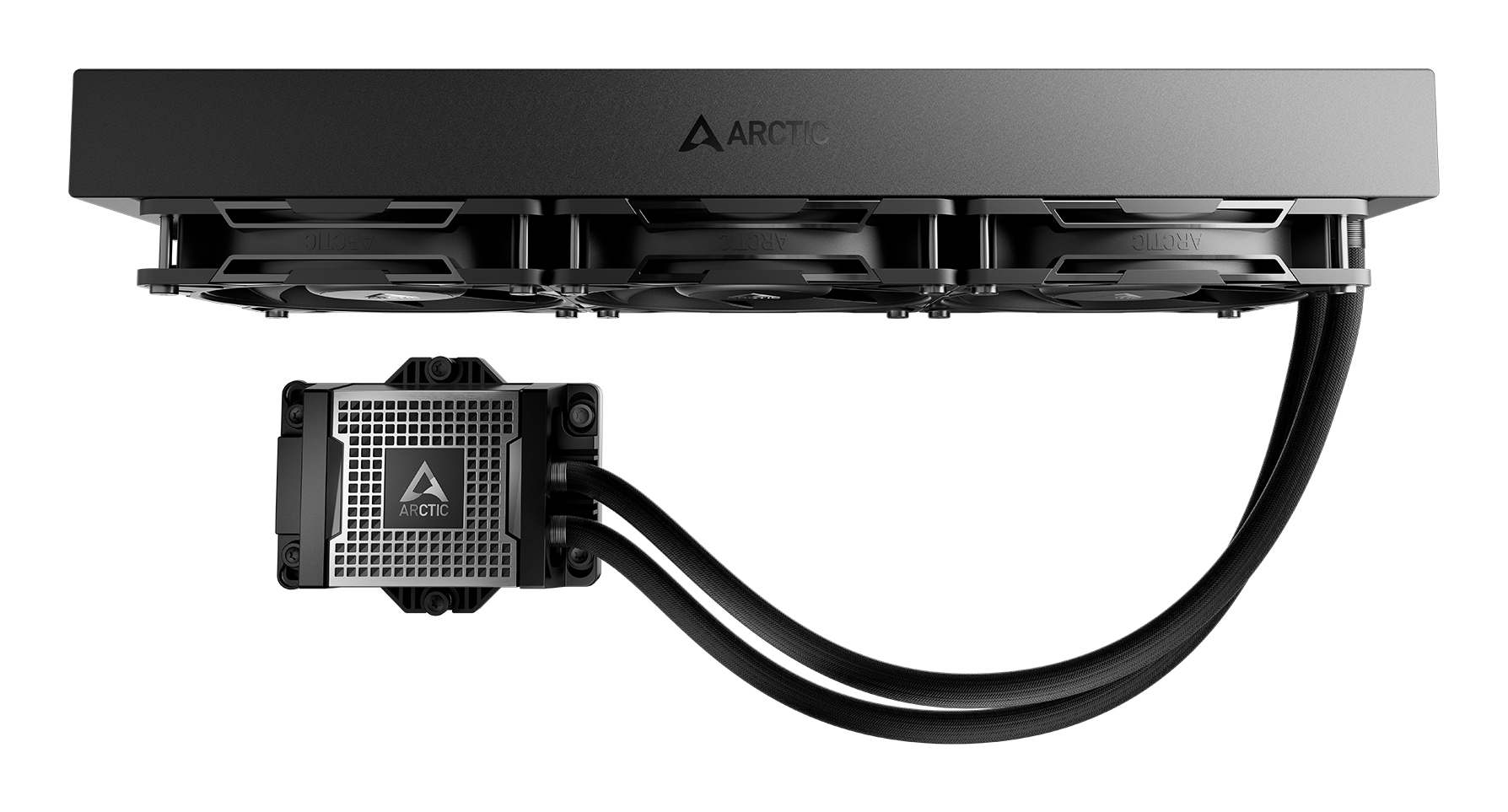

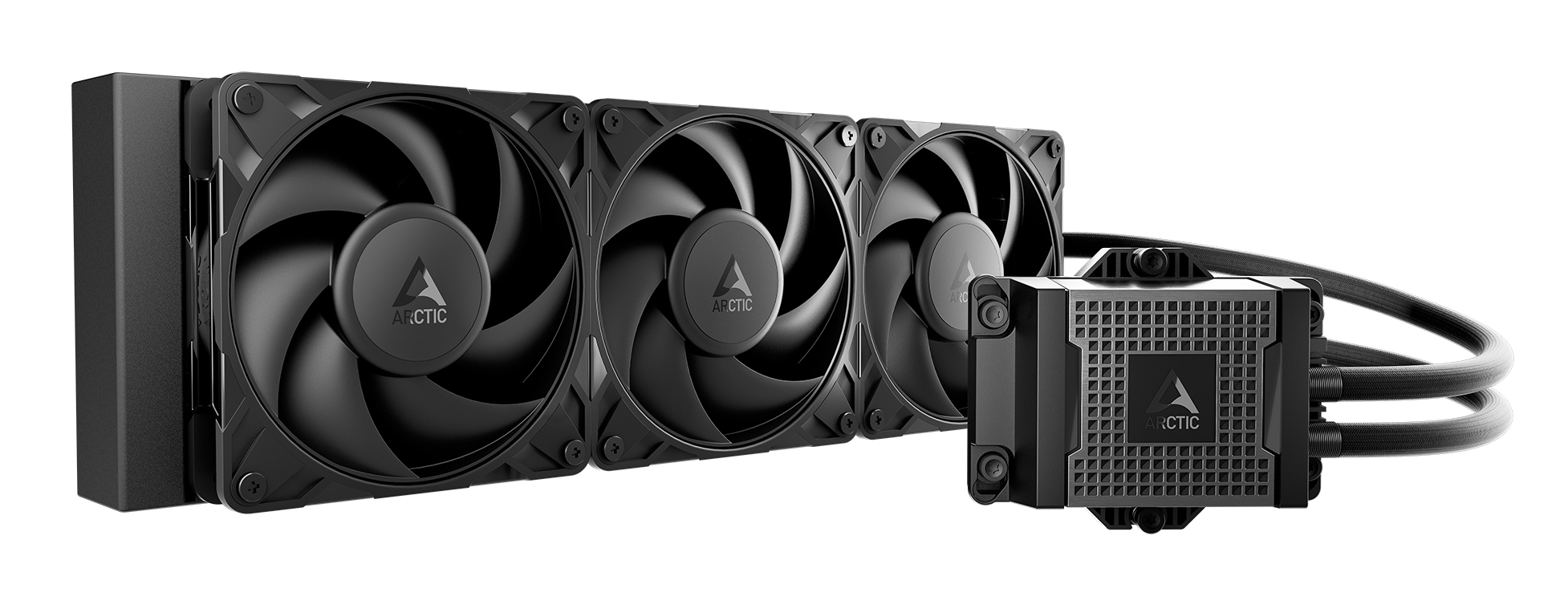

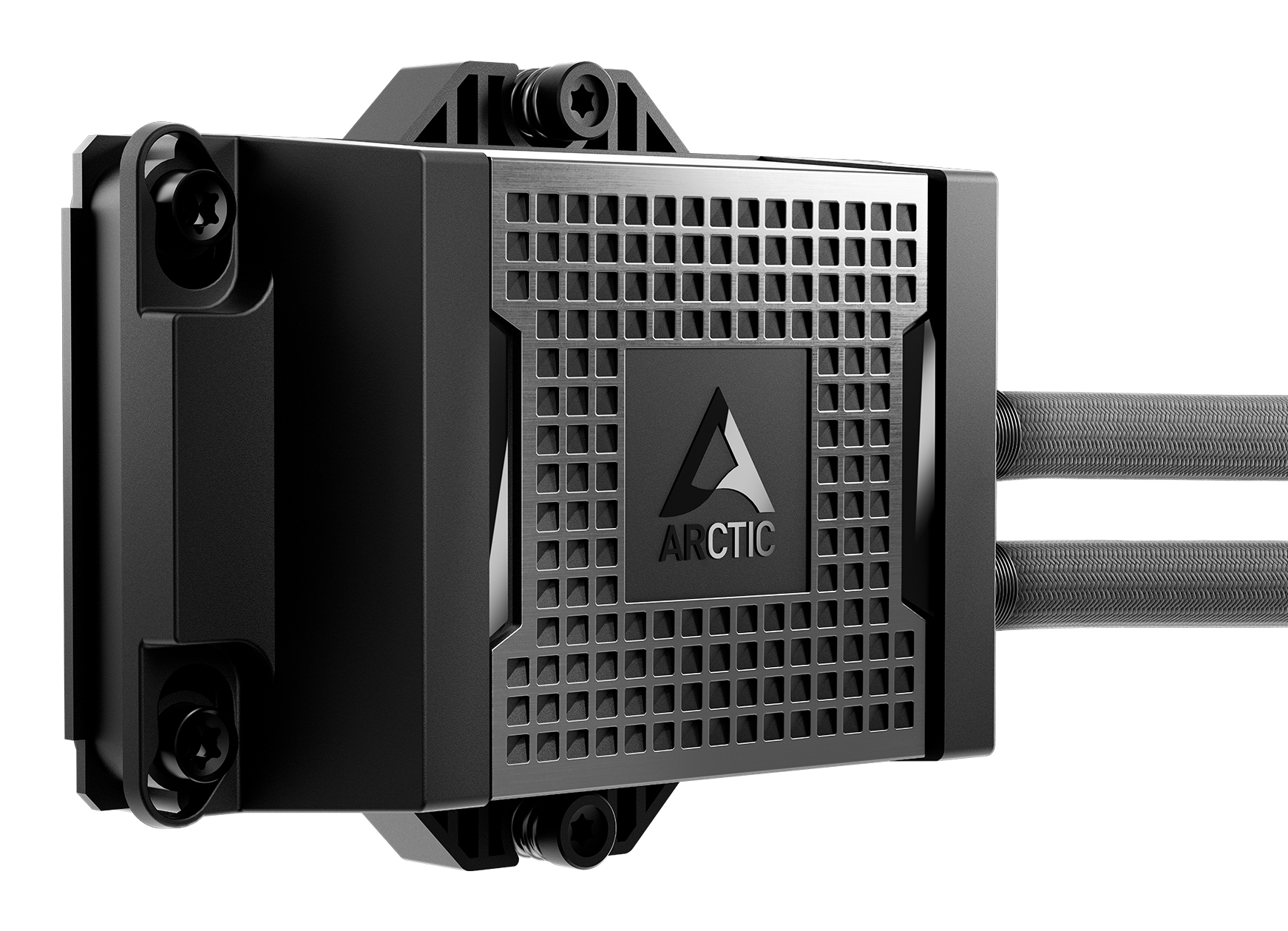

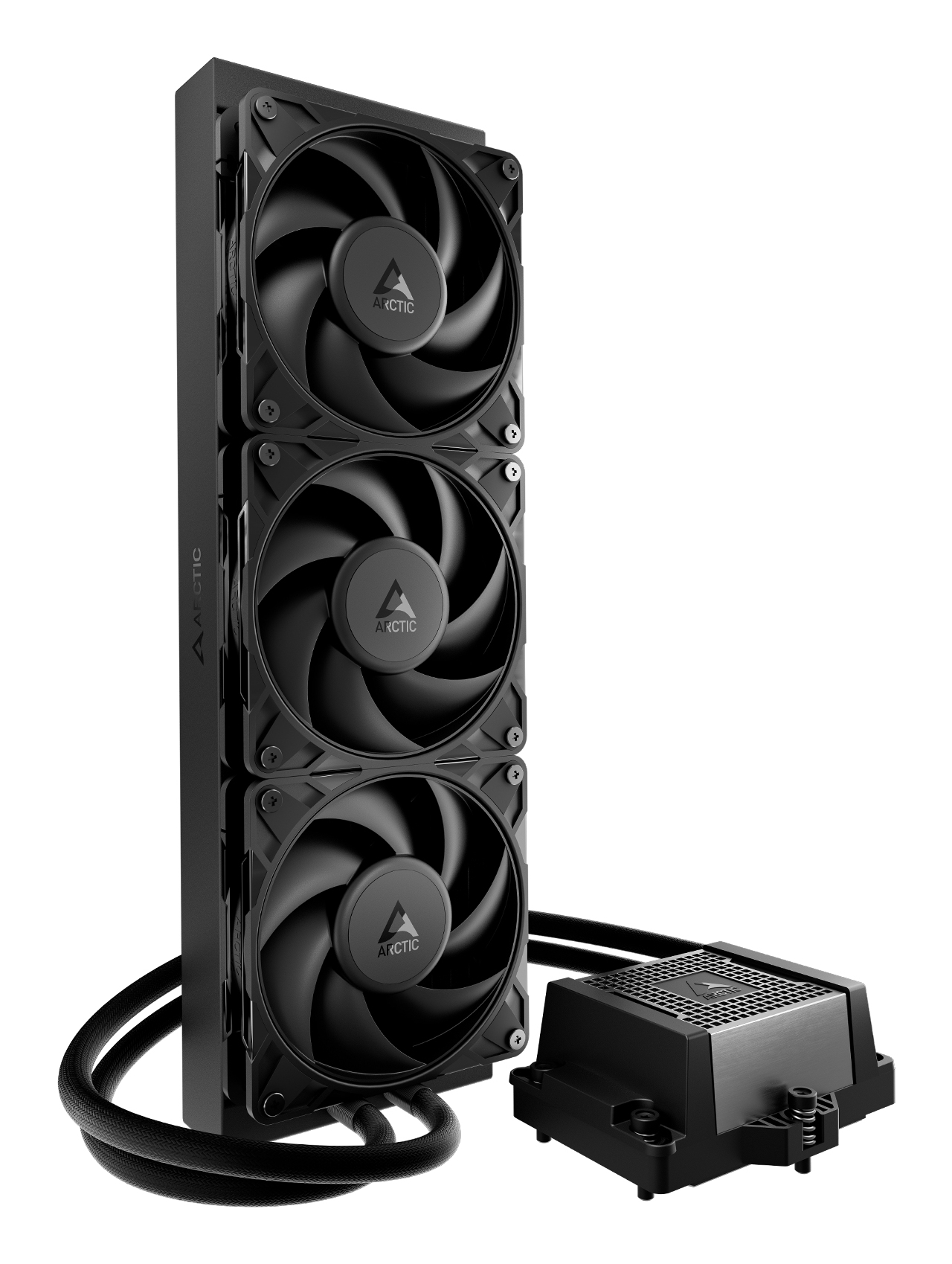

Liquid Freezer WS360-SP5 Processor All-in-one liquid cooler
12 cm Black 1 pc(s)
Model WS360-SP5Part no. ACFRE00200AEAN 840033403504
39 specifications
- TypeAll-in-one liquid cooler
- Weight2.15 kg
- ColourBlack
- Suitable locationProcessor
- Fan current0.33 A
- Radiator width12 cm
Overview
- Type
- All-in-one liquid cooler
- Weight
- 2.15 kg
- Colour
- Black
- Suitable location
- Processor
- Fan current
- 0.33 A
- Radiator width
- 12 cm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- WS360-SP5
- Part number
- ACFRE00200A
- EAN / UPC
- 840033403504, 4895265000836
- Also known as
- ARCTIC Liquid Freezer WS360-SP5 Processor All-in-one liquid cooler 12 cm Black 1 pc(s)
Specifications
39 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Socket SP5 |
| Maximum airflow | 77 cfm |
| Airflow | 131 m³/h |
| Maximum air pressure | 6.9 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Dual ball bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 3000 RPM |
| Fan speed (min) | 600 RPM |
| Pump motor speed (max) | 3000 RPM |
| Pump motor speed (min) | 800 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 3 fan(s) |
| Fins material | Copper |
| Illumination LED | No |
| Fan connector | 3-pin/4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Fan current | 0.33 A |
| Fan voltage | 12 V |
| Pump current | 350 mA |
| Pump voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 12 cm |
| Radiator depth | 39.8 cm |
| Radiator height | 3.8 cm |
| Tube length | 45 cm |
| Tube diameter | 1.24 cm |
| Tube inner diameter | 6 mm |
| Weight | 2.15 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package width | 156 mm |
| Package depth | 431 mm |
| Package height | 154 mm |
| Package weight | 2.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
