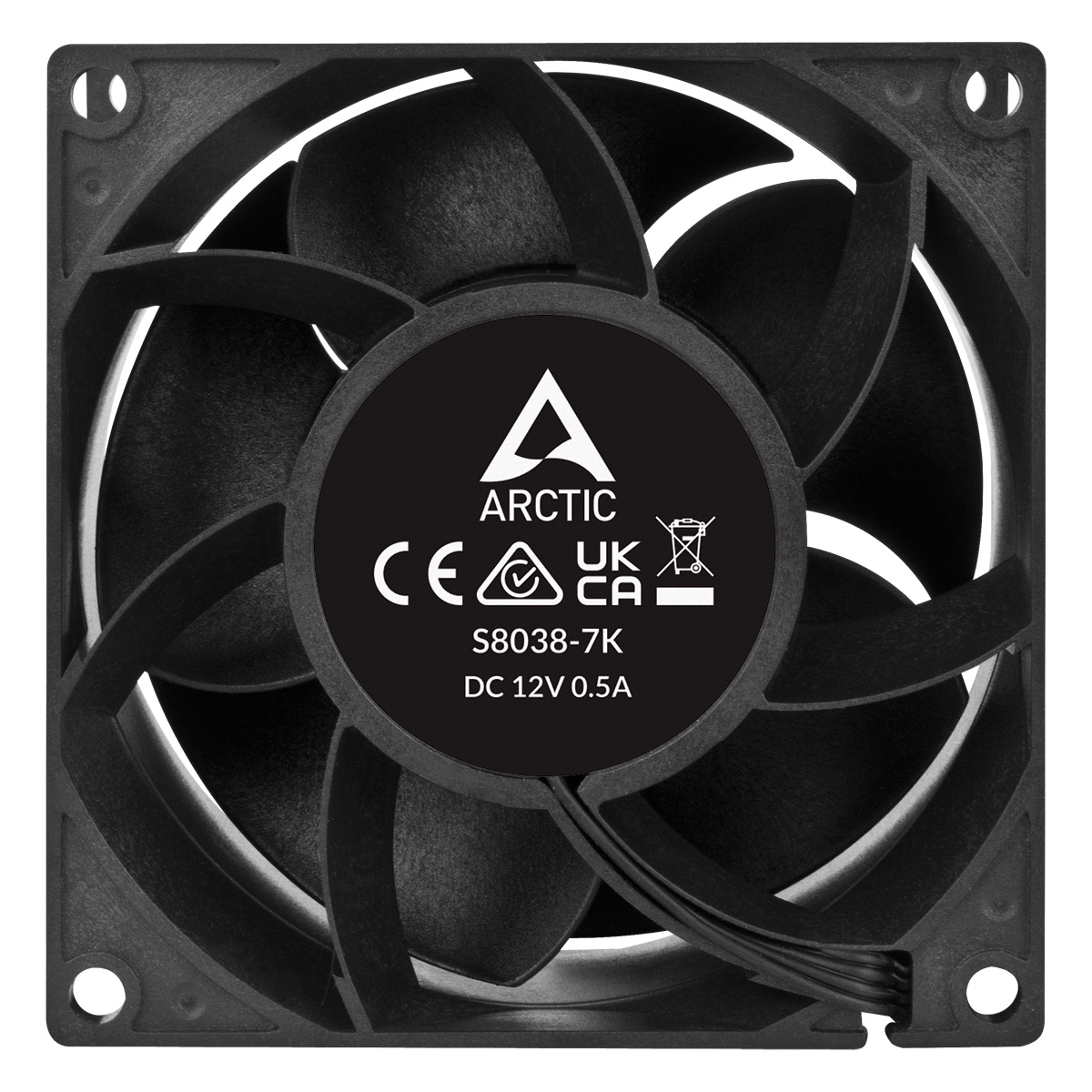

S8038-7K - 80 mm Server Fan
Model S8038-7KPart no. ACFAN00288AEAN 4895213704281
30 specifications
- TypeFan
- ColourBlack
- Suitable locationProcessor
- Starting voltage3.6 V
- Fan dimensions (W x D x H)80 x 80 x 38 mm
Overview
- Type
- Fan
- Colour
- Black
- Suitable location
- Processor
- Starting voltage
- 3.6 V
- Fan dimensions (W x D x H)
- 80 x 80 x 38 mm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- S8038-7K
- Part numbers
- ACFAN00288A, ACFAN00292A
- EAN / UPC
- 4895213704281, 4895213704304
- Also known as
- ARCTIC S8038-7K - 80 mm Server Fan
Specifications
30 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Fan |
| Fan diameter | 8 cm |
| Maximum airflow | 70 cfm |
| Airflow | 118.93 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Dual ball bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 7000 RPM |
| Fan speed (min) | 500 RPM |
| Fan static pressure | 25 mmH2O |
| Operating temperature (T-T) | -10 - 70 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Fan connector | 4-pin |
| Rack capacity | 2U |
Power
| Specification | Value |
|---|---|
| Starting voltage | 3.6 V |
| Fan current | 0.5 A |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Fan dimensions (W x D x H) | 80 x 80 x 38 mm |
| Fan weight | 146 g |
| Cable length | 0.3 m |
| Package width | 86 mm |
| Package depth | 88 mm |
| Package height | 44 mm |
| Package weight | 174 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
