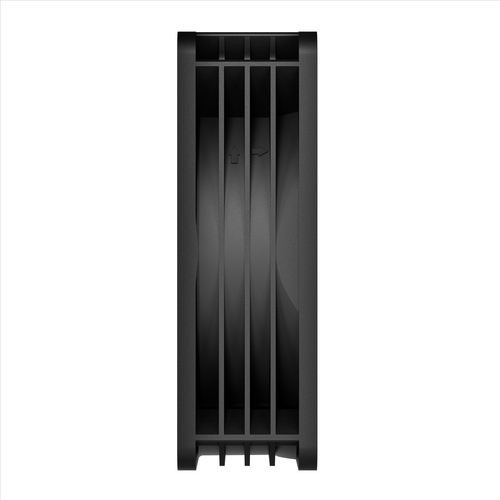

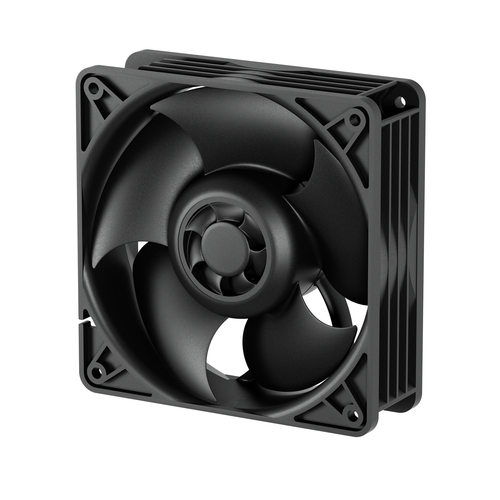

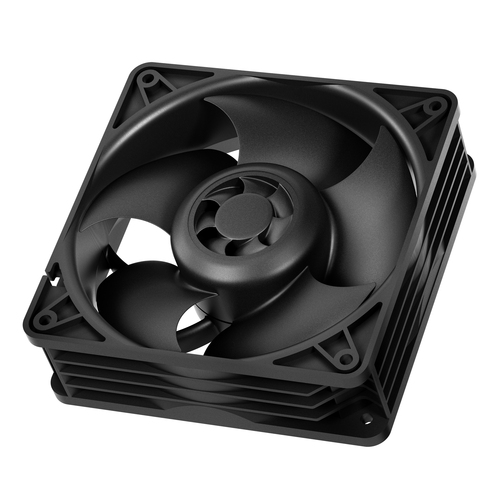

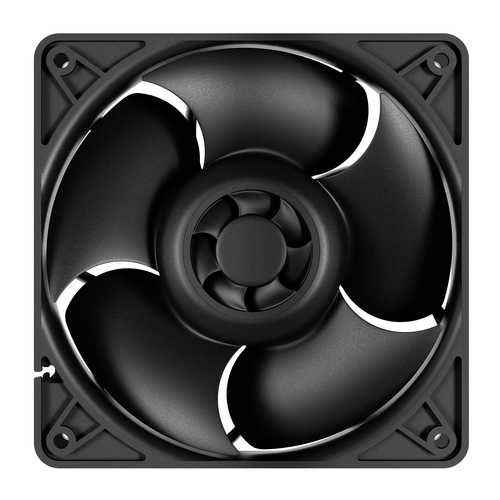

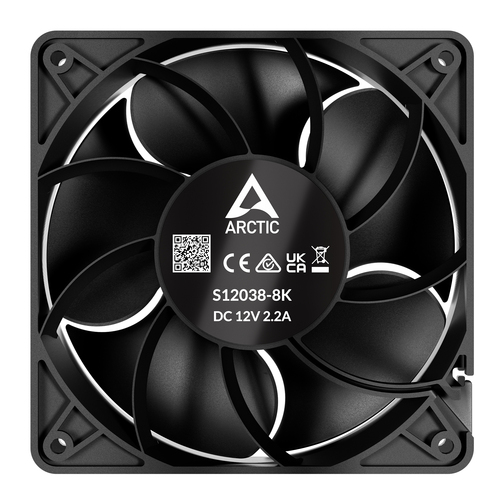

S12038-8K 120 mm 8k rpm Server Fan
Model S12038-8KPart no. ACFAN00294AEAN 840033402538
33 specifications
- TypeFan
- Weight328 g
- ColourBlack
- Suitable locationComputer case
- Rated voltage12 V
- Width120 mm
Overview
- Type
- Fan
- Weight
- 328 g
- Colour
- Black
- Suitable location
- Computer case
- Rated voltage
- 12 V
- Width
- 120 mm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- S12038-8K
- Part number
- ACFAN00294A
- EAN / UPC
- 840033402538, 4895213704762
- Also known as
- ARCTIC S12038-8K 120 mm 8k rpm Server Fan
Specifications
33 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 8000 RPM |
| Maximum airflow | 220 cfm |
| Airflow | 370 m³/h |
| Maximum air pressure | 37 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Dual ball bearing |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | -10 - 70 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Illumination LED | No |
| Fan connector | 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Rated voltage | 12 V |
| Starting voltage | 6.5 V |
| Power protection features | Over voltage, Reverse polarity, Under voltage |
| Maximum current | 3.2 A |
| Rated current | 2.2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 38 mm |
| Height | 120 mm |
| Weight | 328 g |
| Cable length | 0.3 m |
| Package width | 125 mm |
| Package depth | 125 mm |
| Package height | 43 mm |
| Package weight | 367 g |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Number of screws | 4 |
