P8 TC
Model P8 TCPart no. ACFAN00140AEAN 872767009905
31 specifications
- Noise0.3 sone
- TypeFan
- Weight82 g
- ColourBlack
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 0.3 sone
- Type
- Fan
- Weight
- 82 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P8 TC
- Part number
- ACFAN00140A
- EAN / UPC
- 872767009905, 4895213702010
- Also known as

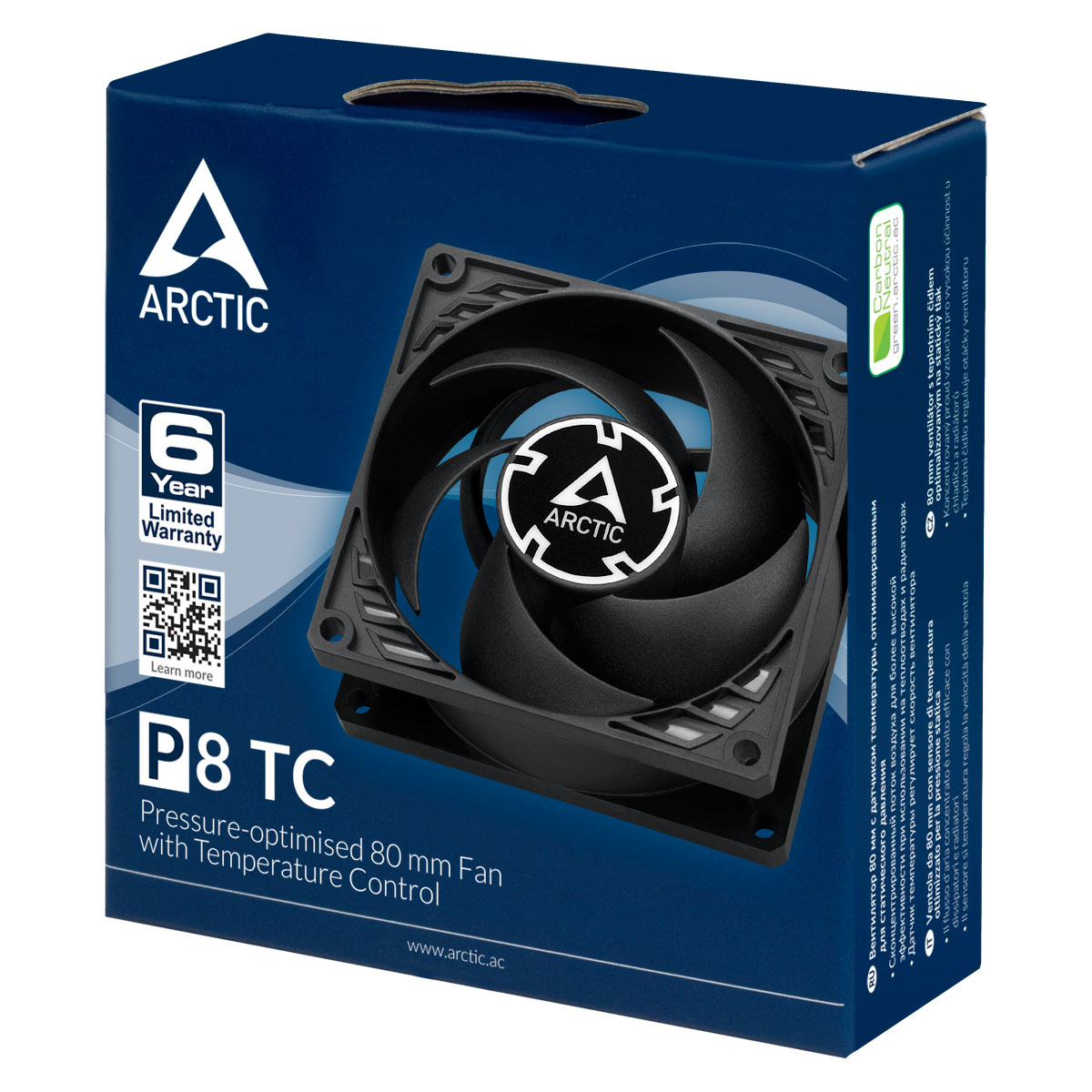

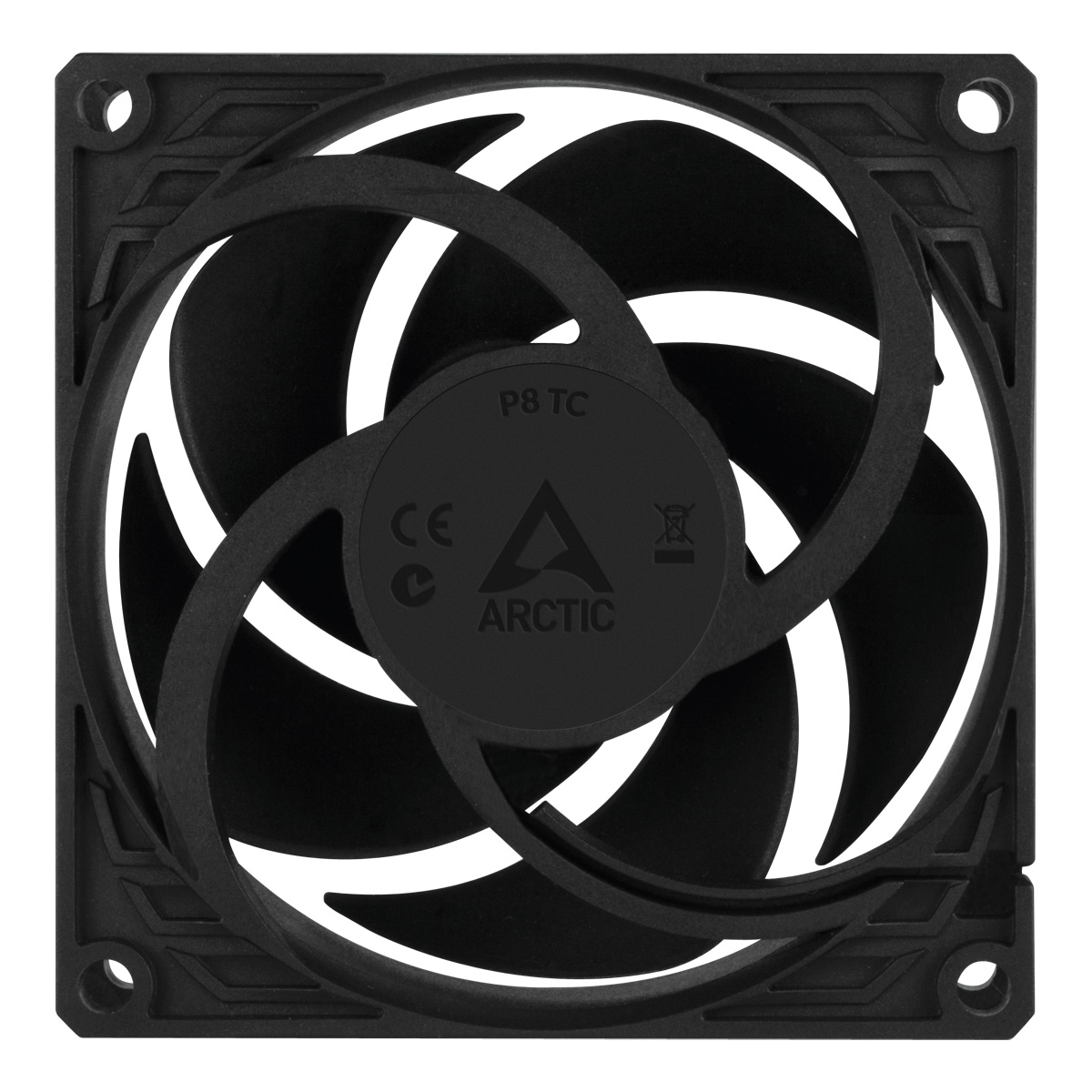

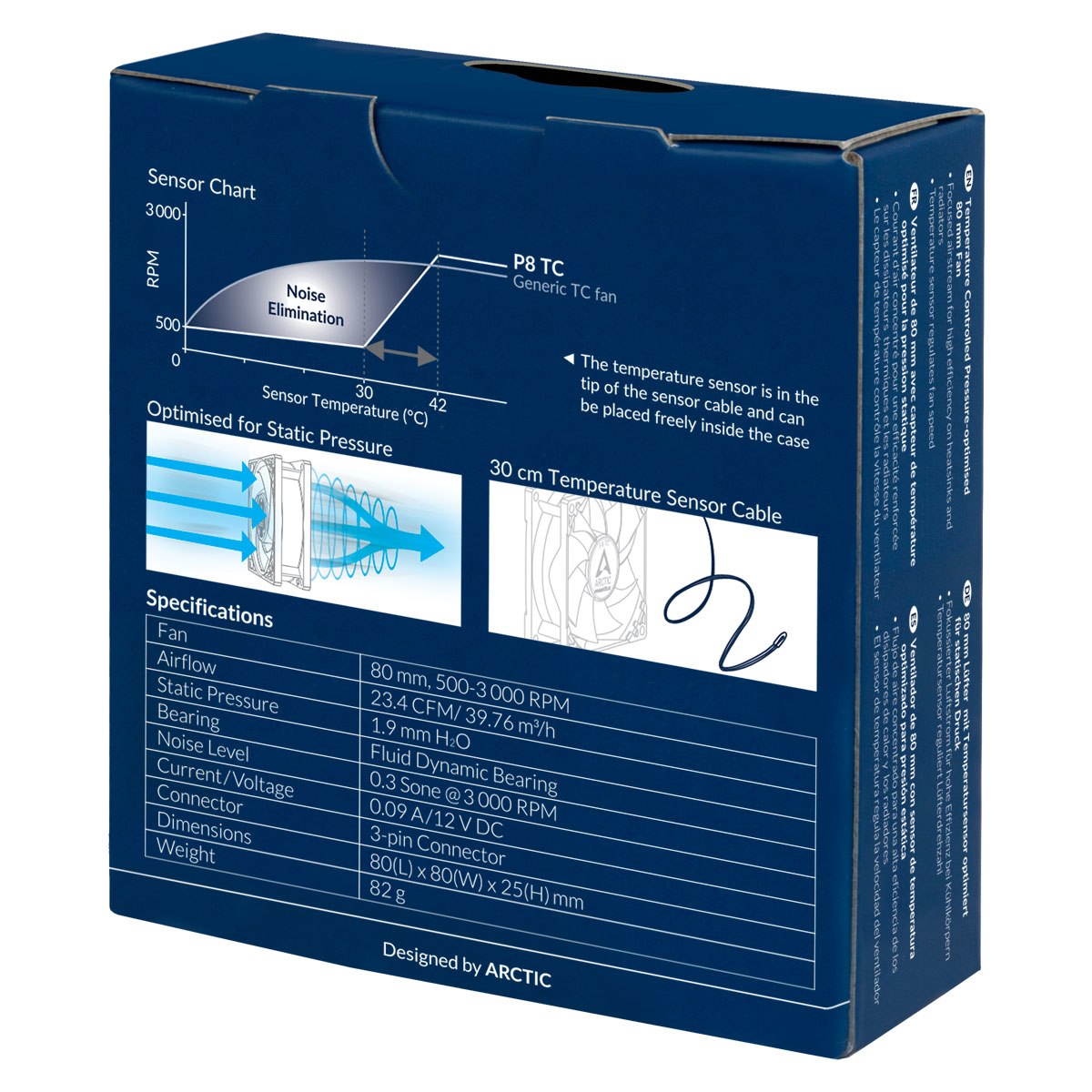

- ARCTIC P8 TC - Pressure-optimised 80 mm Fan with Temperature Control
Specifications
31 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 3000 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 23.4 cfm |
| Airflow | 40.3 m³/h |
| Maximum air pressure | 1.9 mmH2O |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Fan connector | 3-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.09 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 25 mm |
| Height | 80 mm |
| Weight | 82 g |
| Package width | 82.5 mm |
| Package depth | 26 mm |
| Package height | 82.5 mm |
| Package weight | 100 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
| Country of origin | China |
