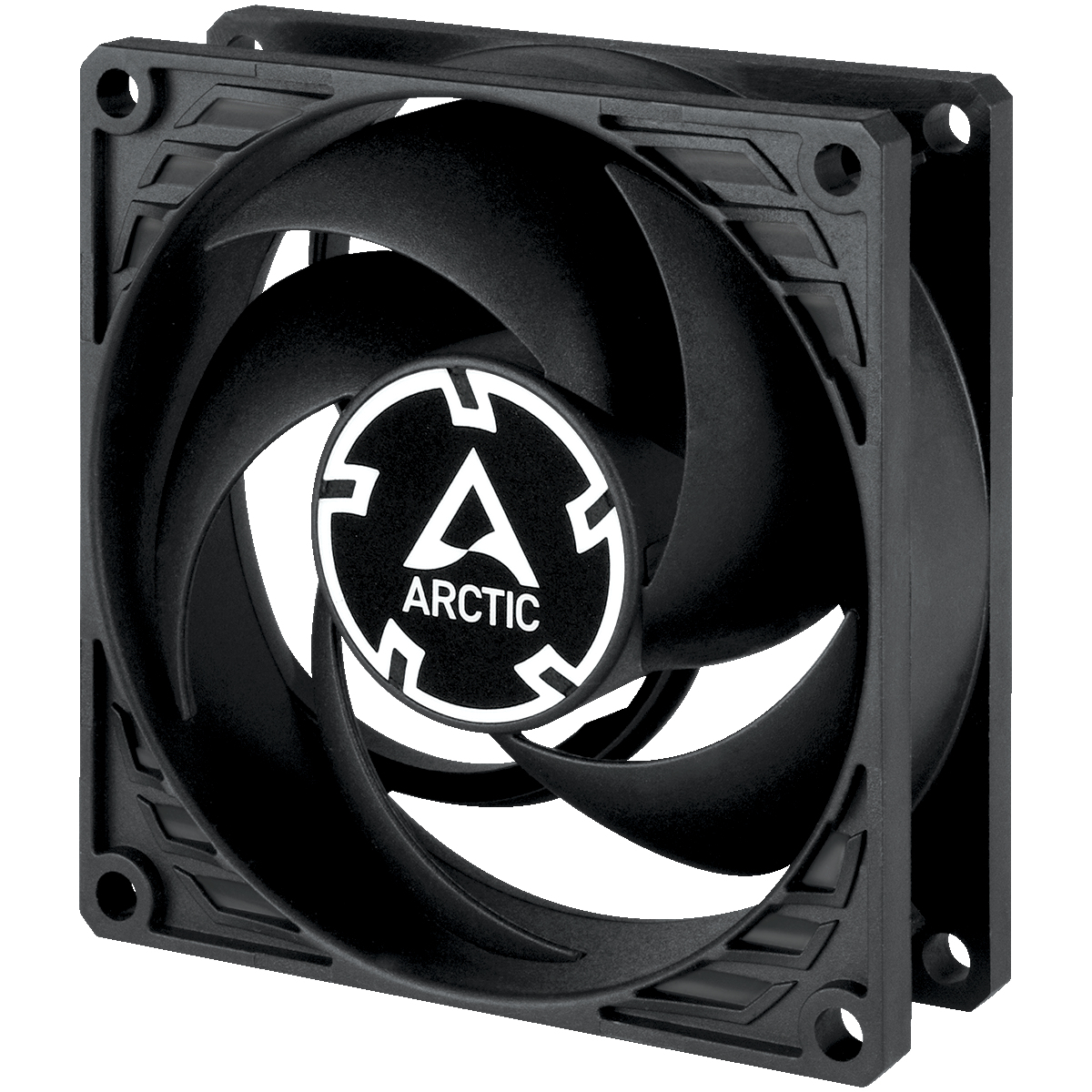

P8 Max
Model P8 MaxPart no. ACFAN00286AEAN 840033401906
36 specifications
- Noise0.6 sone
- TypeFan
- ColourBlack
- Suitable locationComputer case
- Starting voltage3.2 V
- Height80 mm
Overview
- Noise
- 0.6 sone
- Type
- Fan
- Colour
- Black
- Suitable location
- Computer case
- Starting voltage
- 3.2 V
- Height
- 80 mm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P8 Max
- Part number
- ACFAN00286A
- EAN / UPC
- 840033401906, 4895213704090
- Also known as
- ARCTIC P8 Max - High-Performance 80 mm PWM Fan
Specifications
36 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 8 cm |
| Noise level | 0.6 sone |
| Maximum airflow | 40 cfm |
| Airflow | 67.96 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Dual ball bearing |
| Fan bearing technology | Double ball bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 5000 RPM |
| Fan speed (min) | 500 RPM |
| Fan static pressure | 5.3 mmH2O |
| Fan's mean time to failure (MTTF) | 500000 h |
| Operating temperature (T-T) | 0 - 40 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Illumination LED | No |
| Fan connector | 4-pin |
| Rack capacity | 2U |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Starting voltage | 3.2 V |
| Fan current | 0.19 A |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 80 mm |
| Fan dimensions (W x D x H) | 80 x 80 x 25 mm |
| Fan weight | 84 g |
| Cable length | 0.4 m |
| Package width | 82.5 mm |
| Package depth | 82.5 mm |
| Package height | 26 mm |
| Package weight | 89 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | Hong Kong |
