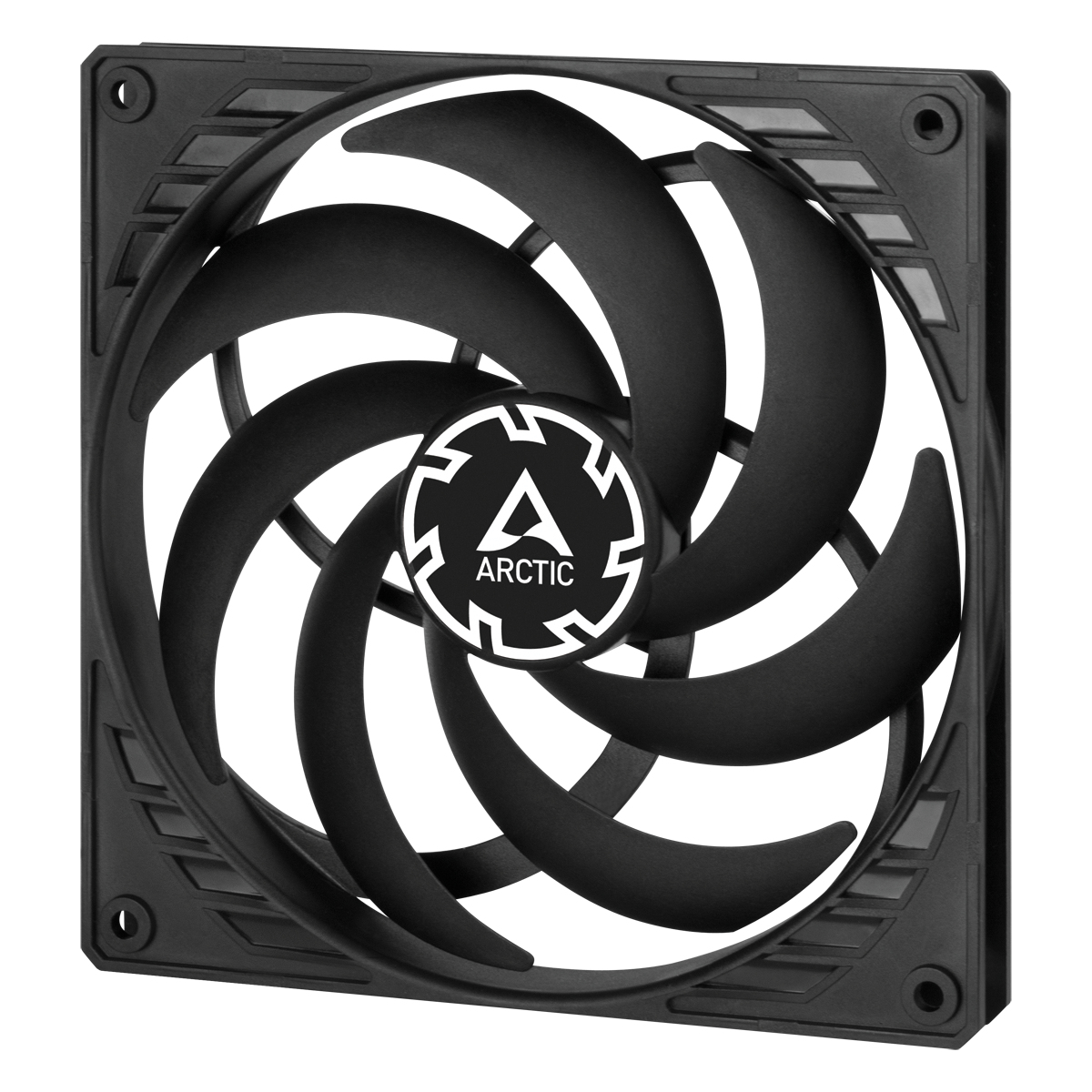

P14 Slim PWM PST
Model P14 Slim PWM PSTPart no. ACFAN00268AEAN 840033401685
33 specifications
- Noise0.3 sone
- TypeFan
- Weight109 g
- ColourBlack
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 0.3 sone
- Type
- Fan
- Weight
- 109 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P14 Slim PWM PST
- Part number
- ACFAN00268A
- EAN / UPC
- 840033401685, 4895213703871
- Also known as
- ARCTIC P14 Slim PWM PST Pressure-optimised 140 mm PWM Fan with integrated Y-cable
Specifications
33 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Rotational speed (min) | 150 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 52 cfm |
| Airflow | 88.35 m³/h |
| Maximum air pressure | 1.55 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 - 40 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Illumination LED | No |

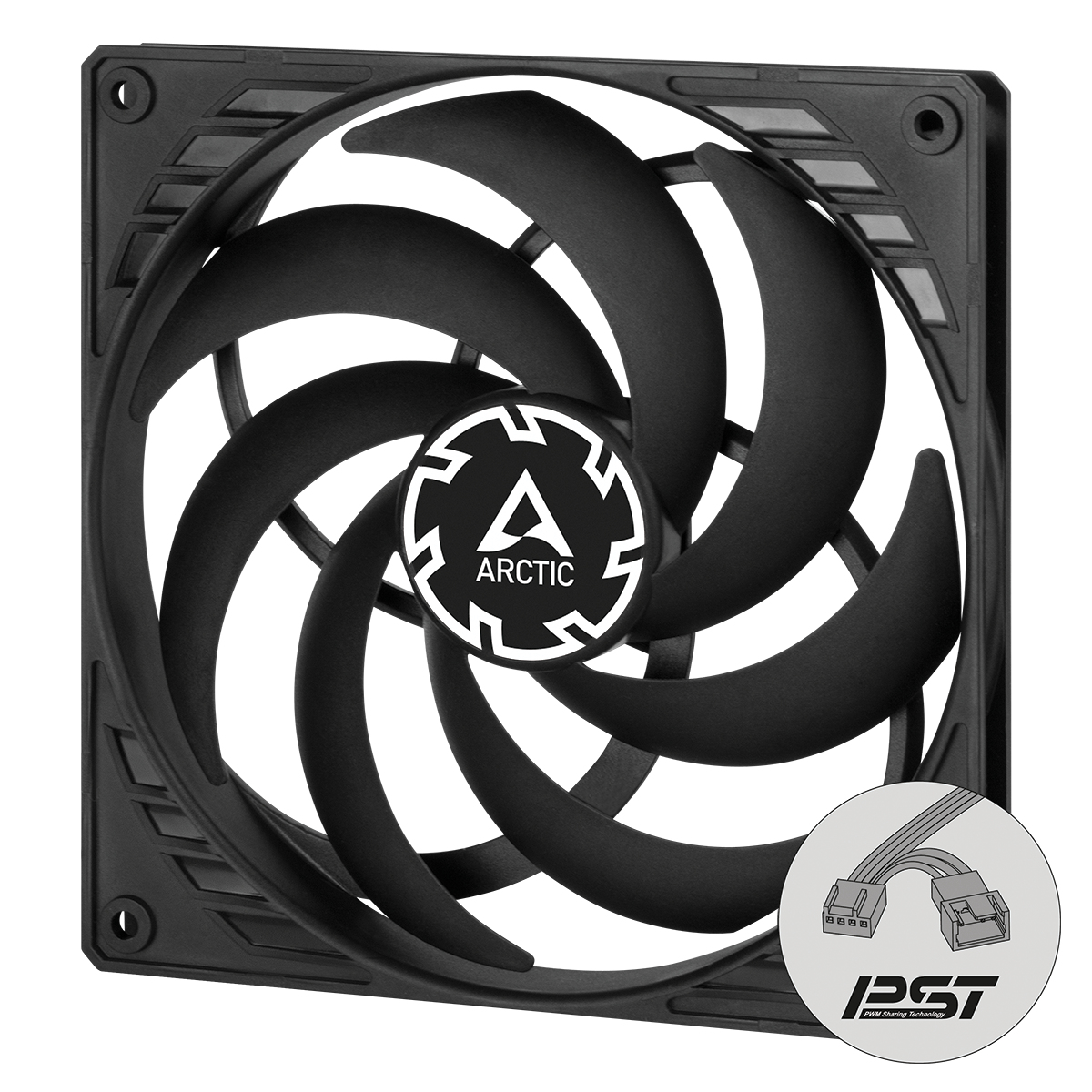

| Fan connector | 4-pin + 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 4 V |
| Fan current | 0.19 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 140 mm |
| Weight | 109 g |

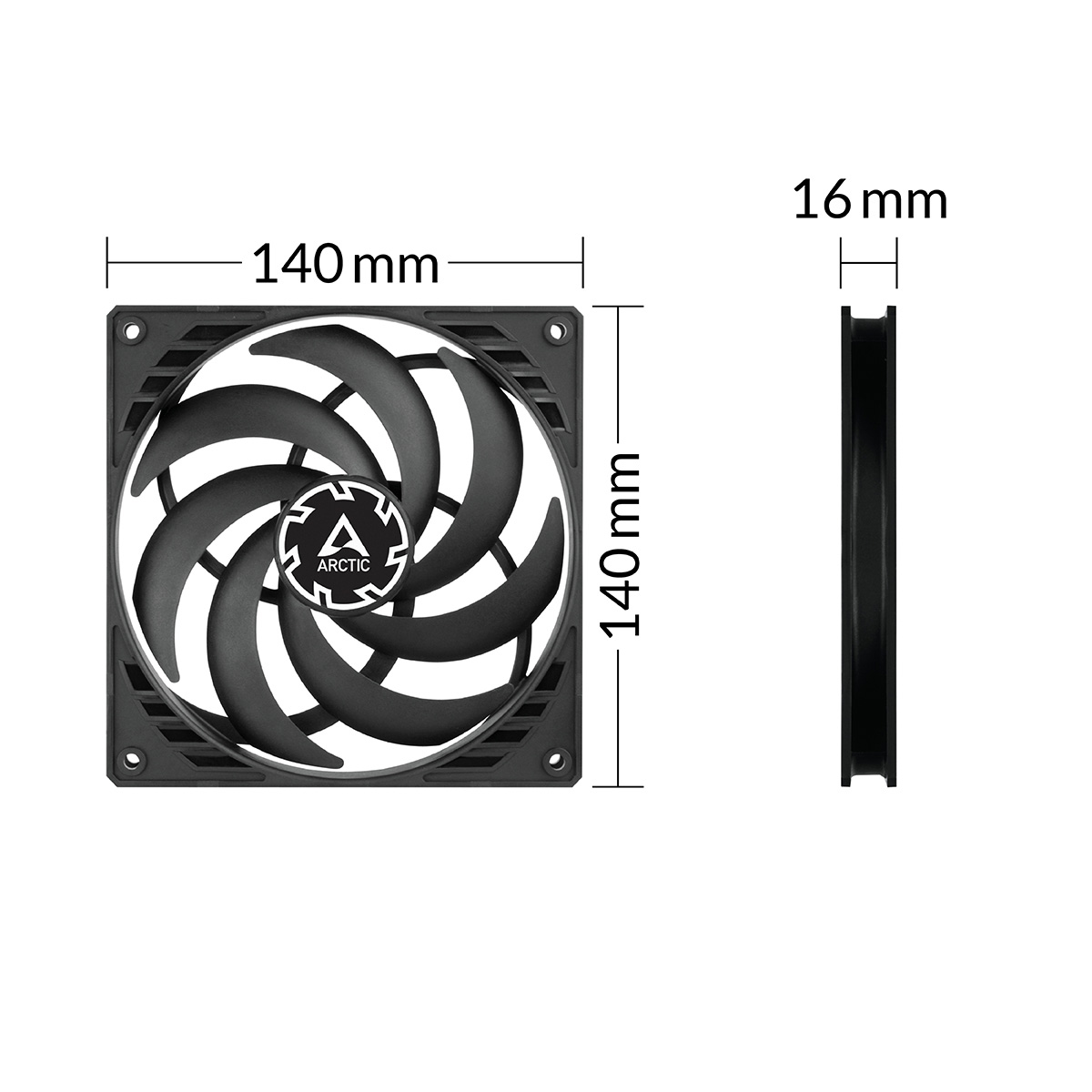

| Fan dimensions (W x D x H) | 140 x 140 x 16 mm |
| Fan weight | 109 g |
| Cable length | 0.48 m |
| Package width | 143 mm |
| Package depth | 156 mm |
| Package height | 17 mm |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
