P14 PWM PST A-RGB 0dB
Model P14 PWM PST A-RGB 0dBPart no. ACFAN00239AEAN 840033401319
38 specifications
- Noise0.3 sone
- TypeFan
- Weight210 g
- ColourBlack
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 0.3 sone
- Type
- Fan
- Weight
- 210 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P14 PWM PST A-RGB 0dB
- Part numbers
- ACFAN00239A, ACFAN00257A
- EAN / UPC
- 840033401319, 840033401326, 4895213703512, 4895213703505
- Also known as
- ARCTIC P14 PWM PST A-RGB 0dB - Semi-Passive 140 mm Fan with Digital A-RGB Value Pack
Specifications
38 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 0 RPM |
| Rotational speed (max) | 1900 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 68.9 cfm |
| Airflow | 117.06 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 3, 1 |
| Fan static pressure | 2 mmH2O |
| Operating temperature (T-T) | 0 - 40 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Illumination LED | Yes |
| Number of LEDs | 12 |
| Fan connector | 4-pin + 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 5 V |
| Fan current | 0.17 A |
| Fan voltage | 12 V |
| LED voltage | 12 V |

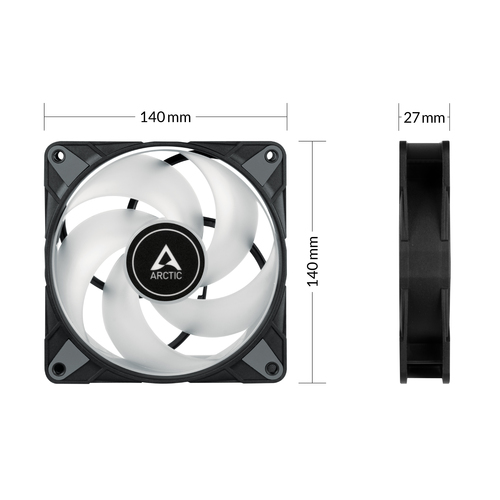

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 140 mm |
| Height | 27 mm |
| Weight | 210 g |
| Cable length | 0.48 m |
| Package width | 91 mm |
| Package depth | 144 mm |
| Package height | 147 mm |
| Package weight | 758 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
