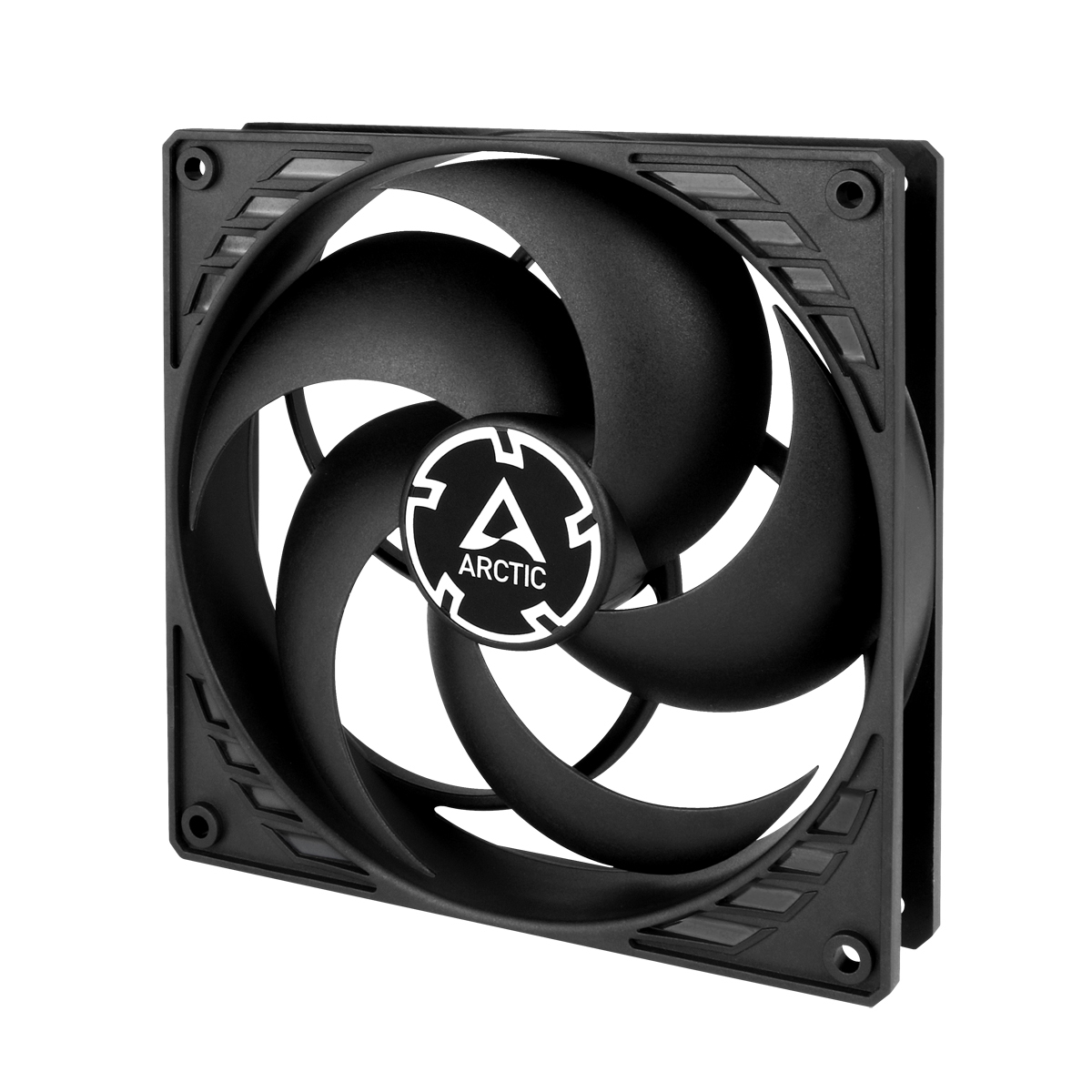

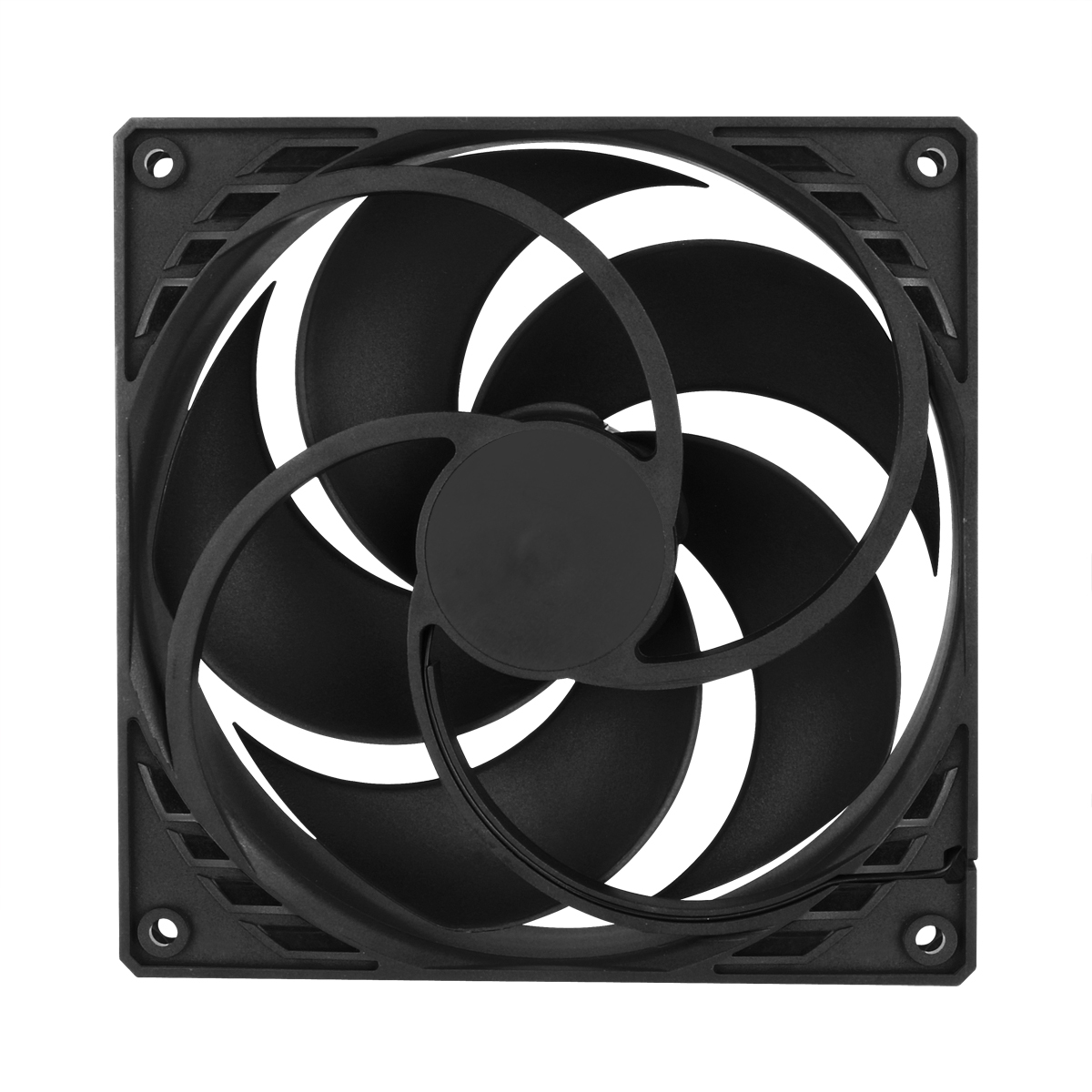

ARCTIC P14 PWM PST
Model P14 PWM PSTPart no. ACFAN00221AEAN 4895213703123
38 specifications
- Noise24.5 dB
- TypeFan
- Weight194 g
- ColourBlack
- Suitable locationComputer case
- Power consumption (typical)1.44 W
Overview
- Noise
- 24.5 dB
- Type
- Fan
- Weight
- 194 g
- Colour
- Black
- Suitable location
- Computer case
- Power consumption (typical)
- 1.44 W
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P14 PWM PST
- Part numbers
- ACFAN00221A, ACFAN00125A, ACFAN00197A
- EAN / UPC
- 4895213703123, 872767009509, 4895213701563, 840033400916 +2 more
- Also known as
- ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
Specifications
38 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 1700 RPM |
| Noise level (high speed) | 24.5 dB |
| Noise level | 0.3 sone |
| Maximum airflow | 72.8 cfm |
| Airflow | 123.76 m³/h |
| Maximum air pressure | 2.4 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Illumination LED | No |
| Fan connector | 4-pin + 4-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.44 W |
| Voltage | 12 V |
| Starting voltage | 3.9 V |
| Rated current | 0.12 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 27 mm |
| Height | 140 mm |
| Weight | 194 g |
| Cable length | 0.4 m |
| Package width | 143 mm |
| Package depth | 143 mm |
| Package height | 29 mm |
| Package weight | 234 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
What people say
Reviews & ratings
ARCTIC P14 PWM PST
No reviews yet
Be the first to tell others how ARCTIC P14 PWM PST works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ARCTIC P14 PWM PST
All computer cooling system comparisons- ARCTIC P14 PWM PST vsARCTIC Freezer 34Compare specs

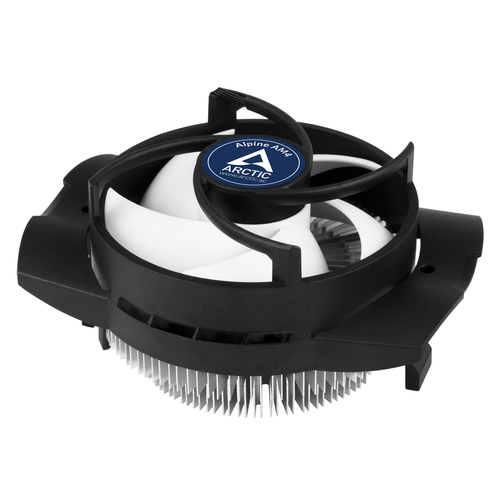

- ARCTIC P14 PWM PST vsARCTIC Alpine AM4Compare specs
