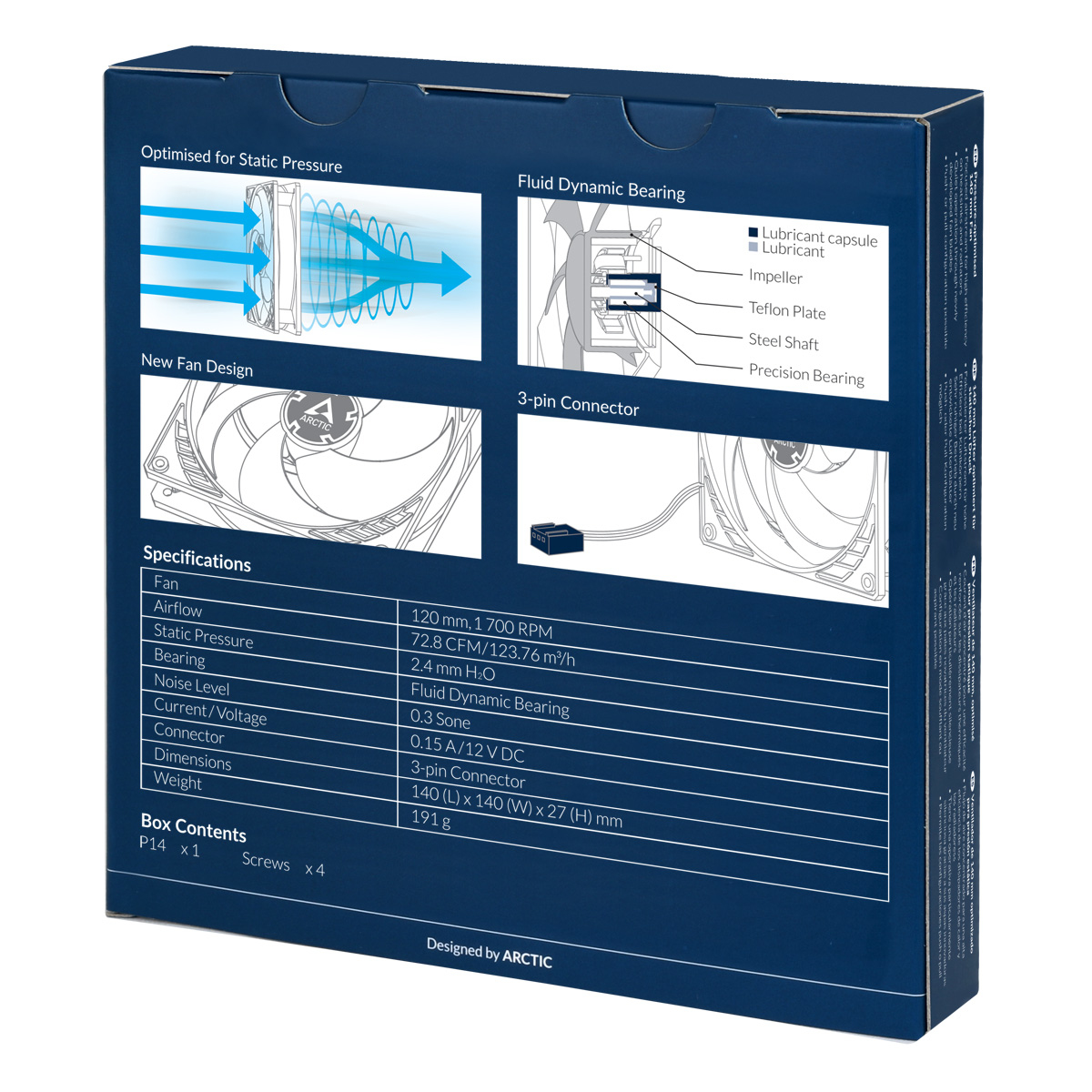

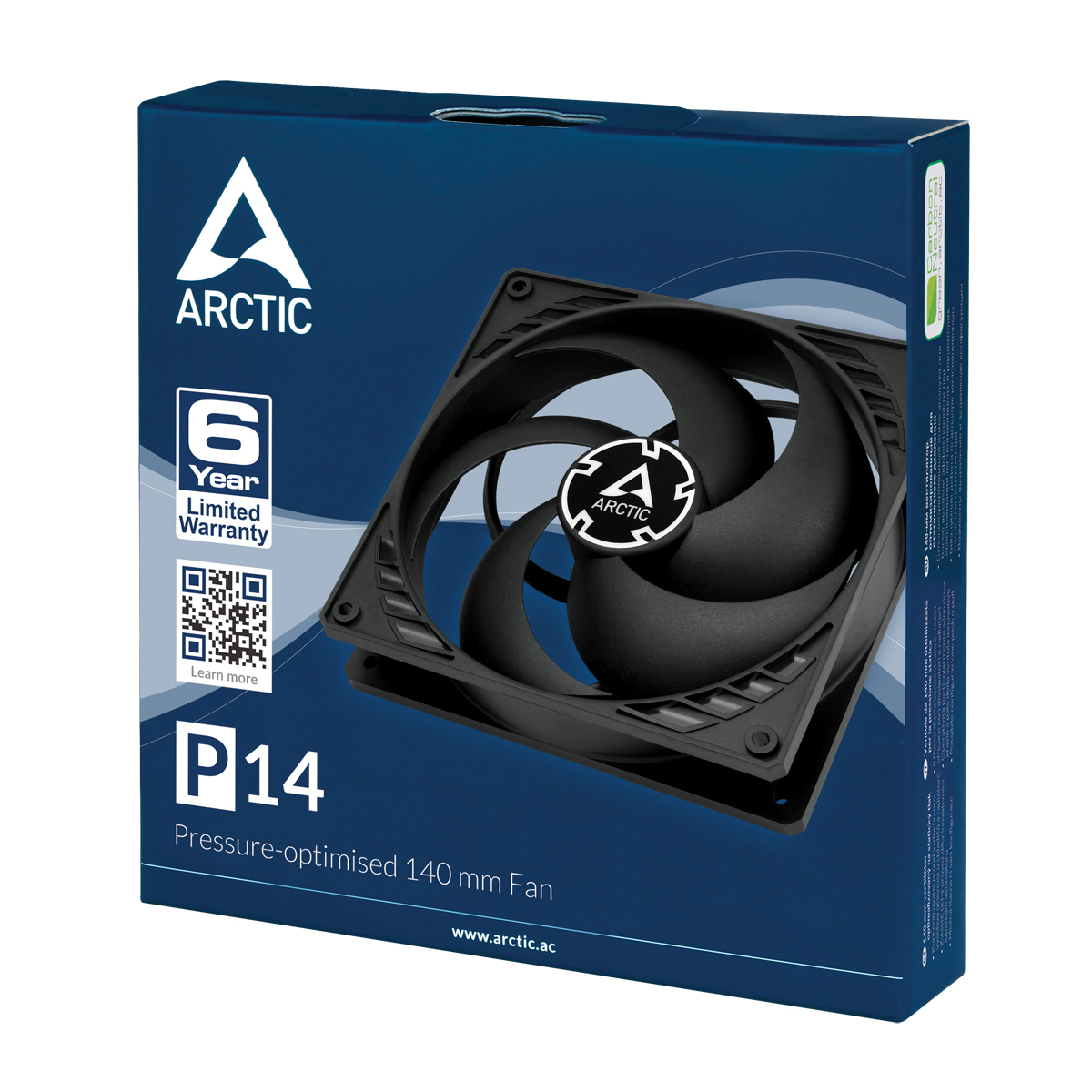

ARCTIC P14 – Pressure-optimised
140 mm Fan
Model P14Part no. ACFAN00123AEAN 872767009486
33 specifications
- Noise24.5 dB
- TypeFan
- Weight191 g
- ColourBlack
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 24.5 dB
- Type
- Fan
- Weight
- 191 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P14
- Part number
- ACFAN00123A
- EAN / UPC
- 872767009486, 4895213701549
- Also known as
- ARCTIC P14 – Pressure-optimised 140 mm Fan
Specifications
33 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (max) | 1700 RPM |
| Noise level (high speed) | 24.5 dB |
| Noise level | 0.3 sone |
| Maximum airflow | 72.8 cfm |
| Airflow | 123.76 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Illumination LED | No |
| Fan connector | 3-pin |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 2.1 V |
| Rated current | 0.15 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 27 mm |
| Height | 140 mm |
| Weight | 191 g |
| Cable length | 0.4 m |
| Package width | 143 mm |
| Package depth | 143 mm |
| Package height | 29 mm |
| Package weight | 227 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
