P12 Slim PWM PST
Model P12 Slim PWM PSTPart no. ACFAN00275AEAN 840033401692
36 specifications
- Noise0.3 sone
- TypeFan
- Weight85 g
- ColourBlack
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 0.3 sone
- Type
- Fan
- Weight
- 85 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P12 Slim PWM PST
- Part numbers
- ACFAN00275A, ACFAN00187A
- EAN / UPC
- 840033401692, 840033400930, 4895213703130, 4895213703888
- Also known as
- ARCTIC P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable
Specifications
36 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 2100 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 41.1 cfm |
| Airflow | 71.53 m³/h |
| Maximum air pressure | 1.45 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Illumination LED | No |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 4 V |
| Rated current | 0.12 A |
Weight & dimensions
| Specification | Value |
|---|---|

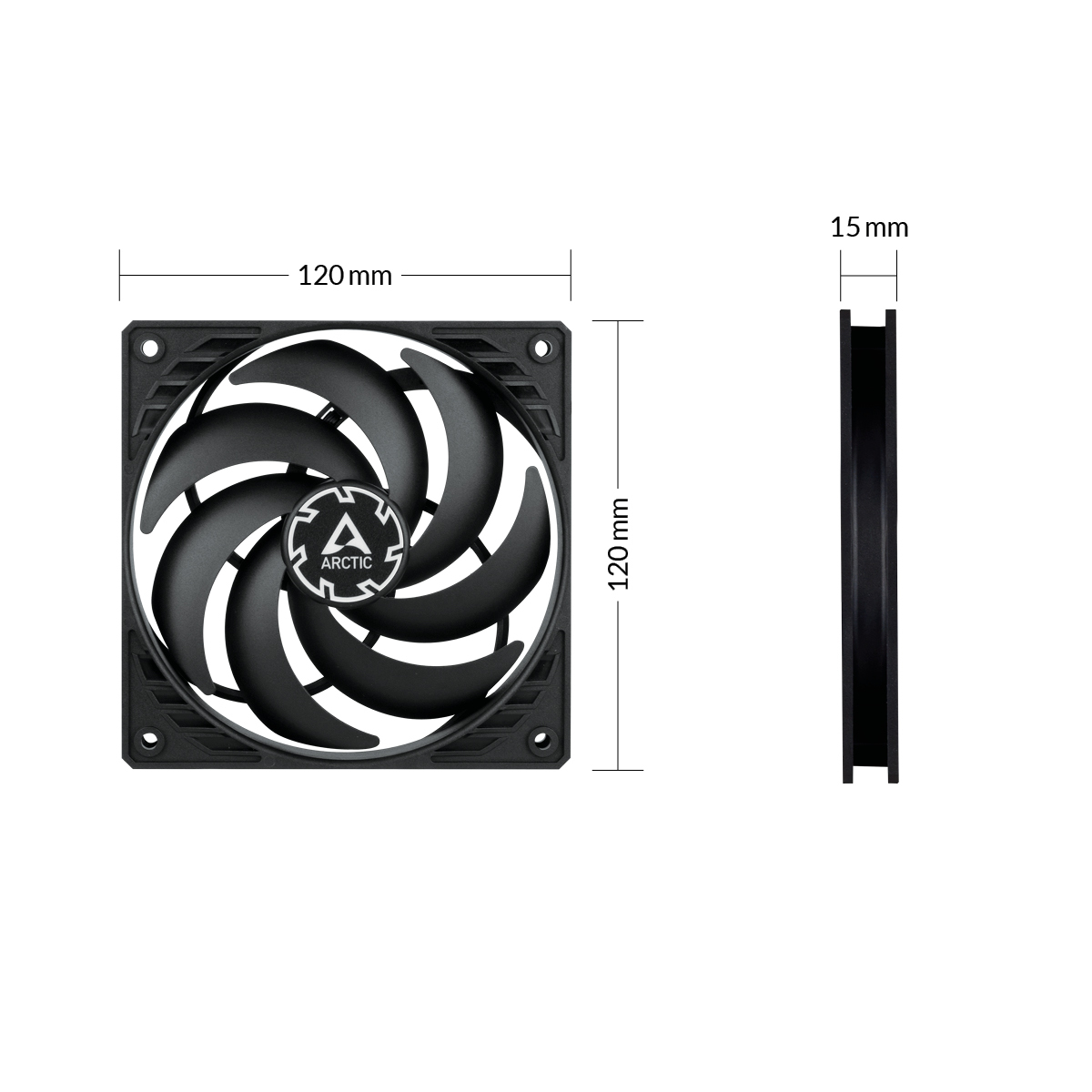

| Width | 120 mm |
| Depth | 15 mm |
| Height | 120 mm |
| Weight | 85 g |
| Cable length | 0.48 m |
| Package width | 127 mm |
| Package depth | 123 mm |
| Package height | 16 mm |
| Package weight | 110 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
