P12 PWM PST RGB 0dB
Model P12 PWM PST RGB 0dBPart no. ACFAN00229AEAN 4895213703253
35 specifications
- TypeFan
- Weight131 g
- ColourBlack, White
- Suitable locationComputer case
- Voltage12 V
- Width120 mm
Overview
- Type
- Fan
- Weight
- 131 g
- Colour
- Black, White
- Suitable location
- Computer case
- Voltage
- 12 V
- Width
- 120 mm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P12 PWM PST RGB 0dB
- Part numbers
- ACFAN00229A, ACFAN00186A, ACFAN00230A
- EAN / UPC
- 4895213703253, 840033400947, 4895213703147, 840033401067
- Also known as
- ARCTIC P12 PWM PST RGB 0dB Semi-Passive 120 Fan with Analog RGB
Specifications
35 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 0 RPM |
| Rotational speed (max) | 2000 RPM |
| Maximum airflow | 48.8 cfm |
| Airflow | 82.91 m³/h |
| Maximum air pressure | 1.85 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Illumination LED | Yes |
| Number of LEDs | 12 |
| Illumination colour | Blue |
| Fan connector | 4-pin + 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.11 A |

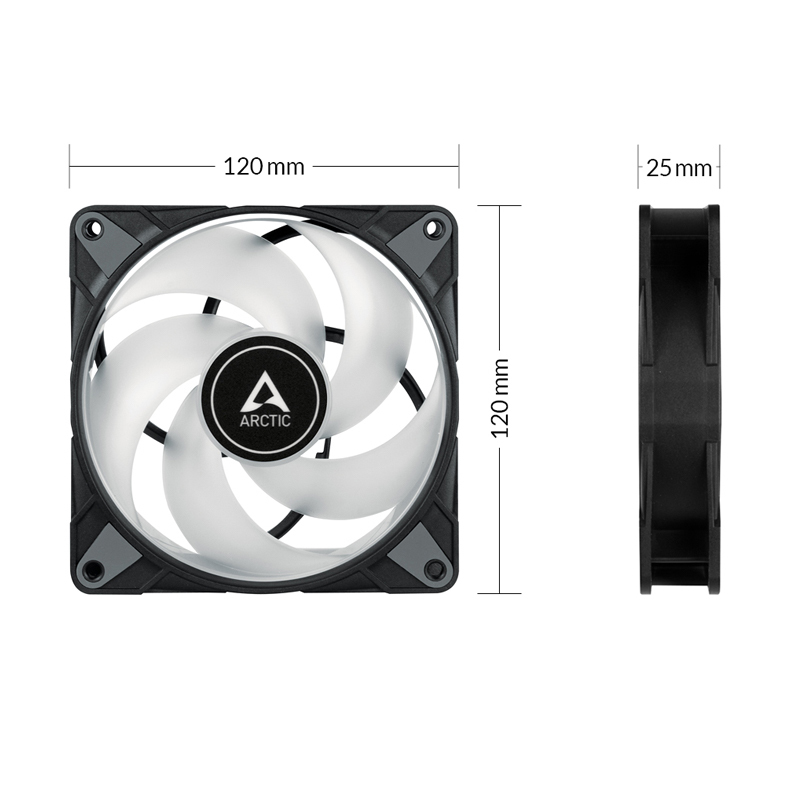

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 131 g |
| Cable length | 0.48 m |
| Package width | 30 mm |
| Package depth | 127 mm |
| Package height | 125 mm |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
