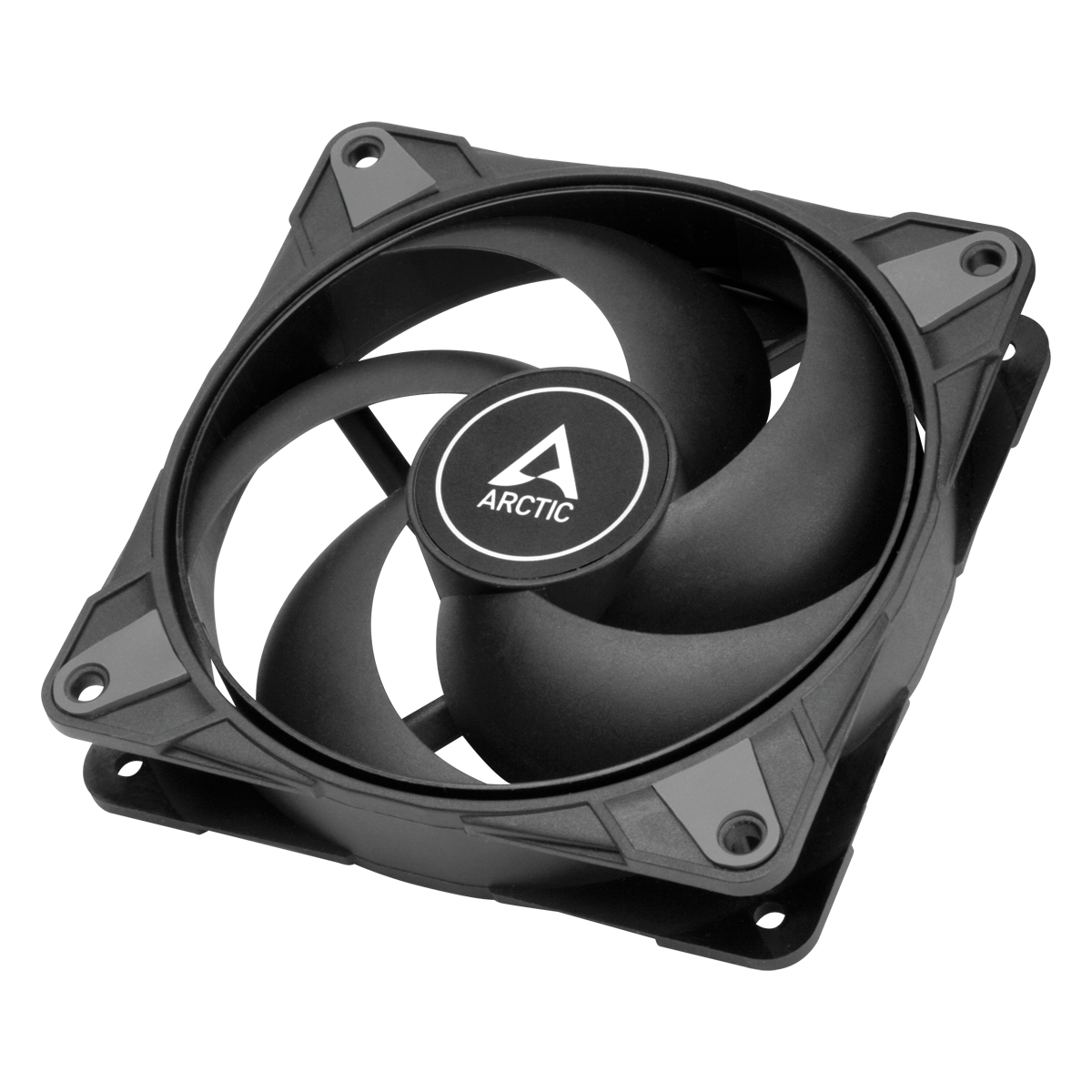

P12 Max
Model P12 MaxPart no. ACFAN00293AEAN 4895213704267
39 specifications
- Noise0.6 sone
- TypeFan
- Weight184 g
- ColourBlack
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 0.6 sone
- Type
- Fan
- Weight
- 184 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- P12 Max
- Part numbers
- ACFAN00293A, ACFAN00280A, ACFAN00289A
- EAN / UPC
- 4895213704267, 840033401883, 4895213704076, 840033401913 +1 more
- Also known as
- ARCTIC P12 Max - High-performance 120 mm PWM Fan
Specifications
39 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 3300 RPM |
| Noise level | 0.6 sone |
| Maximum airflow | 81.04 cfm |
| Airflow | 137.69 m³/h |
| Maximum air pressure | 4.35 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 3300 RPM |
| Fan speed (min) | 200 RPM |
| Fan static pressure | 4.35 mmH2O |
| Fan's mean time to failure (MTTF) | 500000 h |
| Operating temperature (T-T) | 0 - 40 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fan blades | 5 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 3.9 V |
| Fan current | 0.29 A |
| Fan voltage | 12 V |
| Maximum current | 0.29 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 184 g |
| Cable length | 0.4 m |
| Package width | 127 mm |
| Package depth | 125 mm |
| Package height | 30 mm |
| Package weight | 214 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | Hong Kong |
