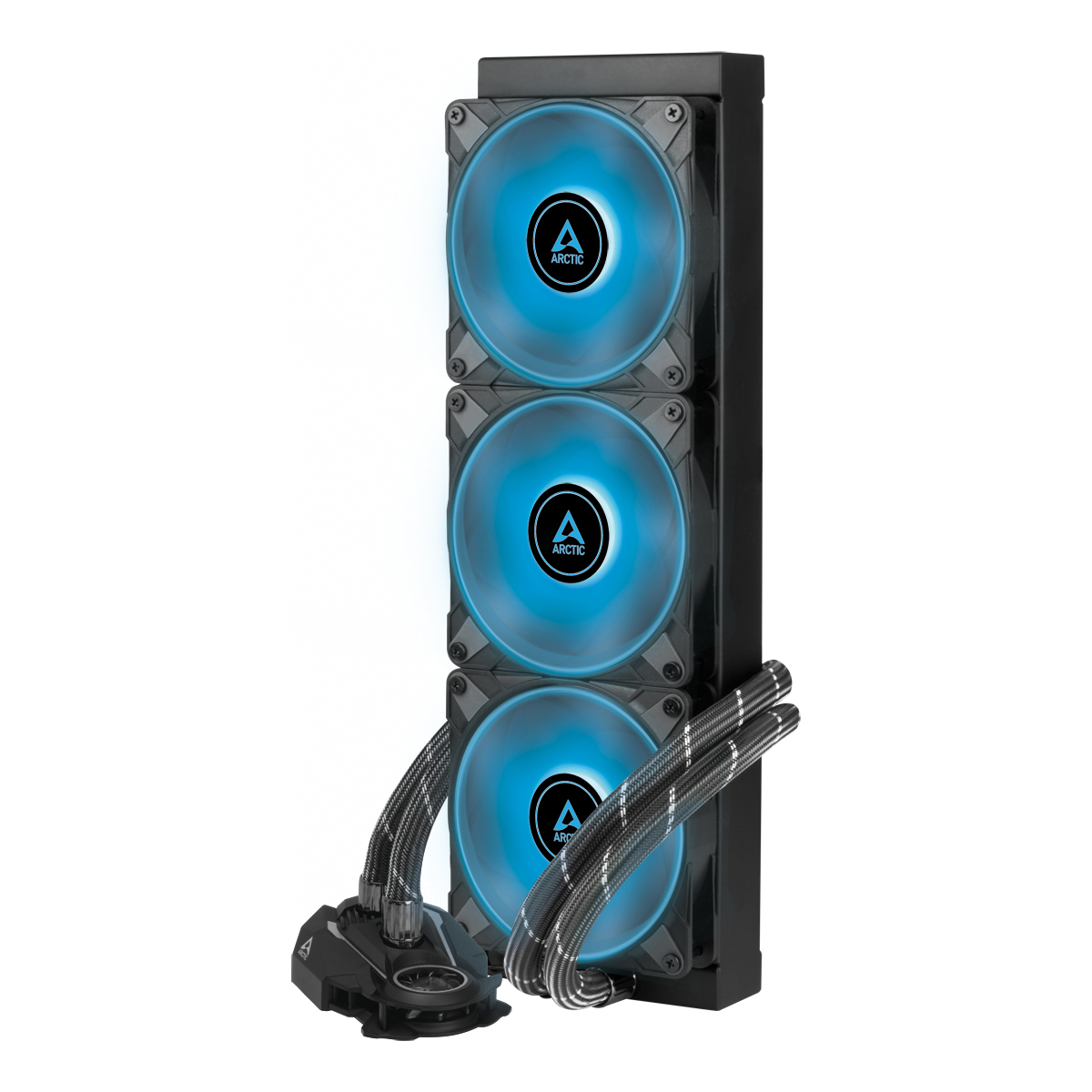

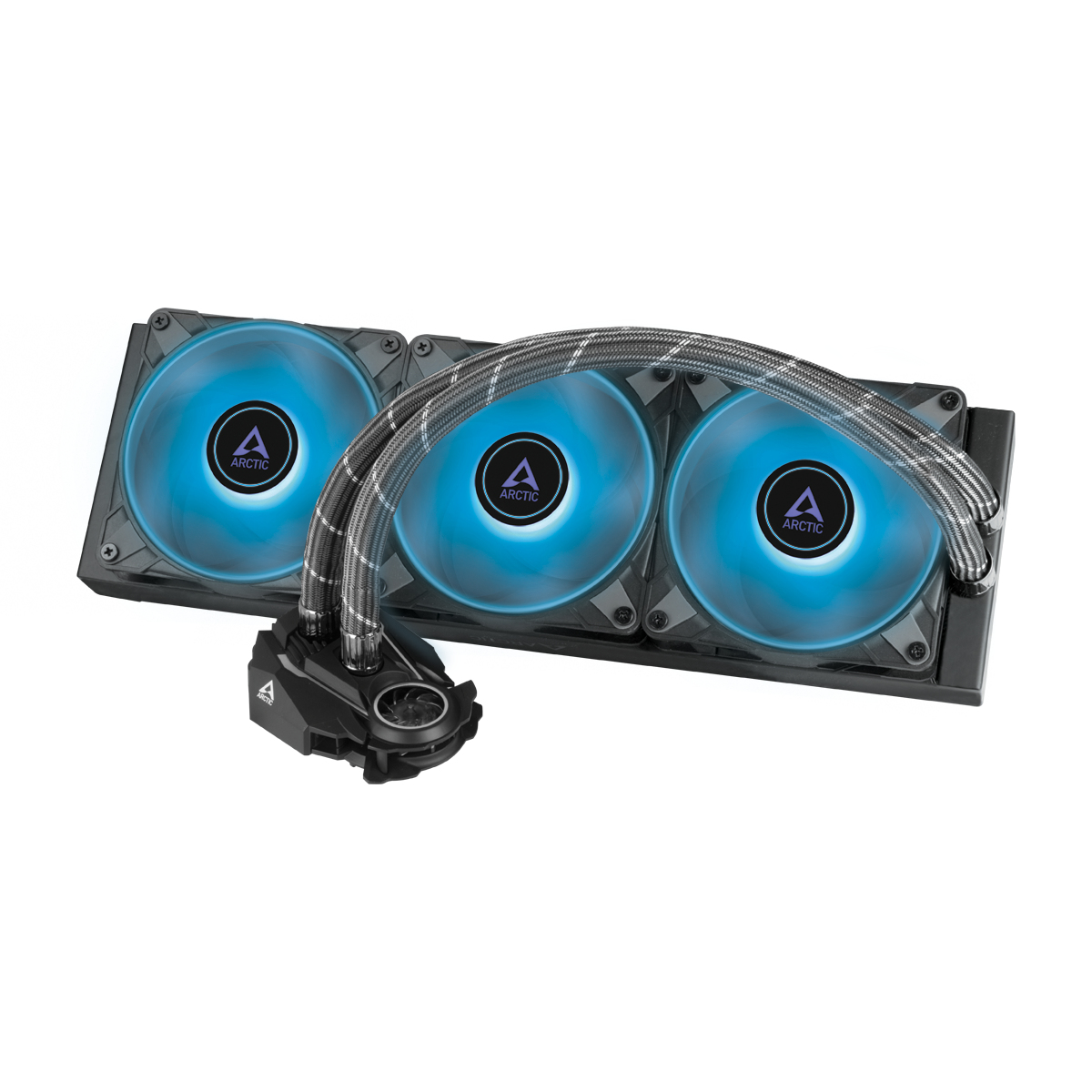

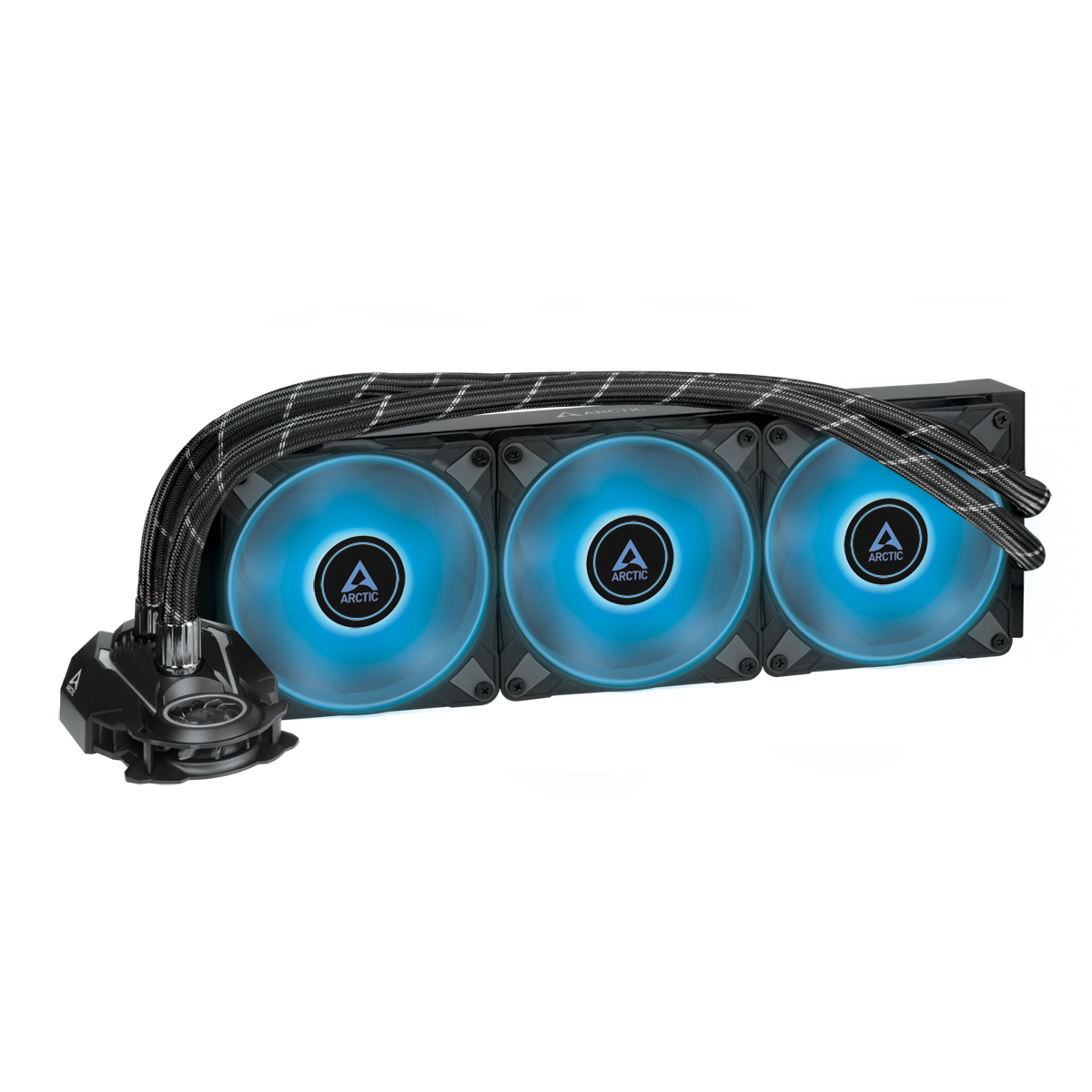

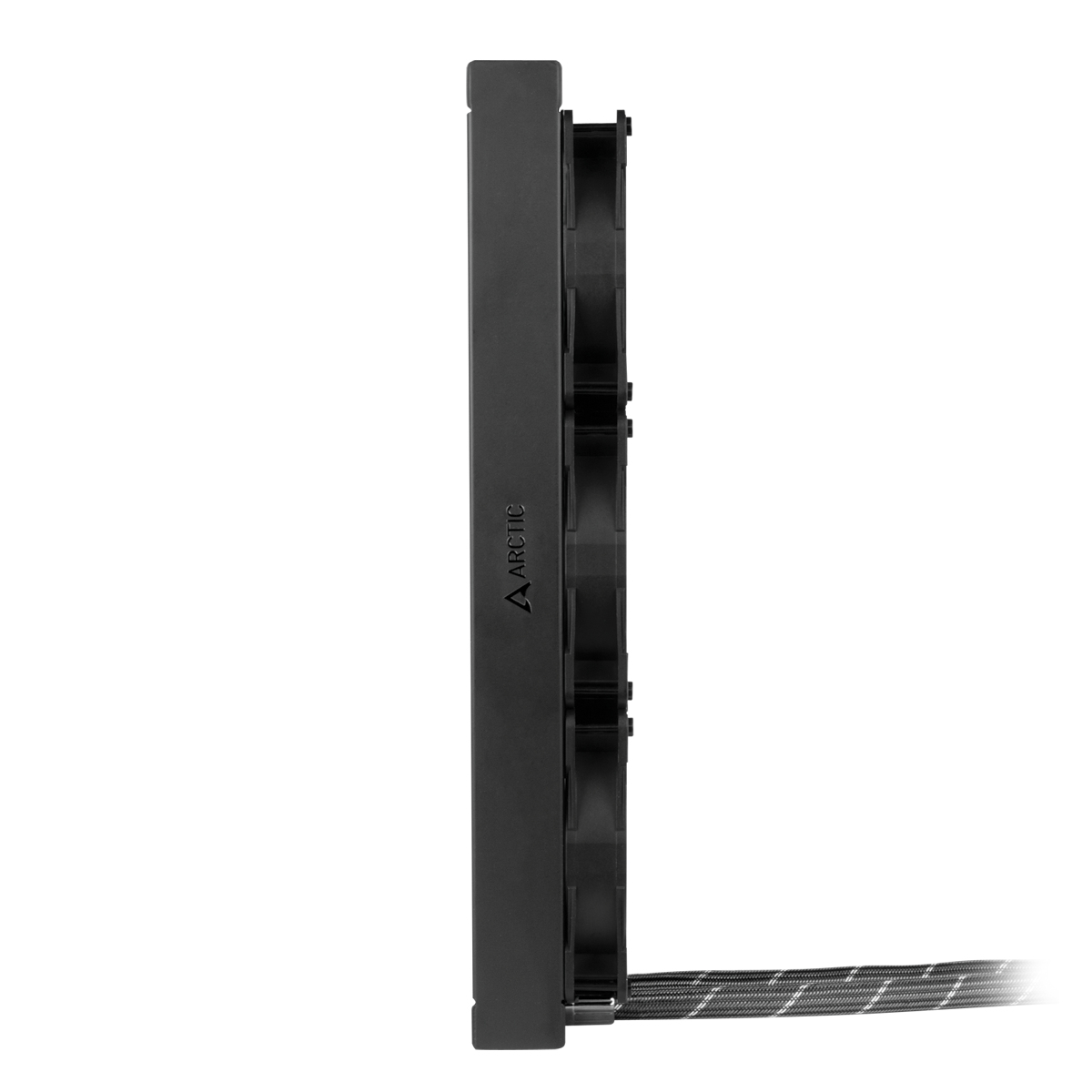

Liquid Freezer II 360 RGB
Model Liquid Freezer II 360 RGBPart no. ACFRE00100AEAN 840033401012
52 specifications
- TypeAll-in-one liquid cooler
- Weight1.21 kg
- ColourBlack
- Suitable locationProcessor
- Pump power consumption0.5 W
- Radiator width3.8 cm
Overview
- Type
- All-in-one liquid cooler
- Weight
- 1.21 kg
- Colour
- Black
- Suitable location
- Processor
- Pump power consumption
- 0.5 W
- Radiator width
- 3.8 cm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Liquid Freezer II 360 RGB
- Part numbers
- ACFRE00100A, ACFRE00097A
- EAN / UPC
- 840033401012, 4895213703185, 840033400985, 4895213703215
- Also known as
- ARCTIC Liquid Freezer II 360 RGB Multi Compatible All-in-One CPU Water Cooler with RGB
Specifications
52 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 48.8 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 200 RPM |
| Fan static pressure | 1.85 mmH2O |
| Pump motor speed (max) | 2000 RPM |
| Pump motor speed (min) | 800 RPM |
| VRM fan speed (max) | 3000 RPM |
| VRM fan speed (min) | 1000 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminium |
| Base plate material | Copper |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
| Fan controller | Yes |
Power
| Specification | Value |
|---|---|
| Pump power consumption | 0.5 W |
| VRM fan power consumption | 2.7 W |
| Fan current | 0.08 A |
| Fan voltage | 12 V |
| Pump voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 3.8 cm |
| Radiator depth | 12 cm |
| Radiator height | 39.8 cm |
| Tube length | 45 cm |
| VRM fan diameter | 4 cm |
| Tube diameter | 1.24 cm |
| Tube inner diameter | 6 mm |
| Pump width | 5.3 cm |
| Pump depth | 7.8 cm |
| Pump height | 9.8 cm |
| Weight | 1.21 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package width | 142 mm |
| Package depth | 414 mm |
| Package height | 167 mm |
| Package weight | 2.3 kg |

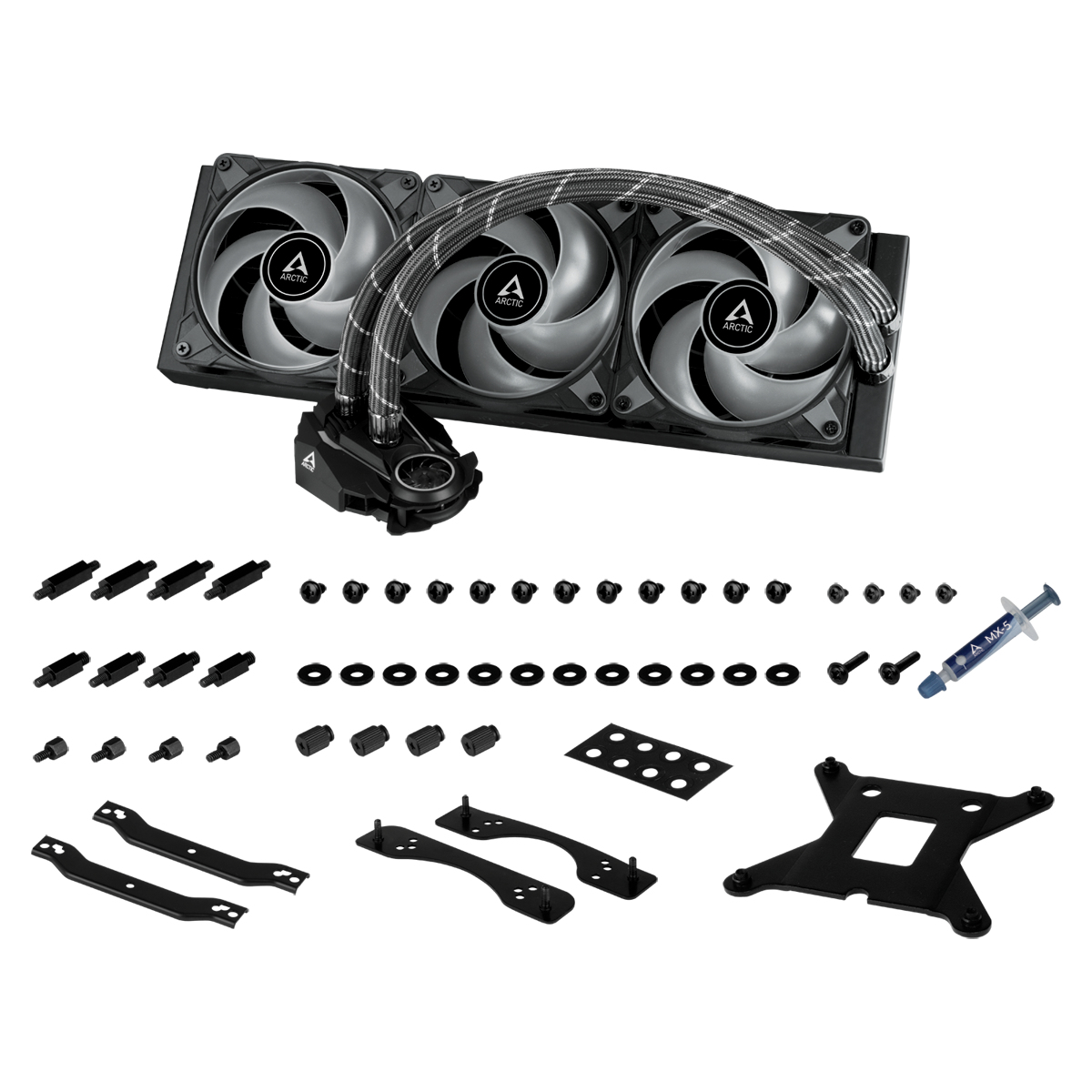

Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| LED controller interface | 3-pin |
| Manual | Yes |
| CPU bracket(s) | Yes |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
