Liquid Freezer II 280 RGB
Model Liquid Freezer II 280 RGBPart no. ACFRE00108AEAN 840033401180
56 specifications
- Noise0.3 sone
- TypeLiquid cooling kit
- Weight2.02 kg
- ColourBlack
- Suitable locationProcessor
- Pump power consumption0.5 W
Overview
- Noise
- 0.3 sone
- Type
- Liquid cooling kit
- Weight
- 2.02 kg
- Colour
- Black
- Suitable location
- Processor
- Pump power consumption
- 0.5 W
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Liquid Freezer II 280 RGB
- Part numbers
- ACFRE00108A, ACFRE00107A
- EAN / UPC
- 840033401180, 840033401227, 4895213703413, 4895213703376
- Also known as
- ARCTIC Liquid Freezer II 280 RGB - Multi Compatible All-in-One CPU Water Cooler with RGB
Specifications
56 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1567 (Socket LS), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket AM5 |
| Noise level | 0.3 sone |
| Maximum airflow | 68.9 cfm |
| Airflow | 117.06 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 24.5 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1900 RPM |
| Fan speed (min) | 200 RPM |
| Fan static pressure | 2 mmH2O |
| Pump motor speed (max) | 2000 RPM |
| Pump motor speed (min) | 800 RPM |
| VRM fan speed (max) | 3000 RPM |
| VRM fan speed (min) | 1000 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |
| Base plate material | Copper |
| Number of fans | 2 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Pump power consumption | 0.5 W |
| VRM fan power consumption | 2.7 W |
| Fan current | 0.17 A |
| Fan voltage | 12 V |
| LED voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 3.8 cm |
| Radiator depth | 31.7 cm |
| Radiator height | 13.8 cm |
| Tube length | 45 cm |
| Tube diameter | 1.24 cm |
| Tube inner diameter | 6 mm |
| Pump width | 5.3 cm |
| Pump depth | 7.8 cm |
| Pump height | 9.8 cm |
| Weight | 2.02 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
| Package width | 155 mm |
| Package depth | 335 mm |
| Package height | 170 mm |
| Package weight | 2.21 kg |

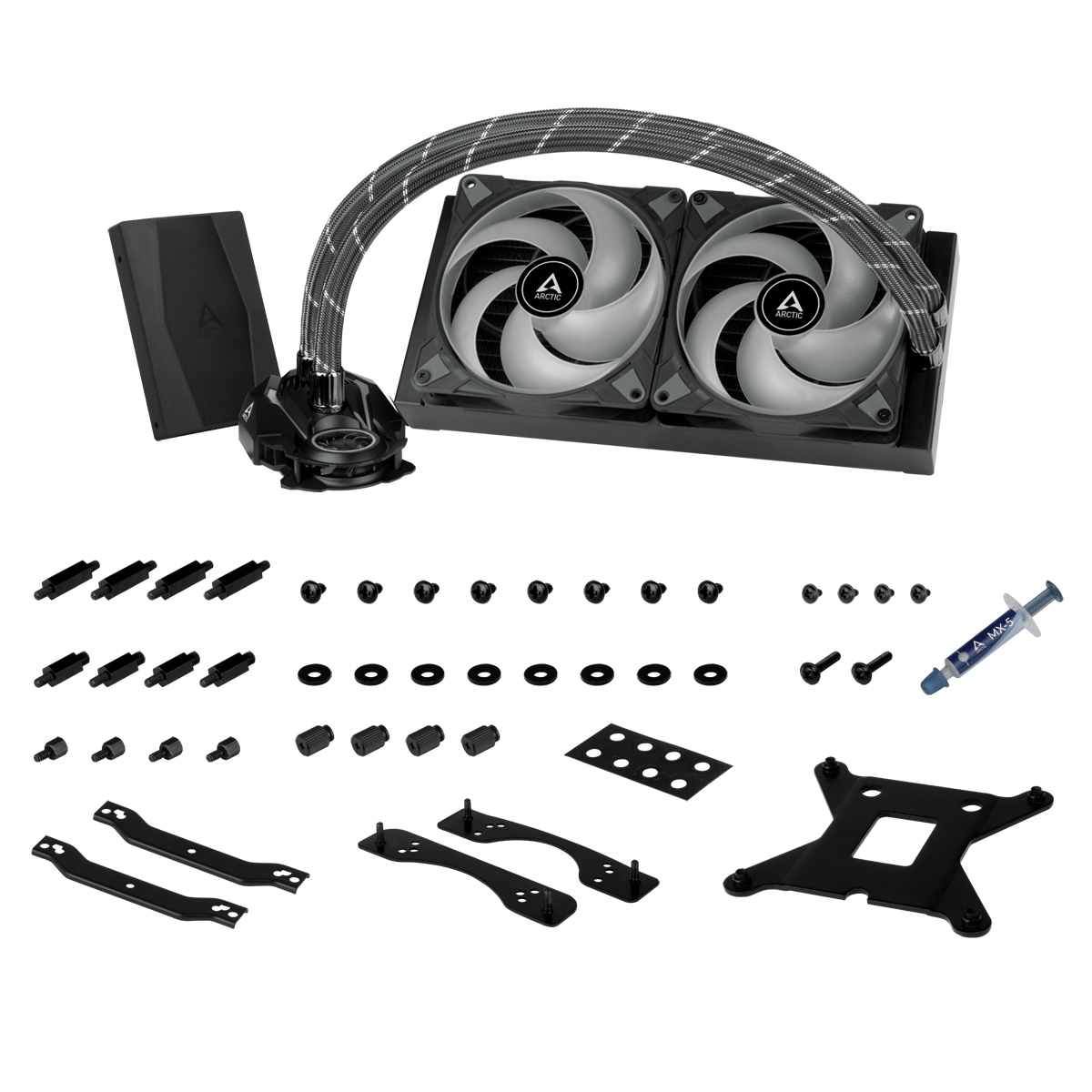

Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| LED controller | Yes |
| LED controller interface | 4-pin |
| LED controller dimensions (W x D x H) | 70 x 100 x 12 mm |
| RGB controller included | Yes |
| CPU bracket(s) | Yes |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
