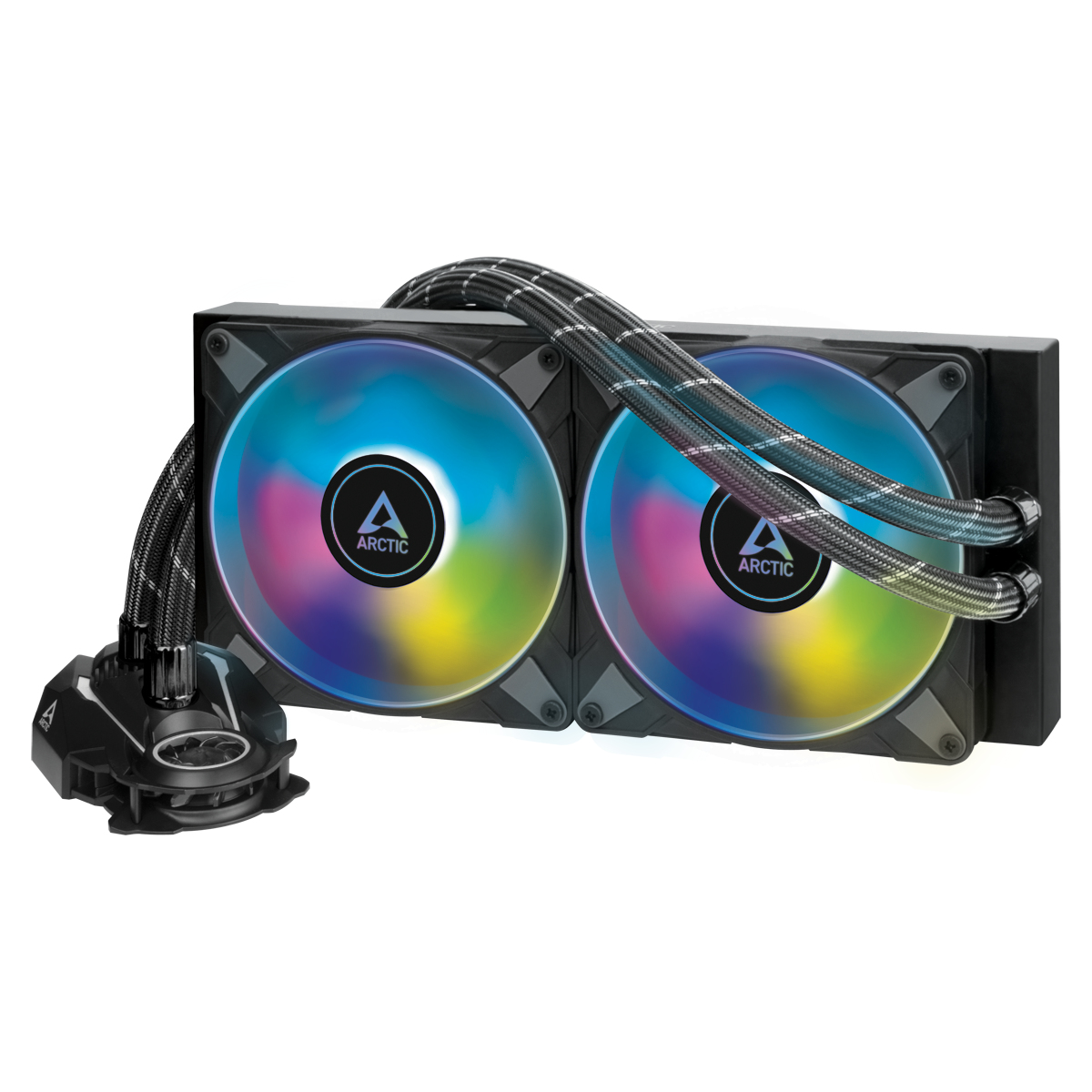

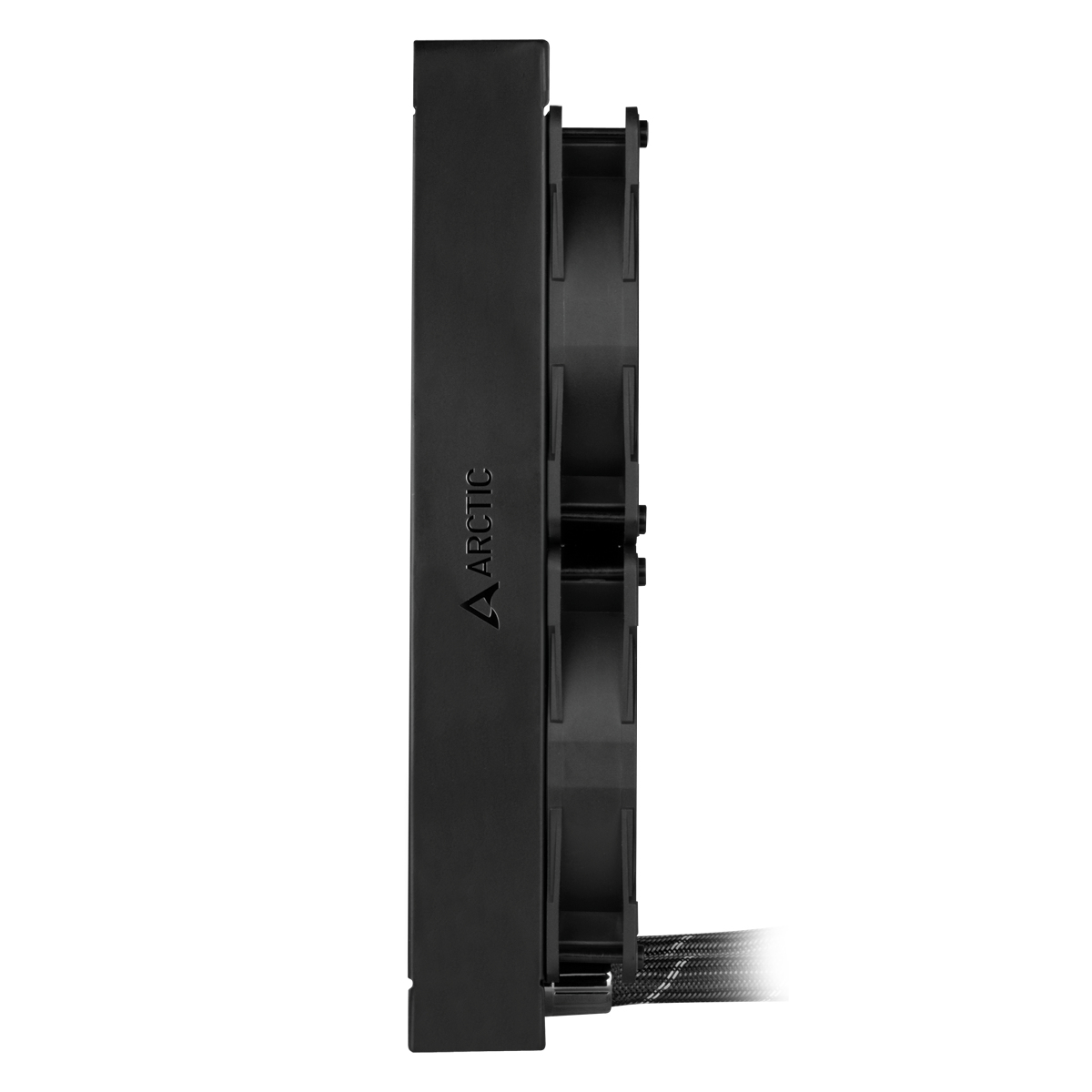

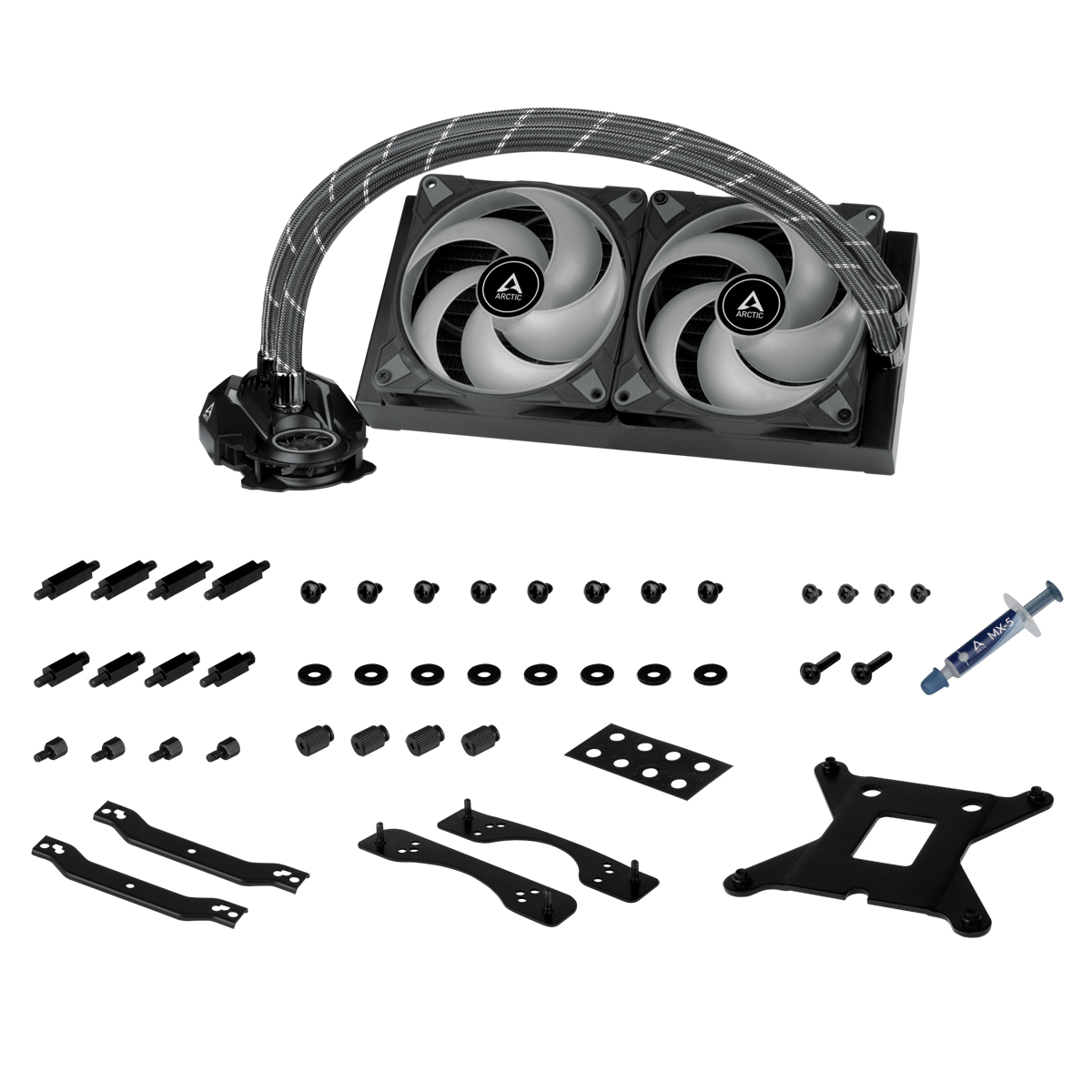

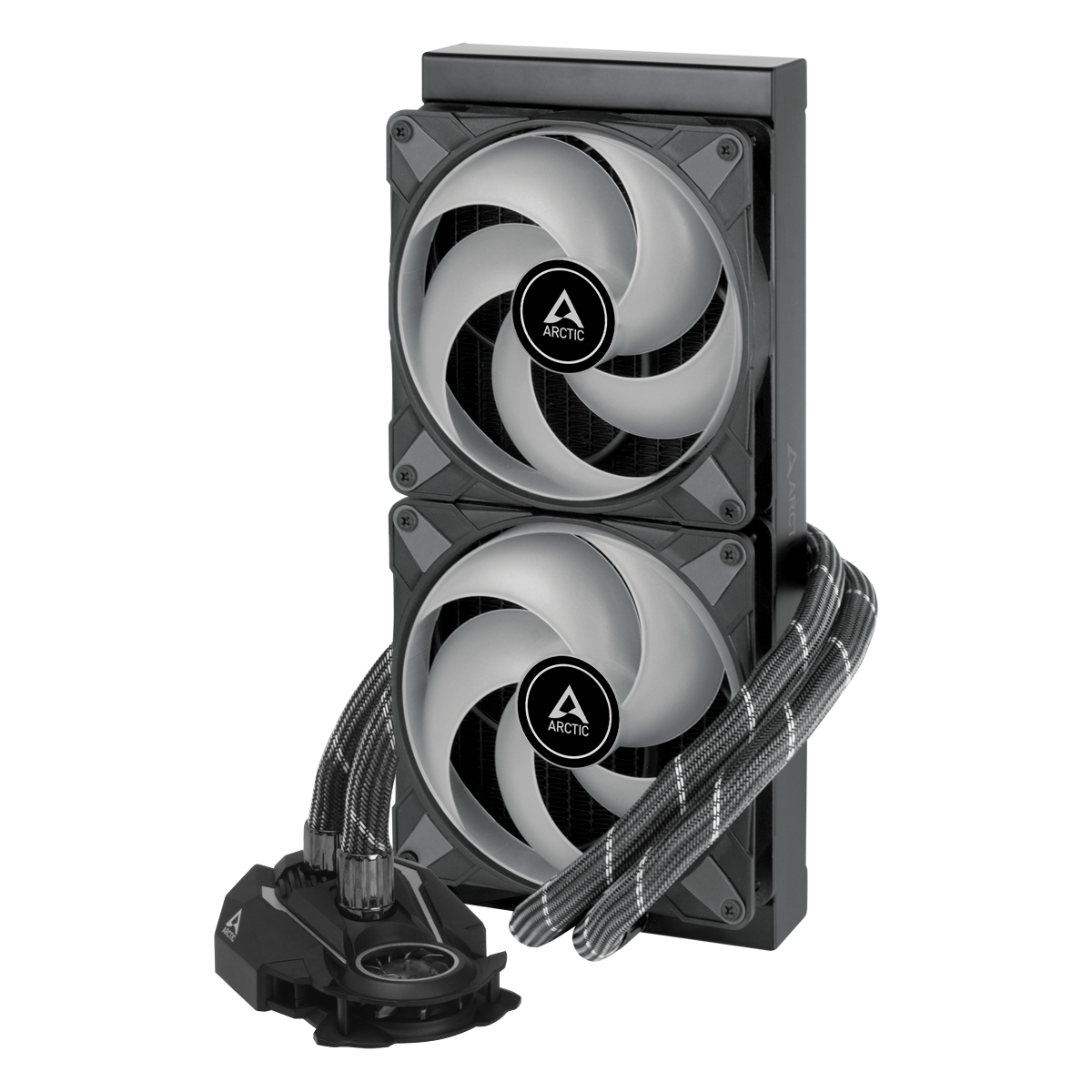

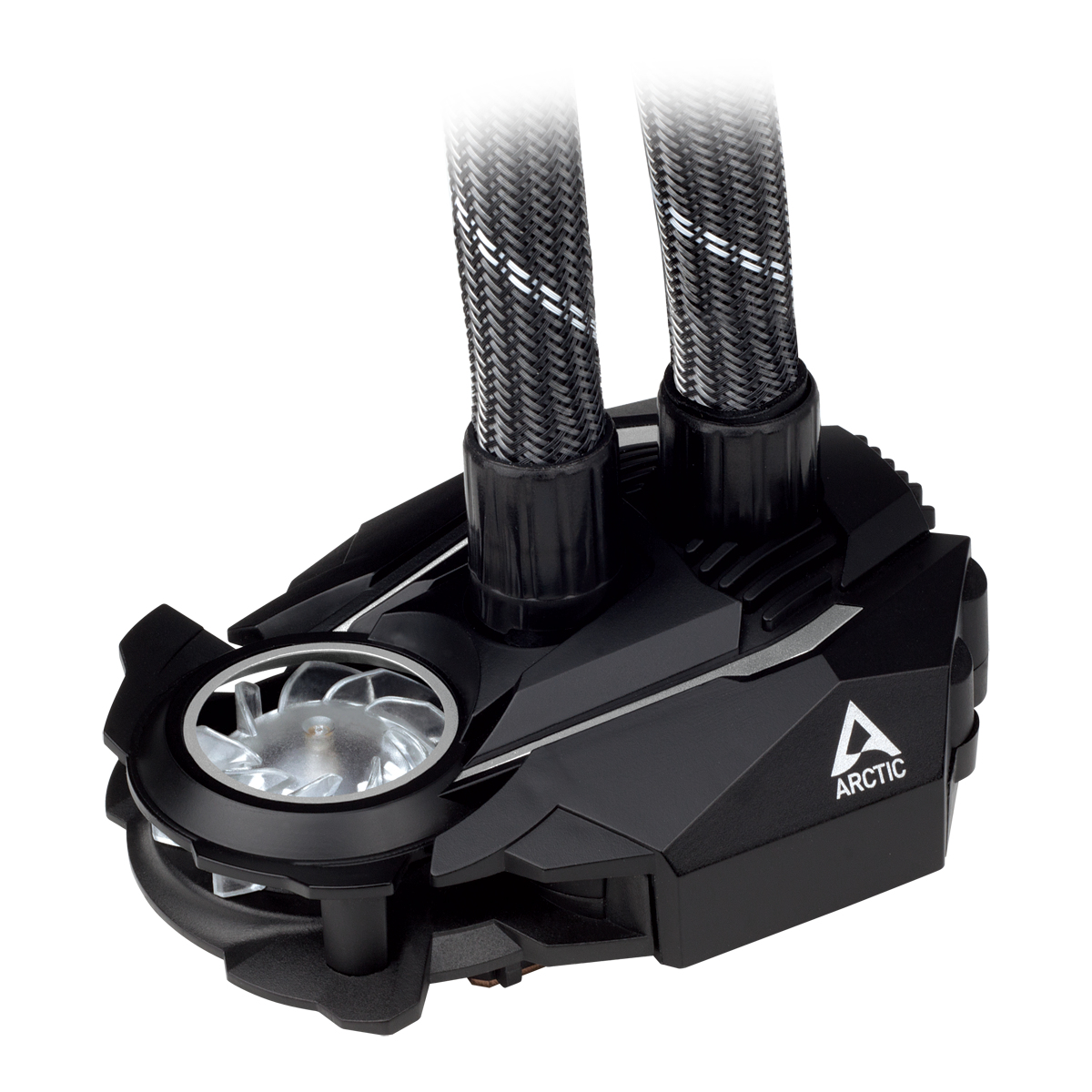

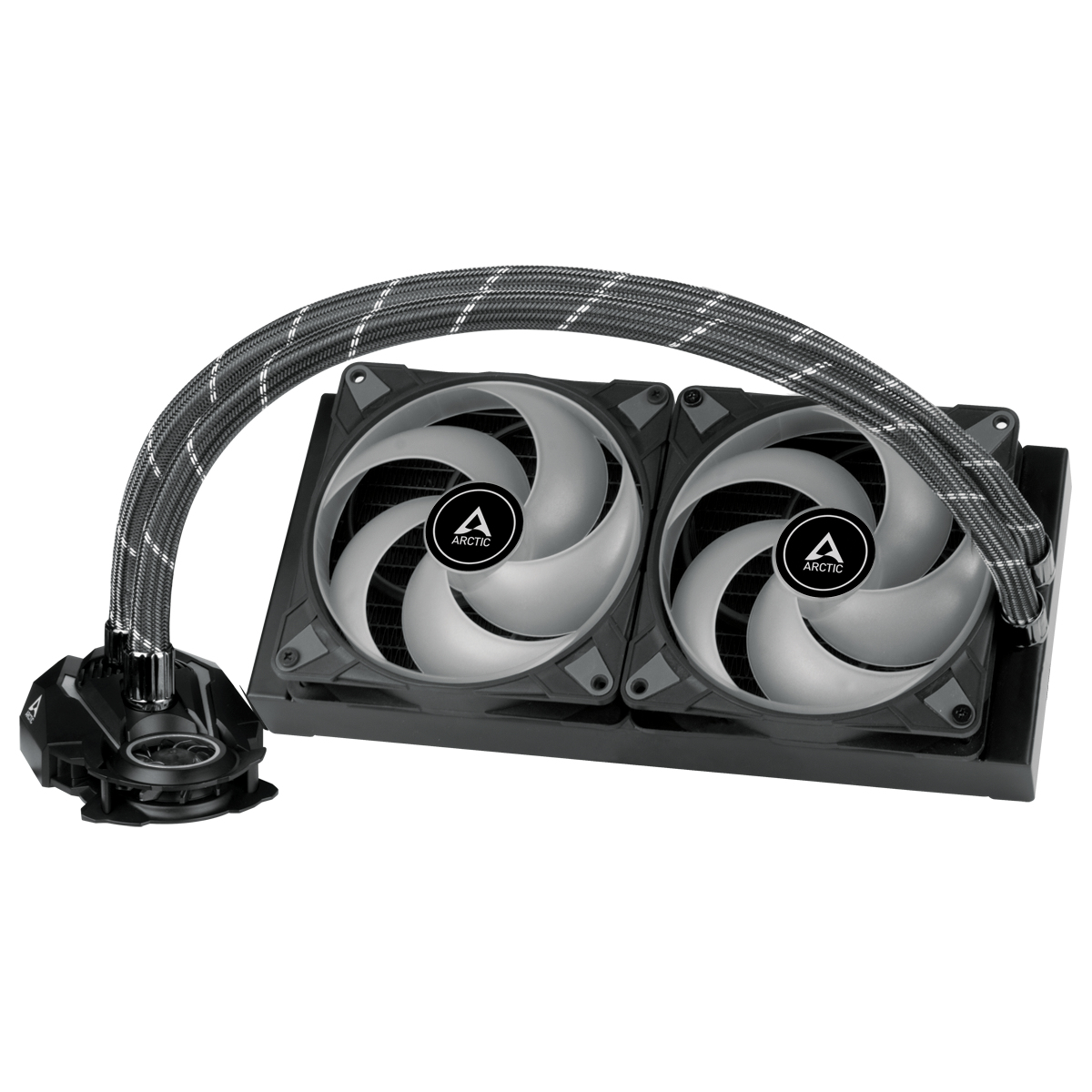

Liquid Freezer II 280 A-RGB
Model Liquid Freezer II 280 A-RGBPart no. ACFRE00106AEAN 840033401197
41 specifications
- TypeAll-in-one liquid cooler
- Weight1.6 kg
- Suitable locationProcessor
- Number of fans2 fan(s)
- Pump power consumption0.5 W
- Radiator width3.8 cm
Overview
- Type
- All-in-one liquid cooler
- Weight
- 1.6 kg
- Suitable location
- Processor
- Number of fans
- 2 fan(s)
- Pump power consumption
- 0.5 W
- Radiator width
- 3.8 cm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Liquid Freezer II 280 A-RGB
- Part number
- ACFRE00106A
- EAN / UPC
- 840033401197, 4895213703383
- Also known as
- ARCTIC Liquid Freezer II 280 A-RGB - Multi Compatible All-in-One CPU Water Cooler with A-RGB
Specifications
41 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 68.9 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1900 RPM |
| Fan speed (min) | 200 RPM |
| Fan static pressure | 2 mmH2O |
| Pump motor speed (max) | 2000 RPM |
| Pump motor speed (min) | 800 RPM |
| VRM fan speed (max) | 3000 RPM |
| VRM fan speed (min) | 1000 RPM |
Design
| Specification | Value |
|---|---|
| Number of fans | 2 fan(s) |
| Fan connector | 3-pin + 4-pin |
| Fan controller | Yes |
Power
| Specification | Value |
|---|---|
| Pump power consumption | 0.5 W |
| VRM fan power consumption | 2.7 W |
| Fan current | 0.17 A |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 3.8 cm |
| Radiator depth | 31.7 cm |
| Radiator height | 13.8 cm |
| Tube length | 0.45 mm |
| VRM fan diameter | 4 cm |
| Tube diameter | 1.24 cm |
| Tube inner diameter | 6 mm |
| Pump width | 5.3 cm |
| Pump depth | 7.8 cm |
| Pump height | 9.8 cm |
| Weight | 1.6 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 27 mm |
| Package width | 155 mm |
| Package depth | 335 mm |
| Package height | 170 mm |
| Package weight | 2.12 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
