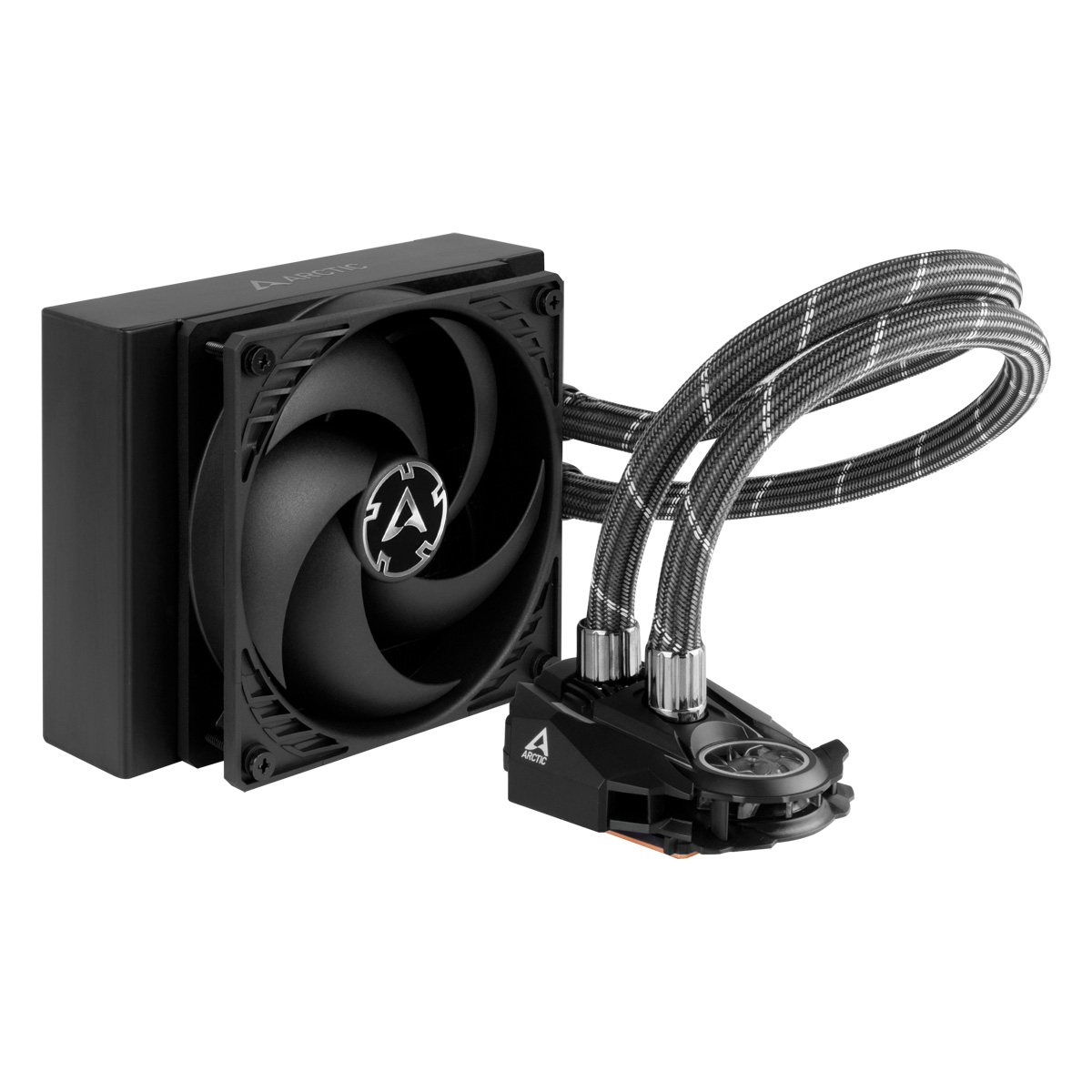

Liquid Freezer II 120
Model Liquid Freezer II 120Part no. ACFRE00067AEAN 872767009851
39 specifications
- TypeAll-in-one liquid cooler
- Weight932 g
- ColourBlack
- Suitable locationProcessor
- Pump power consumption0.5 W
- Radiator width15.7 cm
Overview
- Type
- All-in-one liquid cooler
- Weight
- 932 g
- Colour
- Black
- Suitable location
- Processor
- Pump power consumption
- 0.5 W
- Radiator width
- 15.7 cm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Liquid Freezer II 120
- Part number
- ACFRE00067A
- EAN / UPC
- 872767009851, 4895213701969
- Also known as
- ARCTIC Liquid Freezer II 120 Series – Multi Compatible All-In-One CPU Water Cooler
Specifications
39 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 56.3 cfm |
| Maximum air pressure | 2.2 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (max) | 24.5 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 200 RPM |
| Pump motor speed (max) | 2000 RPM |
| Pump motor speed (min) | 800 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminium |
| Base plate material | Copper |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Pump power consumption | 0.5 W |
| VRM fan power consumption | 2.7 W |
| Fan current | 0.08 A |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Radiator width | 15.7 cm |
| Radiator depth | 3.8 cm |
| Radiator height | 12 cm |
| Tube length | 35 cm |
| Tube diameter | 1.24 cm |
| Tube inner diameter | 6 mm |
| Pump width | 9.8 cm |
| Pump depth | 5.3 cm |
| Pump height | 7.8 cm |
| Weight | 932 g |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |

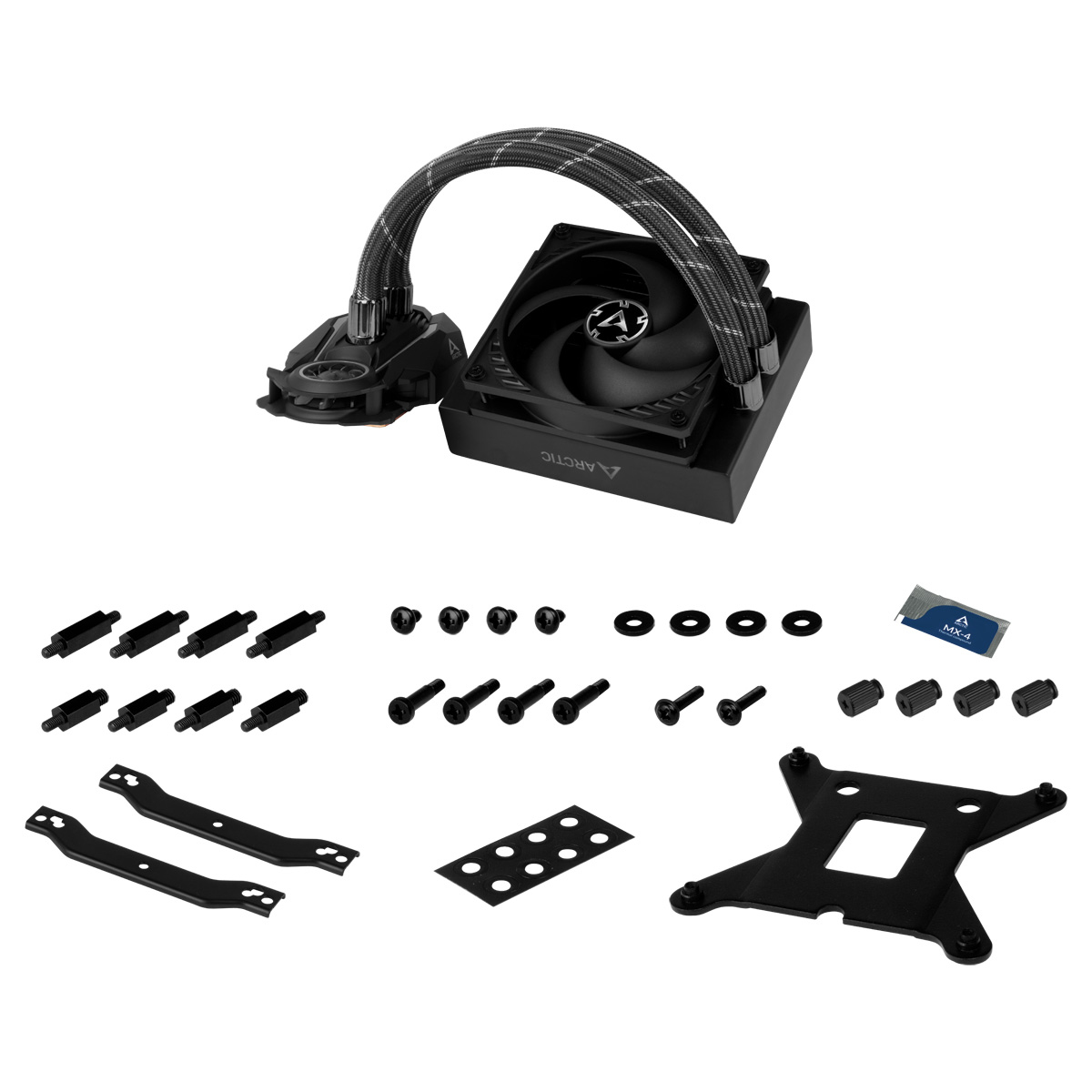

Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| CPU bracket(s) | Yes |
Other features
| Specification | Value |
|---|---|
| Thermal grease | Yes |
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
