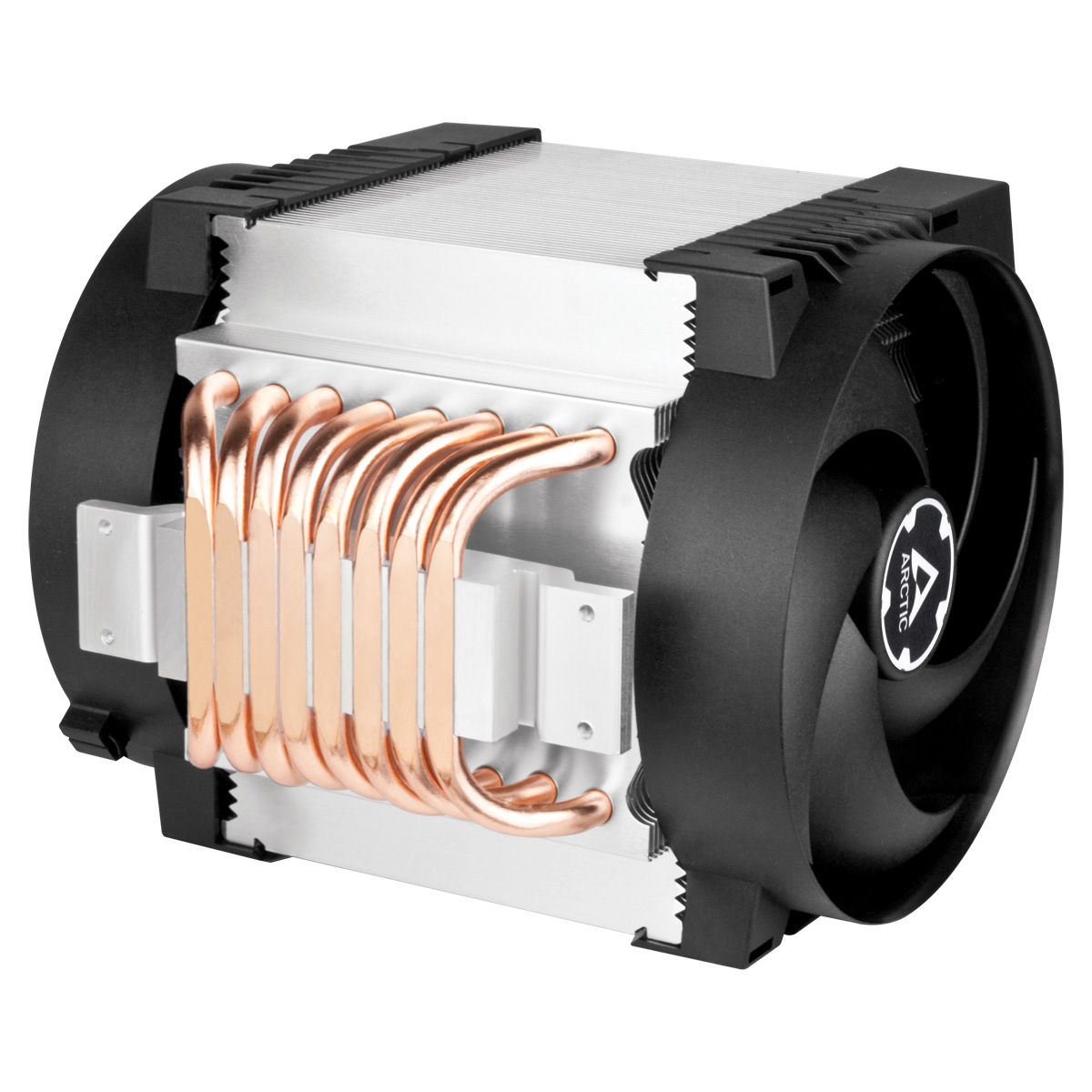

Kühler Freezer 4U-M CPU Cooler for AMD socket SP3
Model Kühler Freezer 4U-M CPU Cooler for AMD socket SP3Part no. ACFRE00133AEAN 840033401920
42 specifications
- TypeAir cooler
- Weight1.27 kg
- ColourAluminium, Black
- Suitable locationProcessor
- Fan current0.12 A
- Width156 mm
Overview
- Type
- Air cooler
- Weight
- 1.27 kg
- Colour
- Aluminium, Black
- Suitable location
- Processor
- Fan current
- 0.12 A
- Width
- 156 mm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Kühler Freezer 4U-M CPU Cooler for AMD socket SP3
- Part number
- ACFRE00133A
- EAN / UPC
- 840033401920, 4895213704113
- Also known as
- ARCTIC Freezer 4U-M - Multicompatible 4U Single Tower CPU Cooler
Specifications
42 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 4189, LGA 4677 (Socket E), Socket SP3, Socket TR4, Socket sTR4, Socket sTRX4, Socket sWRX8 |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2300 RPM |
| Maximum airflow | 71.9 cfm |
| Airflow | 122.16 m³/h |
| Maximum air pressure | 3.3 mmH2O |
| Fan diameter 2 | 12 cm |
| Fan 2 rotational speed (min) | 400 RPM |
| Fan 2 rotational speed (max) | 2300 RPM |
| Fan 2 maximum airflow | 71.9 cfm |
| Fan 2 maximum air pressure | 3.3 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Dual ball bearing |
| Operating temperature (T-T) | 0 - 40 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Material | Aluminium, Plastic |
| Radiator material | Aluminum |
| Number of fans | 2 fan(s) |
| Number of fins | 57 |
| Fins material | Aluminium |
| Number of heat pipes | 8 |
| Fan connector | 4-pin + 4-pin |
| Rack capacity | 4U |
Power
| Specification | Value |
|---|---|
| Fan current | 0.12 A |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 156 mm |
| Depth | 124 mm |
| Height | 145 mm |
| Weight | 1.27 kg |
| Heat pipes diameter | 6 mm |
| Cable length | 0.2 m |
| Package width | 160 mm |
| Package depth | 211 mm |
| Package height | 141 mm |
| Package weight | 1.55 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | Hong Kong |
