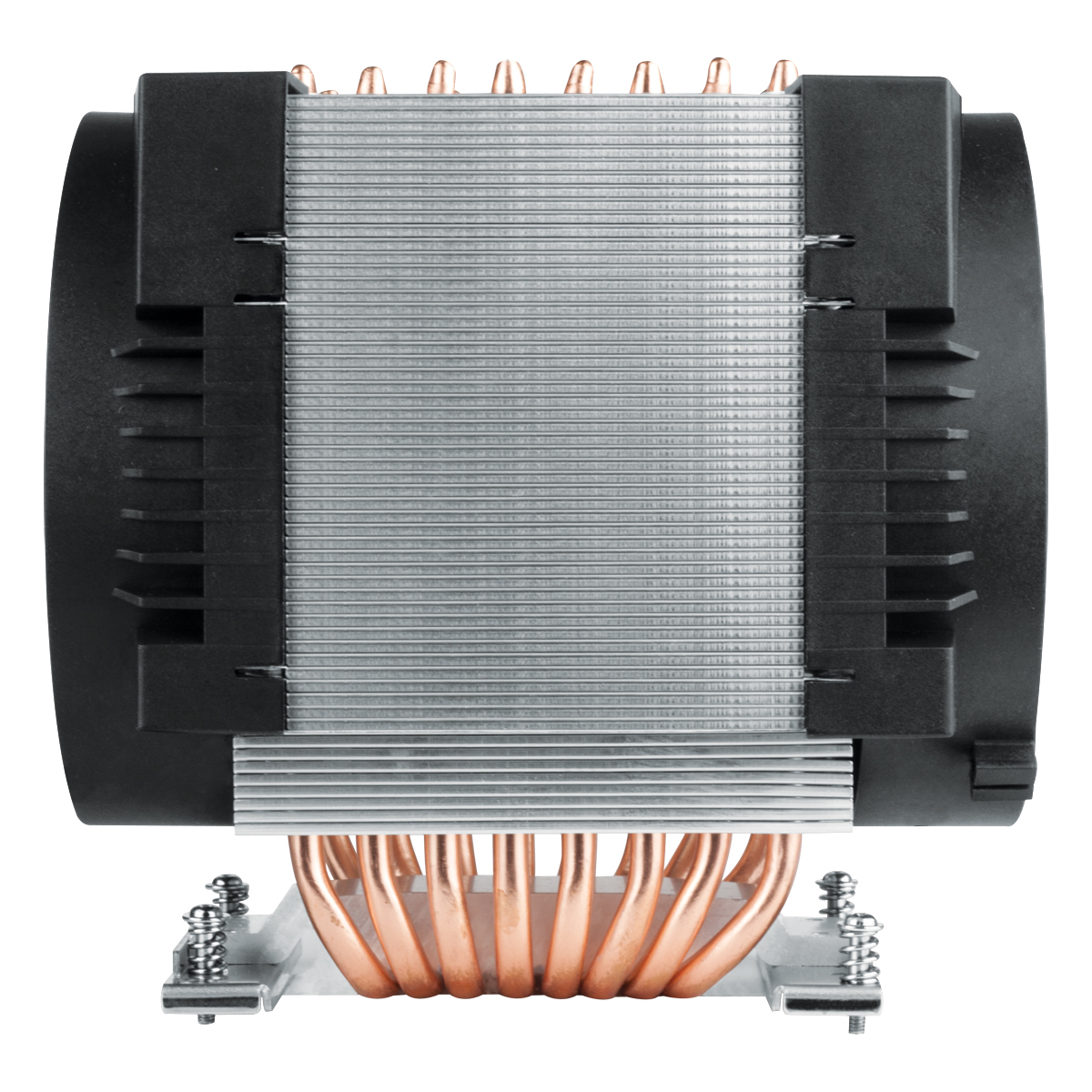

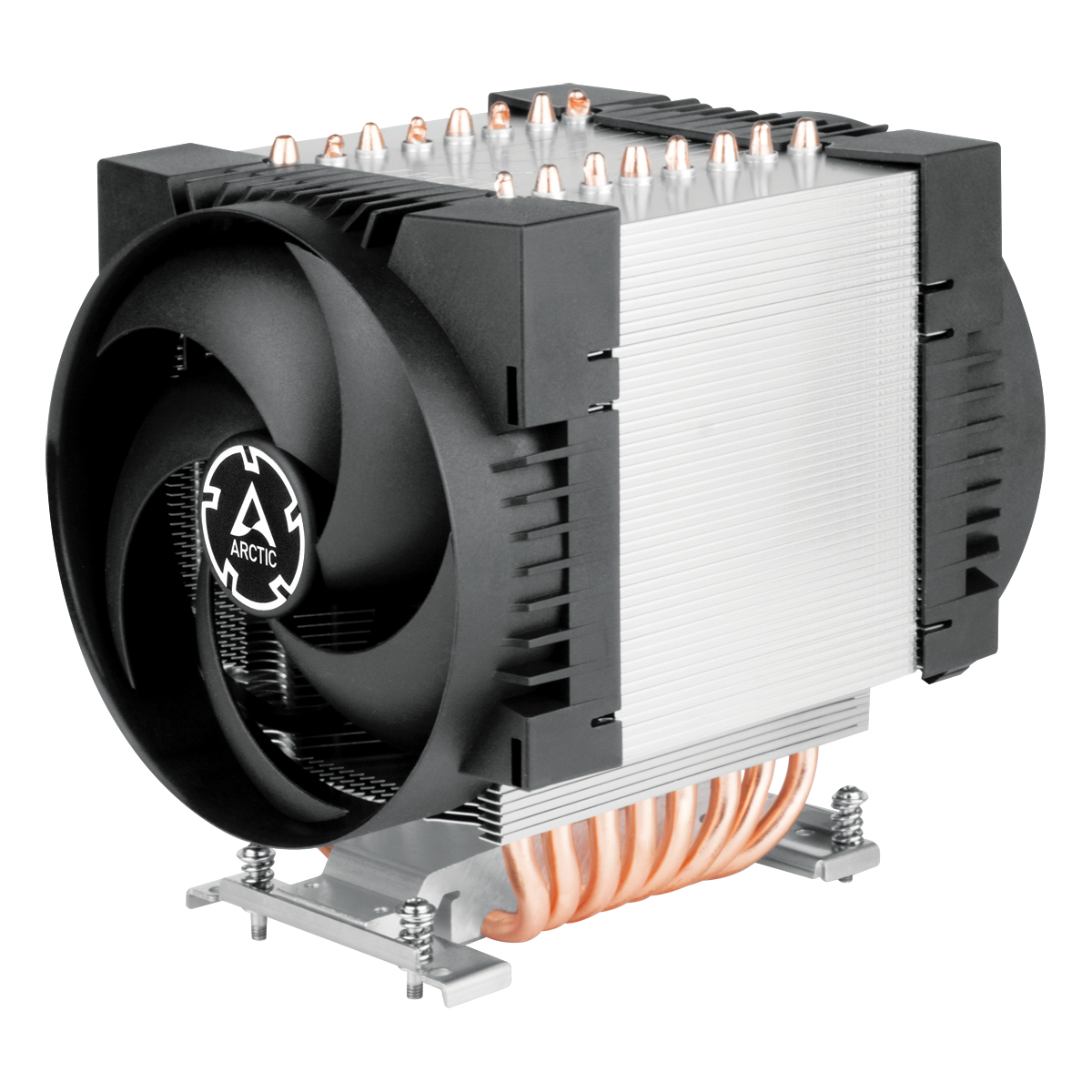

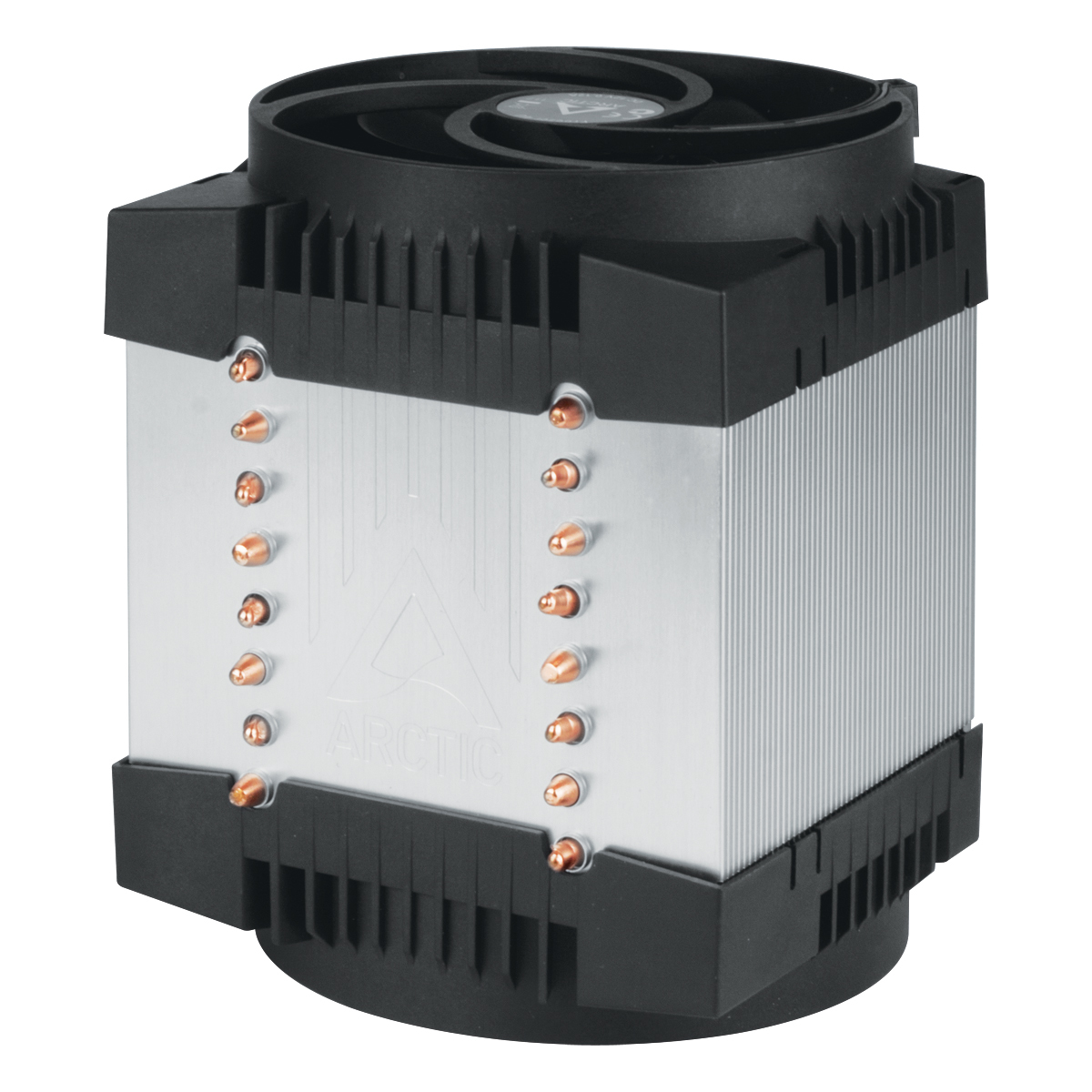

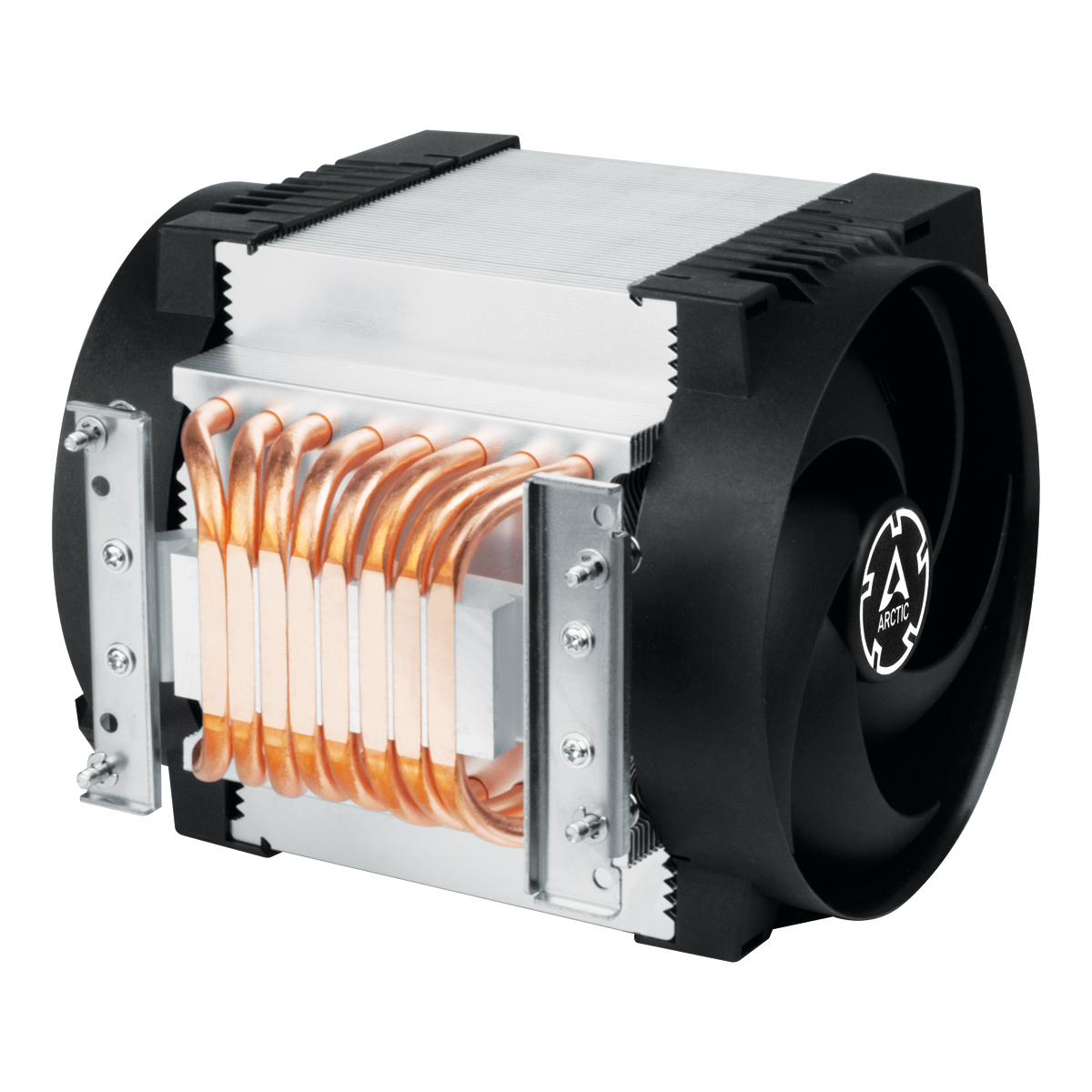

Freezer 4U SP3
Model Freezer 4U SP3Part no. ACFRE00081AEAN 840033401357
35 specifications
- TypeAir cooler
- Weight1.29 kg
- ColourAluminium, Black
- Suitable locationProcessor
- Voltage12 V
- Width156 mm
Overview
- Type
- Air cooler
- Weight
- 1.29 kg
- Colour
- Aluminium, Black
- Suitable location
- Processor
- Voltage
- 12 V
- Width
- 156 mm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Freezer 4U SP3
- Part number
- ACFRE00081A
- EAN / UPC
- 840033401357, 4895213703543
- Also known as
- ARCTIC Freezer 4U SP3 - Compact 4U Server Cooler
Specifications
35 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | Socket SP3, Socket TR4, Socket sTRX4 |
| Rotational speed (min) | 400 RPM |
| Rotational speed (max) | 2300 RPM |
| Maximum airflow | 71.9 cfm |
| Airflow | 122.16 m³/h |
| Minimum air pressure | 3.3 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Dual ball bearing |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 - 40 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Material | Aluminium, Plastic |
| Radiator material | Aluminum |
| Number of fans | 2 fan(s) |
| Number of fins | 59 |
| Fins material | Aluminium |
| Number of heat pipes | 8 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Thermal Design Power (TDP) | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 156 mm |
| Depth | 124 mm |
| Height | 152 mm |
| Weight | 1.29 kg |
| Heat pipes diameter | 6 mm |
| Cable length | 0.2 m |
| Package width | 127 mm |
| Package depth | 163 mm |
| Package height | 164 mm |
| Package weight | 1.44 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
