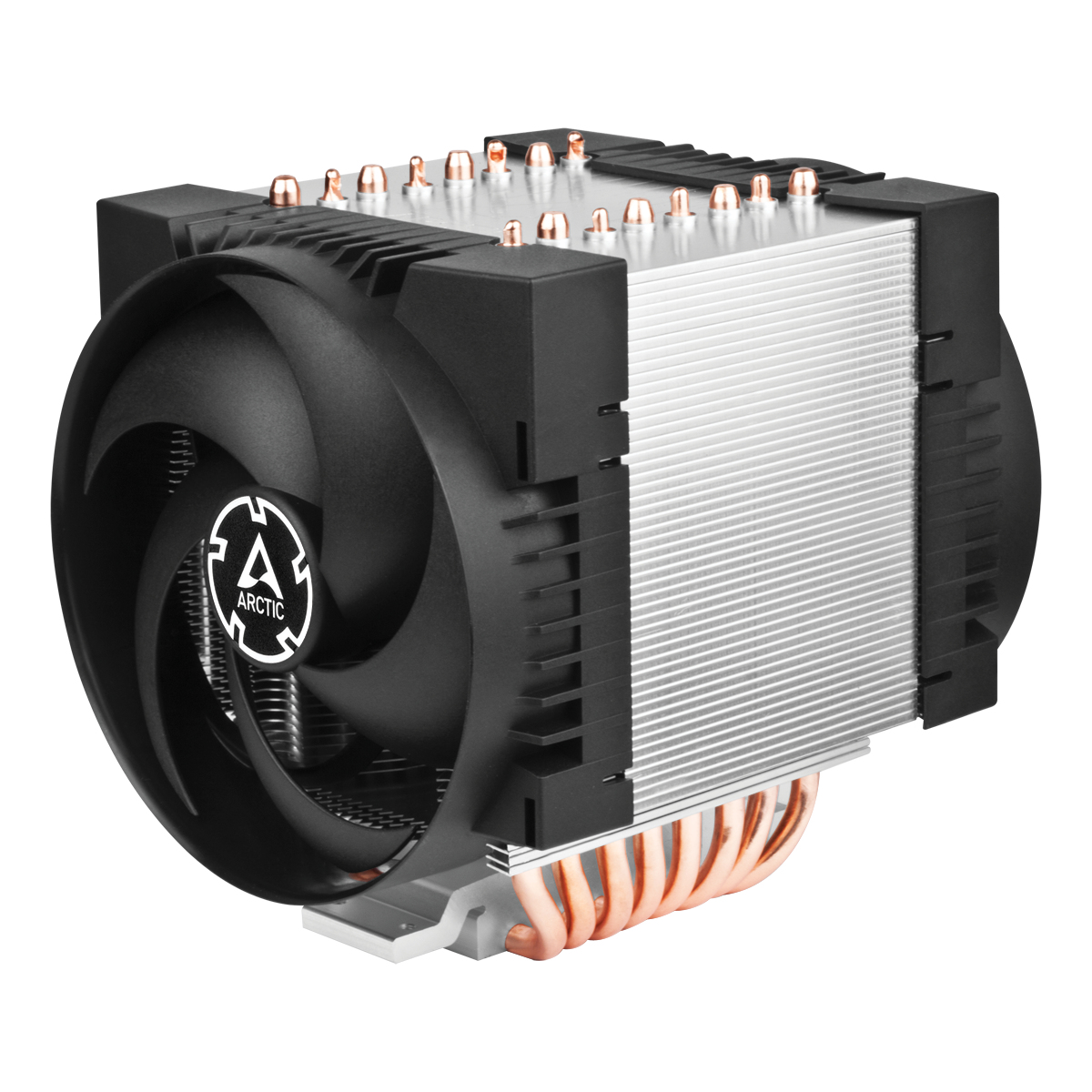

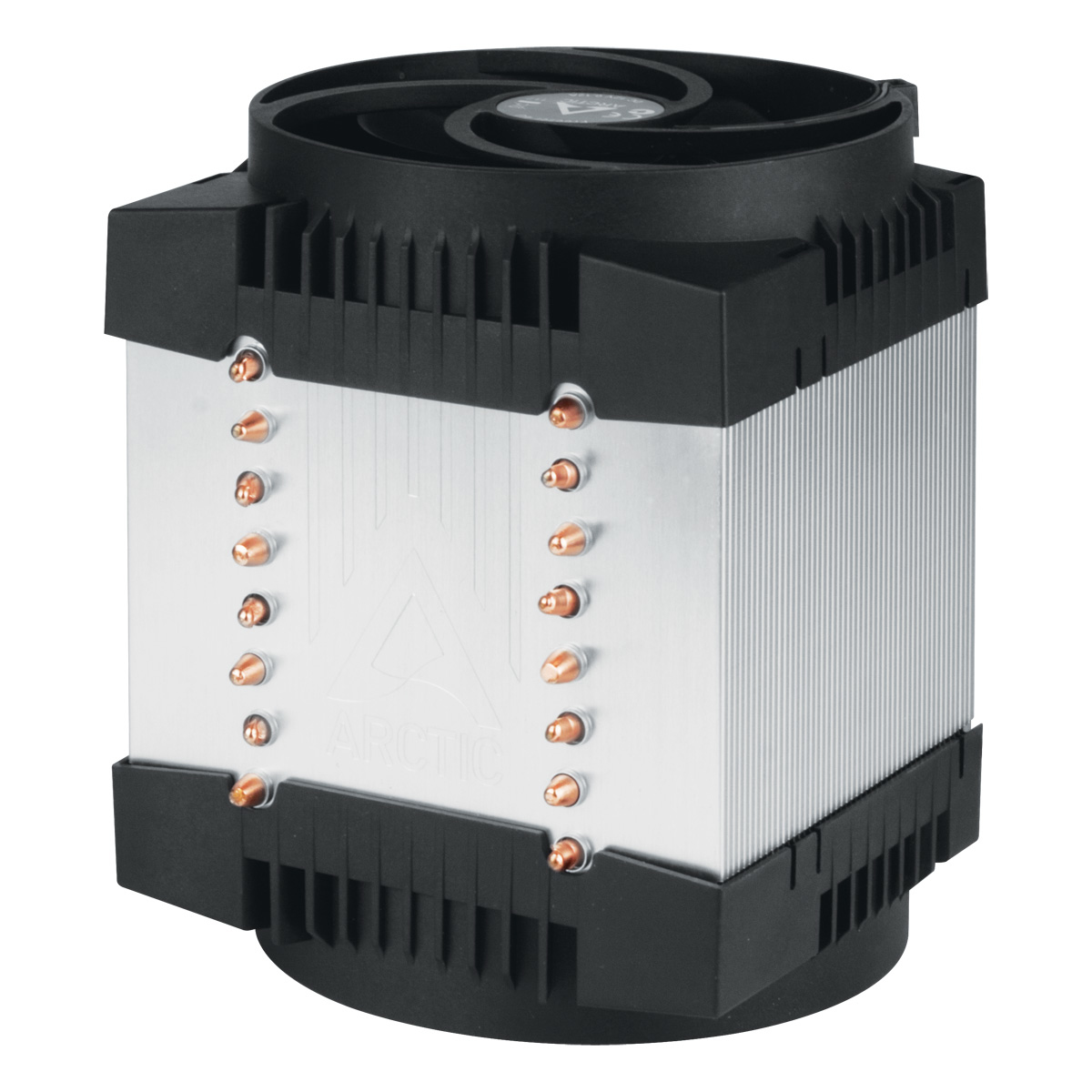

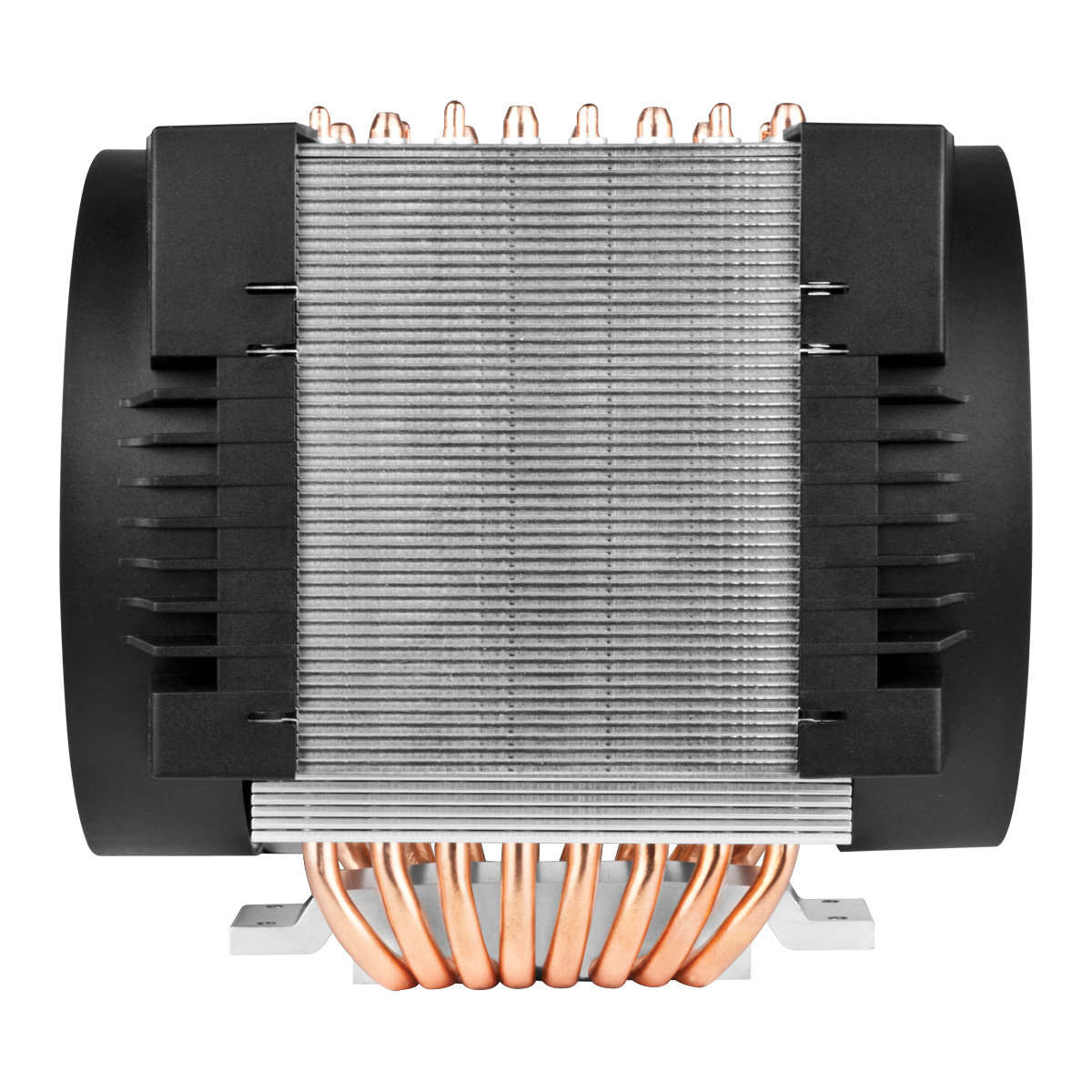

Freezer 4U-M Rev. 2
Model Freezer 4U-M Rev. 2Part no. ACFRE00133BEAN 840033402637
36 specifications
- TypeAir cooler
- Weight1.27 kg
- ColourAluminium, Black
- Suitable locationProcessor
- Starting voltage8 V
- Width156 mm
Overview
- Type
- Air cooler
- Weight
- 1.27 kg
- Colour
- Aluminium, Black
- Suitable location
- Processor
- Starting voltage
- 8 V
- Width
- 156 mm
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Freezer 4U-M Rev. 2
- Part number
- ACFRE00133B
- EAN / UPC
- 840033402637, 4895213704960
- Also known as
- ARCTIC Freezer 4U-M Rev. 2 - 4U Server Cooler for AMD, Intel
Specifications
36 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 4189, LGA 4677 (Socket E), LGA 4710 (Socket E2), SP6, Socket TR4, Socket TR5, Socket sTRX4, Socket sWRX8 |
| Maximum airflow | 71.9 cfm |
| Airflow | 122.16 m³/h |
| Bearing type | Dual ball bearing |
| Fan noise level (max) | 40 dB |
| Fan speed (max) | 2300 RPM |
| Fan speed (min) | 400 RPM |
| Fan static pressure | 3.3 mmH2O |
| Operating temperature (T-T) | 0 - 40 °C |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Number of fans | 2 fan(s) |
| Number of fins | 57 |
| Fins material | Aluminium |
| Number of heat pipes | 8 |
| Illumination LED | No |
| Fan connector | 4-pin |
| Rack capacity | 4U |
| Display type | Not applicable |
Power
| Specification | Value |
|---|---|
| Starting voltage | 8 V |
| Fan current | 0.12 A |
| Fan voltage | 12 V |
| Thermal Design Power (TDP) | 350 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 156 mm |
| Depth | 124 mm |
| Height | 145 mm |
| Weight | 1.27 kg |
| Heat pipes diameter | 6 mm |
| Cable length | 0.2 m |
| Package width | 160 mm |
| Package depth | 211 mm |
| Package height | 141 mm |
| Package weight | 1.55 kg |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
