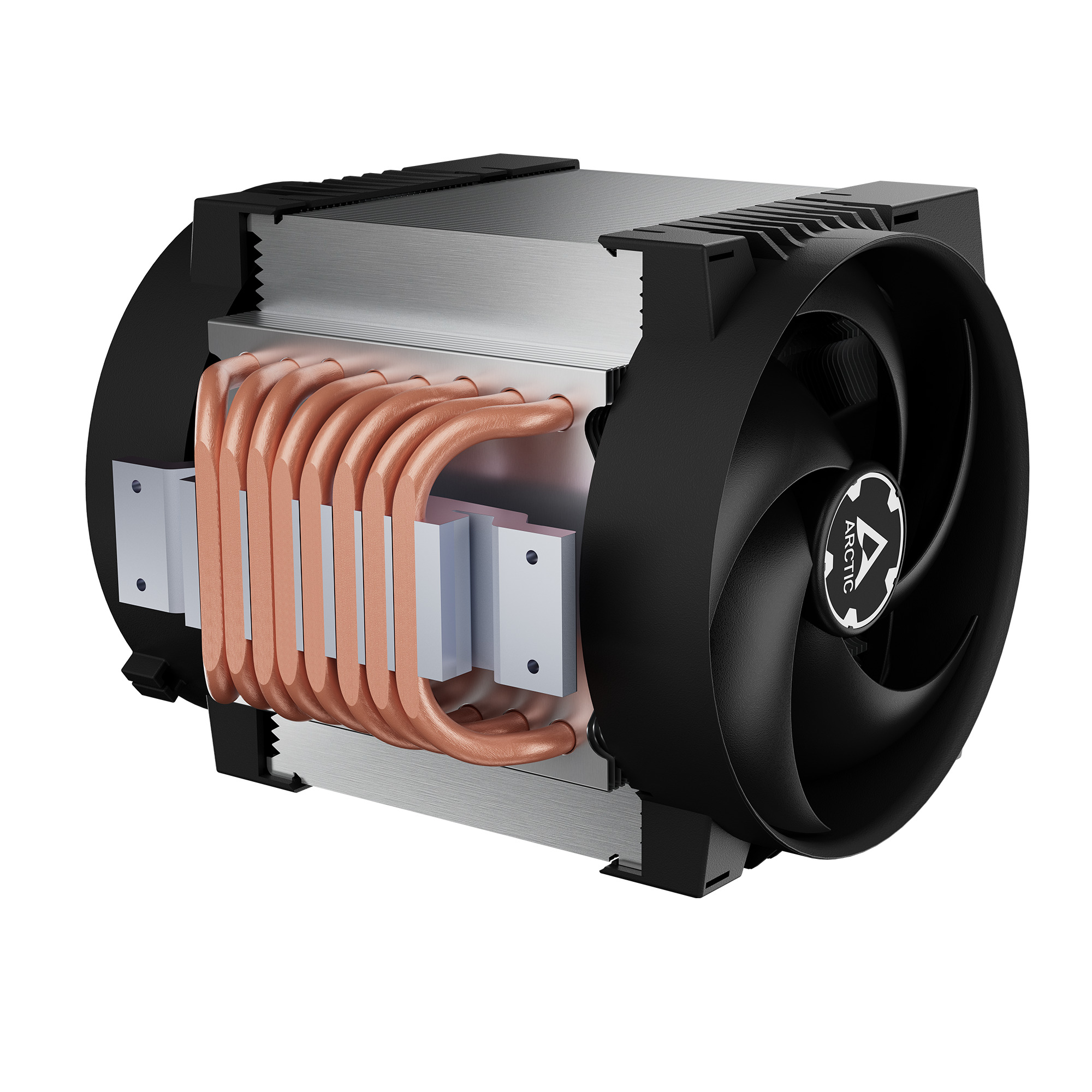

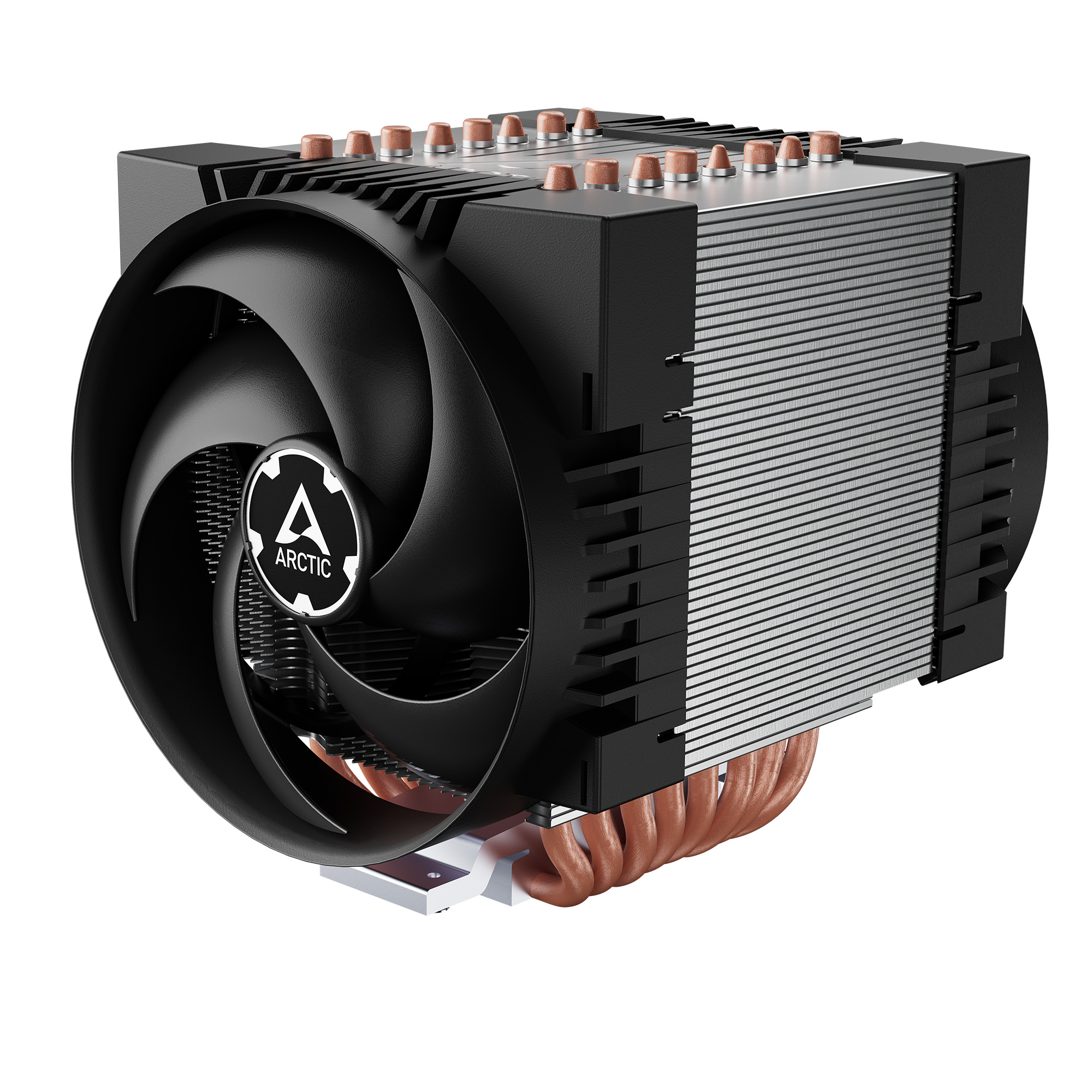

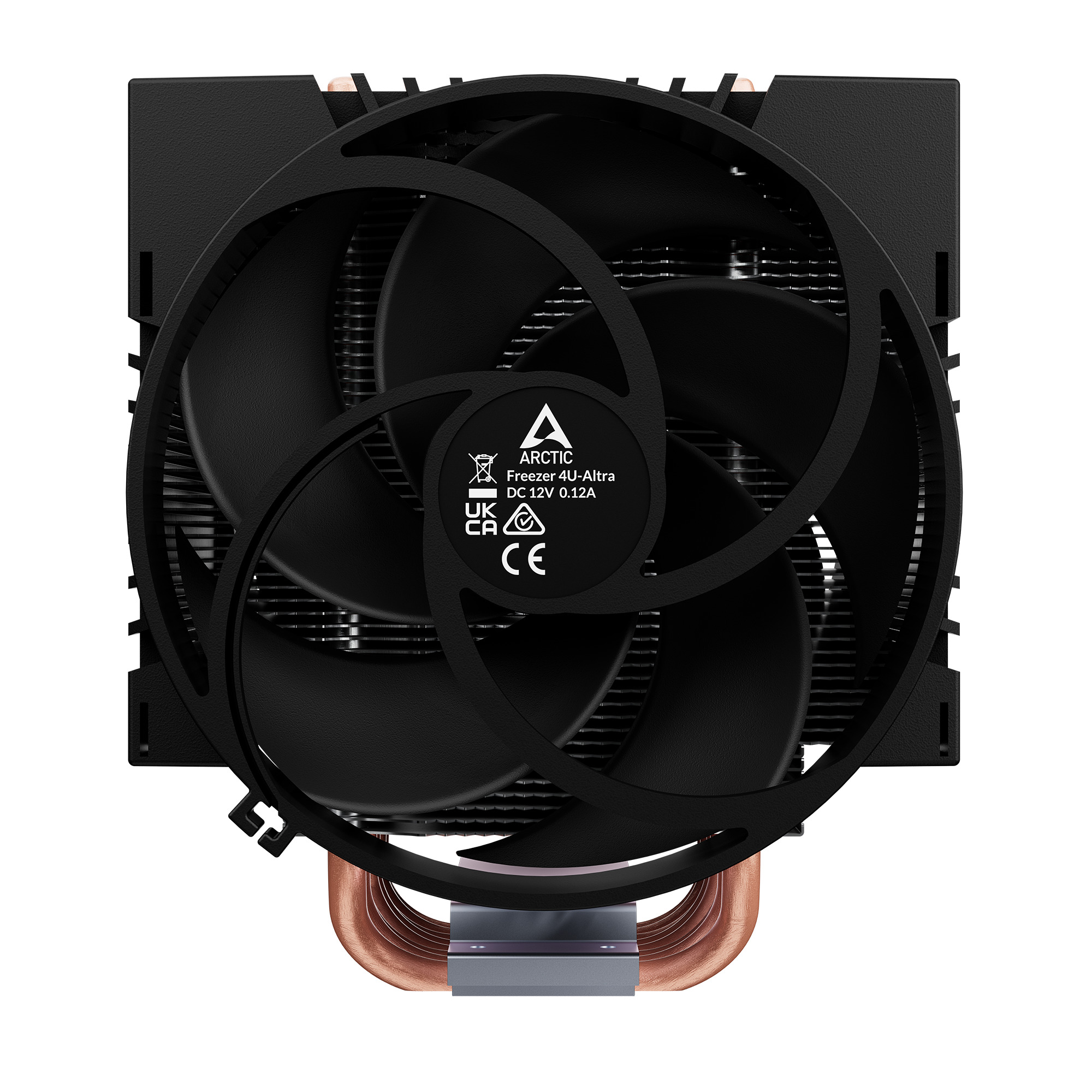

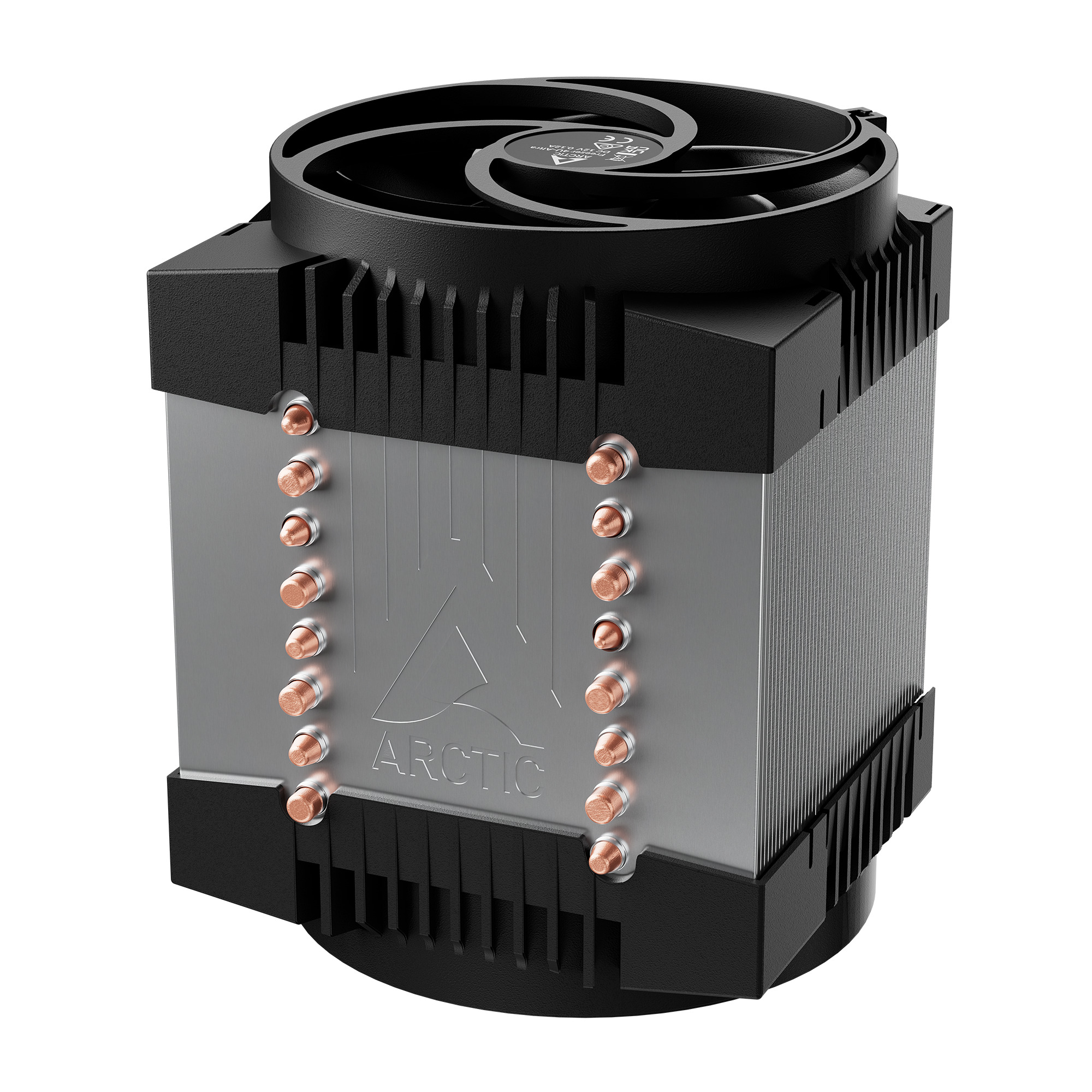

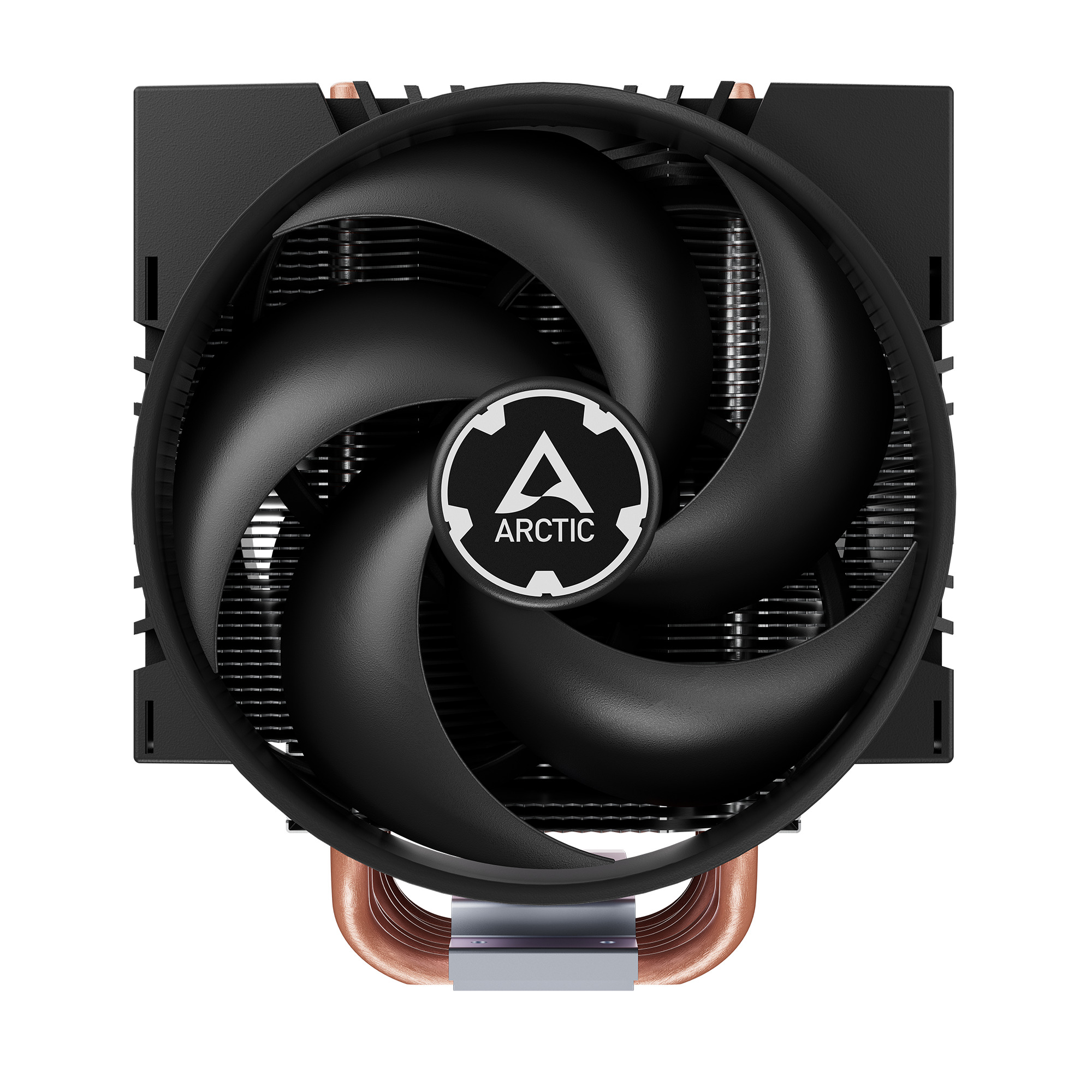

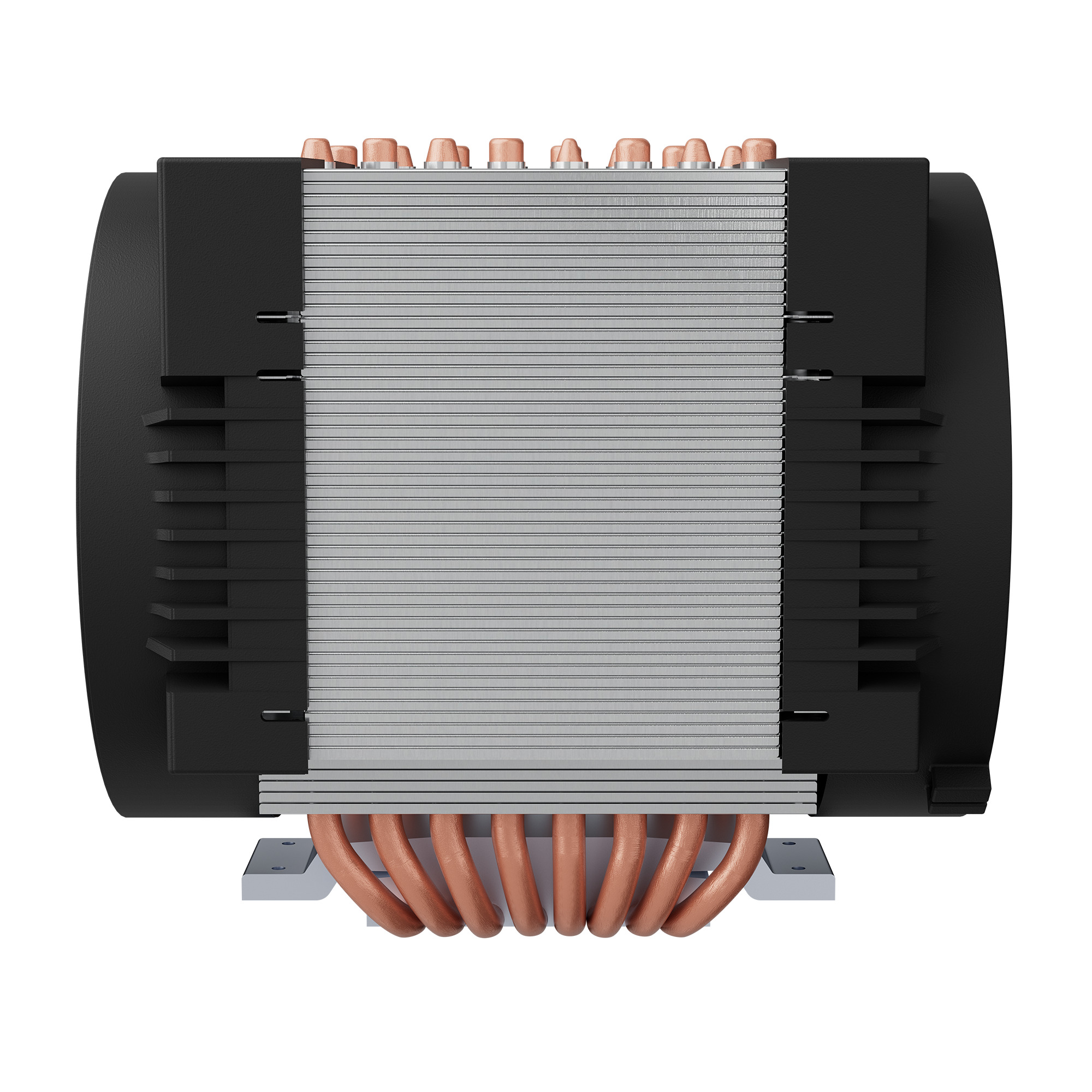

Freezer 4U-Altra
Model Freezer 4U-AltraPart no. ACFRE00226AEAN 4895265001406
36 specifications
- Noise0.5 sone
- TypeAir cooler
- Weight1.29 kg
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)2.88 W
Overview
- Noise
- 0.5 sone
- Type
- Air cooler
- Weight
- 1.29 kg
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 2.88 W
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Freezer 4U-Altra
- Part number
- ACFRE00226A
- EAN / UPC
- 4895265001406
- Also known as
- ARCTIC Freezer 4U-Altra Processor Air cooler 12 cm Black 1 pc(s)
Specifications
36 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Compatible processor series | Ampere Altra |
| Noise level | 0.5 sone |
| Maximum airflow | 71.9 cfm |
| Airflow | 122.16 m³/h |
| Maximum air pressure | 3.3 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Dual ball bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2300 RPM |
| Fan speed (min) | 400 RPM |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Number of fins | 57 |
| Fins material | Aluminium |
| Number of heat pipes | 8 |
| Fan connector | 4-pin + 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2.88 W |
| Rated voltage | 12 V |
| Starting voltage | 8 V |
| Rated current | 0.12 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 156 mm |
| Height | 145 mm |
| Weight | 1.29 kg |
| Heat pipes diameter | 6 mm |
| Cable length | 0.3 m |
| Package width | 160 mm |
| Package depth | 211 mm |
| Package height | 141 mm |
| Package weight | 1.5 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA, RoHS, REACH |
| Warranty period | 6 year(s) |
Packaging content
| Specification | Value |
|---|---|
| Thermal pad included | Yes |
