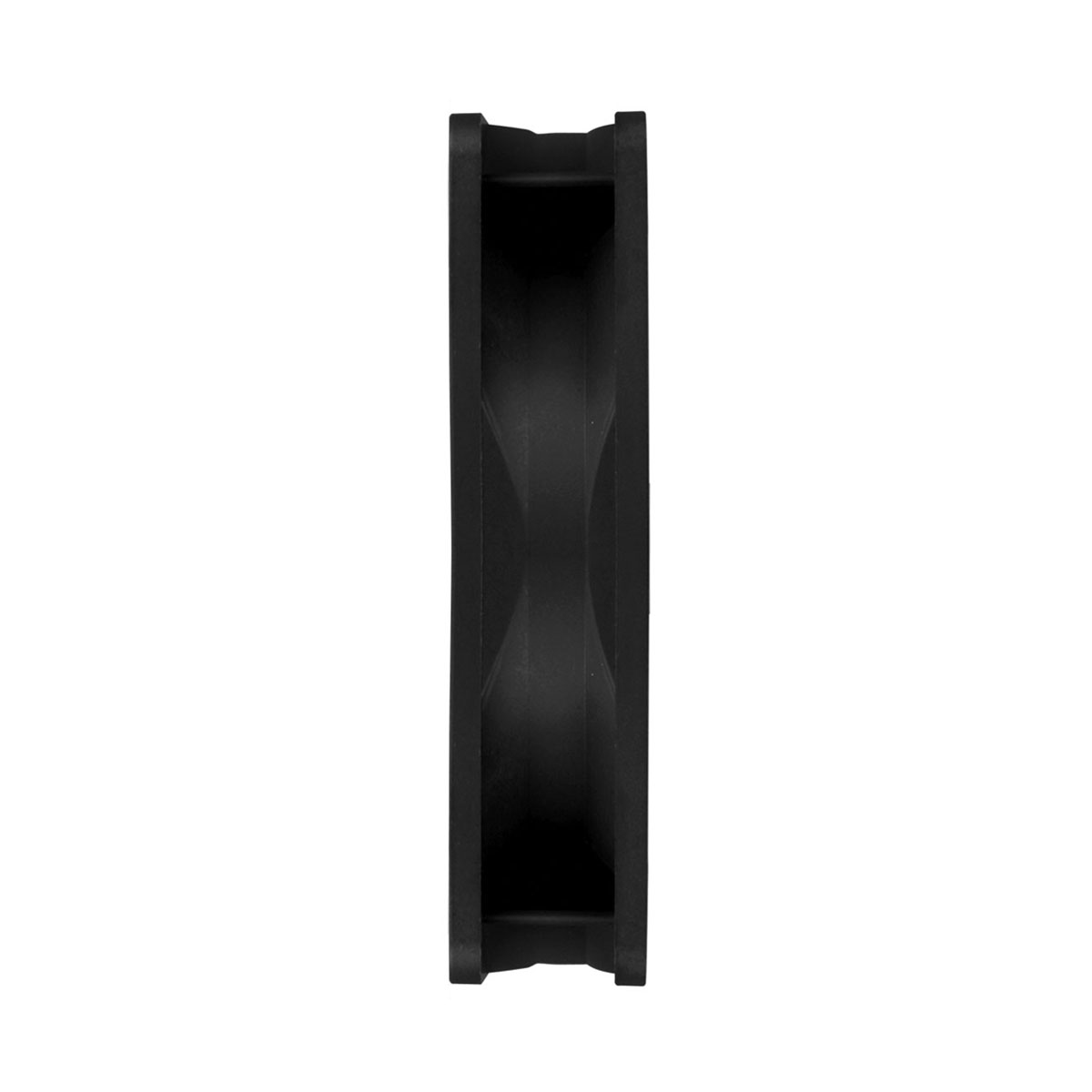

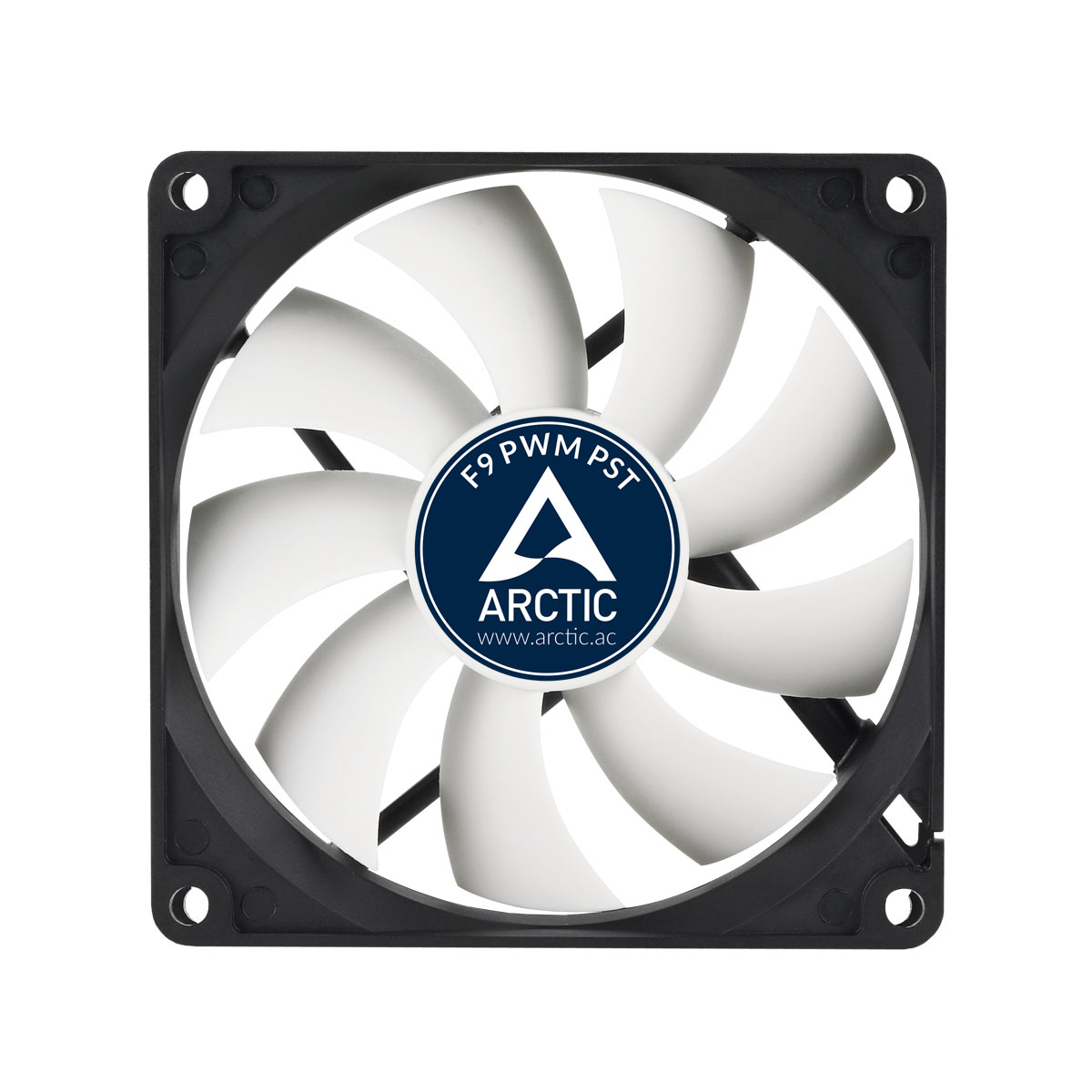

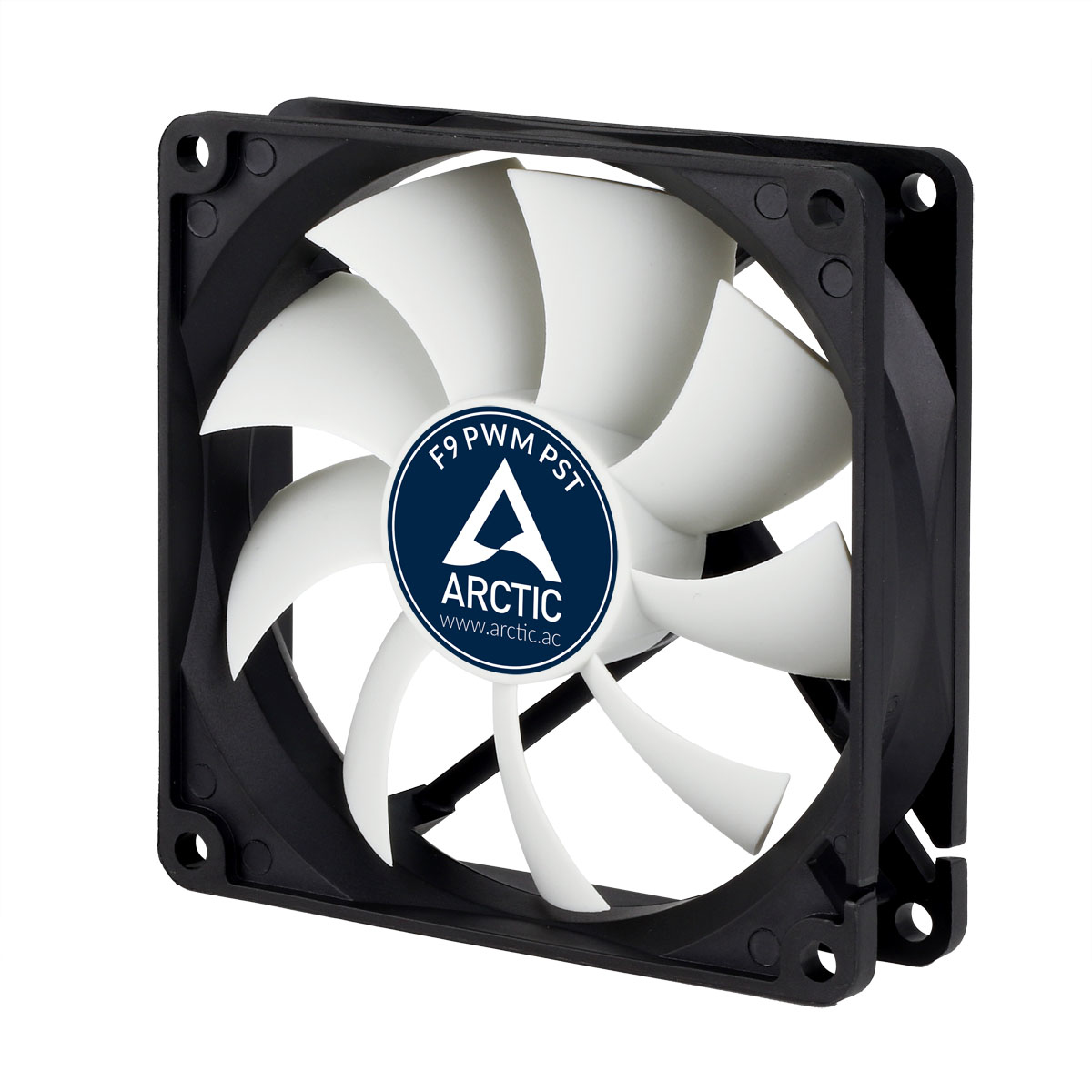

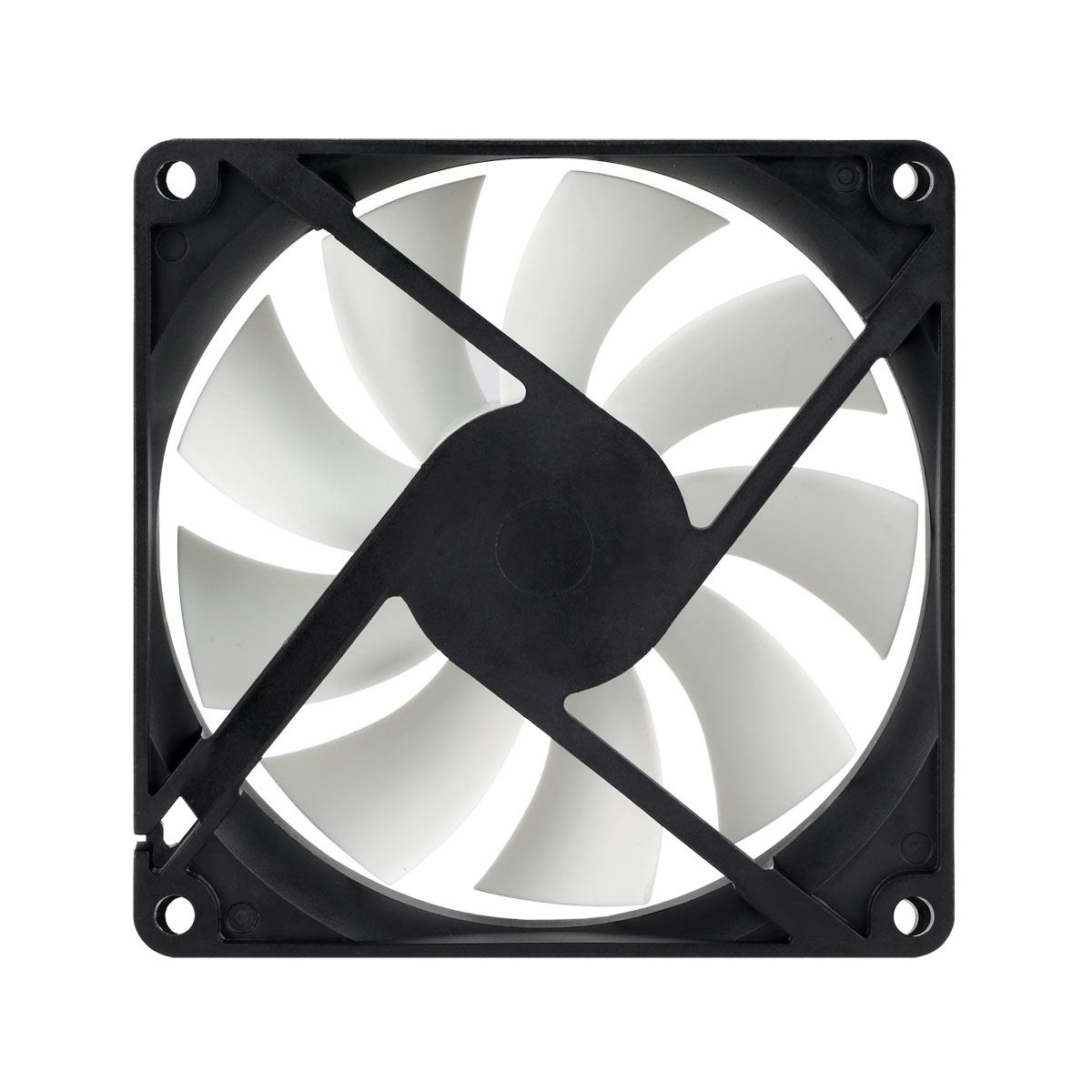

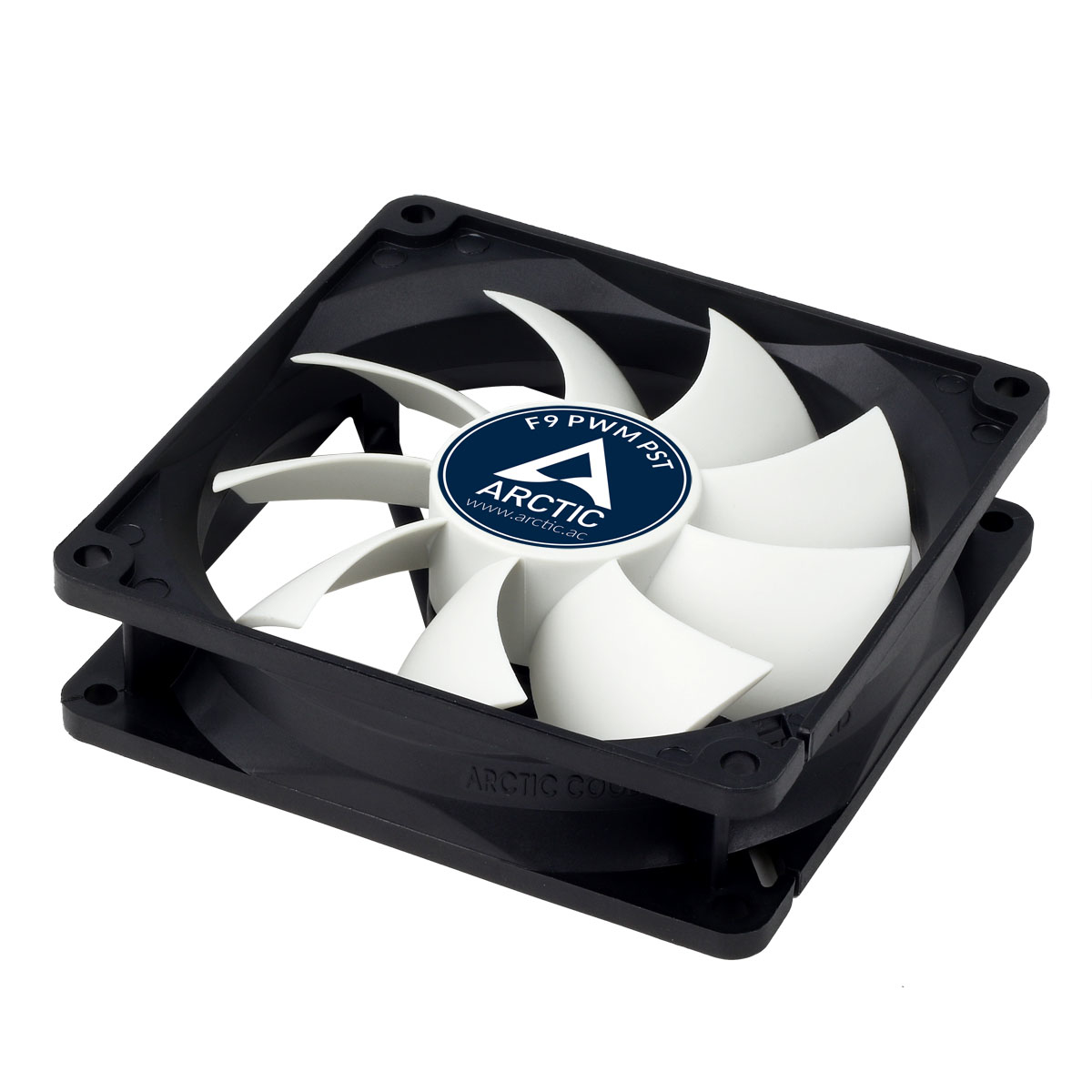

F9 PWM PST Value Pack
Model F9 PWM PST Value PackPart no. ACFAN00071AEAN 872767007789
33 specifications
- Noise25 dB
- TypeFan
- Weight85 g
- ColourBlack, White
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 25 dB
- Type
- Fan
- Weight
- 85 g
- Colour
- Black, White
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F9 PWM PST Value Pack
- Part number
- ACFAN00071A
- EAN / UPC
- 872767007789
- Also known as
- ARCTIC F9 PWM PST Value Pack - 4-Pin PWM fan with standard case
Specifications
33 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 9.2 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 150 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level (high speed) | 25 dB |
| Noise level | 0.4 sone |
| Maximum airflow | 43 cfm |
| Airflow | 73.1 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 5 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 8.5 V |
| Rated current | 0.09 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 92 mm |
| Height | 25 mm |
| Weight | 85 g |
| Cable length | 0.4 m |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Mounting kit | Yes |
| Screws included | Yes |
| Number of screws | 20 |
Other features
| Specification | Value |
|---|---|
| Mounting hole pattern (W x D) | 82.5 x 82.5 mm |
