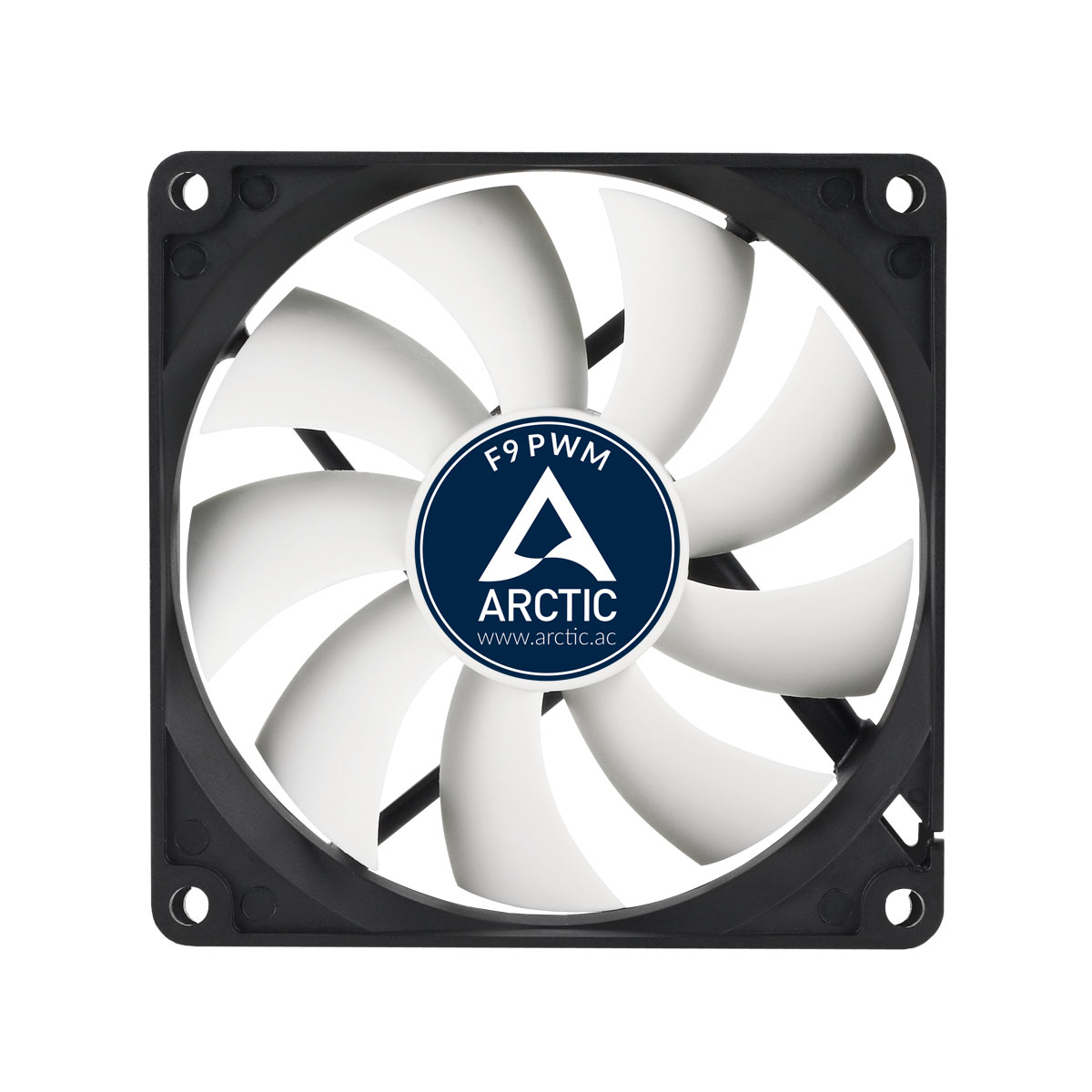

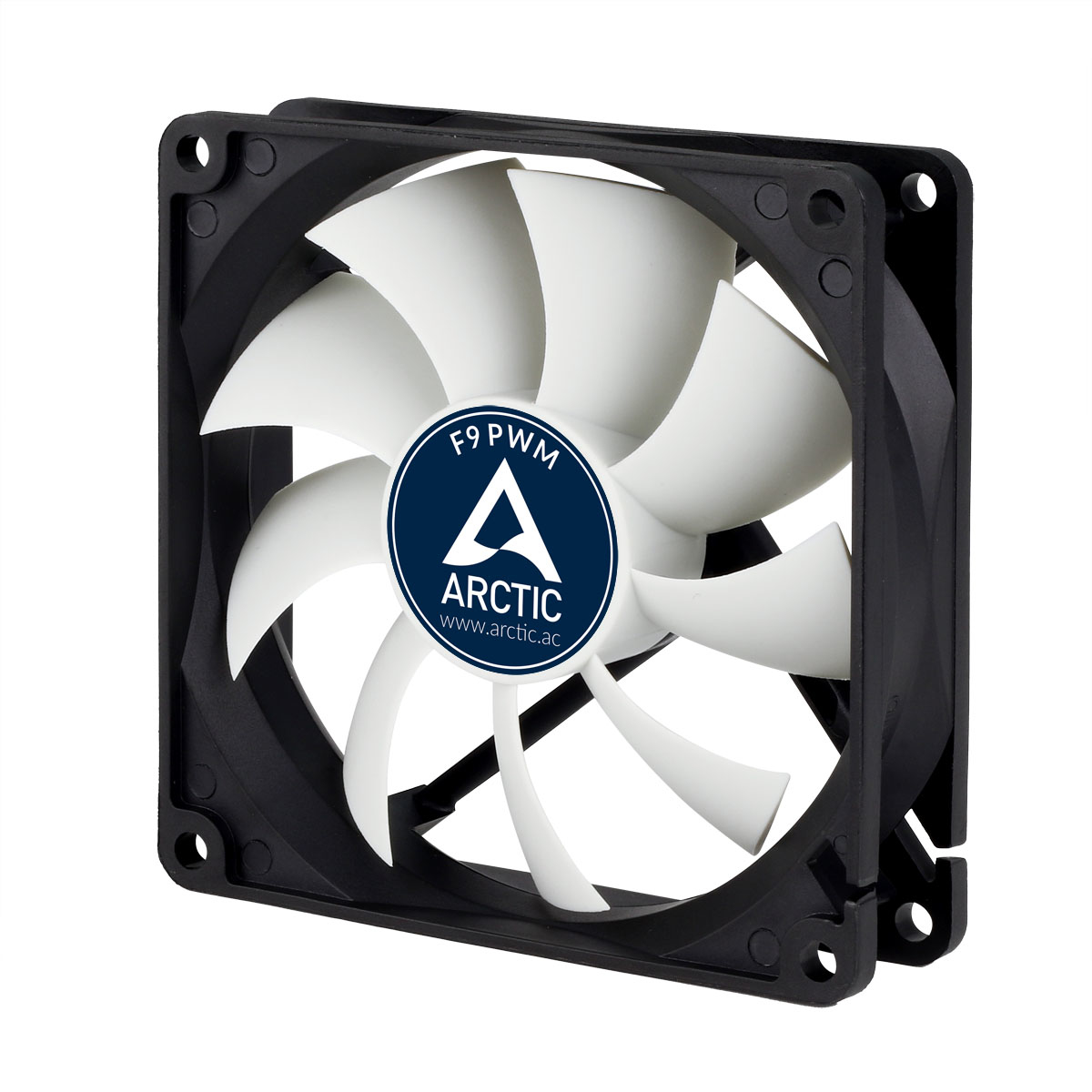

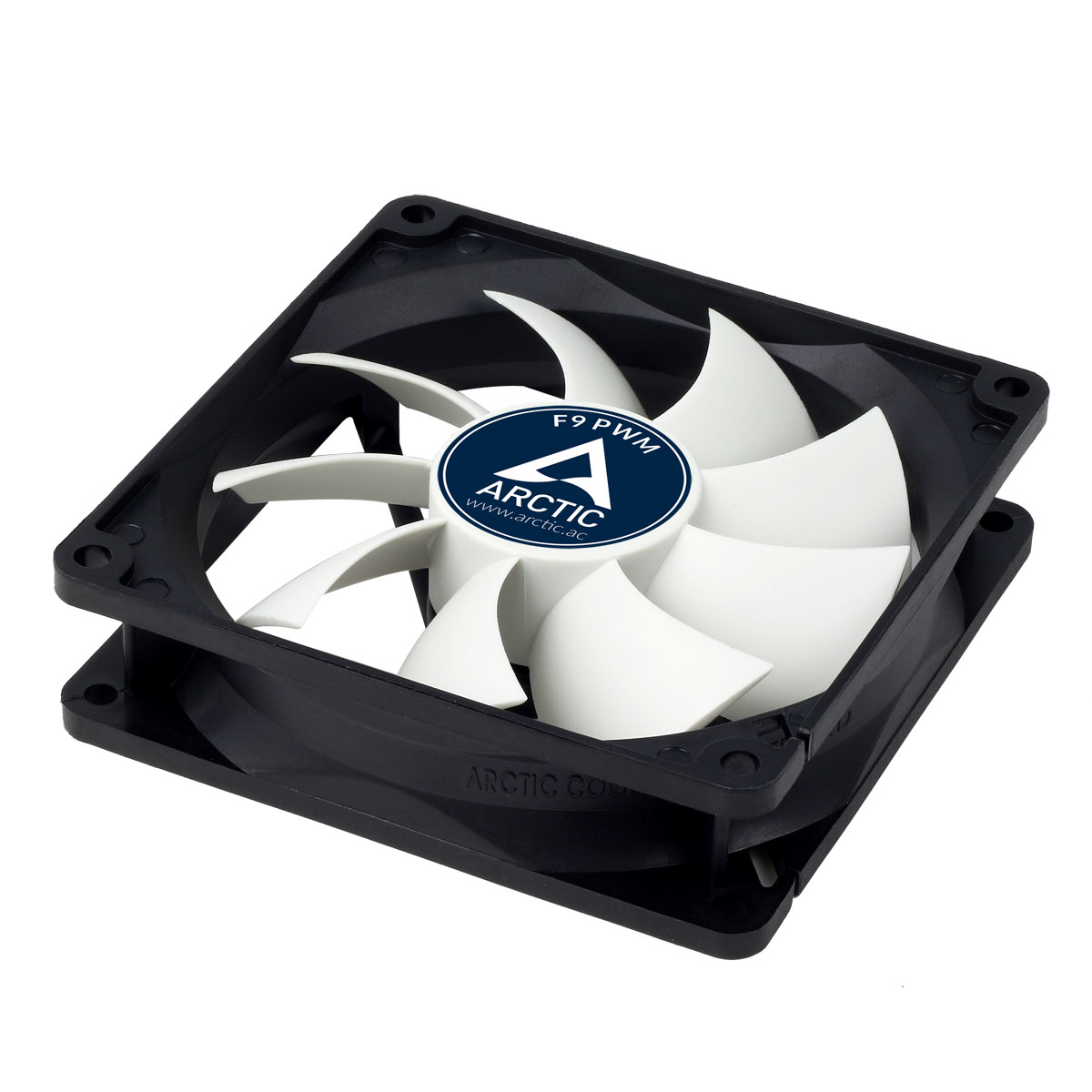

ARCTIC F9 PWM
Model F9 PWMPart no. ACFAN00213AEAN 4895213702898
32 specifications
- Noise0.4 sone
- TypeFan
- Weight82 g
- ColourBlack, White
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 0.4 sone
- Type
- Fan
- Weight
- 82 g
- Colour
- Black, White
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F9 PWM
- Part numbers
- ACFAN00213A, AC-F9-PWM
- EAN / UPC
- 4895213702898, 872767006713, 4895213700030, 5054531013430 +3 more
- Also known as
- ARCTIC F9 PWM - 4-Pin PWM fan with standard case
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 9.2 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 150 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level | 0.4 sone |
| Maximum airflow | 43 cfm |
| Airflow | 73.1 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 8.5 V |
| Rated current | 0.09 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 25 mm |
| Height | 92 mm |
| Weight | 82 g |
| Cable length | 0.4 m |
| Package width | 96 mm |
| Package depth | 27 mm |
| Package height | 96 mm |
| Package weight | 95 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Mounting hole pattern (W x D) | 82.5 x 82.5 mm |
What people say
Reviews & ratings
ARCTIC F9 PWM
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ARCTIC F9 PWM
All computer cooling system comparisons- ARCTIC F9 PWM vsARCTIC Accelero Hybrid II - 120Compare specs
- ARCTIC F9 PWM vsARCTIC Freezer i11Compare specs

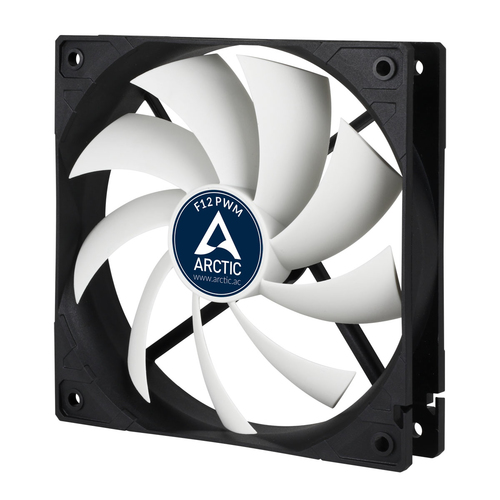

- ARCTIC F9 PWM vsARCTIC F12 PWMCompare specs

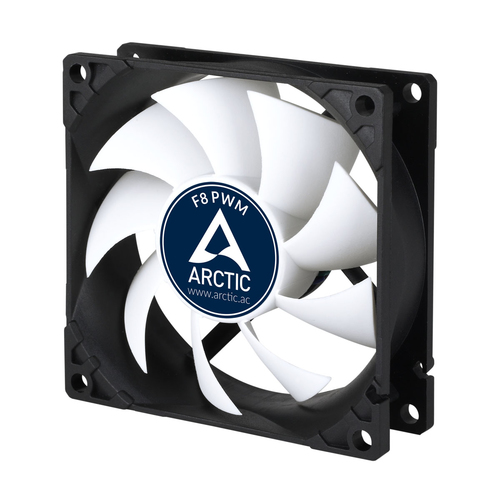

- ARCTIC F9 PWM vsARCTIC F8 PWMCompare specs

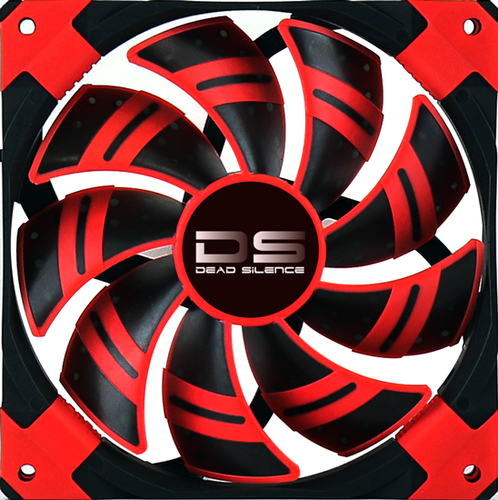

- ARCTIC F9 PWM vsAerocool DS Computer case FanCompare specs
- ARCTIC F9 PWM vsAerocool Air ForceCompare specs

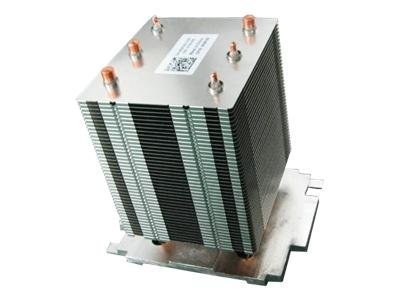

- ARCTIC F9 PWM vsDell 412-10162 computer cooling system Processor Heatsink/RadiatorCompare specs
