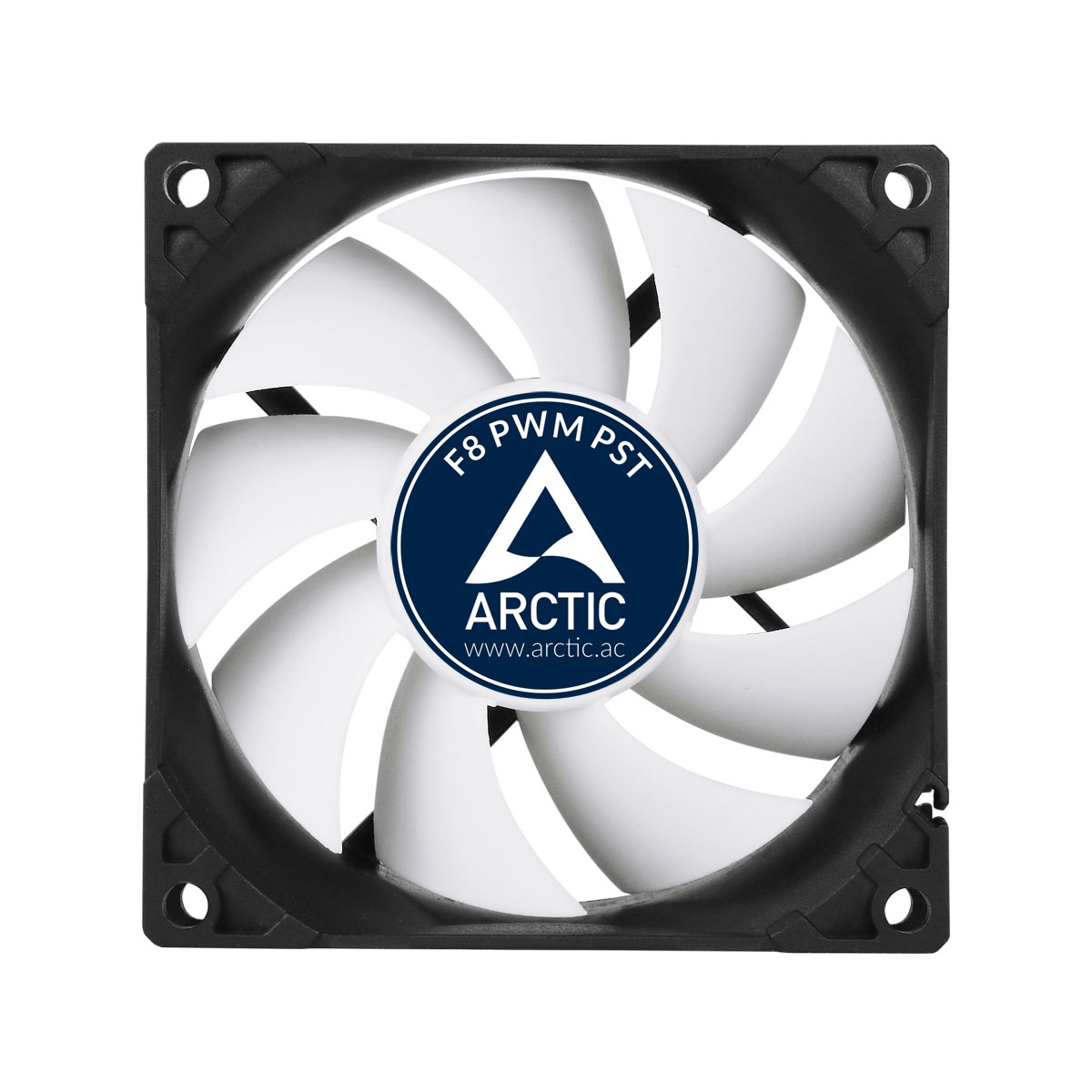

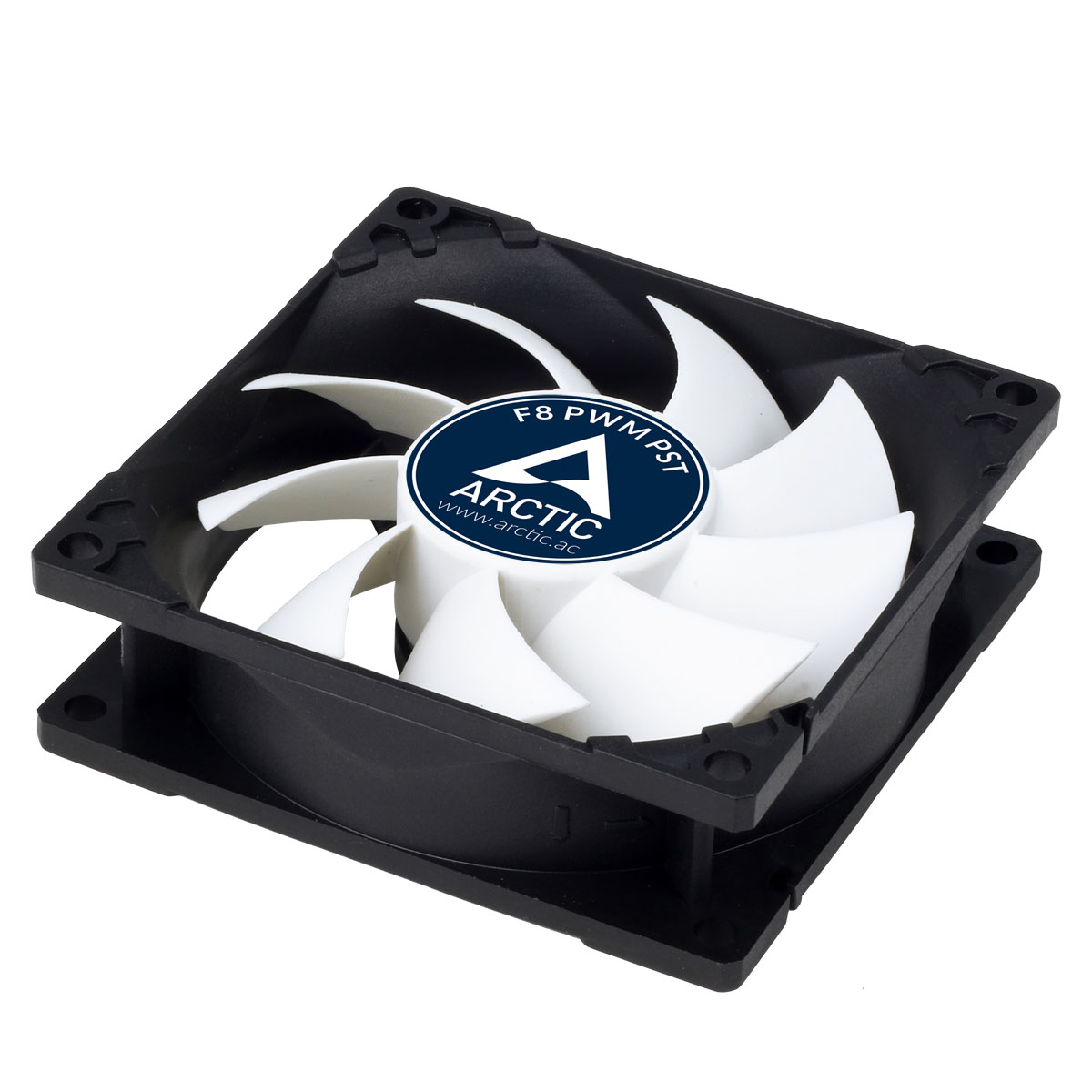

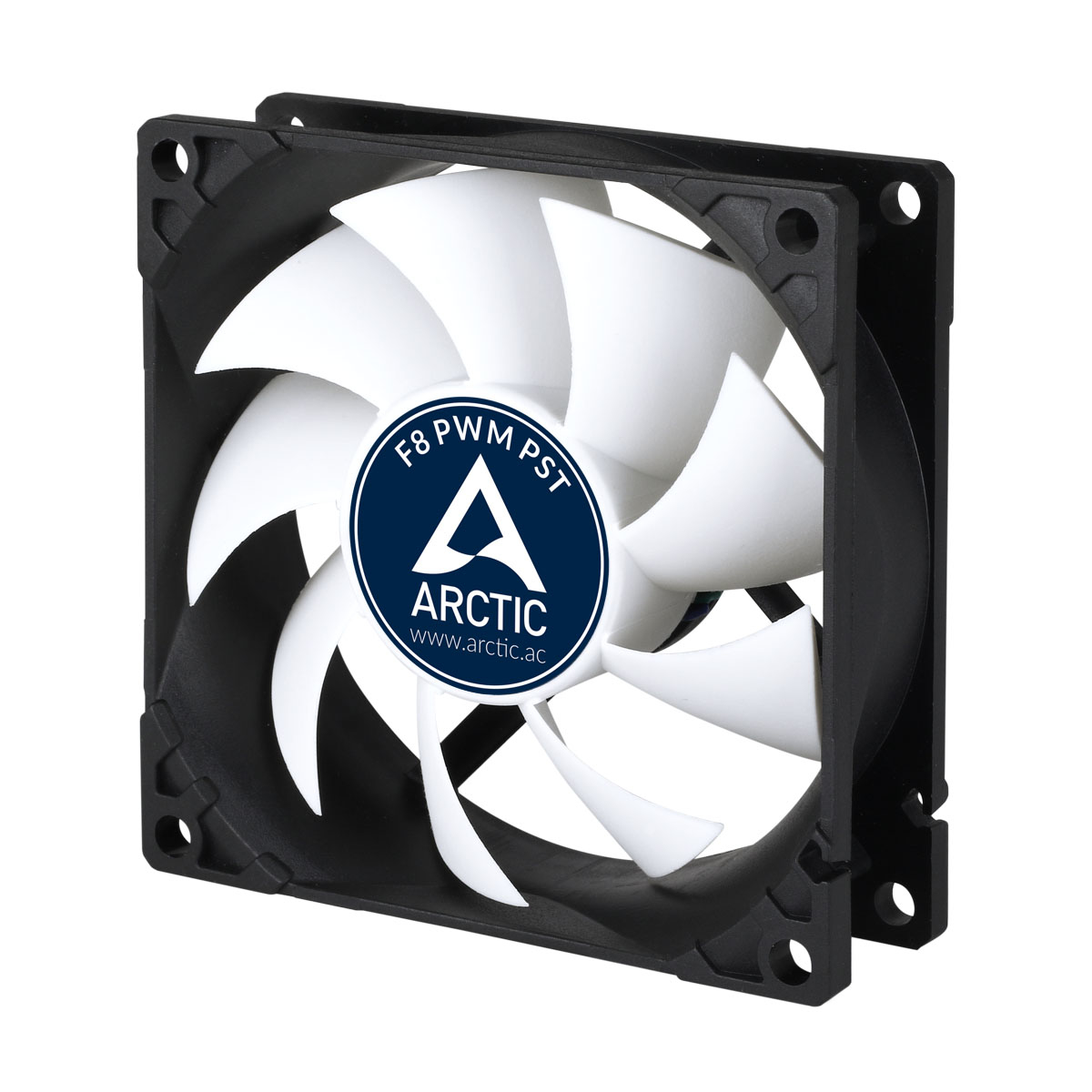

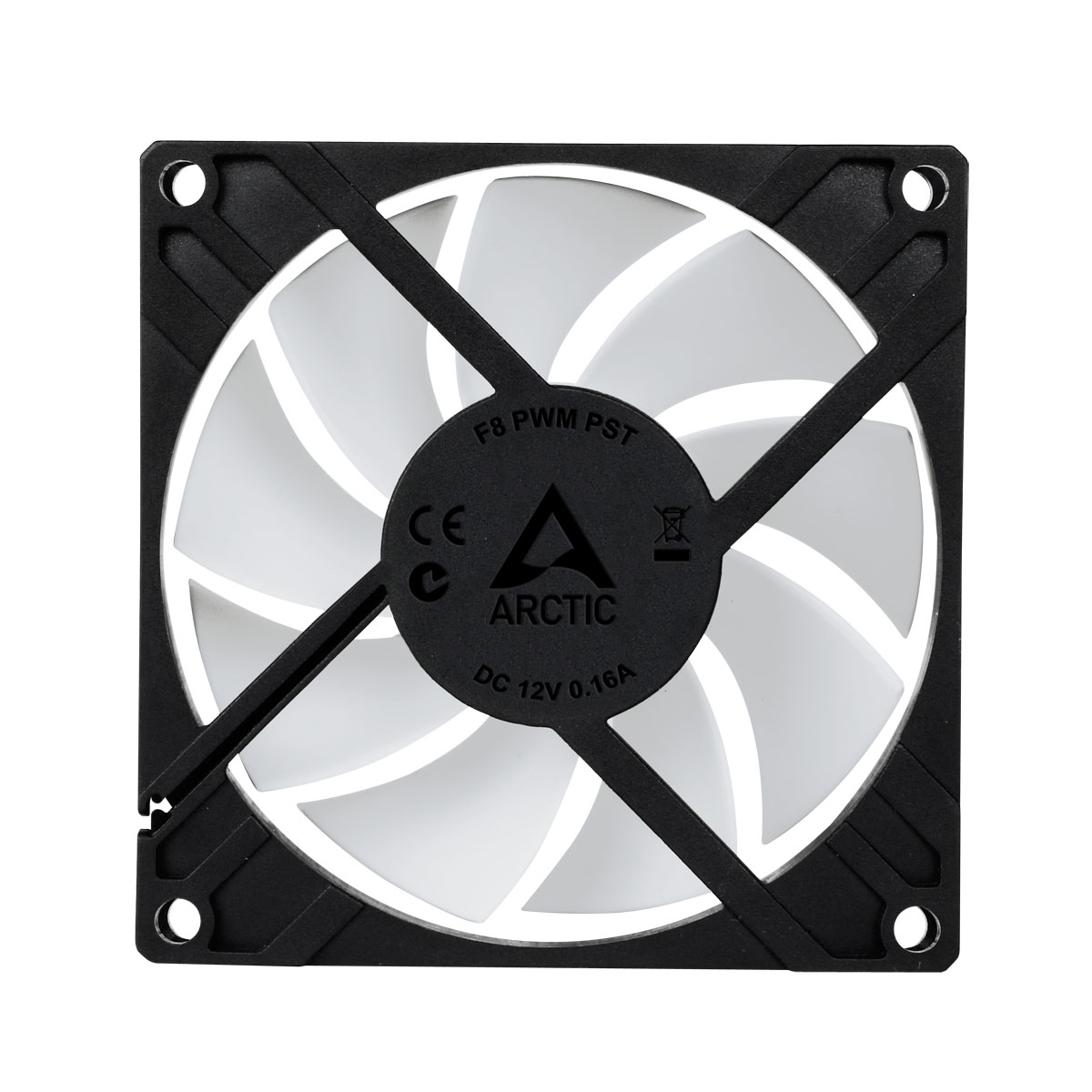

ARCTIC F8 PWM PST
Model F8 PWM PSTPart no. ACFAN00261AEAN 840033401388
32 specifications
- Noise24.5 dB
- TypeFan
- Weight72 g
- ColourBlack, White
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 24.5 dB
- Type
- Fan
- Weight
- 72 g
- Colour
- Black, White
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F8 PWM PST
- Part numbers
- ACFAN00261A, AFACO-080P0-GBA01, ACFAN00204A
- EAN / UPC
- 840033401388, 163120889785, 191120056043, 711050715911 +13 more
- Also known as
- ARCTIC F8 PWM PST 4-Pin PWM fan with standard case
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (high speed) | 24.5 dB |
| Noise level | 0.3 sone |
| Maximum airflow | 31 cfm |
| Airflow | 52.7 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid bearing |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.16 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 25 mm |
| Height | 80 mm |
| Weight | 72 g |
| Cable length | 0.4 m |
| Package width | 82.5 mm |
| Package depth | 26 mm |
| Package height | 82.5 mm |
| Package weight | 89 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
