ARCTIC F8 - 3-Pin fan with standard case
Model F8Part no. ACFAN00234AEAN 4895213703680
34 specifications
- Noise0.3 sone
- TypeFan
- Weight71 g
- ColourBlack, White
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 0.3 sone
- Type
- Fan
- Weight
- 71 g
- Colour
- Black, White
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F8
- Part numbers
- ACFAN00234A, AFACO-08000-GBA01, ACFAN00205A
- EAN / UPC
- 4895213703680, 650004482281, 872767002609, 912000111627 +14 more
- Also known as
- ARCTIC F8 - 3-Pin fan with standard case
Specifications
34 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 8 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Number of speeds | 3 |
| Rotational speed (min) | 850 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 31 cfm |
| Airflow | 52.7 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Fan connector | 3-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 2.6 V |
| Rated current | 0.16 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 25 mm |
| Height | 80 mm |
| Weight | 71 g |
| Cable length | 0.4 m |
| Package width | 82.5 mm |
| Package depth | 26 mm |
| Package height | 82.5 mm |
| Package weight | 83 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Speed detection | No |
| Mounting hole pattern (W x D) | 71.5 x 71.5 mm |
What people say
Reviews & ratings
ARCTIC F8 - 3-Pin fan with standard case
No reviews yet
Be the first to tell others how ARCTIC F8 - 3-Pin fan with standard case works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ARCTIC F8 - 3-Pin fan with standard case
All computer cooling system comparisons- ARCTIC F8 - 3-Pin fan with standard case vsARCTIC F9 PWM PSTCompare specs

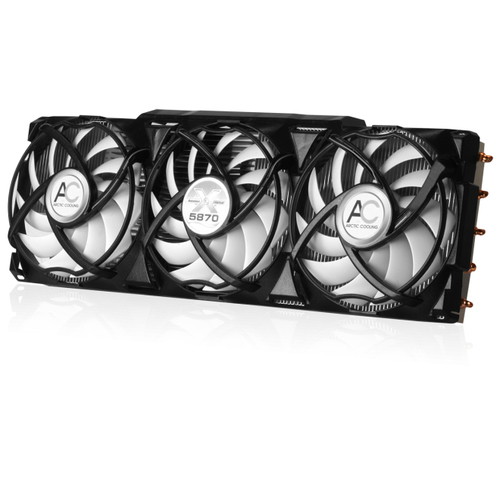

- ARCTIC F8 - 3-Pin fan with standard case vsARCTIC Accelero XTREME 5870Compare specs
