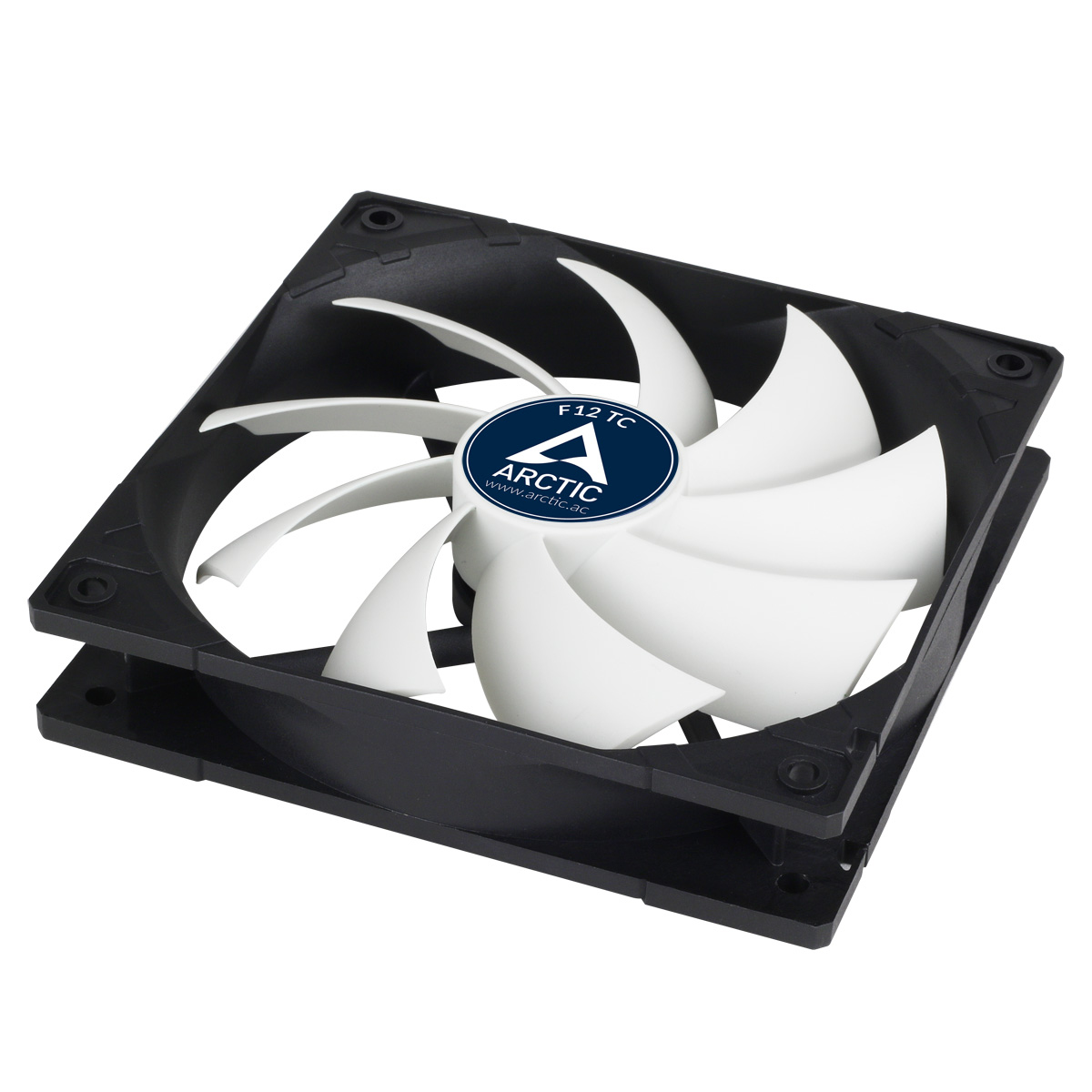

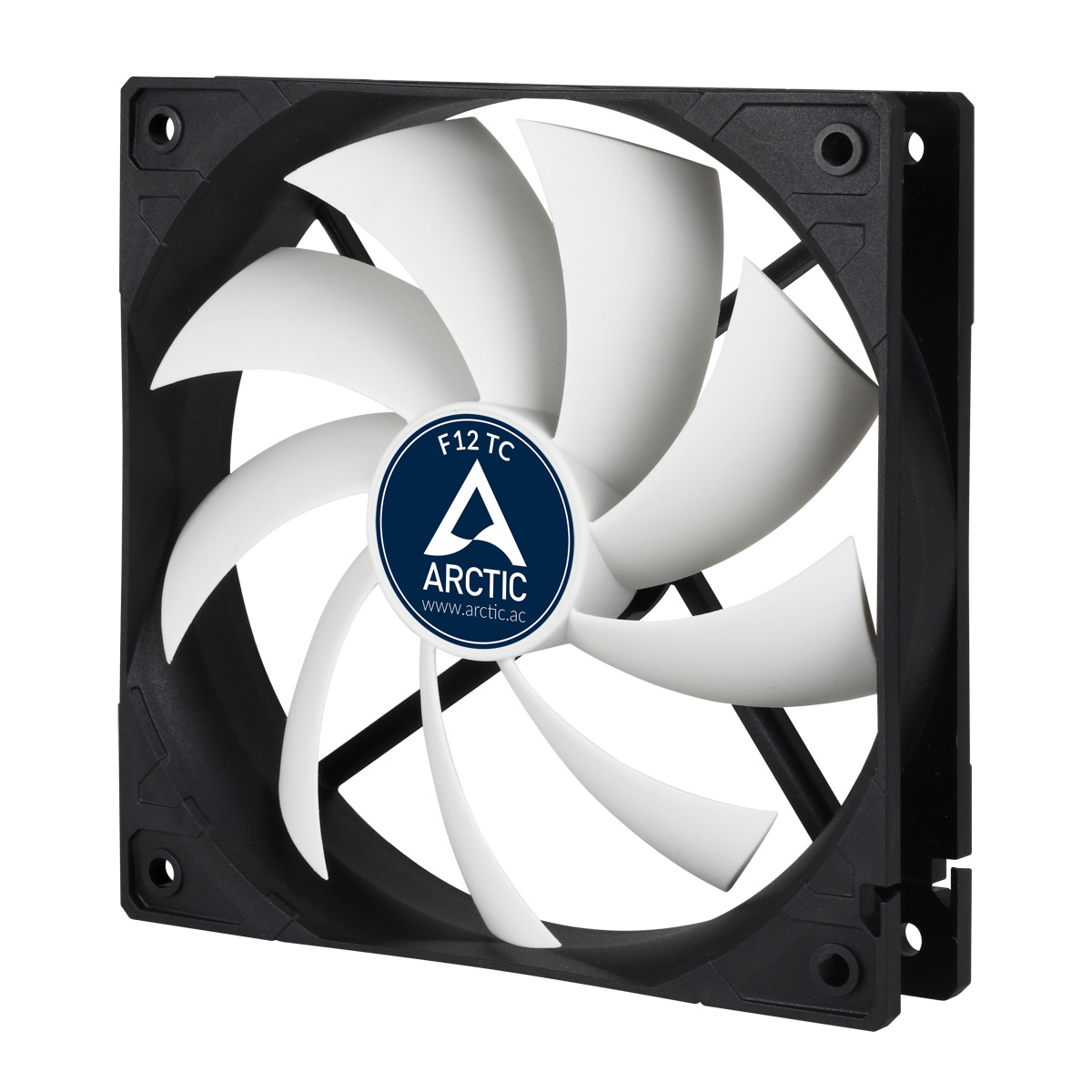

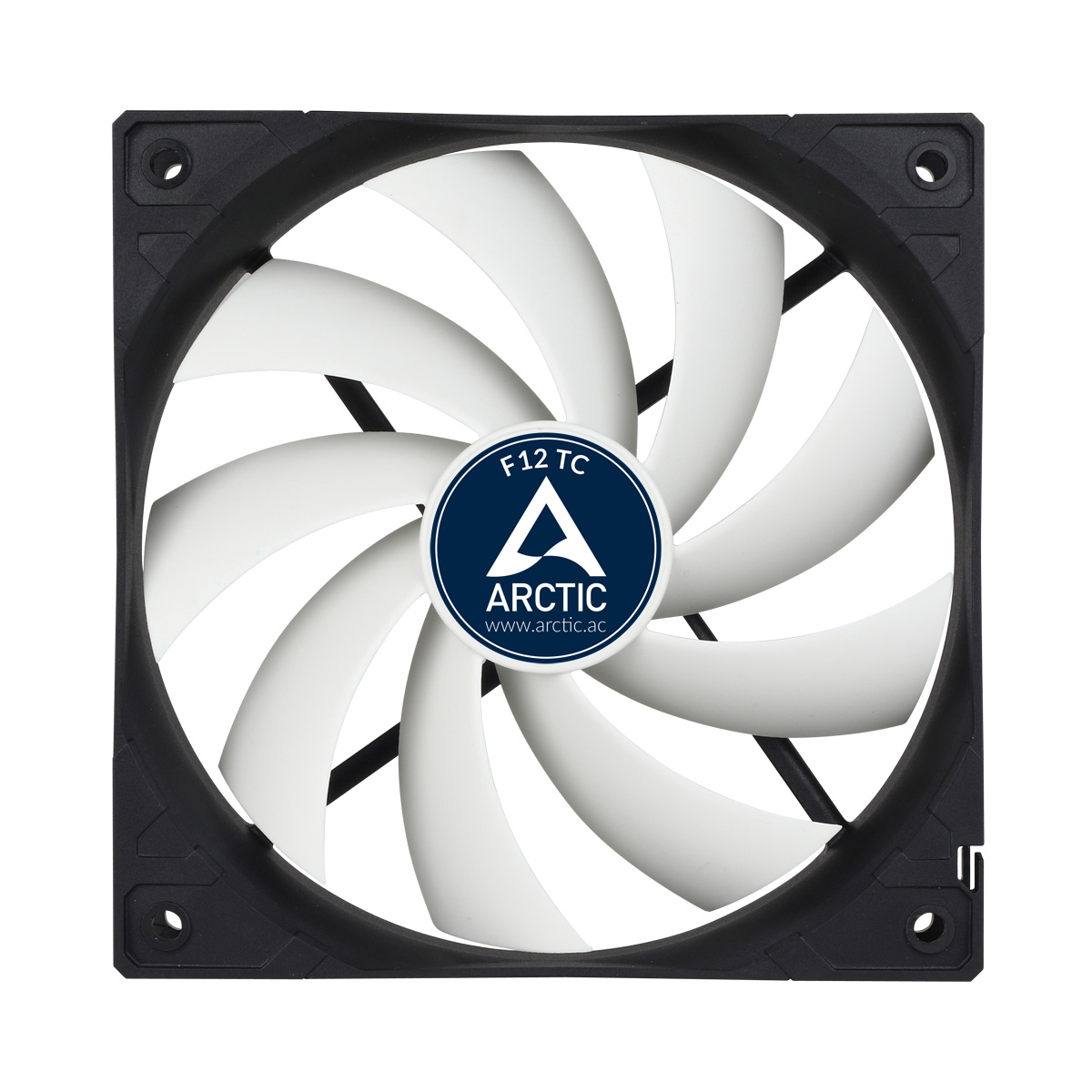

ARCTIC F12 TC
Model F12 TCPart no. ACFAN00199AEAN 4895213702997
30 specifications
- Noise26 dB
- TypeFan
- Weight107 g
- ColourBlack, Silver
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 26 dB
- Type
- Fan
- Weight
- 107 g
- Colour
- Black, Silver
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F12 TC
- Part numbers
- ACFAN00199A, AFACO-120T0-GBA01
- EAN / UPC
- 4895213702997, 013591040850, 872767002685, 4056572595518 +5 more
- Also known as
- ARCTIC F12 TC 3-Pin Temperature-controlled fan with standard case
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (max) | 1350 RPM |
| Noise level (high speed) | 26 dB |
| Noise level | 0.5 sone |
| Maximum airflow | 53 cfm |
| Airflow | 90.1 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Fan connector | 3-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.13 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 107 g |
| Cable length | 0.4 m |
| Package width | 123 mm |
| Package depth | 27 mm |
| Package height | 123 mm |
| Package weight | 127 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Mounting hole pattern (W x D) | 105 x 105 mm |
