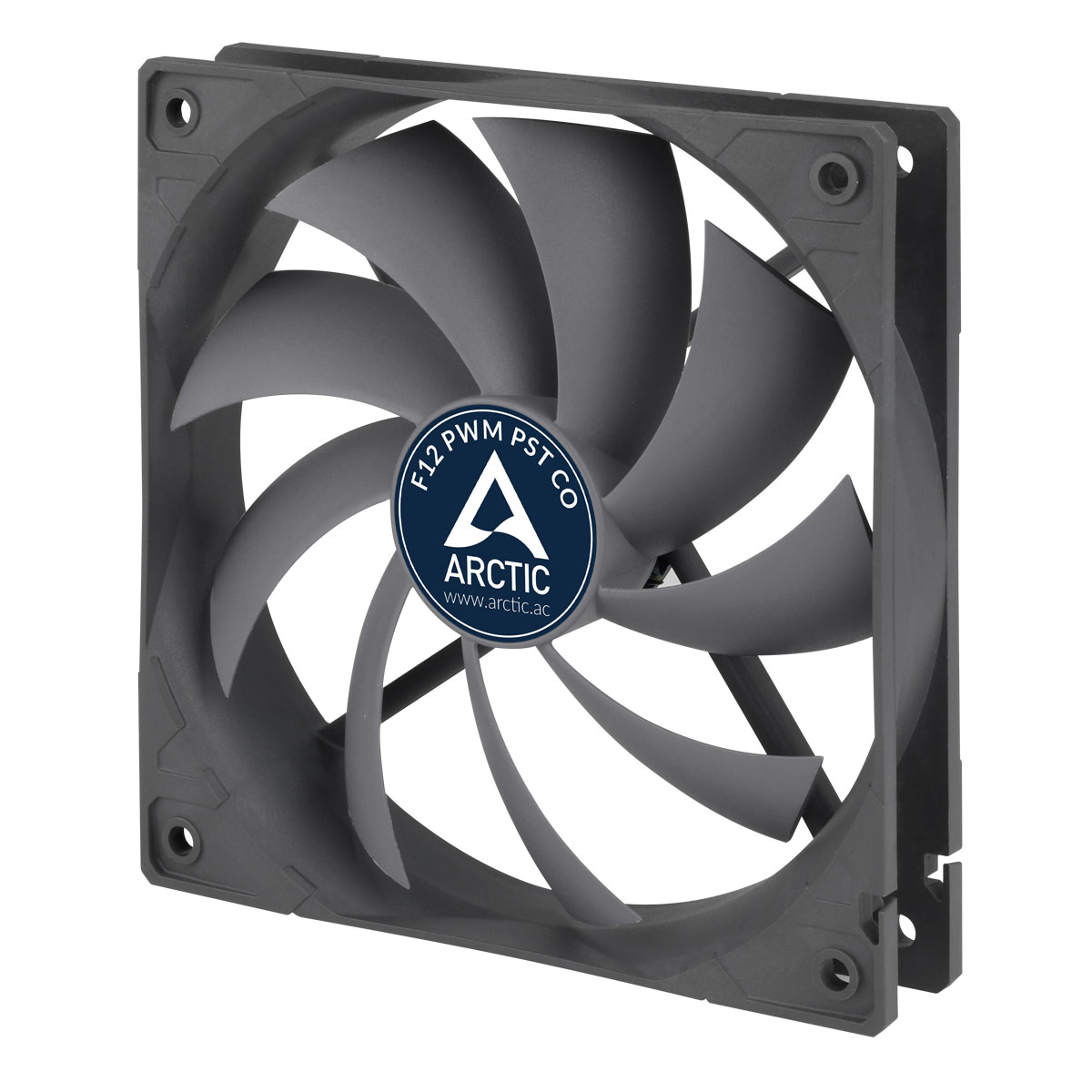

ARCTIC F12 PWM PST CO
Model F12 PWM PST COPart no. ACFAN00210AEAN 4895213702973
31 specifications
- Noise24.5 dB
- TypeFan
- Weight109 g
- ColourBlack
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 24.5 dB
- Type
- Fan
- Weight
- 109 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F12 PWM PST CO
- Part numbers
- ACFAN00210A, AFACO-120PC-GBA01
- EAN / UPC
- 4895213702973, 501582193949, 872767005655, 4895213700559 +3 more
- Also known as
- ARCTIC F12 PWM PST CO 120mm PWM with PST Case Fan for Continuous Operation
Specifications
31 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 1350 RPM |
| Noise level (high speed) | 24.5 dB |
| Noise level | 0.3 sone |
| Maximum airflow | 74 cfm |
| Airflow | 126 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Ball bearing |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.3 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 25 mm |
| Height | 120 mm |
| Weight | 109 g |
| Cable length | 0.4 m |
| Package width | 123 mm |
| Package depth | 27 mm |
| Package height | 123 mm |
| Package weight | 141 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
Other features
| Specification | Value |
|---|---|
| Mounting hole pattern (W x D) | 105 x 105 mm |
