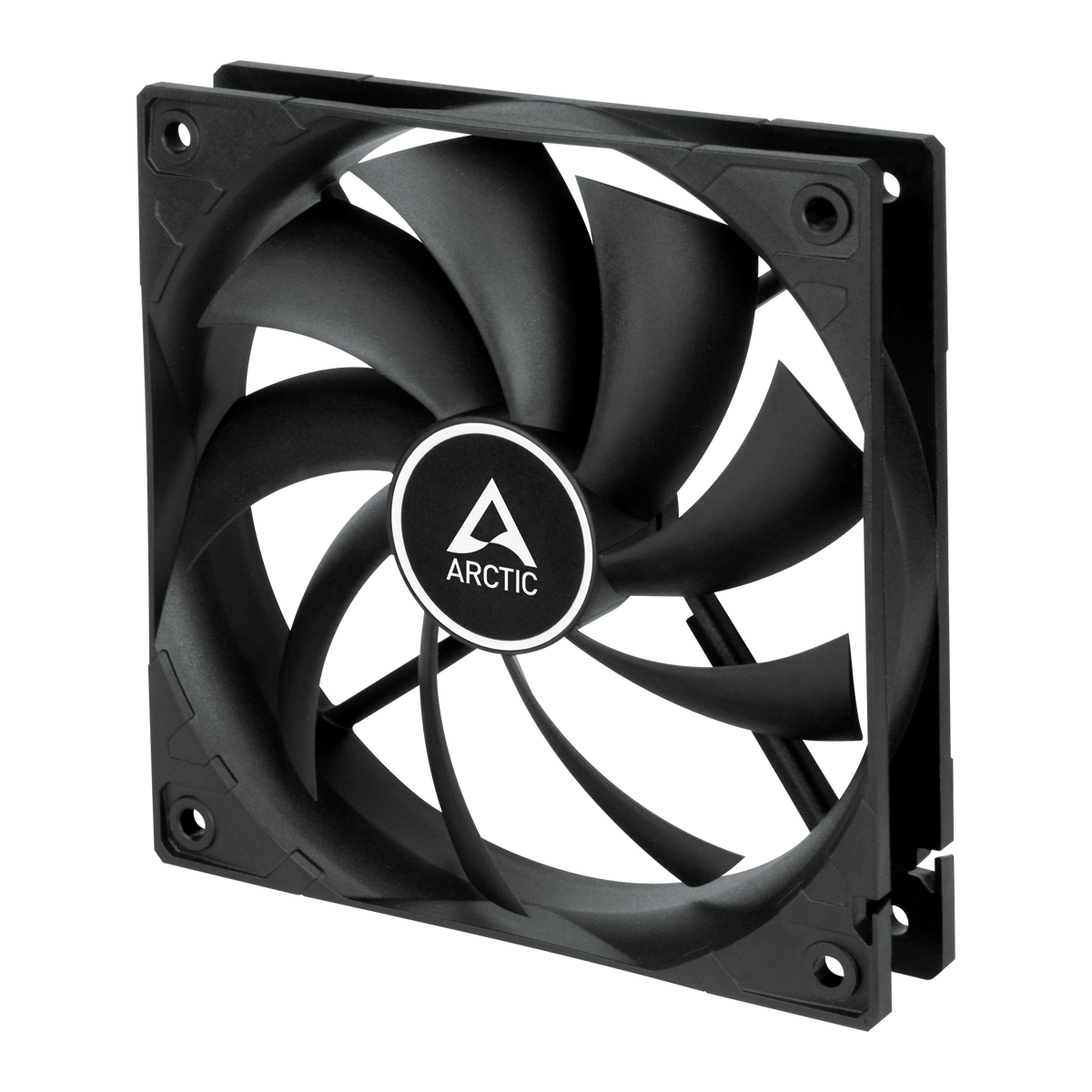

F12 PWM - 120 mm PWM Case Fan
Model F12 PWM - 120 mm PWM Case FanPart no. ACFAN00203AEAN 840033400756
32 specifications
- Noise0.3 sone
- TypeFan
- Weight105 g
- ColourBlack
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 0.3 sone
- Type
- Fan
- Weight
- 105 g
- Colour
- Black
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F12 PWM - 120 mm PWM Case Fan
- Part number
- ACFAN00203A
- EAN / UPC
- 840033400756, 4895213702959
- Also known as
- ARCTIC F12 PWM - 120 mm PWM Case Fan Computer case 12 cm Black 1 pc(s)
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 230 RPM |
| Rotational speed (max) | 1350 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 53 cfm |
| Airflow | 90.1 m³/h |
| Maximum air pressure | 1 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 6 V |
| Rated current | 0.24 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 105 g |
| Package width | 123 mm |
| Package depth | 27 mm |
| Package height | 123 mm |
| Package weight | 140 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
