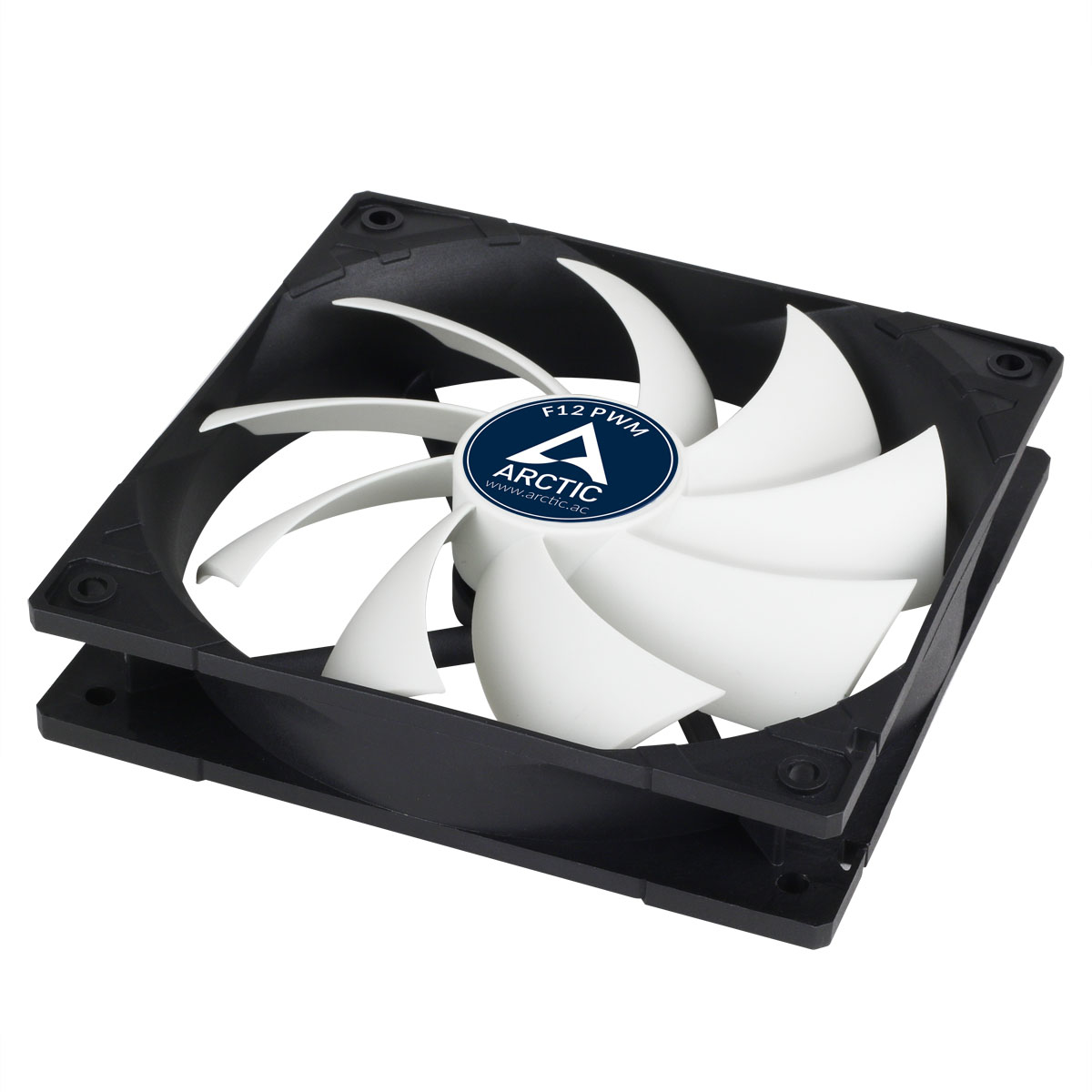

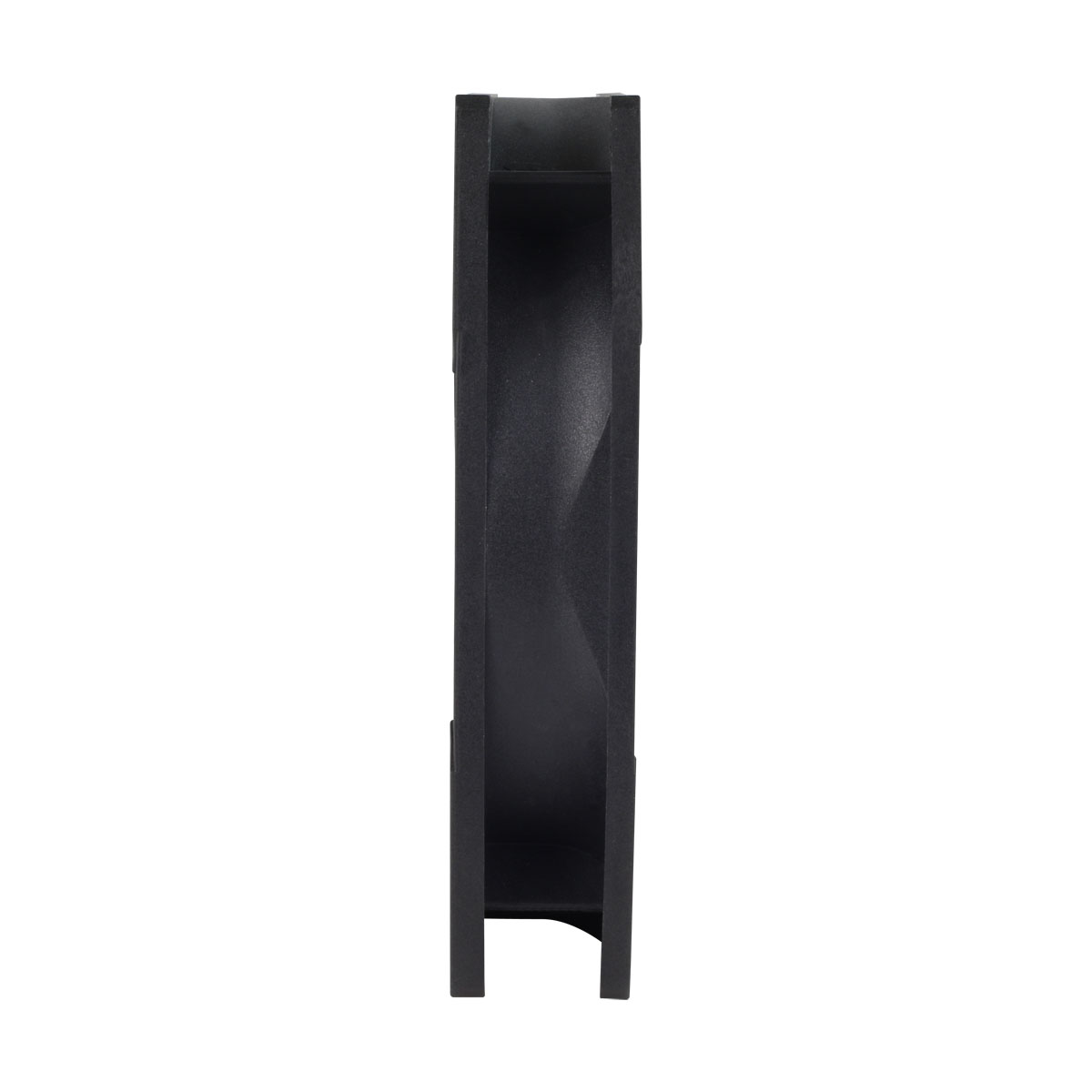

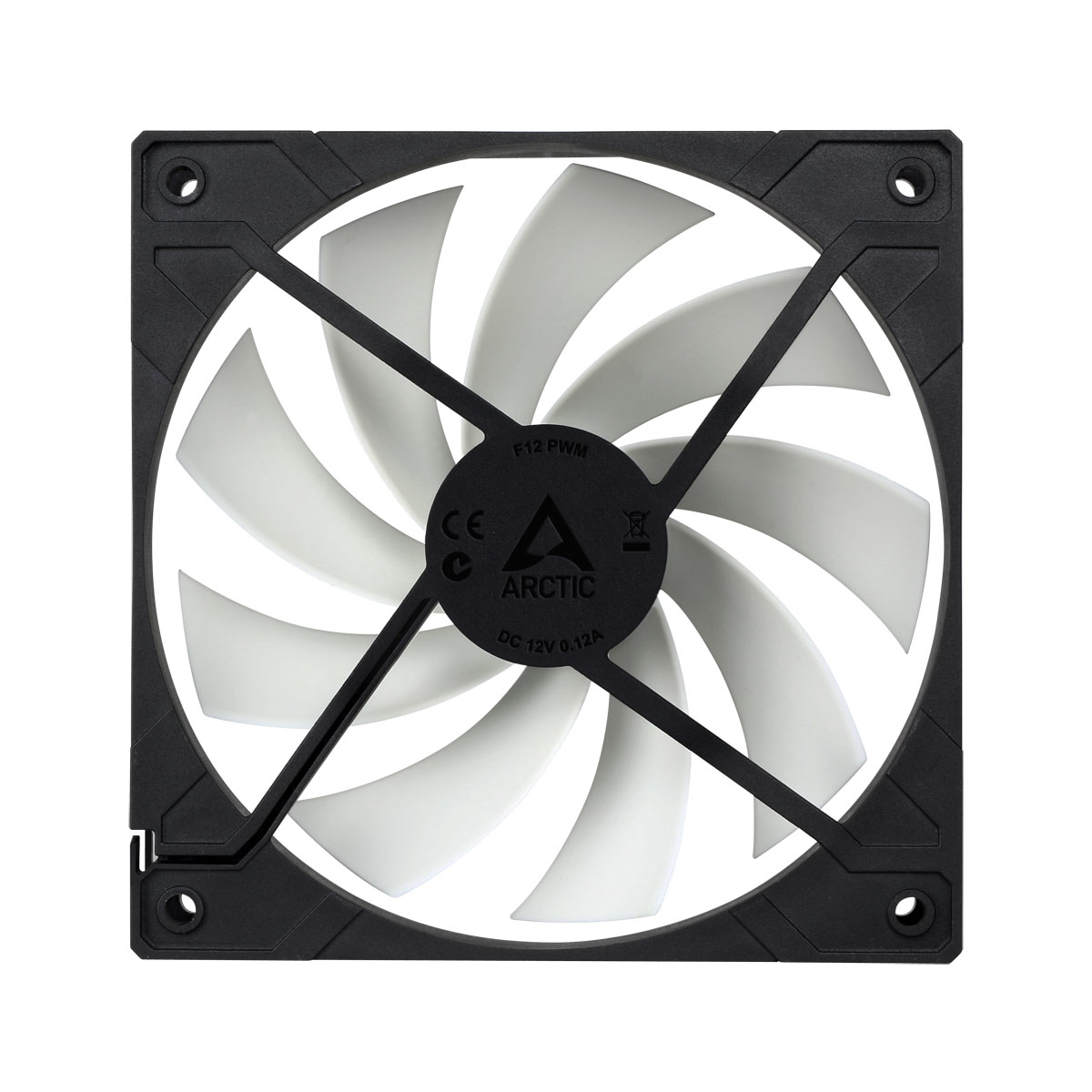

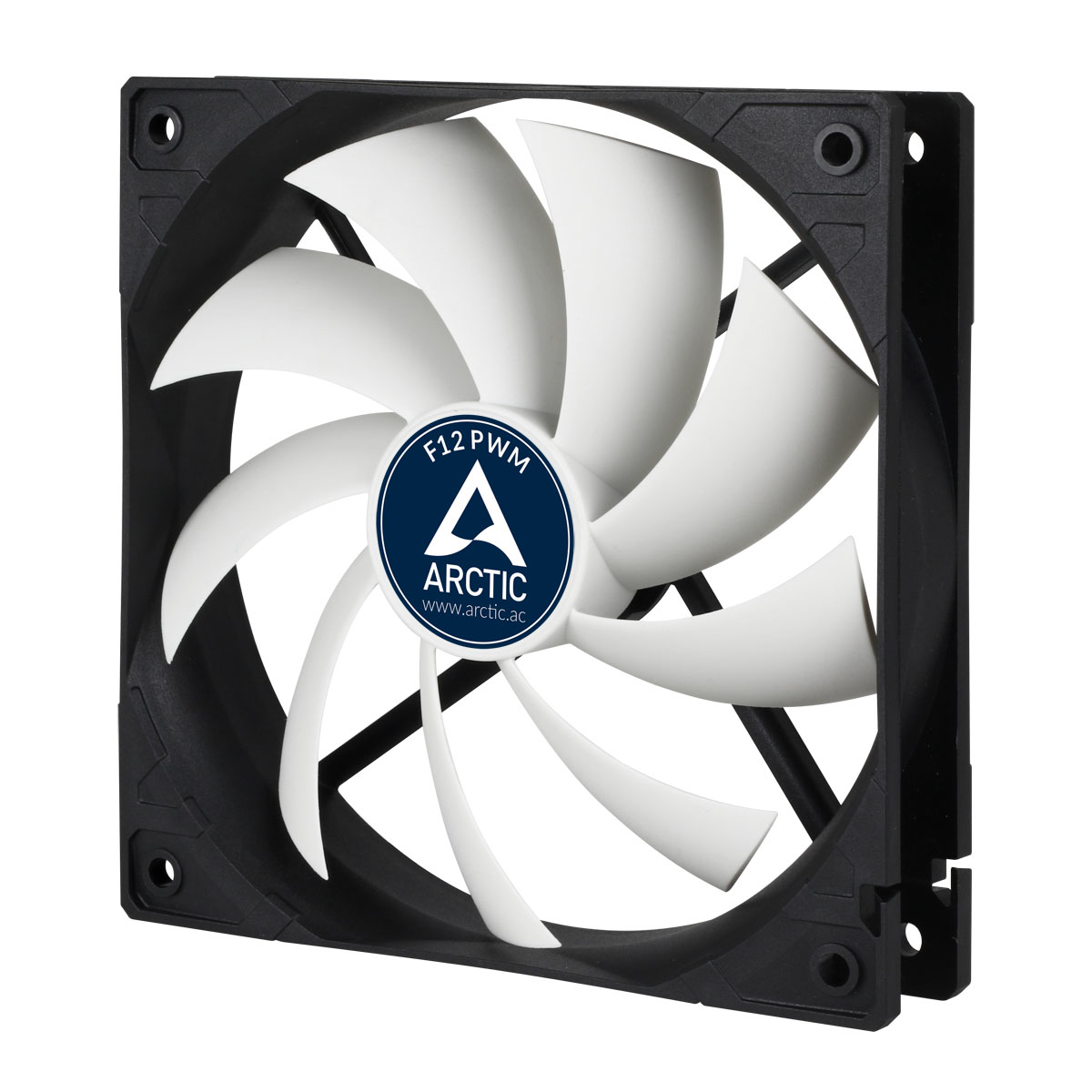

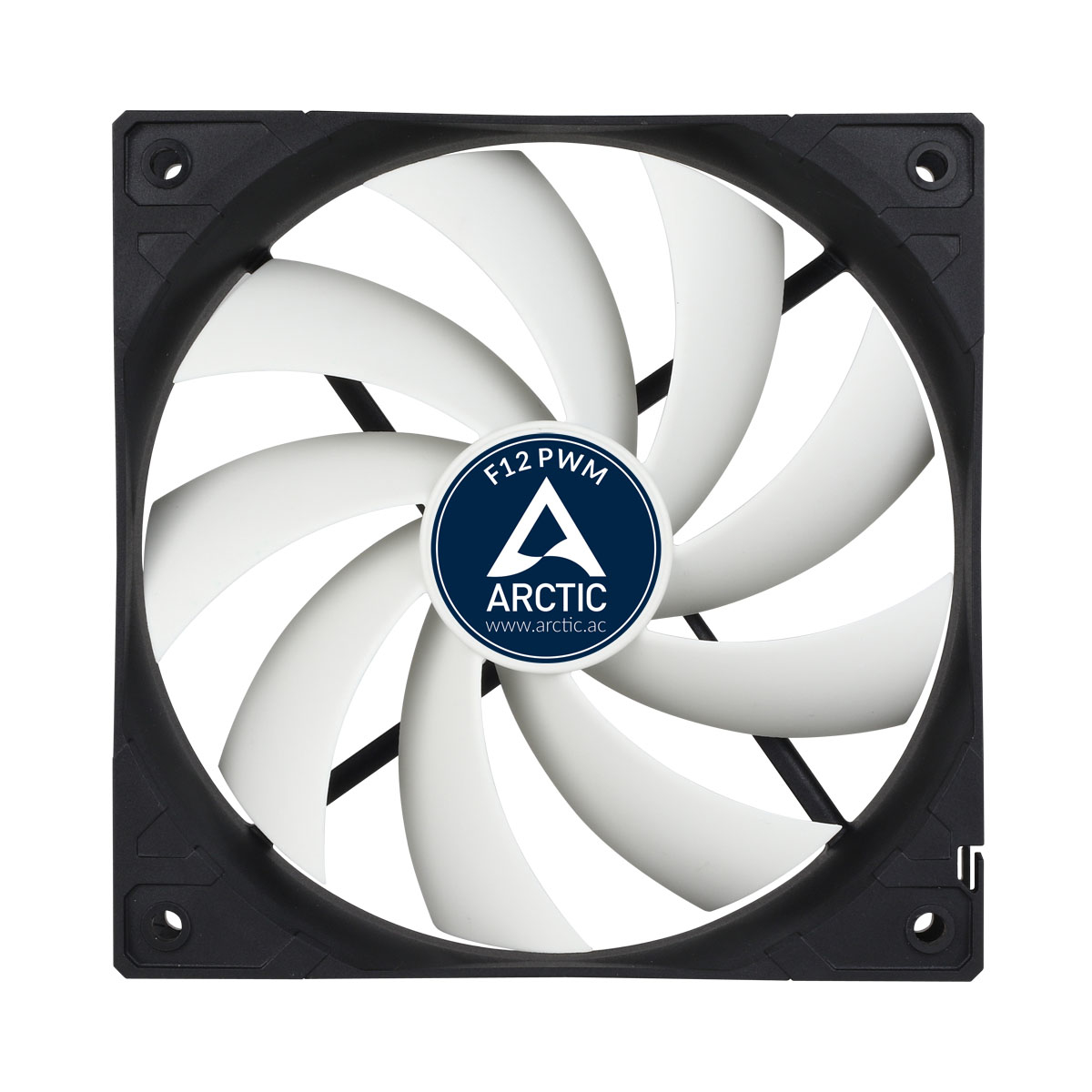

ARCTIC F12 PWM
Model F12 PWMPart no. ACFAN00145AEAN 4895265000454
31 specifications
- Noise24.5 dB
- TypeFan
- Weight105 g
- ColourBlack, White
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 24.5 dB
- Type
- Fan
- Weight
- 105 g
- Colour
- Black, White
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F12 PWM
- Part numbers
- ACFAN00145A, AFACO-120P2-GBA01
- EAN / UPC
- 4895265000454, 172302657173, 872767002029, 872767006720 +11 more
- Also known as
- ARCTIC F12 PWM 4-Pin PWM fan with standard case
Specifications
31 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 1350 RPM |
| Noise level (high speed) | 24.5 dB |
| Noise level | 0.3 sone |
| Maximum airflow | 53 cfm |
| Airflow | 90.1 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 6 V |
| Rated current | 0.24 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 25 mm |
| Weight | 105 g |
| Cable length | 0.4 m |
| Package width | 123 mm |
| Package depth | 27 mm |
| Package height | 123 mm |
| Package weight | 137 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
