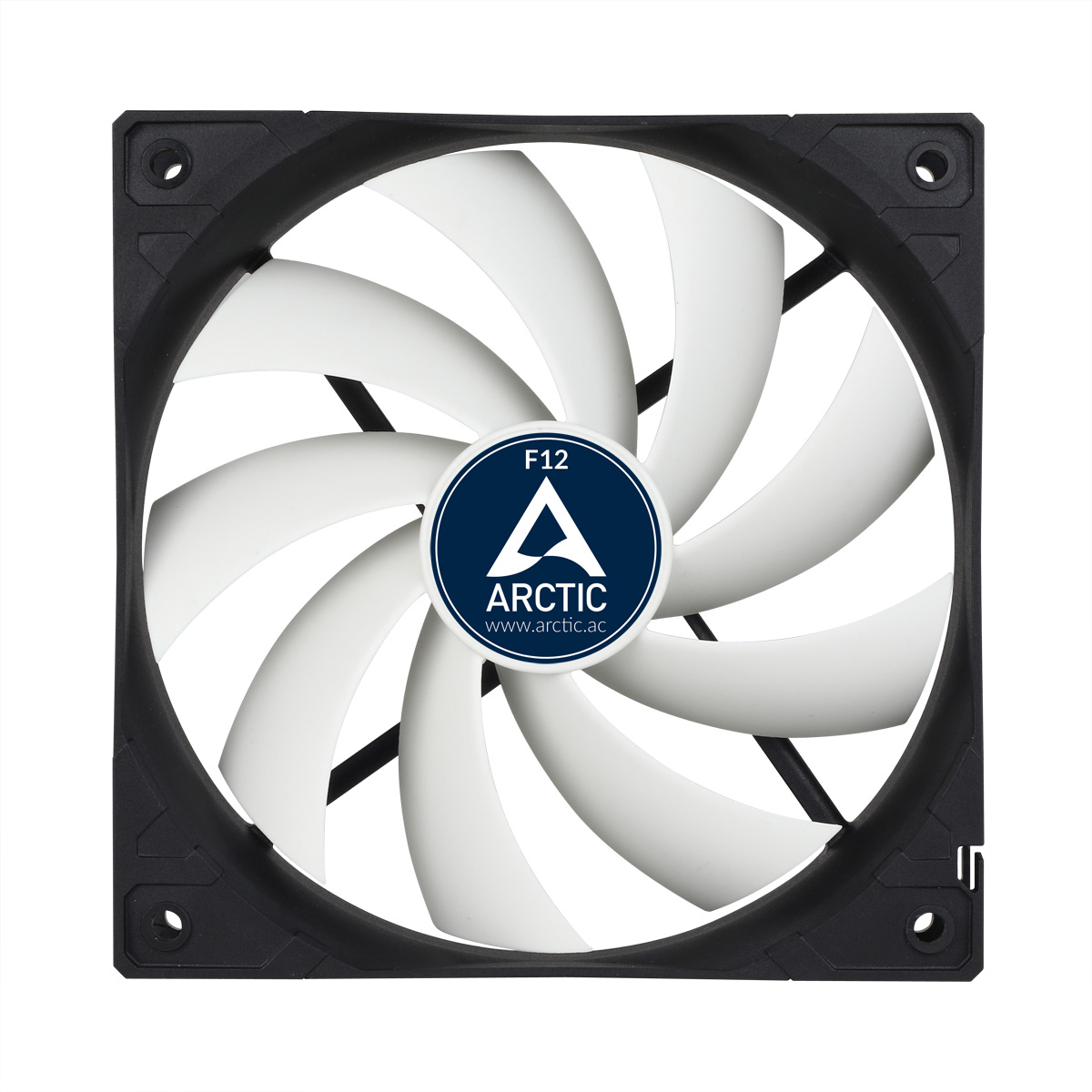

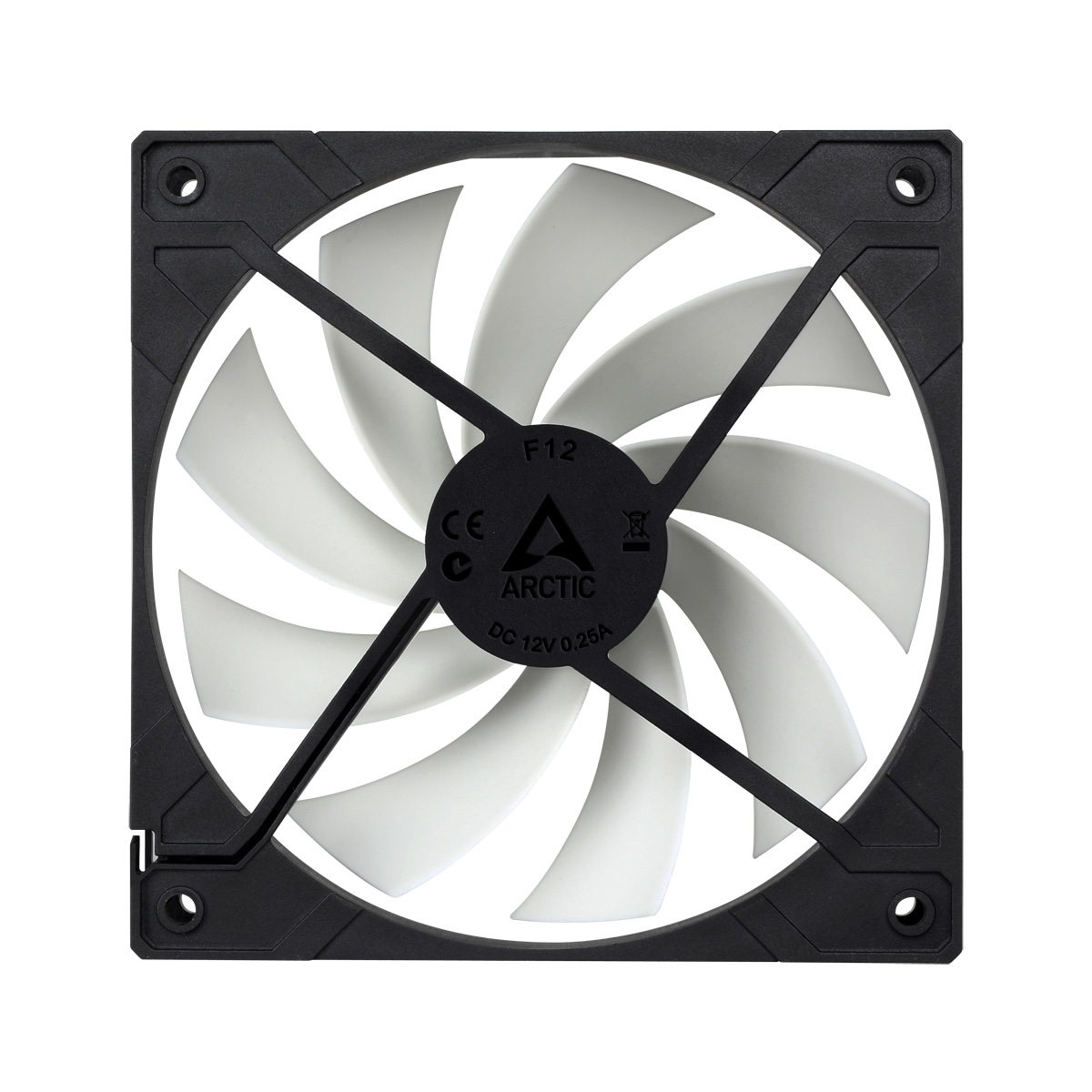

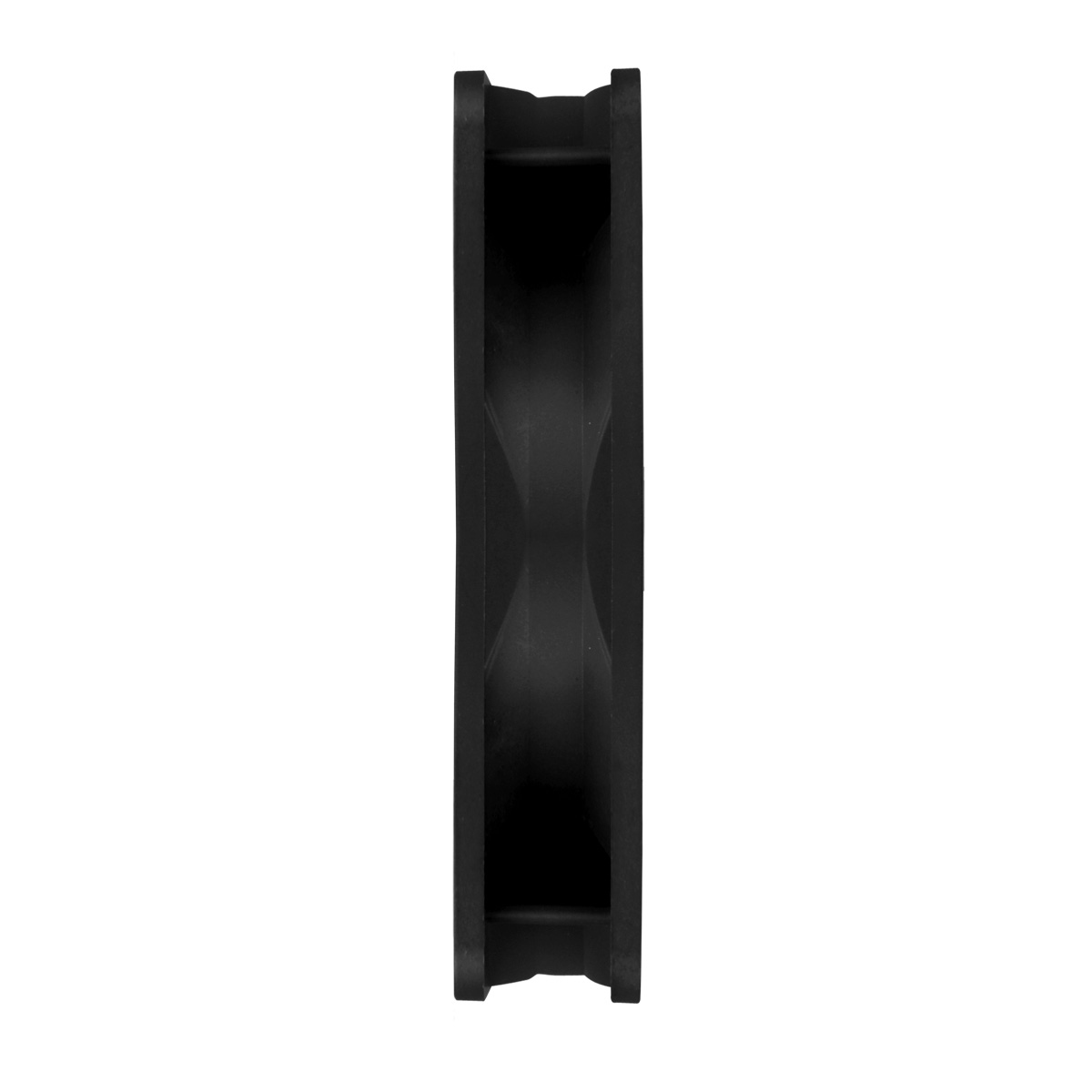

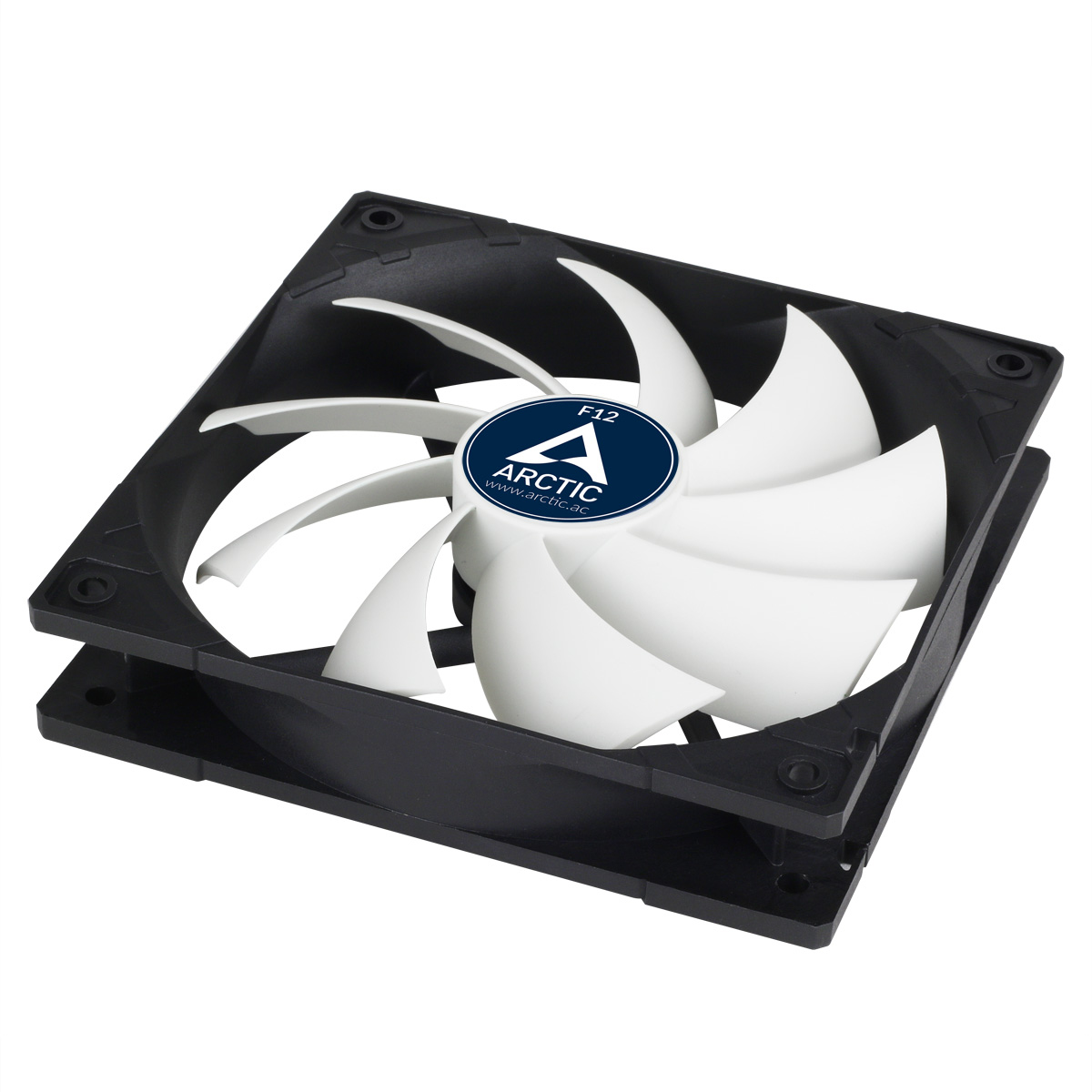

ARCTIC F12 3-Pin fan with standard case
Model F12Part no. ACFAN00201AEAN 4895213702942
29 specifications
- Noise24.5 dB
- TypeFan
- Weight107 g
- ColourBlack, White
- Suitable locationComputer case
- Voltage12 V
Overview
- Noise
- 24.5 dB
- Type
- Fan
- Weight
- 107 g
- Colour
- Black, White
- Suitable location
- Computer case
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- F12
- Part numbers
- ACFAN00201A, AFACO-12000-GBA01, ACFAN00063A, ACFAN00248A
- EAN / UPC
- 4895213702942, 191120056005, 872767002623, 1291840000131 +15 more
- Also known as
- ARCTIC F12 3-Pin fan with standard case

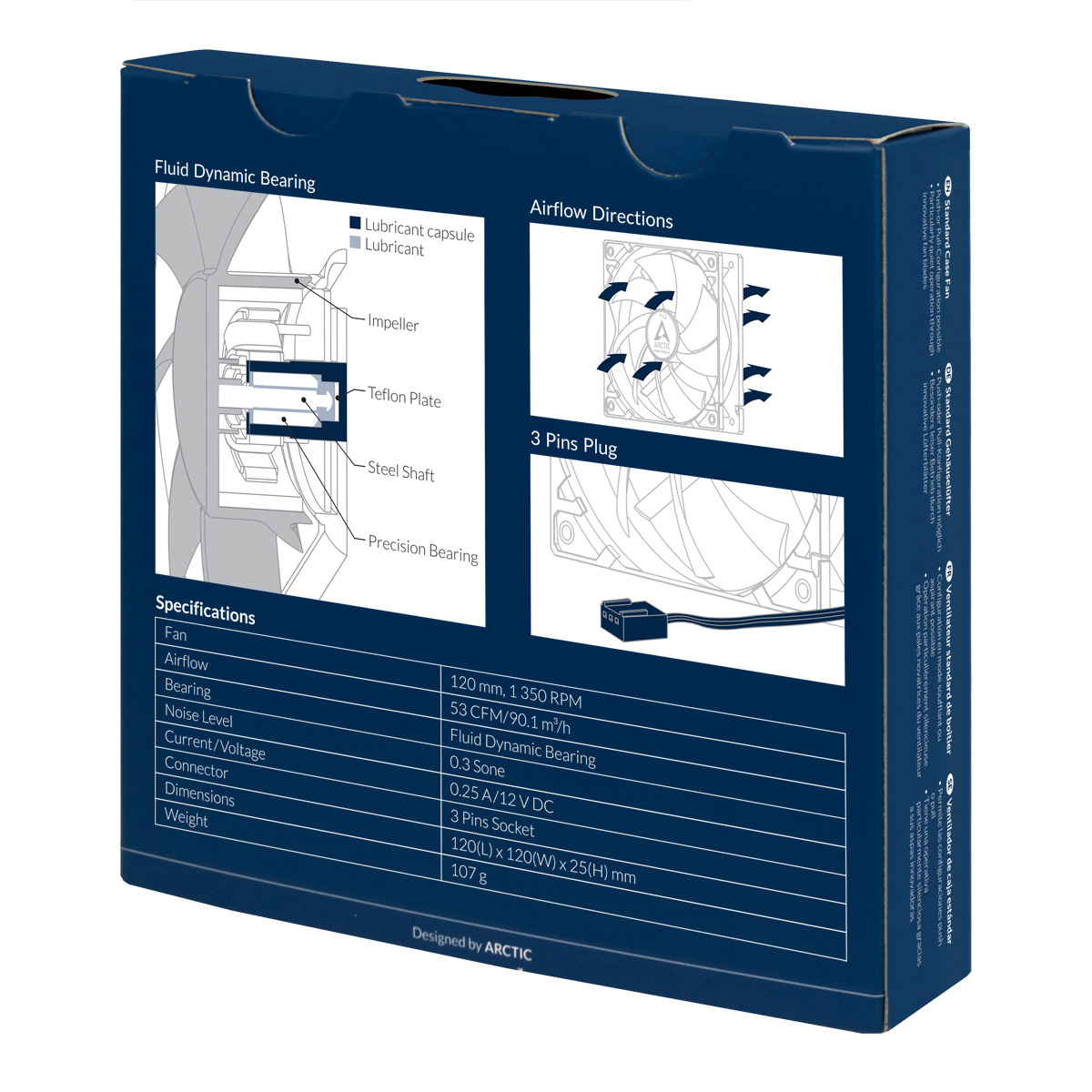

Specifications
29 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 650 RPM |
| Rotational speed (max) | 1350 RPM |
| Noise level (high speed) | 24.5 dB |
| Noise level | 0.3 sone |
| Maximum airflow | 53 cfm |
| Airflow | 90.1 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Material | Plastic |
| Fan connector | 3-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Starting voltage | 2.7 V |
| Rated current | 0.24 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 25 mm |
| Height | 120 mm |
| Weight | 107 g |
| Cable length | 0.4 m |

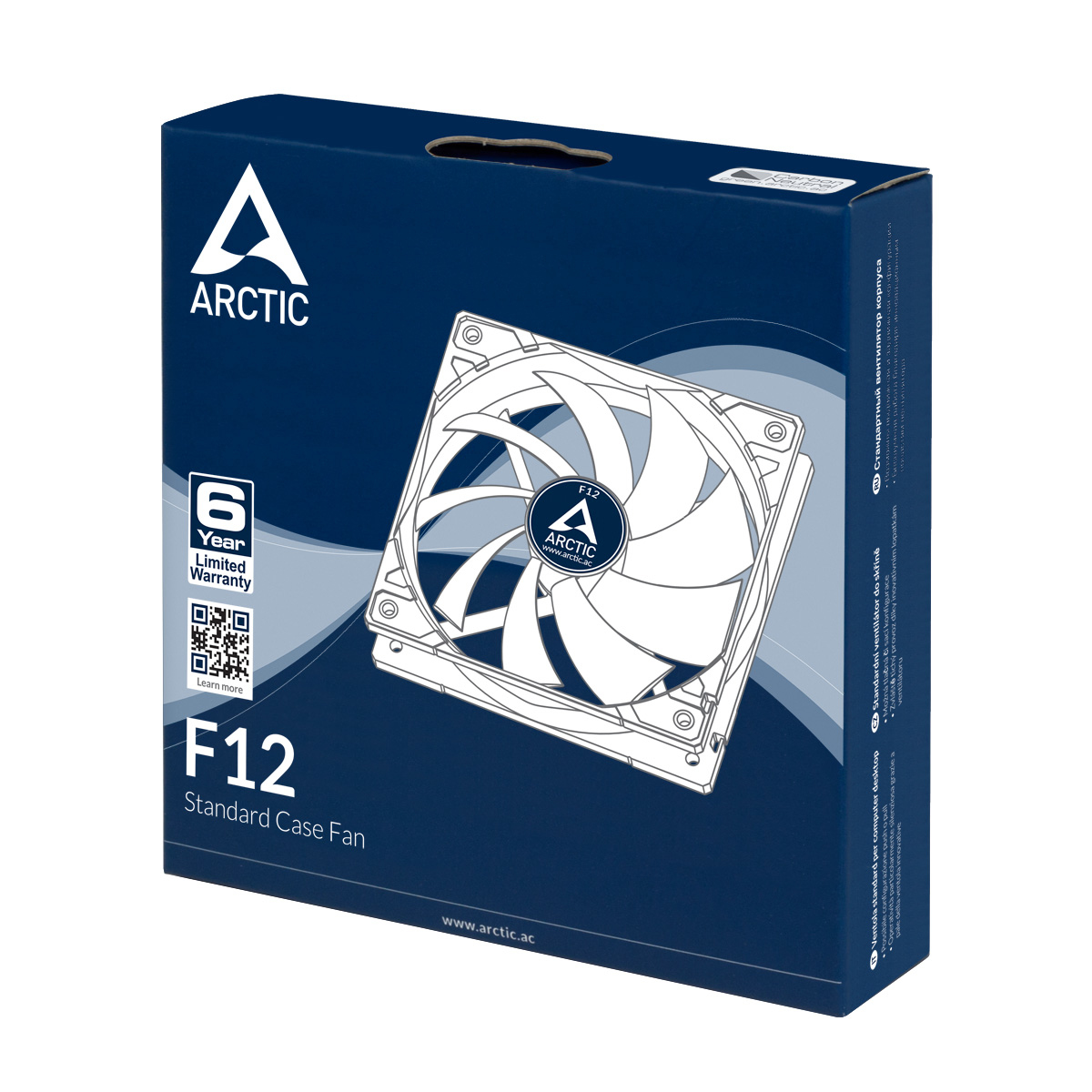

| Package width | 123 mm |
| Package depth | 27 mm |
| Package height | 123 mm |
| Package weight | 127 g |
Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Number of screws | 4 |
Reviews
No reviews of ARCTIC F12 3-Pin fan with standard case yet. Have you used it? Tell others what you think.
Write a reviewCompare ARCTIC F12 3-Pin fan with standard case

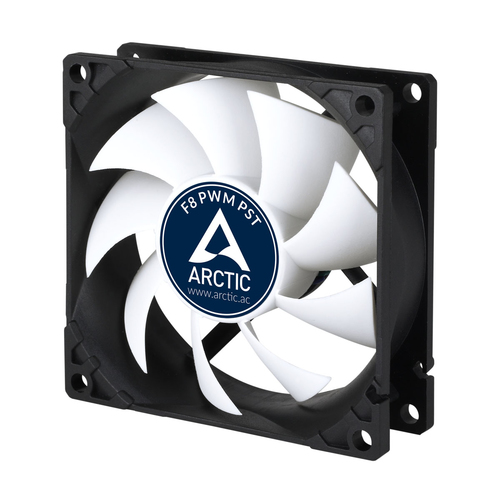

All computer cooling system comparisons- ARCTIC F12 3-Pin fan with standard case vsARCTIC F8 PWM PSTCompare specs
- ARCTIC F12 3-Pin fan with standard case vsARCTIC F8 - 3-Pin fan with standard caseCompare specs

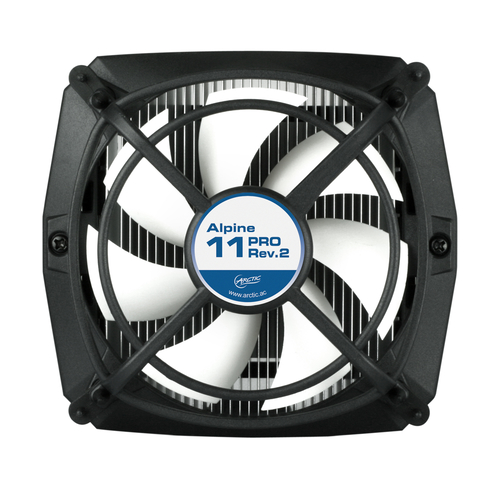

- ARCTIC F12 3-Pin fan with standard case vsARCTIC Alpine 11 PRO Rev.2Compare specs

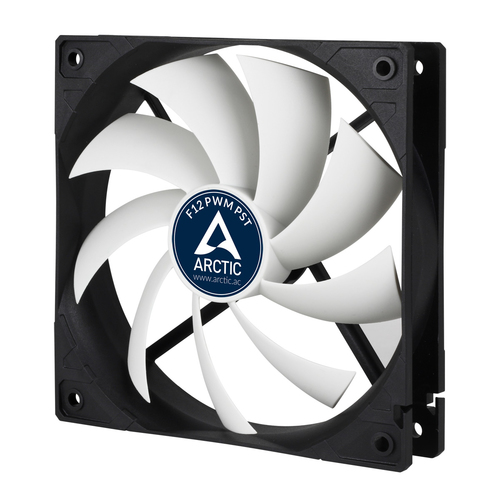

- ARCTIC F12 3-Pin fan with standard case vsARCTIC F12 PWM PSTCompare specs

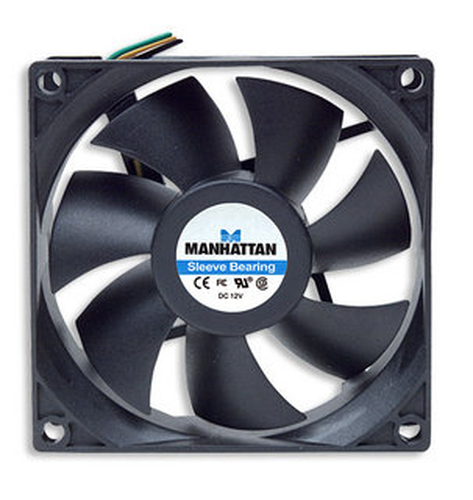

- ARCTIC F12 3-Pin fan with standard case vsManhattan 700955 computer cooling system Computer case FanCompare specs

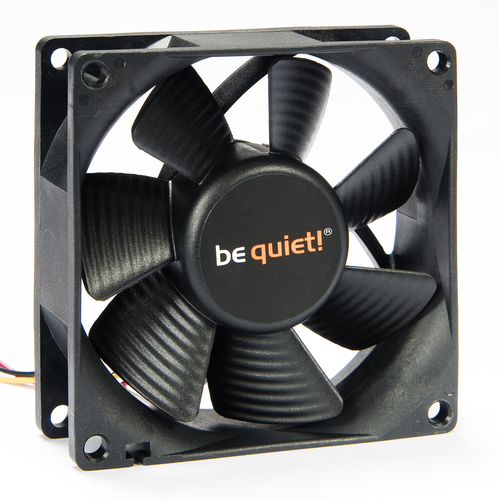

- ARCTIC F12 3-Pin fan with standard case vsbe quiet! SILENT WINGS Pure, 80mmCompare specs

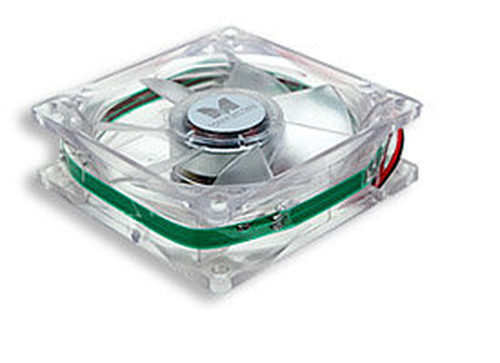

- ARCTIC F12 3-Pin fan with standard case vsManhattan 80mm Case FanCompare specs

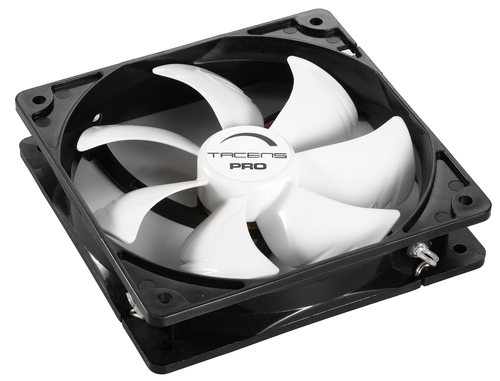

- ARCTIC F12 3-Pin fan with standard case vsTacens Spiro Computer case Fan Black, WhiteCompare specs
