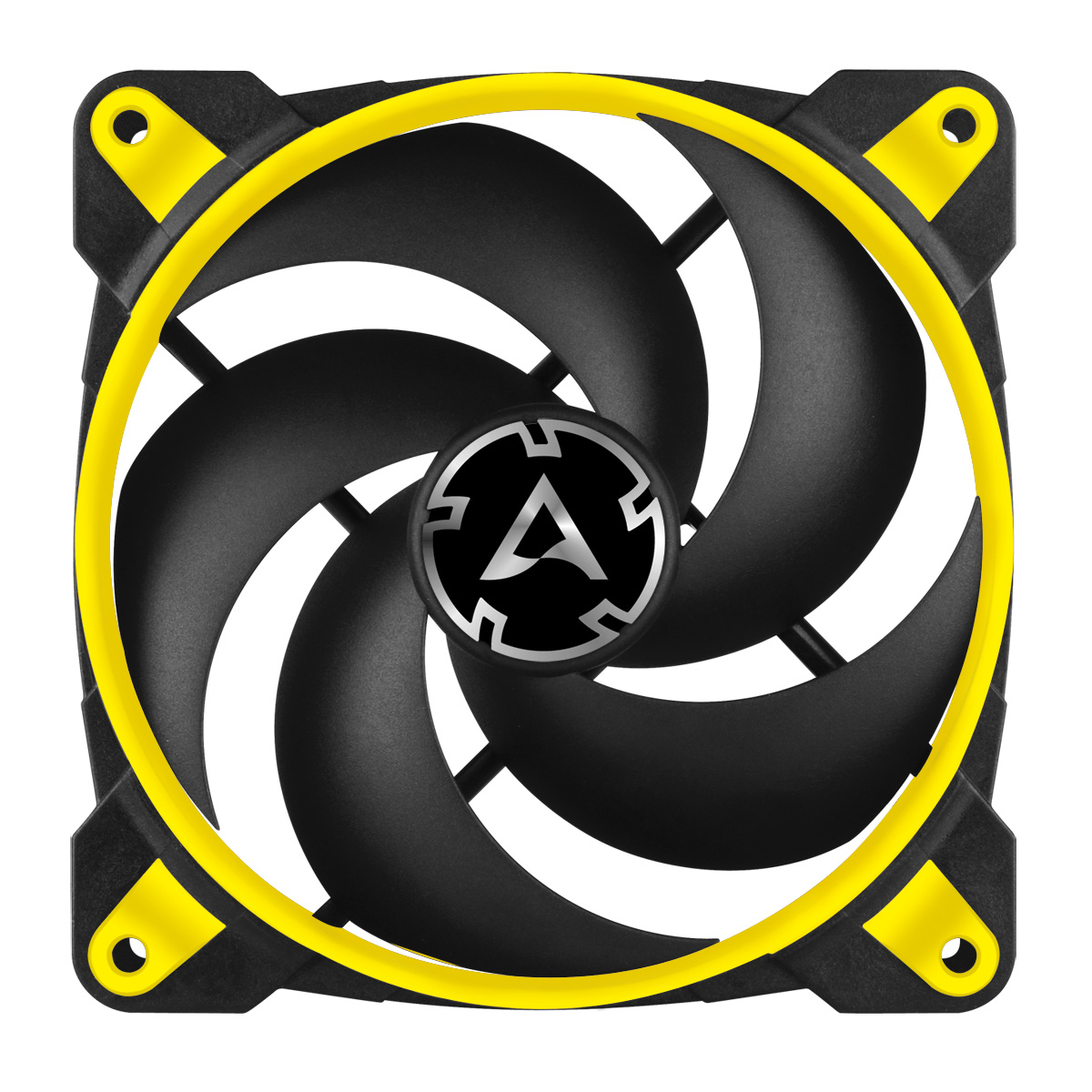

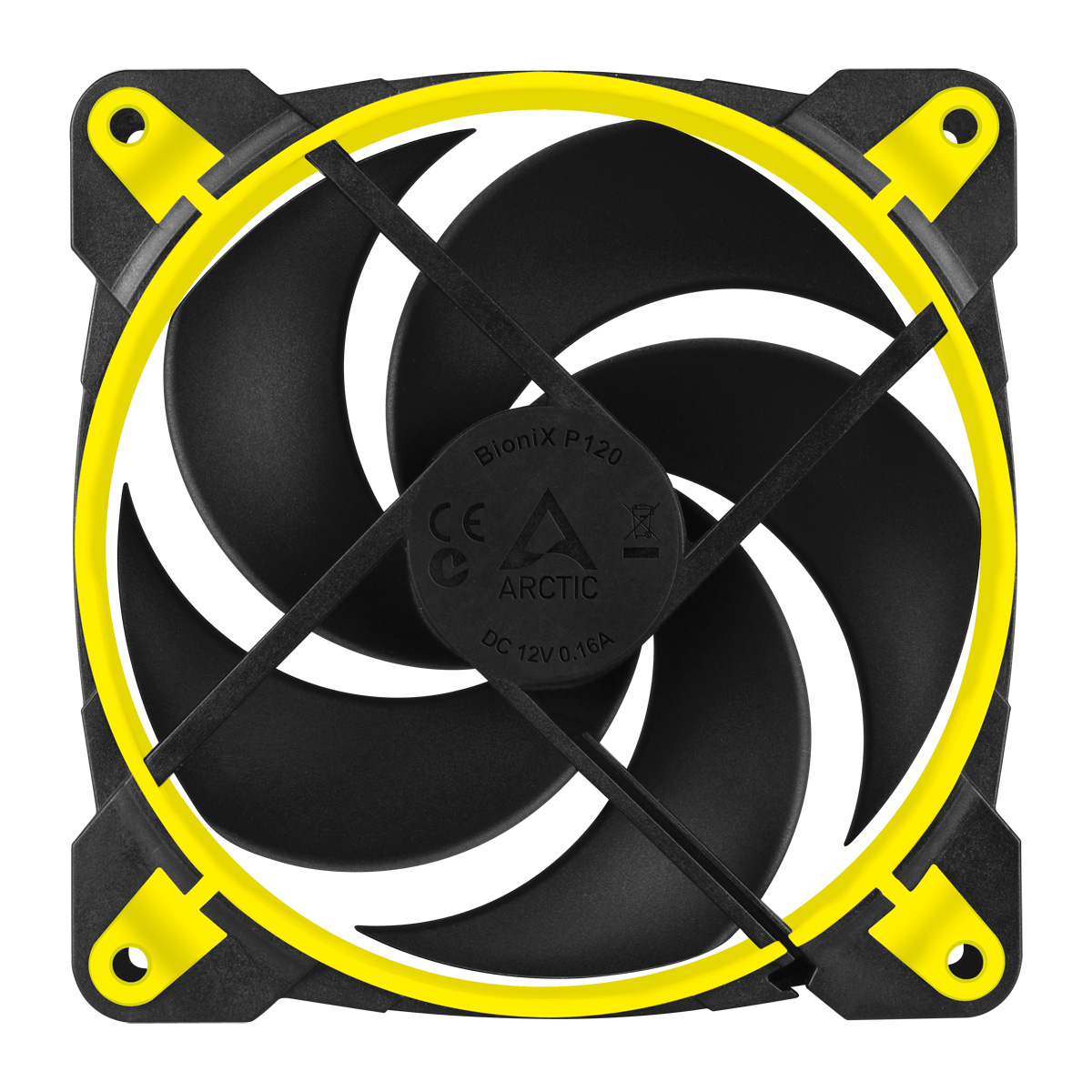

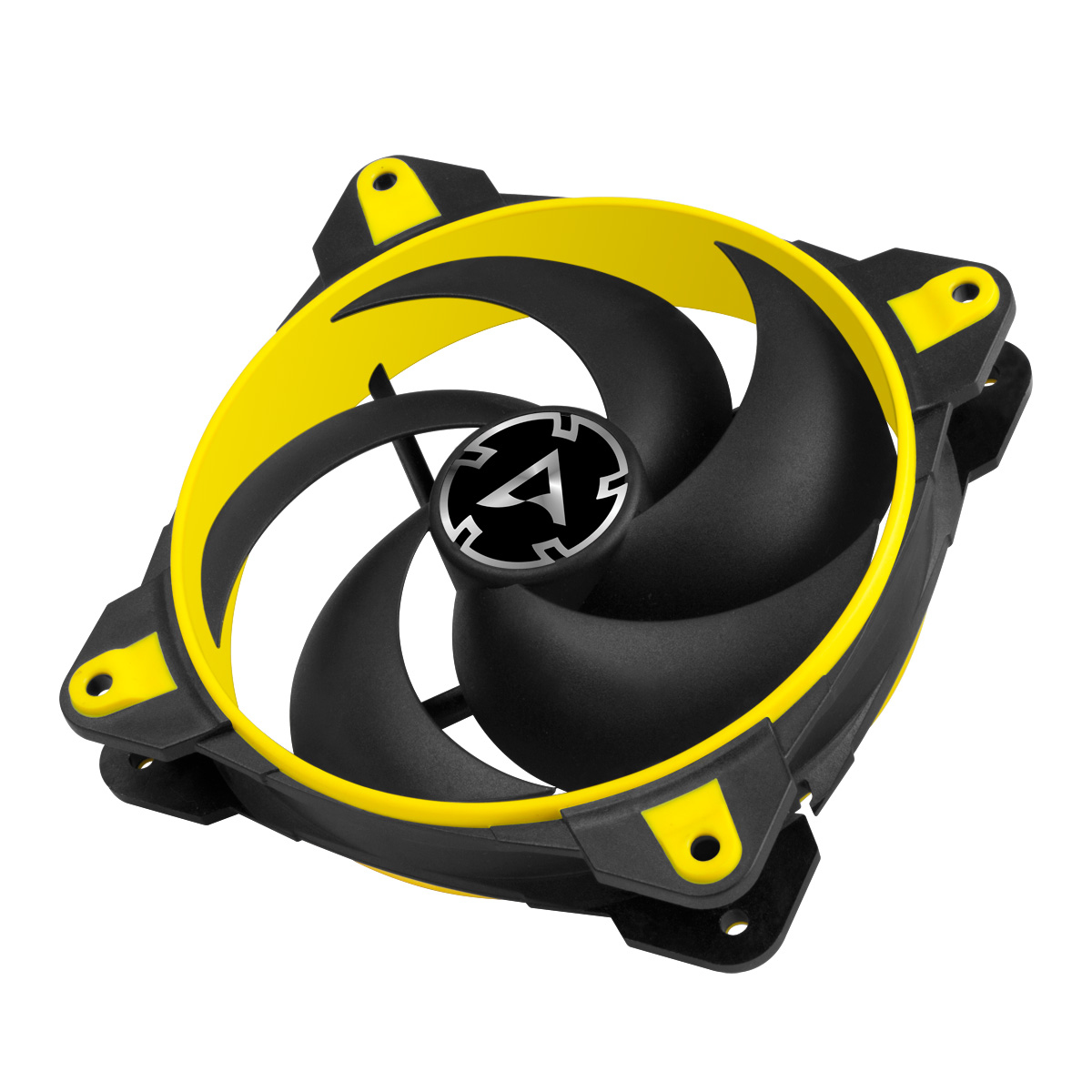

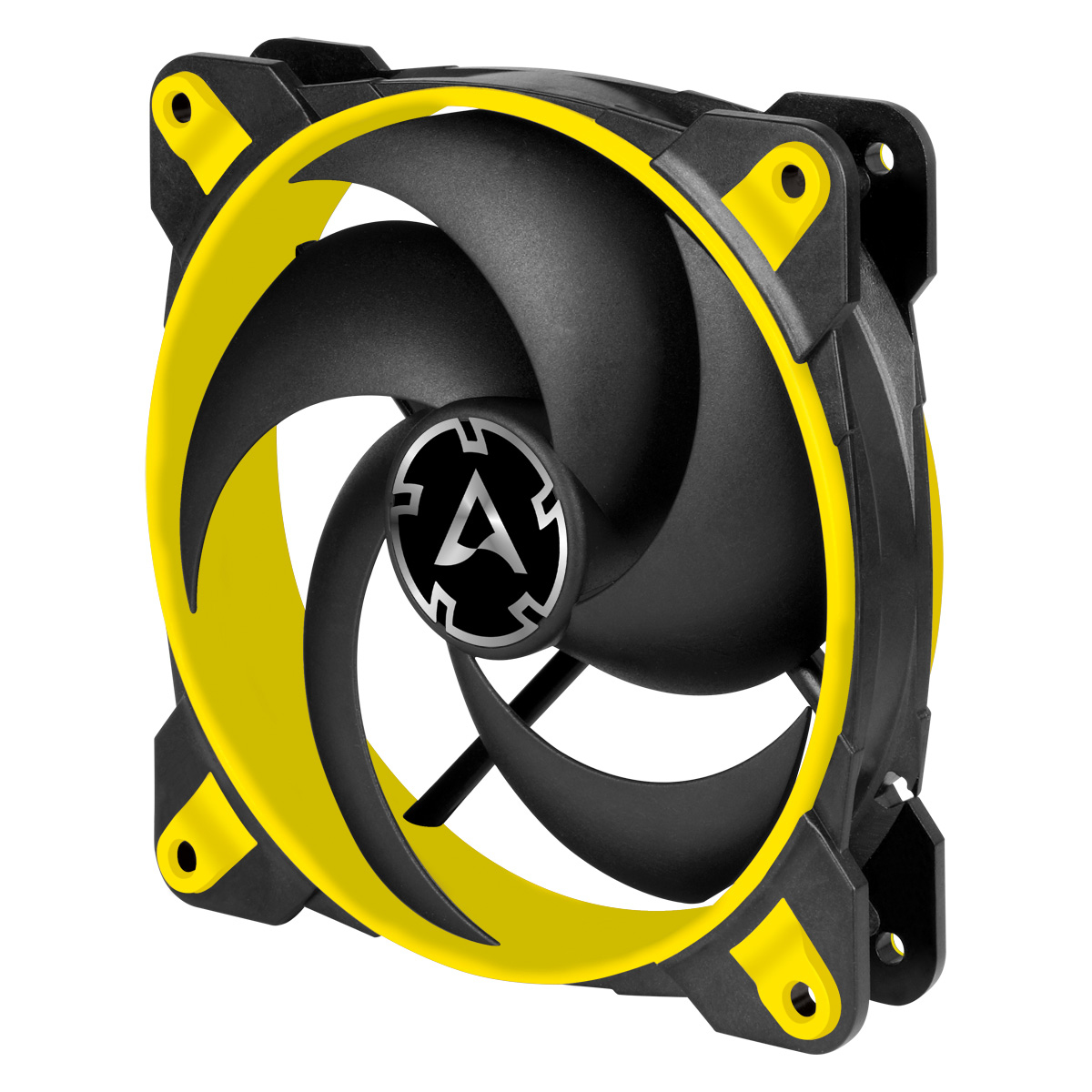

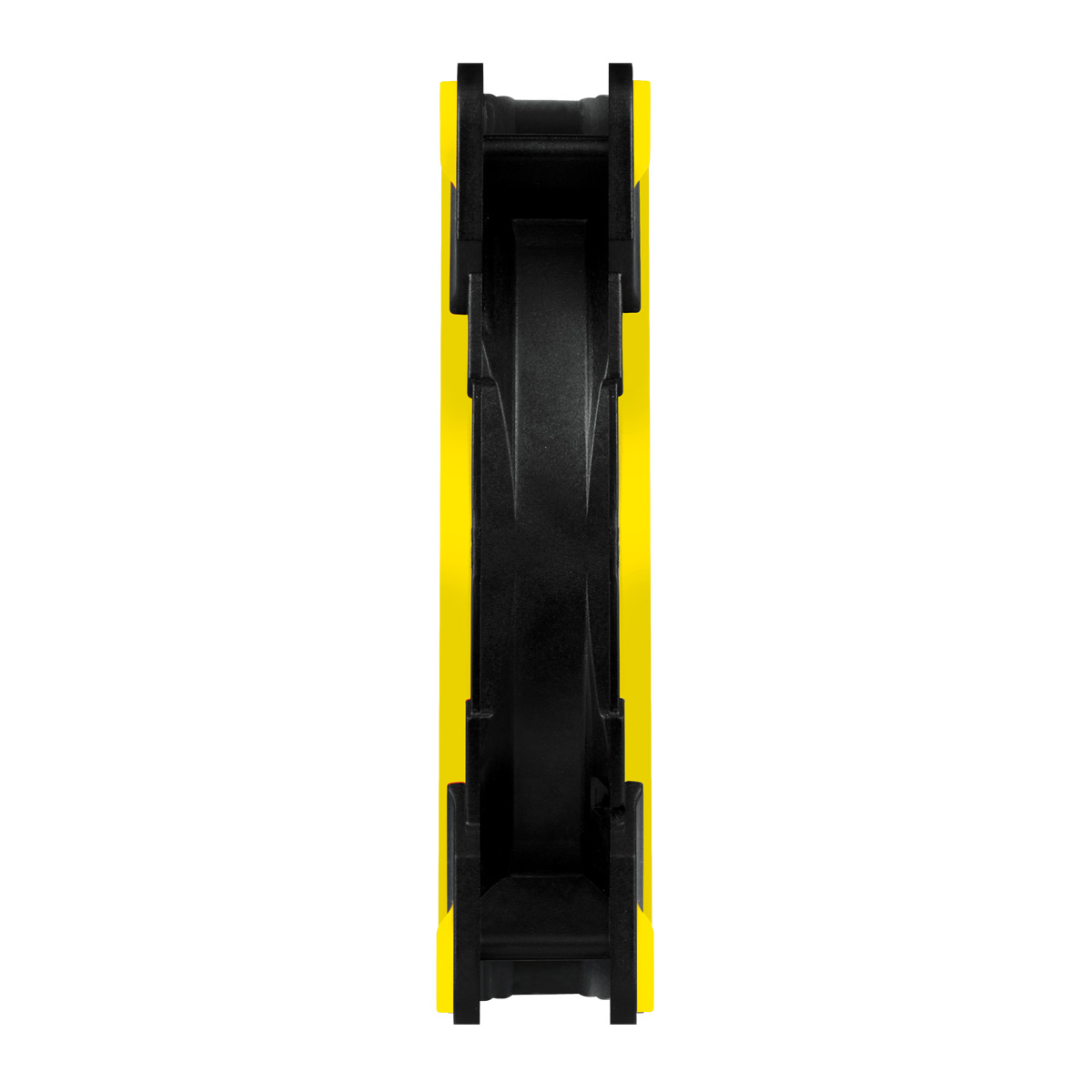

BioniX P120
Model BioniX P120Part no. ACFAN00168AEAN 4895213702225
34 specifications
- Noise0.45 sone
- TypeFan
- Weight140 g
- ColourBlack, Yellow
- Suitable locationComputer case
- Power consumption (typical)1.56 W
Overview
- Noise
- 0.45 sone
- Type
- Fan
- Weight
- 140 g
- Colour
- Black, Yellow
- Suitable location
- Computer case
- Power consumption (typical)
- 1.56 W
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- BioniX P120
- Part numbers
- ACFAN00168A, ACFAN00117A, ACFAN00114A
- EAN / UPC
- 4895213702225, 4895213701846, 872767009776, 4895213701853 +1 more
- Also known as
- ARCTIC BioniX P120 (Yellow) – Pressure-optimised 120 mm Gaming Fan with PWM PST
Specifications
34 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 2100 RPM |
| Noise level | 0.45 sone |
| Maximum airflow | 67.56 cfm |
| Airflow | 114.79 m³/h |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Yellow |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Fan connector | 4-pin + 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.56 W |
| Voltage | 12 V |
| Rated current | 0.13 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 27 mm |
| Weight | 140 g |
| Cable length | 0.4 m |
| Package width | 130 mm |
| Package depth | 125 mm |
| Package height | 34 mm |
| Package weight | 175 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
Other features
| Specification | Value |
|---|---|
| Mounting hole pattern (W x D) | 105 x 105 mm |
| Country of origin | China |
