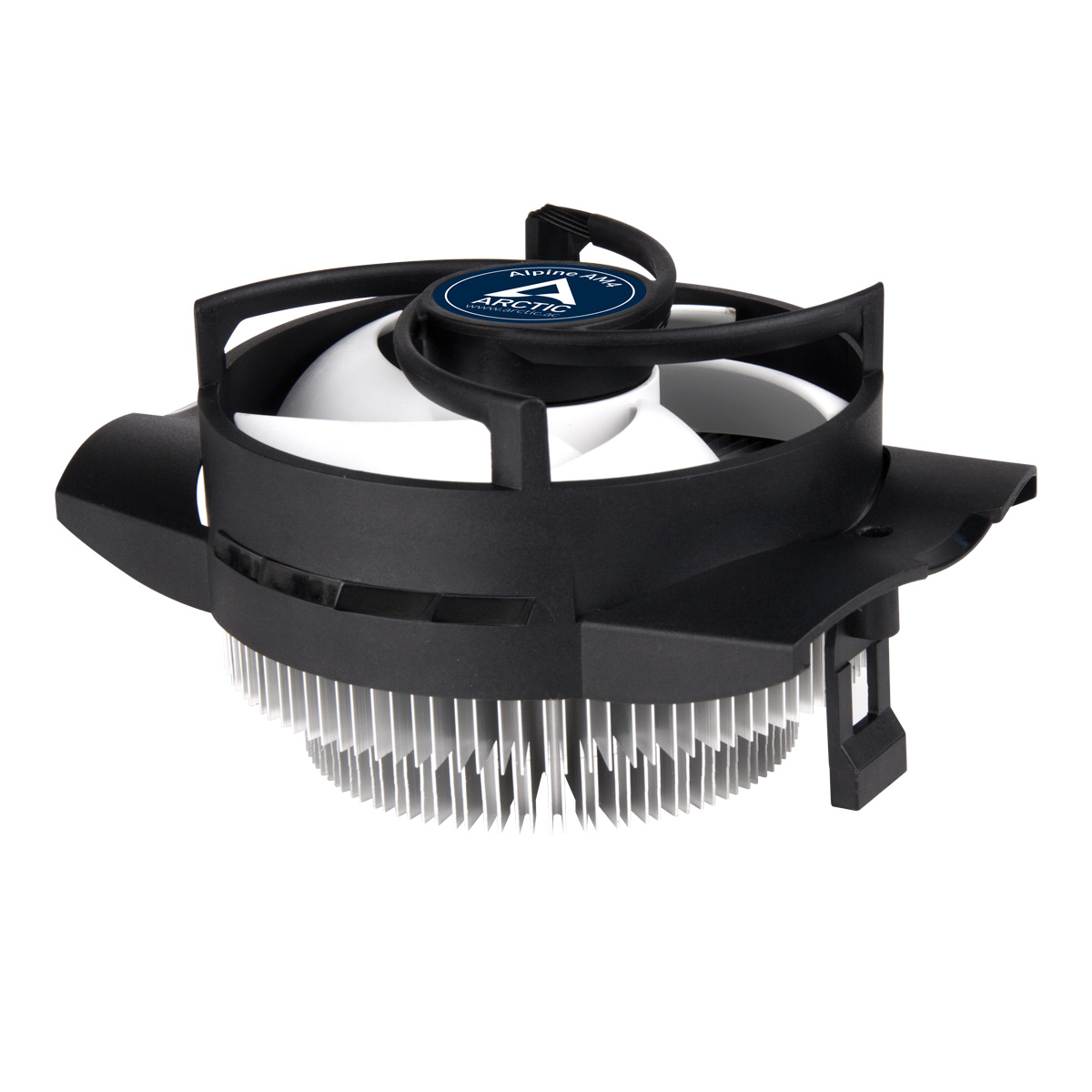

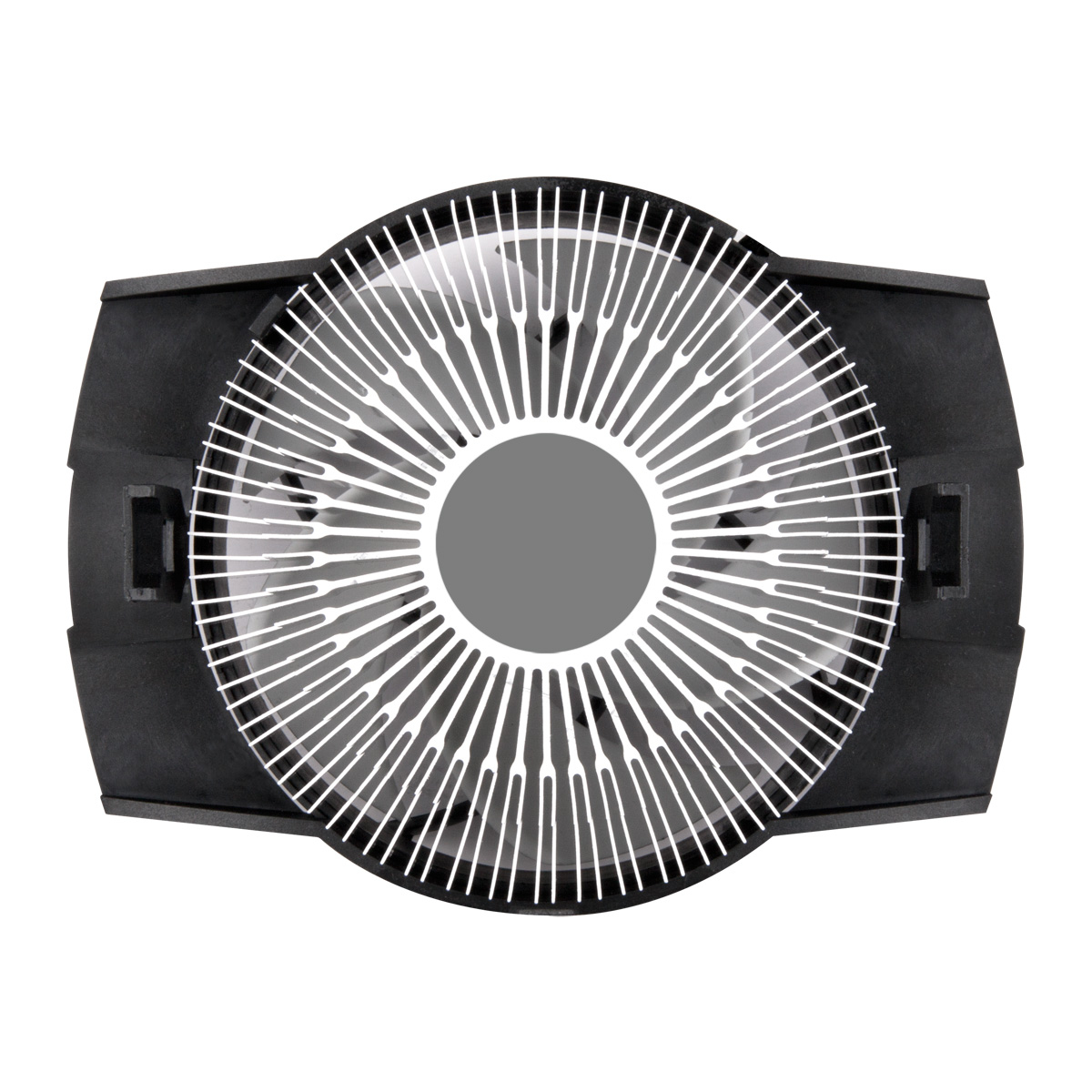

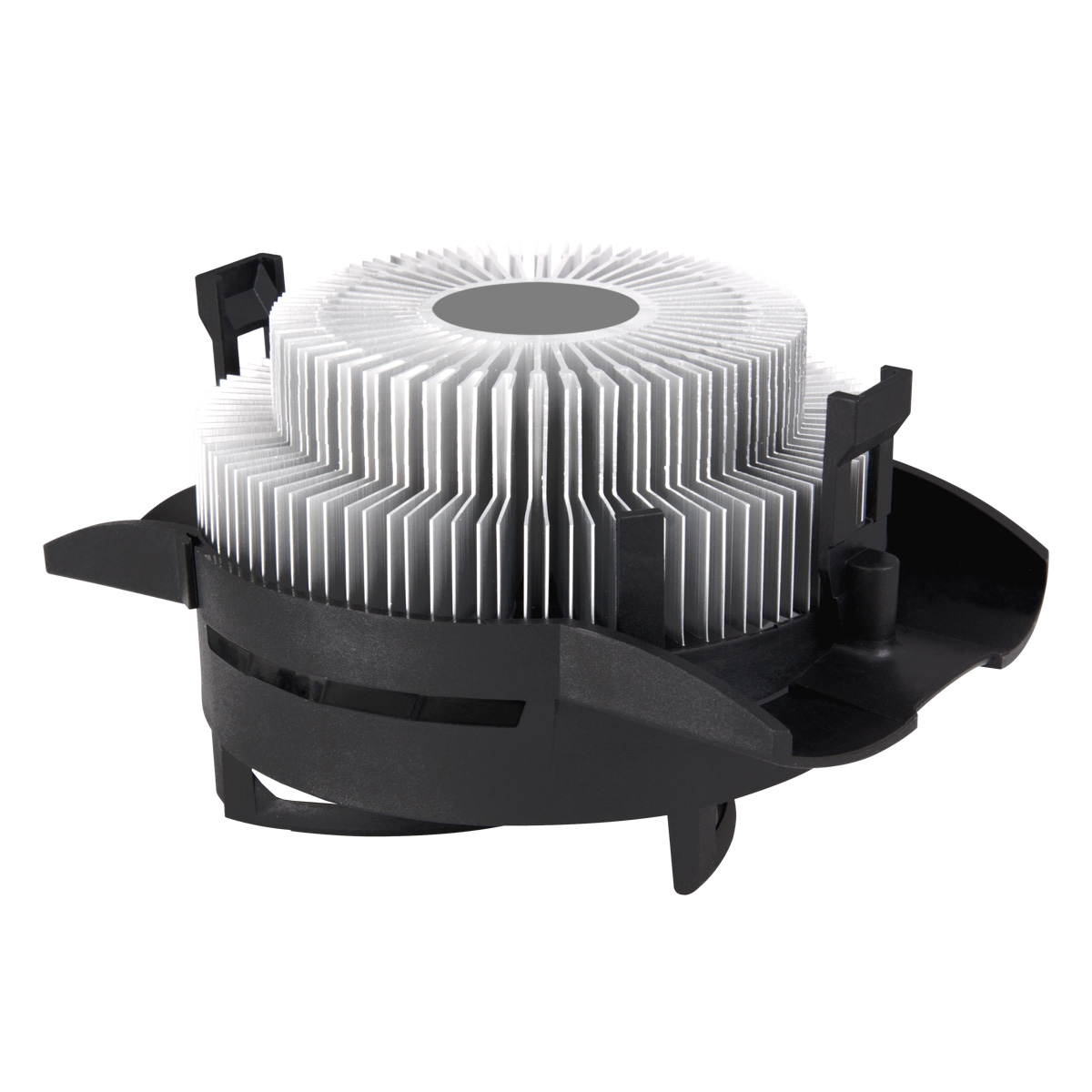

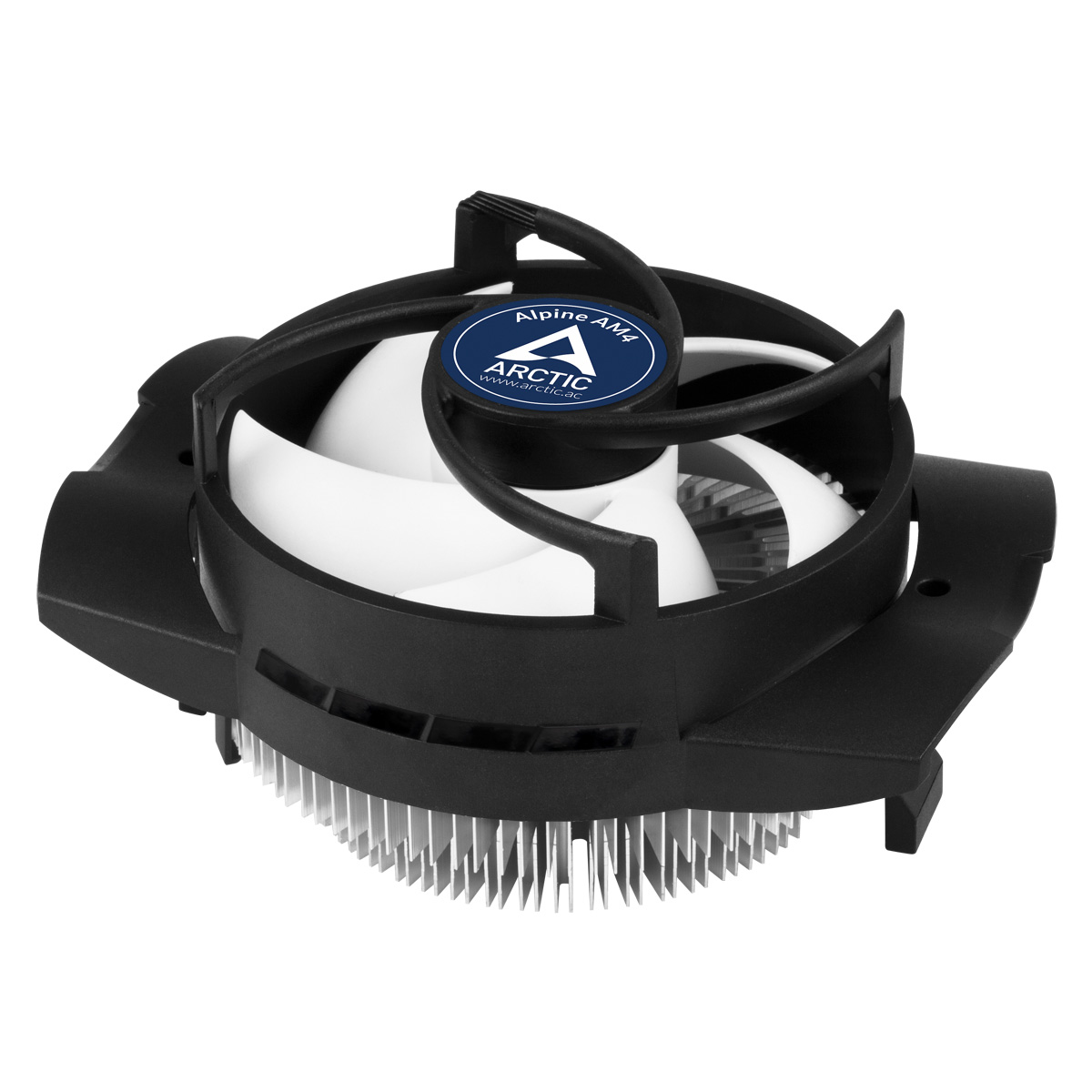

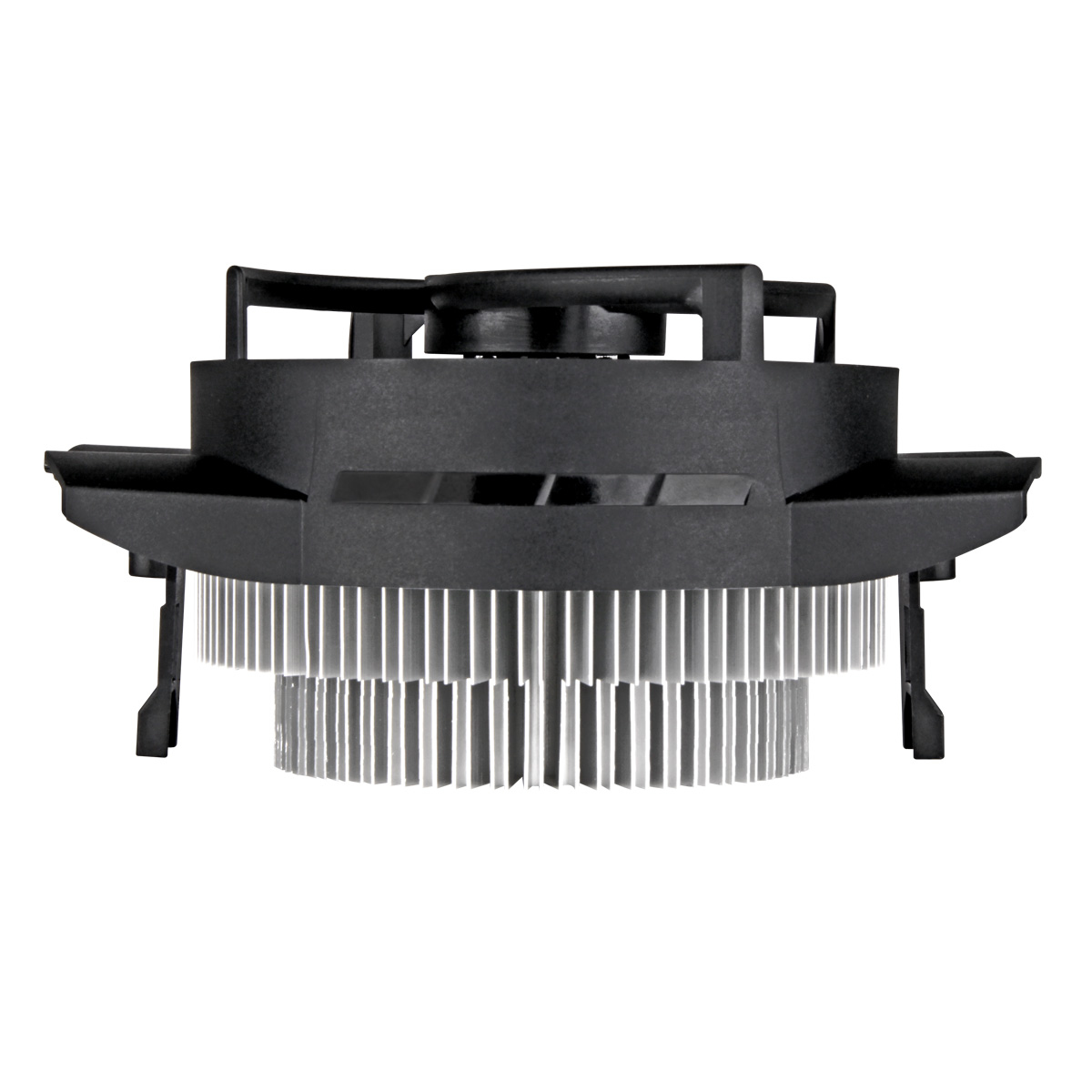

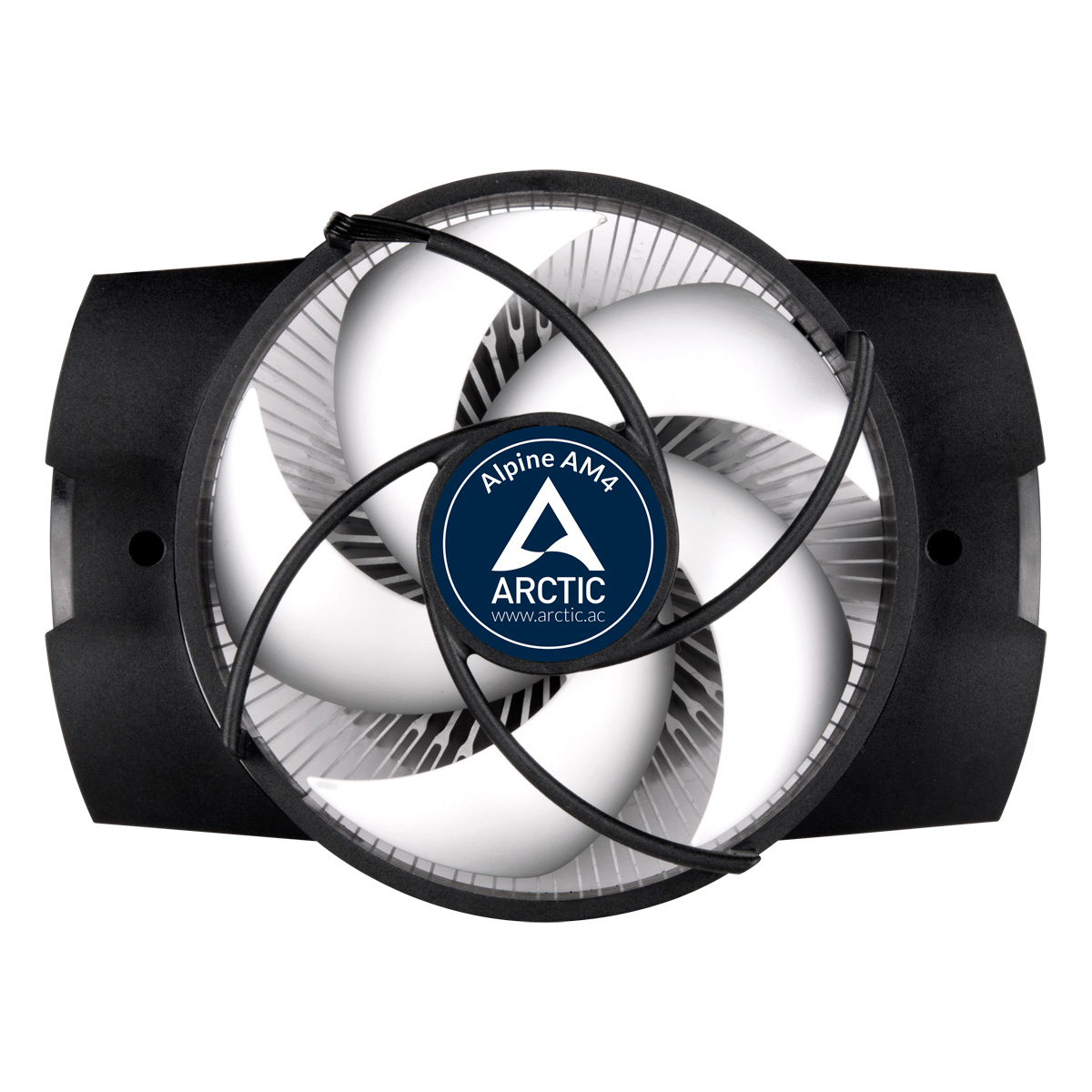

Alpine AM4
Model Alpine AM4Part no. ACALP00025AEAN 4895213701457
25 specifications
- Noise0.3 sone
- TypeHeatsink/Radiator
- Weight285 g
- ColourAluminium, Black
- Suitable locationProcessor
- Voltage12 V
Overview
- Noise
- 0.3 sone
- Type
- Heatsink/Radiator
- Weight
- 285 g
- Colour
- Aluminium, Black
- Suitable location
- Processor
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Alpine AM4
- Part number
- ACALP00025A
- EAN / UPC
- 4895213701457
- Also known as
- ARCTIC Alpine AM4 - Compact AMD CPU-Cooler
Specifications
25 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Heatsink/Radiator |
| Fan diameter | 9.2 cm |
| Supported processor sockets | Socket AM4, Socket AM5 |
| Rotational speed (min) | 100 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level | 0.3 sone |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Radiator material | Aluminum |
| Number of fans | 1 fan(s) |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.06 A |
| Thermal Design Power (TDP) | 95 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 99 mm |
| Depth | 132 mm |
| Height | 69 mm |
| Weight | 285 g |
| Package width | 133 mm |
| Package depth | 100 mm |
| Package height | 72 mm |
| Package weight | 301 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
| Thermal pad included | Yes |
