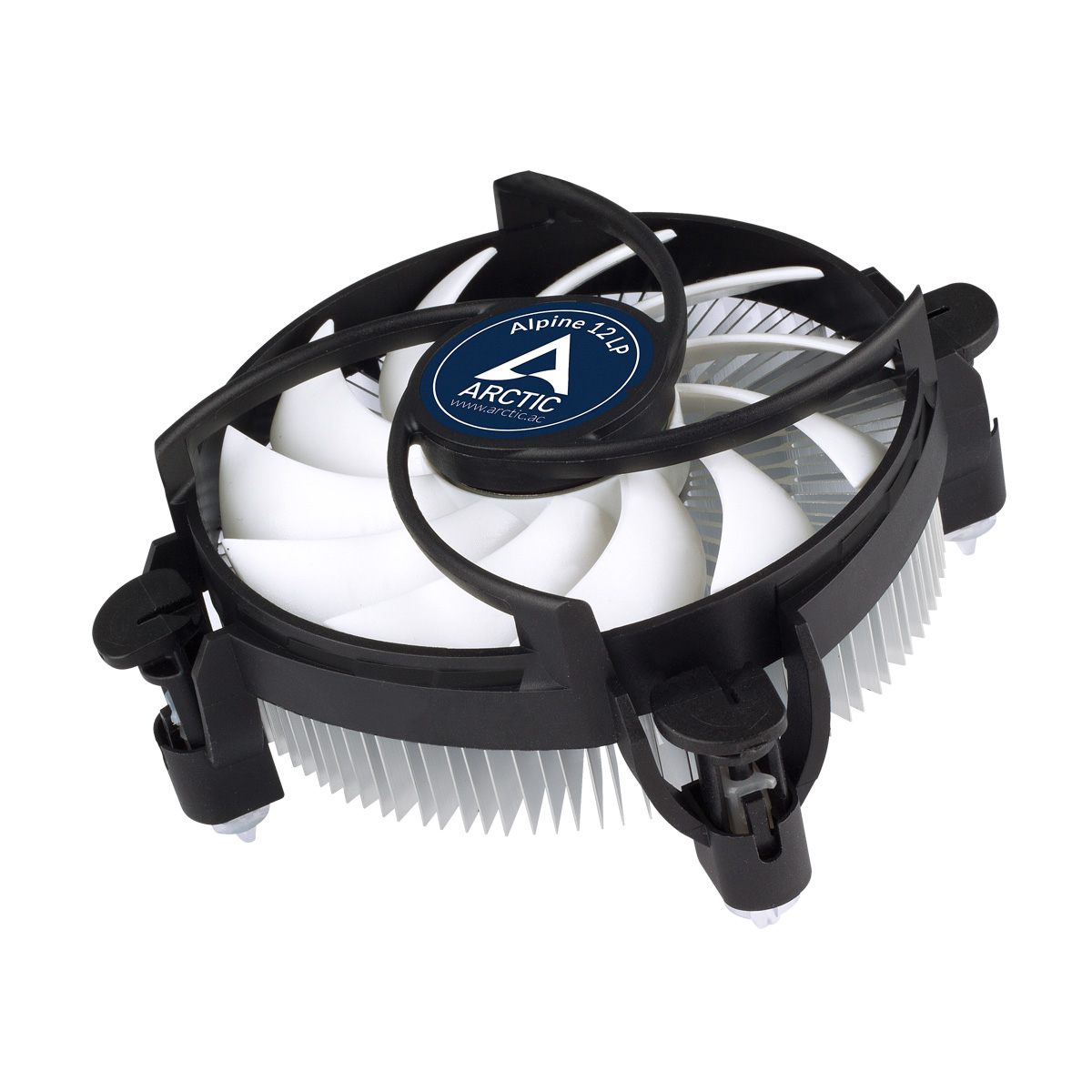

Alpine 12 LP
Model Alpine 12 LPPart no. ACFAN00029AEAN 872767009370
26 specifications
- Noise28 dB
- TypeAir cooler
- Weight182 g
- ColourAluminium, Black
- Suitable locationProcessor
- Voltage12 V
Overview
- Noise
- 28 dB
- Type
- Air cooler
- Weight
- 182 g
- Colour
- Aluminium, Black
- Suitable location
- Processor
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- Alpine 12 LP
- Part number
- ACFAN00029A
- EAN / UPC
- 872767009370, 4895213701426
- Also known as
- ARCTIC Alpine 12 LP - Low Profile Intel CPU-Cooler
Specifications
26 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 9.2 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H) |
| Rotational speed (min) | 100 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (high speed) | 28 dB |
| Noise level | 0.3 sone |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black |
| Radiator material | Aluminum |
| Number of fans | 1 fan(s) |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.08 A |
| Thermal Design Power (TDP) | 75 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 95 mm |
| Height | 54 mm |
| Weight | 182 g |
| Package width | 96 mm |
| Package depth | 96 mm |
| Package height | 55 mm |
| Package weight | 211 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |
