7 X
Model 7 XPart no. ACFRE00077AEAN 840033400343
34 specifications
- Noise0.3 sone
- TypeAir cooler
- Weight425 g
- ColourAluminium, Black, White
- Suitable locationProcessor
- Voltage12 V
Overview
- Noise
- 0.3 sone
- Type
- Air cooler
- Weight
- 425 g
- Colour
- Aluminium, Black, White
- Suitable location
- Processor
- Voltage
- 12 V
- Brand
- ARCTIC
- Category
- Computer Cooling System
- Model
- 7 X
- Part number
- ACFRE00077A
- EAN / UPC
- 840033400343, 4895213702461
- Also known as
- ARCTIC Freezer 7 X - Compact Multi-Compatible CPU Cooler
Specifications
34 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 9.2 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2066, LGA 771 (Socket J), LGA 775 (Socket T), Socket AM3+, Socket AM4, Socket FM1, Socket FM2+ |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level | 0.3 sone |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
Design
| Specification | Value |
|---|---|
| Product colour | Aluminium, Black, White |
| Material | Plastic |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Number of fins | 44 |
| Fins material | Aluminium |
| Number of heat pipes | 2 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Voltage | 12 V |
| Rated current | 0.07 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110.5 mm |
| Depth | 74.3 mm |
| Height | 132.5 mm |
| Weight | 425 g |
| Heat pipes diameter | 6 mm |
| Fins thickness | 0.4 mm |
| Package width | 113 mm |
| Package depth | 107 mm |
| Package height | 145 mm |
| Package weight | 514 g |
Packaging content
| Specification | Value |
|---|---|
| Package type | Box |

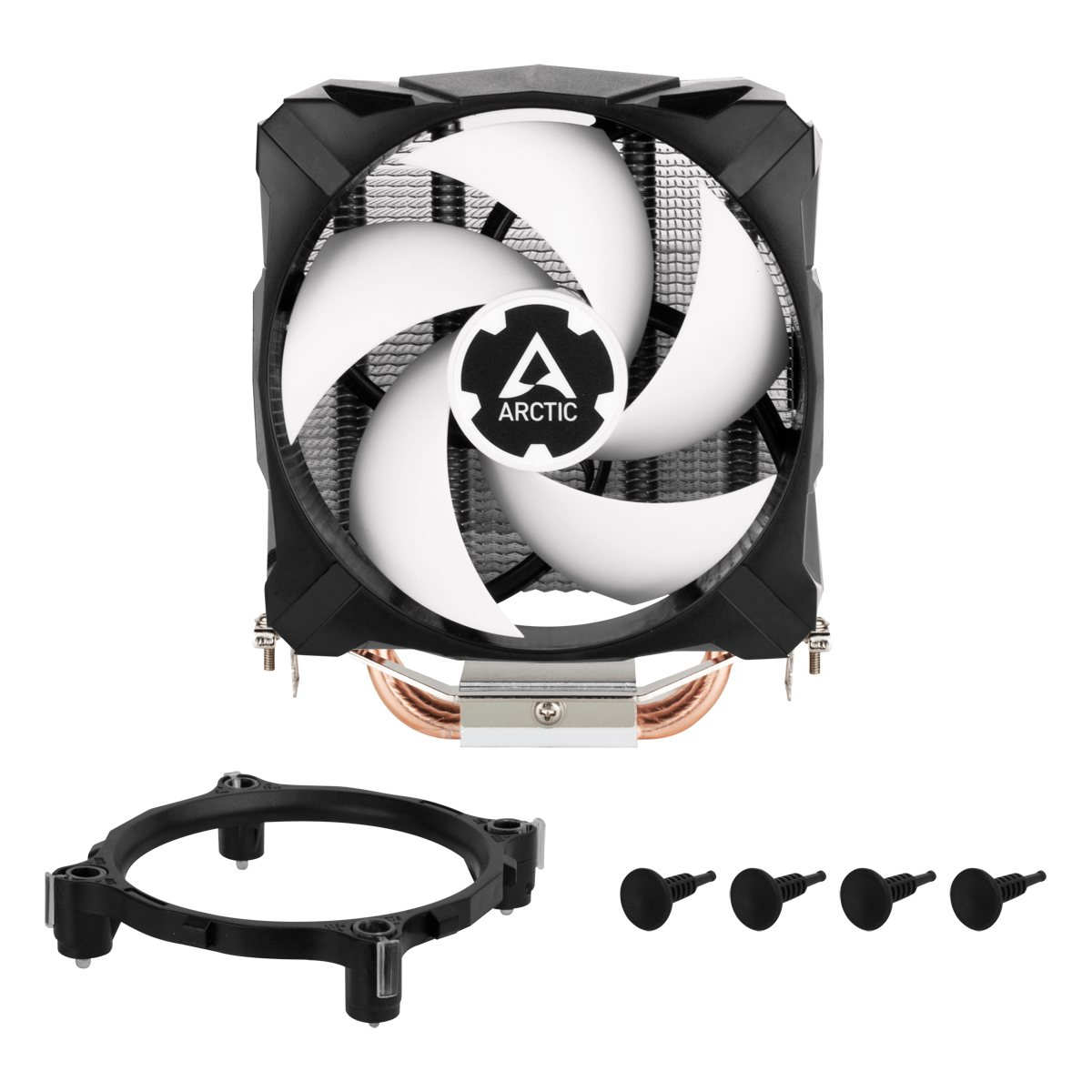

| Mounting kit | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
