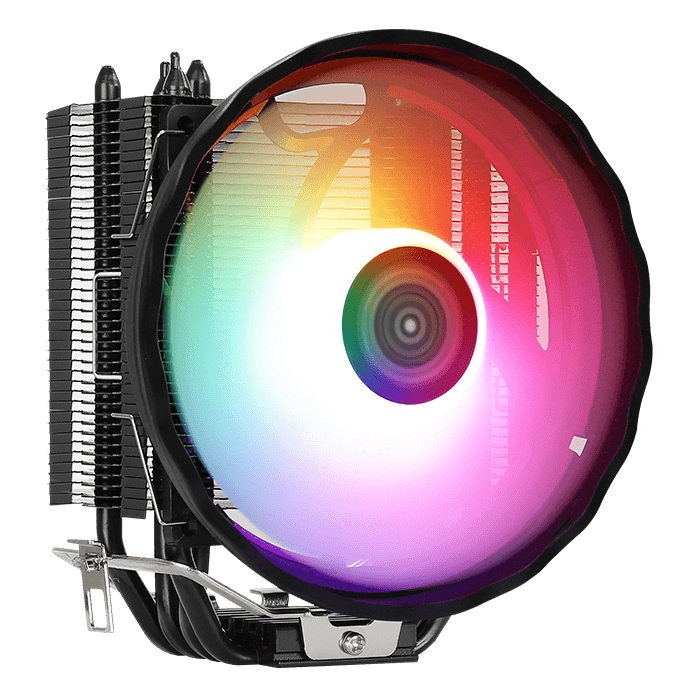

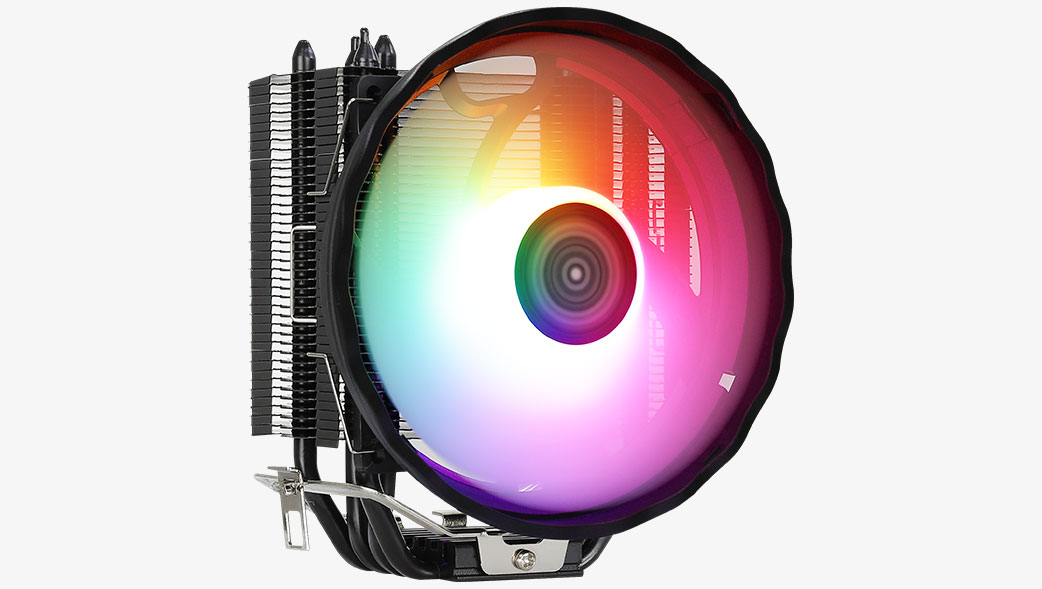

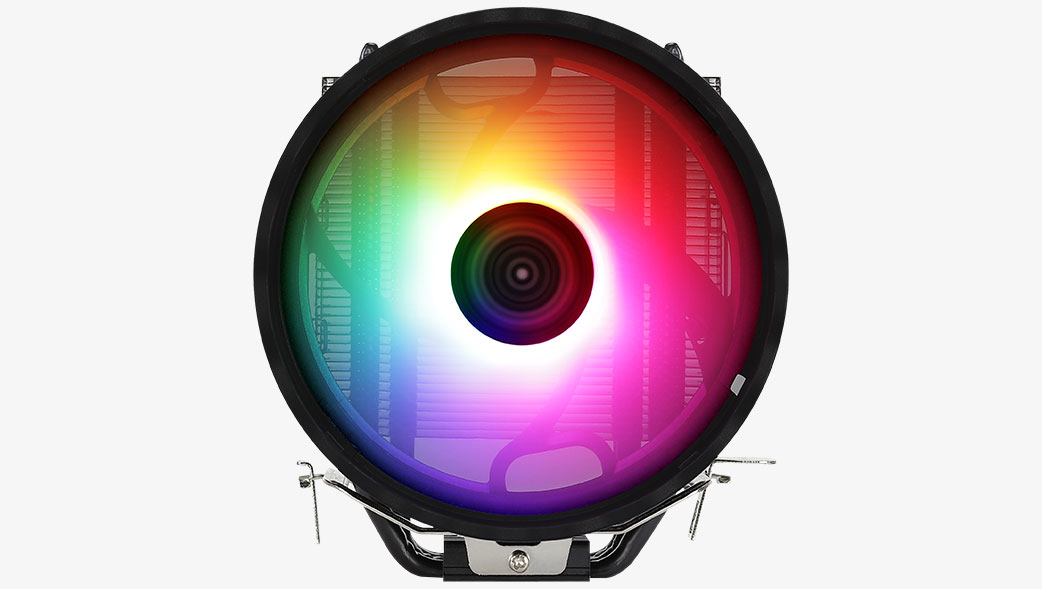

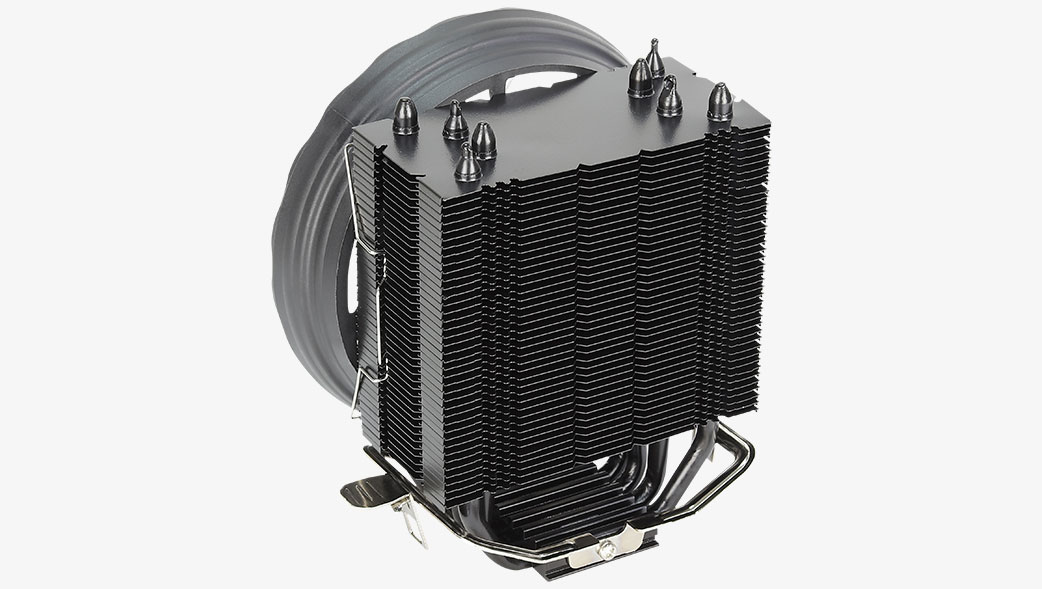

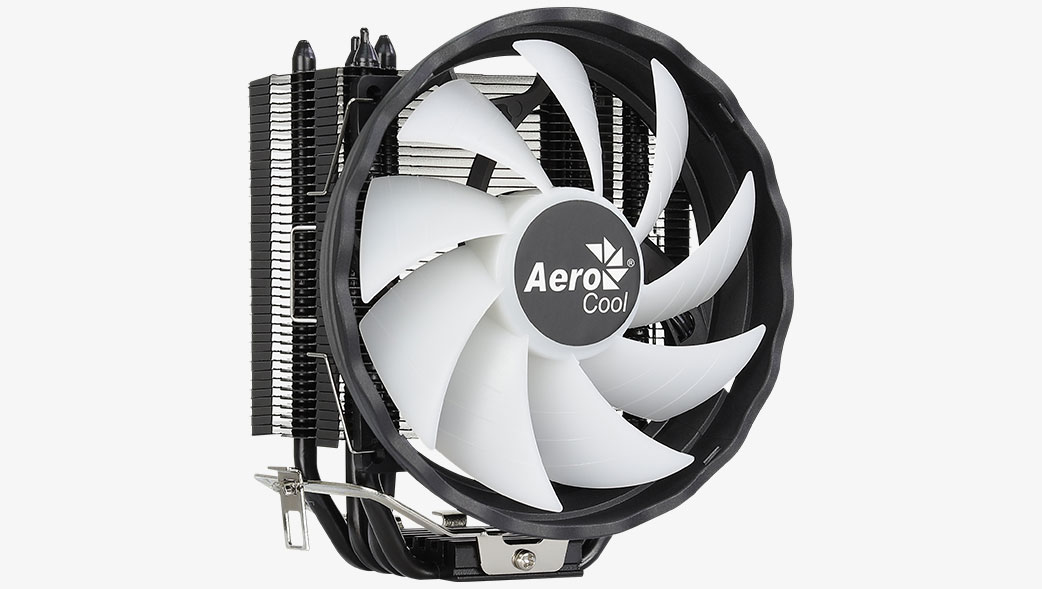

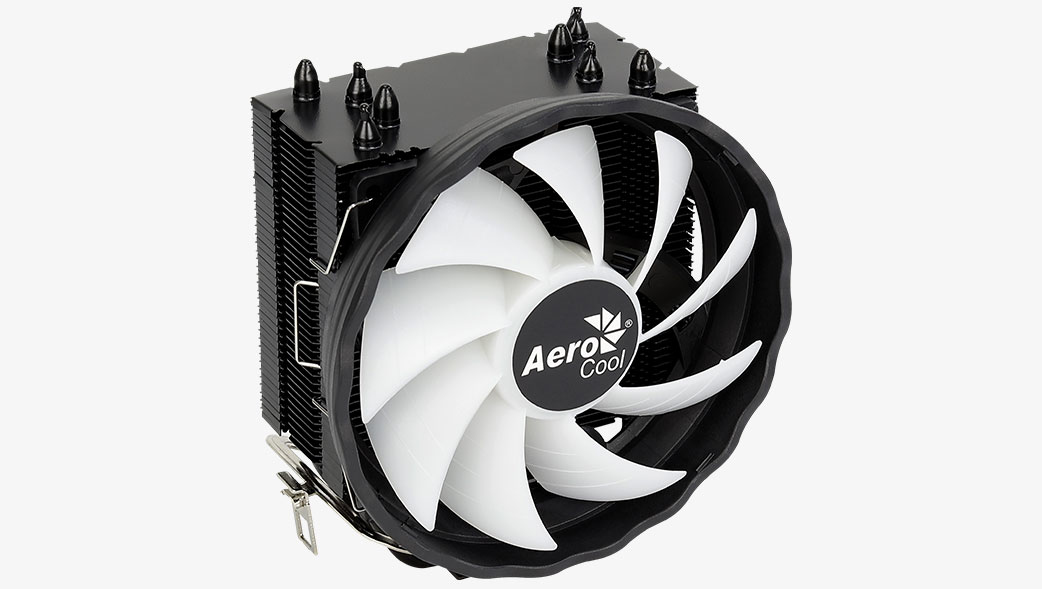

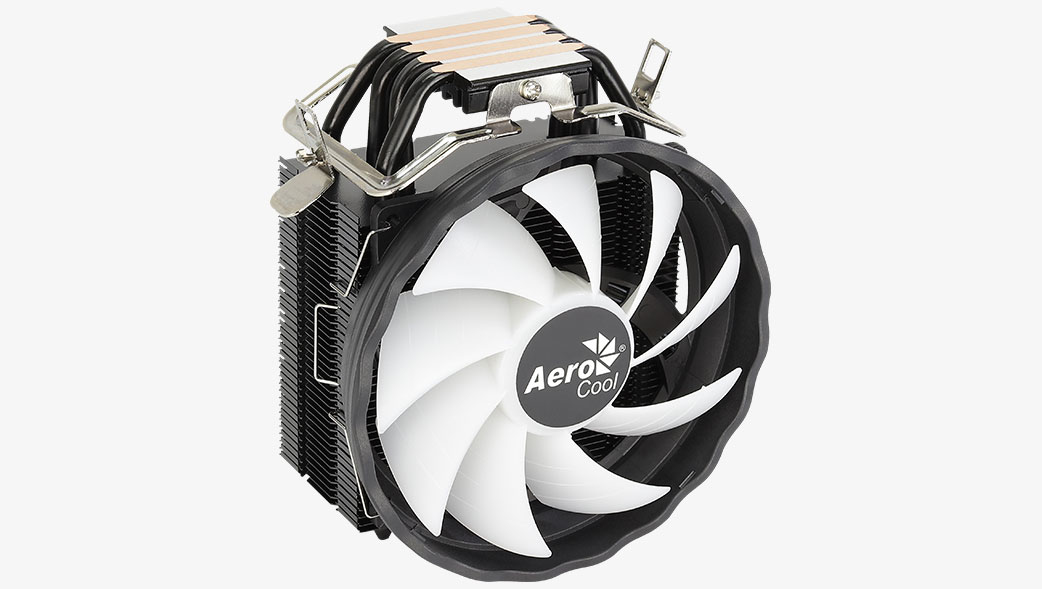

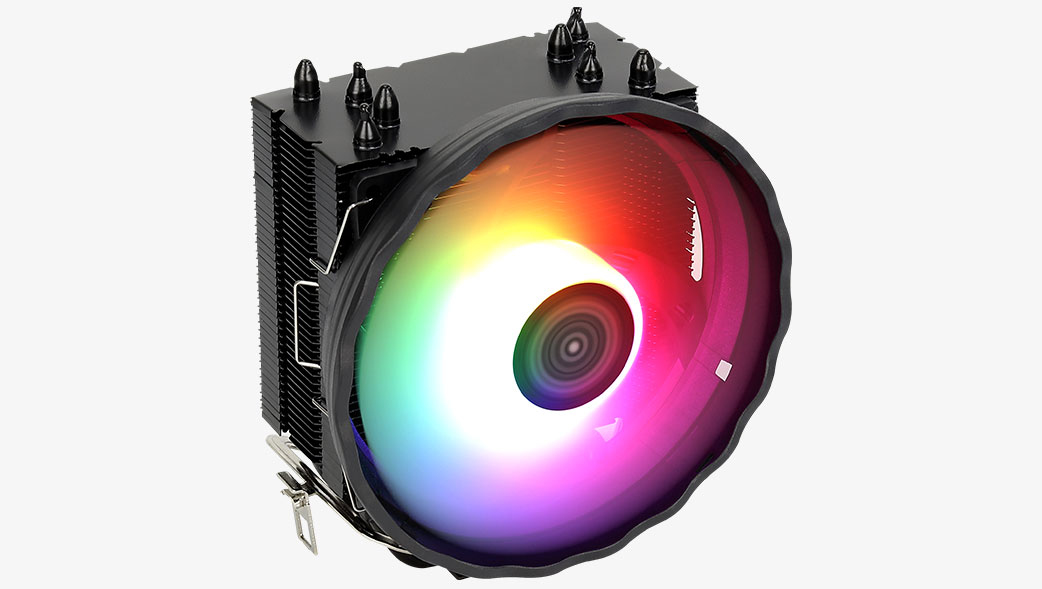

Rave 4 ARGB
Model Rave 4 ARGBPart no. ACTC-RV30417.01EAN 4711099472253
28 specifications
- Noise18 dB
- TypeAir cooler
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)6 W
- Width125 mm
Overview
- Noise
- 18 dB
- Type
- Air cooler
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 6 W
- Width
- 125 mm
- Brand
- Aerocool
- Category
- Computer Cooling System
- Model
- Rave 4 ARGB
- Part number
- ACTC-RV30417.01
- EAN / UPC
- 4711099472253
- Also known as
- Aerocool Rave 4 ARGB Processor Air cooler 12 cm Black
Specifications
28 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Noise level (low speed) | 18 dB |
| Noise level (high speed) | 27 dB |
| Maximum airflow | 58 cfm |
| Minimum air pressure | 0.6 mmH2O |
| Maximum air pressure | 1.6 mmH2O |
| Bearing type | Hydraulic |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 900 RPM |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium |
| Fins material | Aluminium |
| Number of heat pipes | 4 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
| Rated current | 0.5 A |
| Thermal Design Power (TDP) | 130 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 80 mm |
| Height | 135 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
